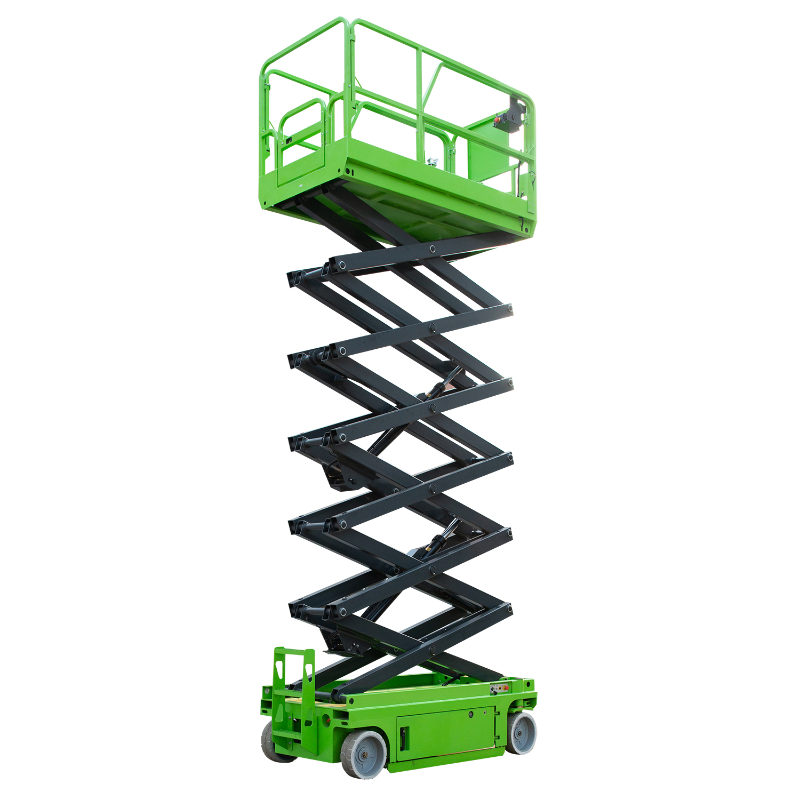

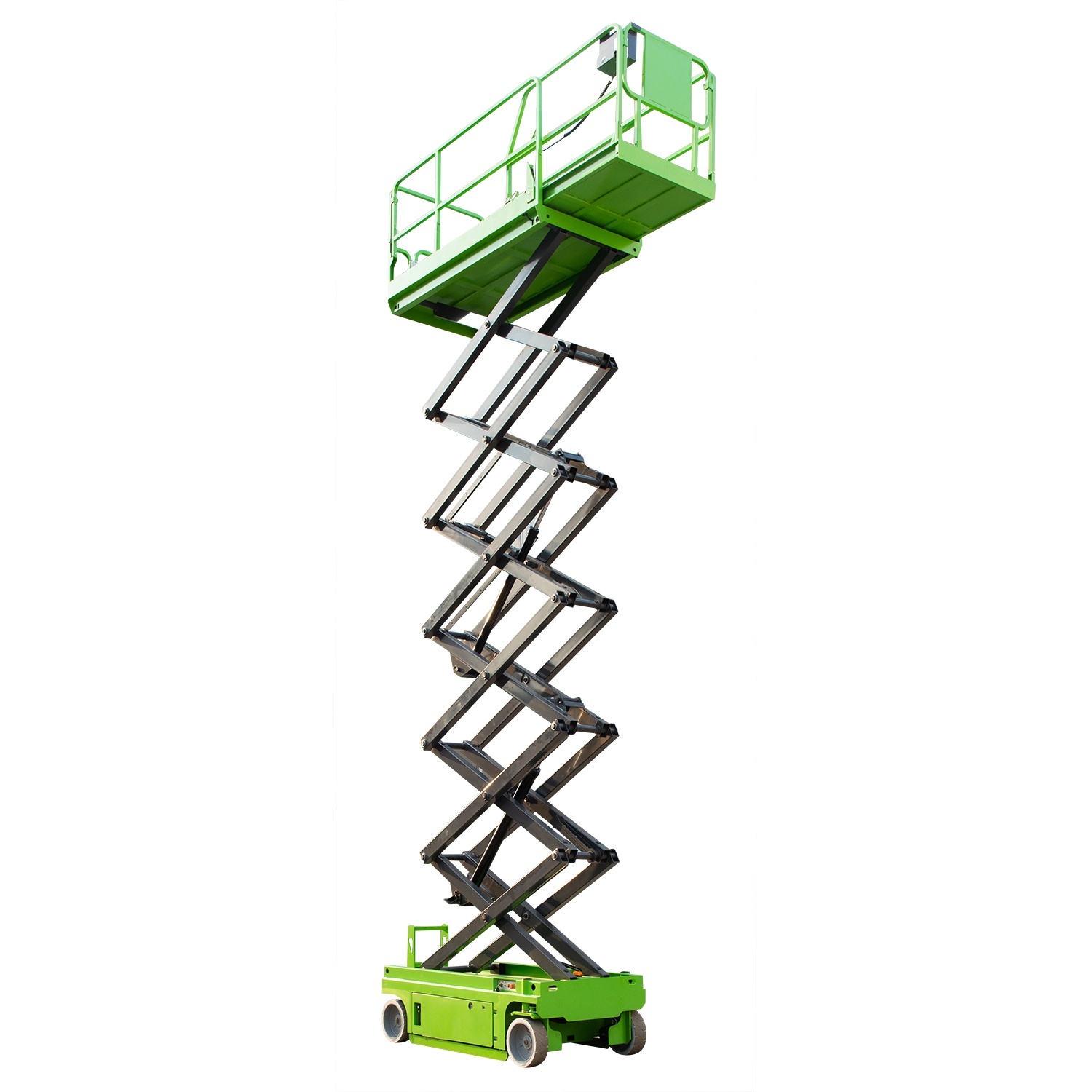

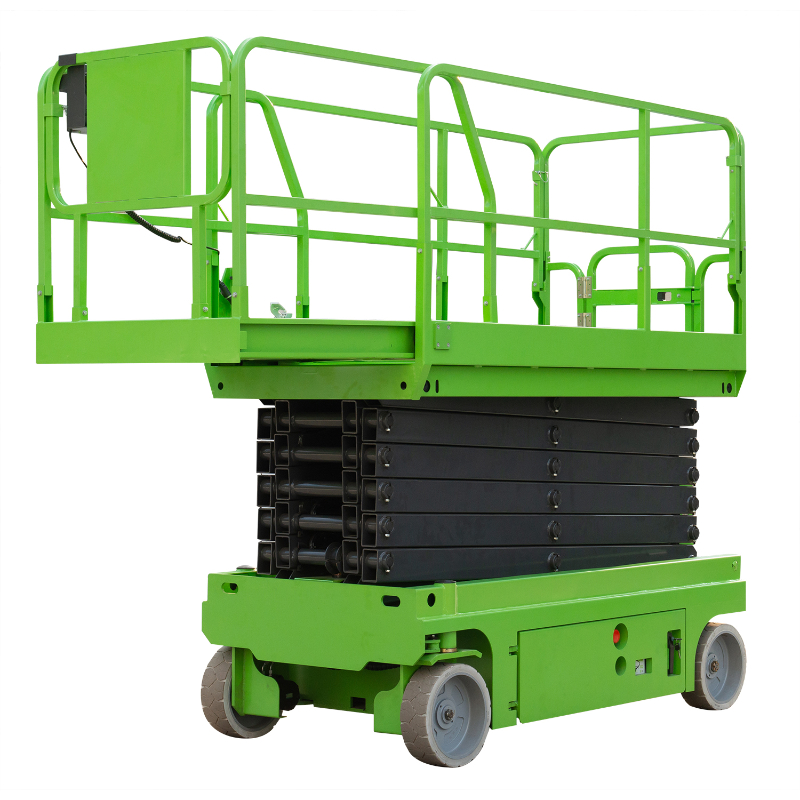

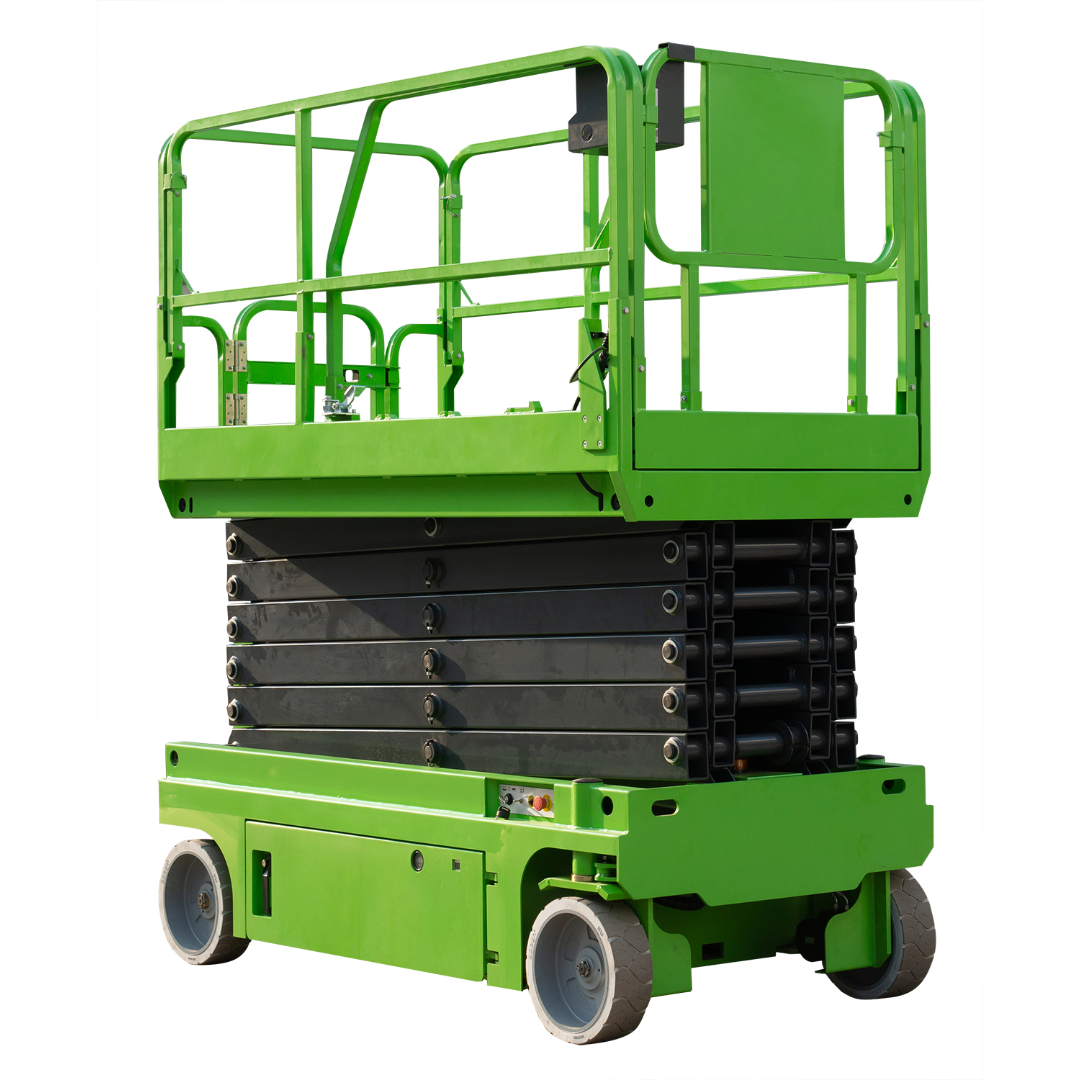

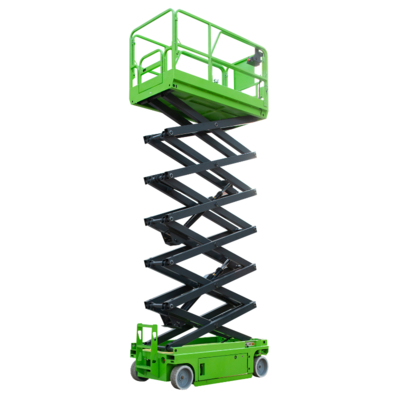

320kg Self Propelled Scissor Lift With Extension Working Platform

320kg Self Propelled Scissor Lift With Extension Working Platform

  • 320kg Self Propelled Scissor Lift With Extension Working Platform
  • 320kg Self Propelled Scissor Lift With Extension Working Platform
  • 320kg Self Propelled Scissor Lift With Extension Working Platform
  • 320kg Self Propelled Scissor Lift With Extension Working Platform
  • 320kg Self Propelled Scissor Lift With Extension Working Platform
  • 320kg Self Propelled Scissor Lift With Extension Working Platform
320kg Self Propelled Scissor Lift With Extension Working Platform
Product Details:
Place of Origin: China
Brand Name: Bestmax
Certification: CE ISO9001:2008 IPAF member
Model Number: MX1200S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wrapped in pallets/ wooden case
Delivery Time: 30 days after receipt of deposit
Supply Ability: 100 set/ month
Contact Now
Detailed Product Description
Model: MX1200S Lift Capacity: 320kg
Platform Height Max: 11.8m Working Height Max: 13.8m
Platform Size: 2.27*1.12m Weight: 2830kg
Color: Customizable Lift/Drive Motor: 24V/4.5kw
Power Source: 4*6V/260Ah Feature: Explosion-Proof
High Light:

self propelled work platform

,

scissor lift self propelled



11.80m Platform 320kgSelf-Propelled Scissor Lift with 2 People Occupation

Description

Self-Propelled Scissor Lift is a convenient tools for the daily using. Compare to the Mobile Scissor Lift,all the moving, turning, lifting and descending can be controlled on the platform. Even in its lifted status it also can move which saves a lot of time. The operation of the self-propelled scissor lift is also easy, all the movement all have the corresponding keys in the ground control panel. The control system we are using world reputed brand as it is the CPU for the Self-propelled Scissor Lift which must have good performance.


Major Parameters:


Model MX1200S
Working height max (m) 13.8
Platform height max (m) 11.8
Slide-out platform extention deck (m) 0.9
Lift capacity (kg) 230
Lift capacity (kg) (Platform extended) 113
Weight (kg) CE / AUS Standard 2820
Platform size (L×W) (m) 2.27*1.12
Platform length extended (m) 3.17
Stowed size (L×W) (m) 2.43*1.15
Stowed height (m) 2.55
Hydraulic system capacity (L) 20
Gradeability 0.25
Ground clearance (m) 0.1
Ground clearance (m) (pothole guards deployed) 0.019
Platform occupancy max 2
Raise / Lower time (s) 70/45
Maximum Working Slope 1.5°/3°
Lifting Motor Power 4.5Kw
Power source 4×6V/260Ah
Tire size (mm) Ф380*129


Application Site:

Xunte Brand Self-Propelled Scissor Lift is widely applied in Work Shop, airport, metro station and shopping mall.

Machine Features:

1. Battery Operated with Hydraulic Drive Motor
2. Extension Platform to reach the site quickly
3. Fork Lift Slots for easy transportation
4. Automatic display of falut code for easy maintenance
5. Low Noise, Non-Pollution and Strong Adapbility for various using sites


Safety Features:

1. Auxiliary Lowering Devices
2. Anti-burst System
3. Emergency Stop Button
4. Tilting Protection System
5. Charging Protection System
6. Automatic Pothole Protection
7. Automatic Braking System
8. Buzzer and Horn


320kg Self Propelled Scissor Lift With Extension Working Platform 0



Why choose Bestmax Self-Propelled Aluminum Aerial Work Platform?
· High Quality product
· Reasonable Price
· Easy payment mode
· Timely delivery
· Good after Service
· Client-centric approach
· One year warranty

Competitive Advantage:

· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 10 Years Experience

Communication with Customers

A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?
B: The main difference is from the structure and the material
The scissor lift is in scissor structure with steel material
The aerial work platform is in mast structure with aluminum material

A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

  • Strict quality control system on the whole process of production
  • Imported key arts to ensure the high quality of our products
  • Advanced equipment and tools for examination and quality control
  • 100% strict examining products before shipment
  • All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.


A: What is the delivery time for your goods?
B: it is 30days after order confirmation

A: How long is your quality guarantee period?
B: We have one year warranty.

Thank you for your reading and welcome your inquiry. We will respond you as soon as possible.
