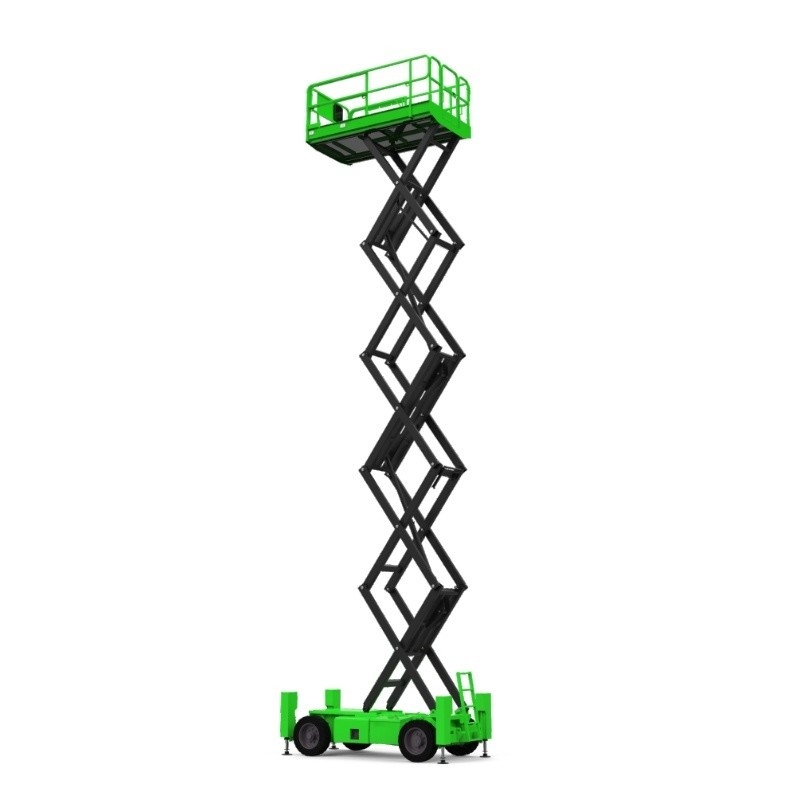

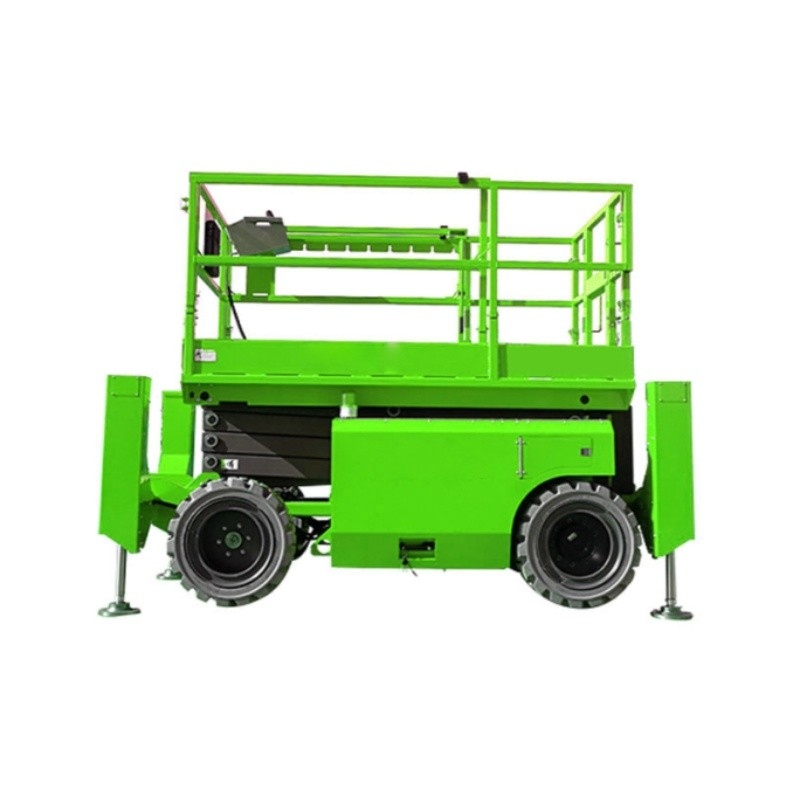

Engineered to thrive in the most demanding outdoor environments, our Self-Propelled Rough Terrain Scissor Lift delivers powerful performance and cutting-edge safety to elevate your operations with confidence and control.
Exceptional Reach & Capacity: Designed to support multiple operators and heavy equipment, making it ideal for intensive, high-elevation tasks.
All-Terrain Mobility: Equipped with rugged 4-wheel drive and up to 35% gradeability, it effortlessly handles uneven, sloped, and rough surfaces.
Expanded Platform Workspace: Features a large, extendable platform that provides generous space for tools, materials, and personnel.
Advanced Safety Systems: Includes tilt sensors with audible alarms, emergency lowering functions, and foldable guardrails to ensure maximum operator safety at any height.
Intuitive Controls: Proportional joystick controls and an onboard diagnostic system offer smooth operation and simplified troubleshooting.
Built to Last: Constructed with heavy-duty rough terrain tires and a reinforced chassis for reliable performance in the harshest working conditions.
Ideal for construction, industrial maintenance, and outdoor installation projects, this scissor lift is your dependable partner for safe, efficient, and elevated productivity—no matter the terrain.
Specification:
Model | MRT800 | MRT1000 | MRT1200 | MRT1300 | MRT1600 |
Max Working Height | 10m | 12m | 14m | 15m | 18m |
Max Platform Height | 8m | 10m | 12m | 13m | 16m |
Max Outreach | 1.5m | 1.5m | 1.5m | 1.2m | 1.2m |
Length-PLatform Extended | 4m | 4m | 4m | 6.3m | 6.3m |
Length with Outreach | 3.23m | 3.23m | 3.23m | 4.88m | 4.88m |
Width Stowed | 1.81m | 1.81m | 1.81m | 2.3m | 2.3m |
Height Stowed(guardrails unfolded) | 2.62m | 2.74m | 2.87m | 2.99m | 3.26m |
Height Stowed(guardrails folded) | 1.91m | 2.04m | 2.16m | 2.19m | 2.47m |
Wheelbase | 1.89m | 1.89m | 1.89m | 2.97m | 2.97m |
Ground Clearance | 0.31m | 0.31m | 0.31m | 0.32m | 0.32m |
Platform Size | 2.5*1.6*1.15m | 2.5*1.6*1.15m | 2.5*1.6*1.15m | 3.9*1.9*1.15m | 3.9*1.9*1.15m |
Skirting Board Height | 0.15m | 0.15m | 0.15m | 0.15m | 0.15m |
Lifting Capacity | 567kg | 454kg | 345kg | 680kg | 680kg |
Extension Lifting Capacity | 136kg | 136kg | 136kg | 230kg | 230kg |
Drive Speed(Stowed) | 4.5km/h | 4.5km/h | 4.5km/h | 4.5km/h | 4.5km/h |
Drive Speed(Raised) | 0.7km/h | 0.7km/h | 0.7km/h | 0.7km/h | 0.7km/h |
Rising Time | 40s | 45s | 50s | 68s | 75s |
Lowering Time | 35s | 37s | 42s | 50s | 55s |
Gradeability | 35% | 30% | 30% | 45% | 45% |
Turning Radius | 1.58m/3.89m | 1.58m/3.89m | 1.58m/3.89m | 2.72m/5.9m | 2.72m/5.9m |
Tilt Sensor-Front to Back | 3° | 3° | 3° | 3° | 3° |
Tilt Sensor-Side to Side | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° |
Tire Specification | 675*280mm | 675*280mm | 675*280mm | 33*12-20solid tire | 33*12-20solid tire |
Outrigger Level Ability-Front to Back | 6.6° | 6.6° | 6.6° | 7° | 7° |
Outrigger Level Ability-Side to Side | 10.6° | 10.6° | 10.6° | 11° | 11° |
Drive Mode | Electric Drive,4WD*2WS | Electric Drive,4WD*2WS | Electric Drive,4WD*2WS | Electric Drive,4WD*2WS | Electric Drive,4WD*2WS |
Power Unit Motor | 48V/4.5kw | 48V/4.5kw | 48V/4.5kw | 48V/4.5kw | 48V/4.5kw |
Hydraulic Tank Capacity | 68L | 68L | 68L | 120L | 120L |
Battery Specification | 235Ah | 235Ah | 235Ah | 235Ah | 235Ah |
Control Voltage | 24V | 24V | 24V | 48V | 48V |
Charger | 90-264V/40A | 90-264V/40A | 90-264V/40A | 48V/40A | 48V/40A |
Weight(with Outriggers) | 4170kg | 4440kg | 5480kg | 8103kg | 9010kg |
Company Introduction
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
