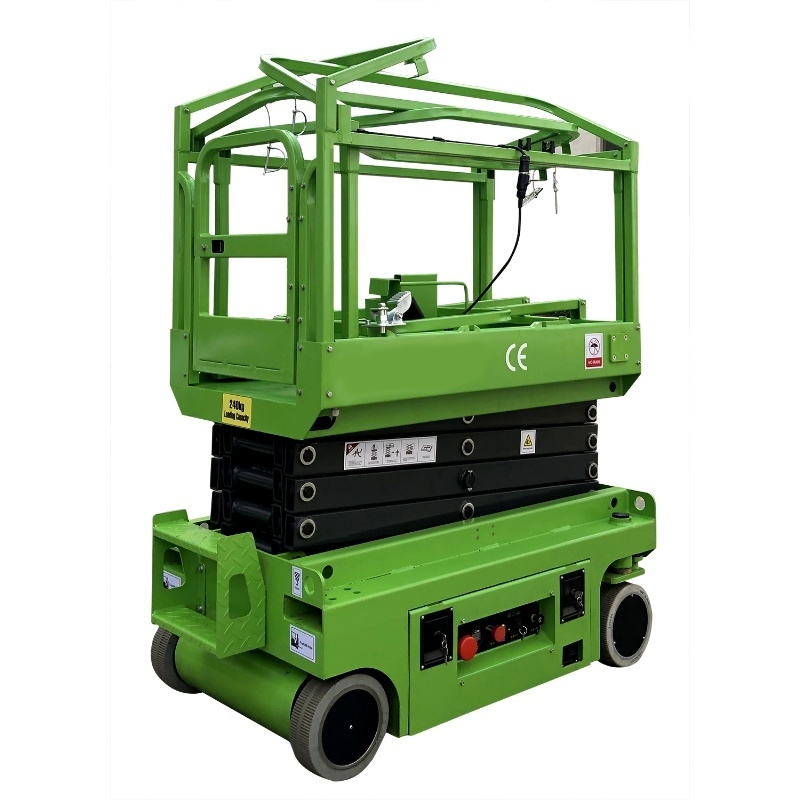

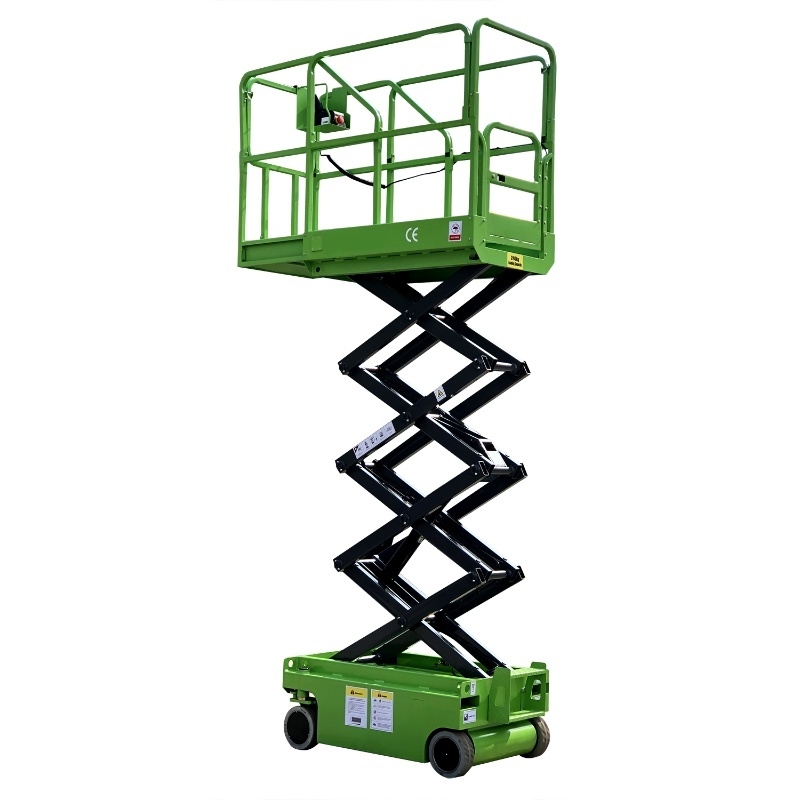

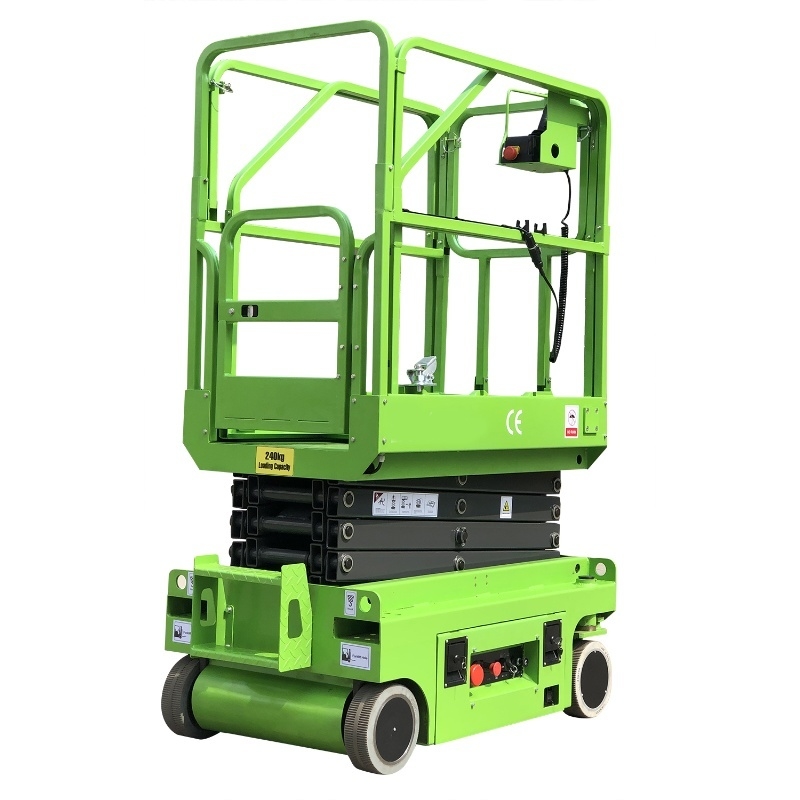

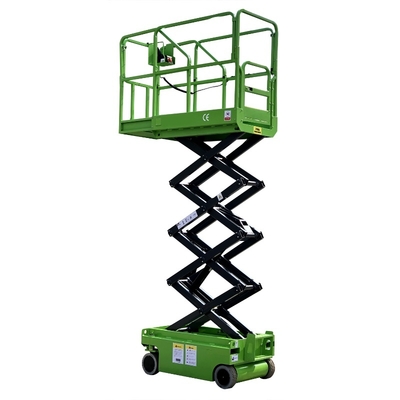

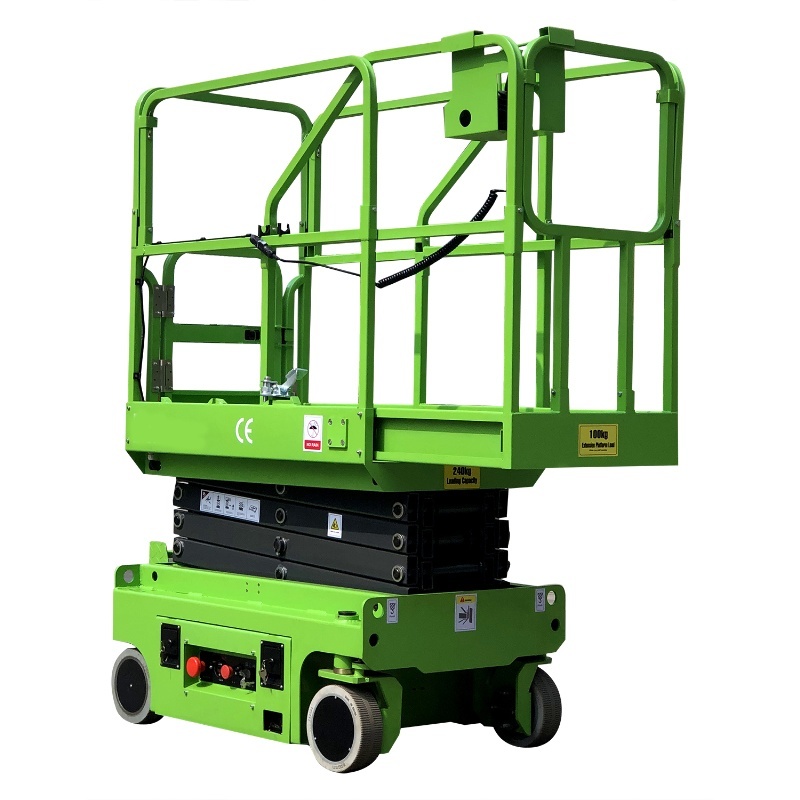

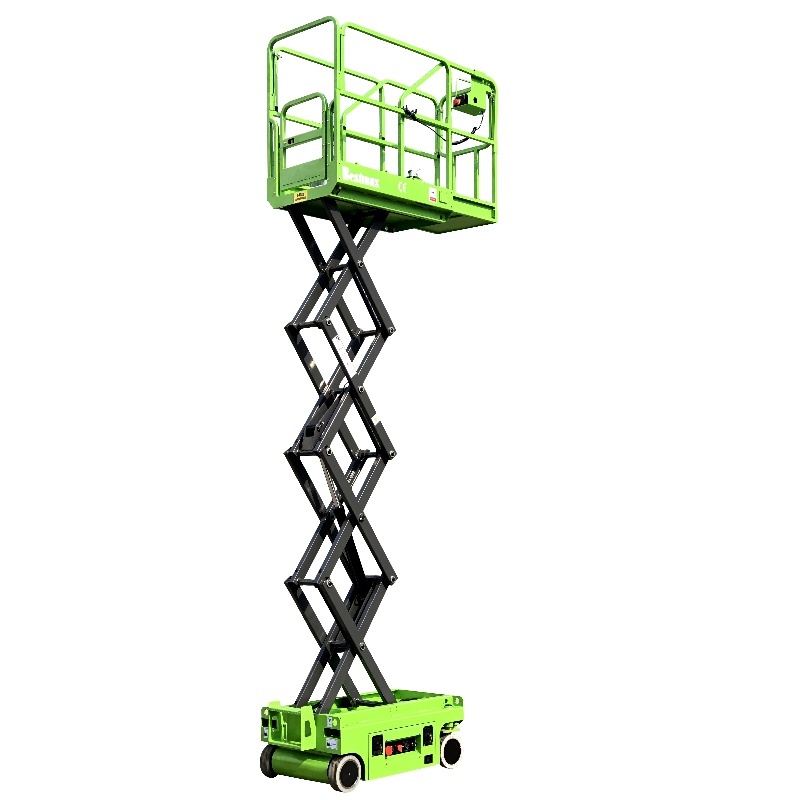

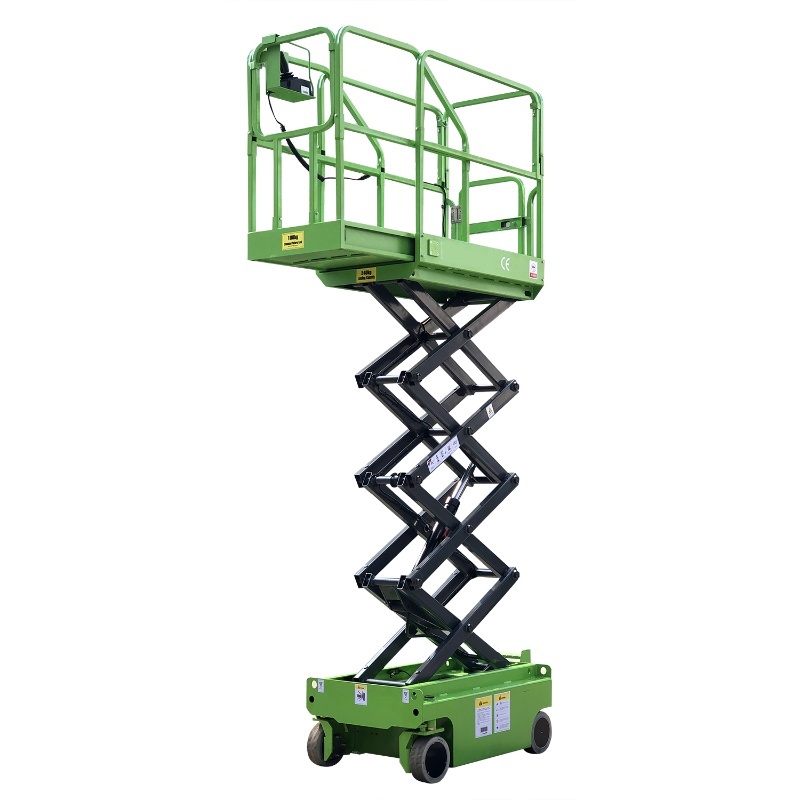

Mini Self-propelled Scissor Lift 3 Meters For Aerial Work With Hydraulic Turning Wheel

Mini Self-propelled Scissor Lift 3 Meters For Aerial Work With Hydraulic Turning Wheel
Mini Self-propelled Scissor Lift 3 Meters For Aerial Work With Hydraulic Turning Wheel

Large Image :  Mini Self-propelled Scissor Lift 3 Meters For Aerial Work With Hydraulic Turning Wheel

Product Details:

Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: MX300S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: T/T or L/C
Supply Ability: 100 sets/month
Detailed Product Description
Name: Self-propelled Scissor Lift Application: Aerial Working Platform
Rated Loading Capacity: 240kg Lifting Height: 3m
Working Height: 5m Platform Size: 1.15*0.70m
High Light:

self propelled lift

,

scissor lift self propelled



Mini Self-propelled Scissor Lift 5 Meters Working Height For Aerial Work



Mini Self Propelled Scissor Lift is widely used in warehouse, supermarket and more (the place with narrow space) becuase of its small size. The simple structure make it much easier to operate and maintenance.

It moves and lifts all by battery power. Operator on platform can control lifting, moving, turning and all movement.



Specification

Model MX300R MX390R
Load 240 kg 240 kg
Platform Height 3 m 3.9 m
Working Height 5 m 5.9 m
Platform Size 1.15* 0.6 m (No Extension)
1.15* 0.7 m (With Extension)
1.15* 0.6 m (No Extension)
1.15* 0.7 m (With Extension)
Optional Configuration:
Extension Platform
Extension Length: 0.55 m
Extension Load: 100 kg
Extension Length: 0.55 m
Extension Load: 100 kg
Lift/Drive Motor 24v 0.8kw/ 24v 0.3 kw 24v 0.8kw/ 24v 0.3 kw

2 Wheel Type: Swivel Wheel Type and Hydraulic Turning Wheel Type( more easily turning)



Configuration:

Mini Self-propelled Scissor Lift 3 Meters For Aerial Work With Hydraulic Turning Wheel 0



Machine Features:
1. Battery Operated with Hydraulic Drive Motor
2. Extension Platform to reaach the site quickly
3. Fork Lift Slots for easy transportation
4. Automatic display of falut code for easy maintanence
5. Low Noise, Non-Pollution and Strong Adapbility for varous using sites



Safety Features:
1. Auxiliary Lowering Devices
2. Anti-burst System
3. Emergency Stop Button
4. Tilting Protection System
5. Charging Protection System
6. Automatic Pothole Protection
7. Automatic Braking System
8. Buzzer and Horn



Applications:

1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.
