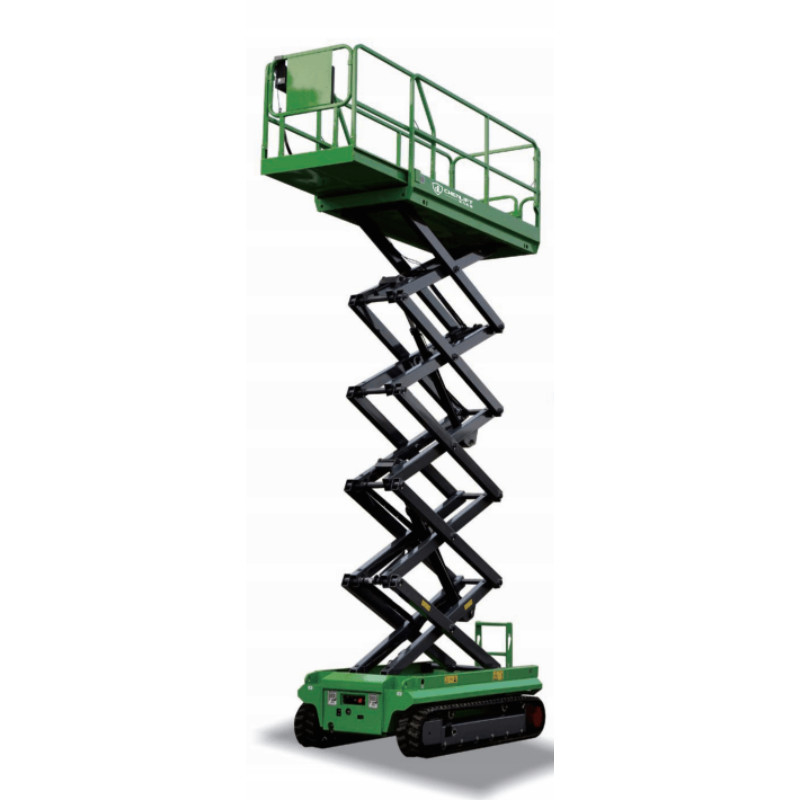

MC1000 12m Working Height Crawler Self-propelled Scissor Lift

Basic Information
Place of Origin: China
Brand Name: CHENLIFT
Certification: CE
Model Number: MC1000
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 200 sets/month
Detail Information
Highlight:

forklift clamp attachment

,

forklift drum attachment


Product Description

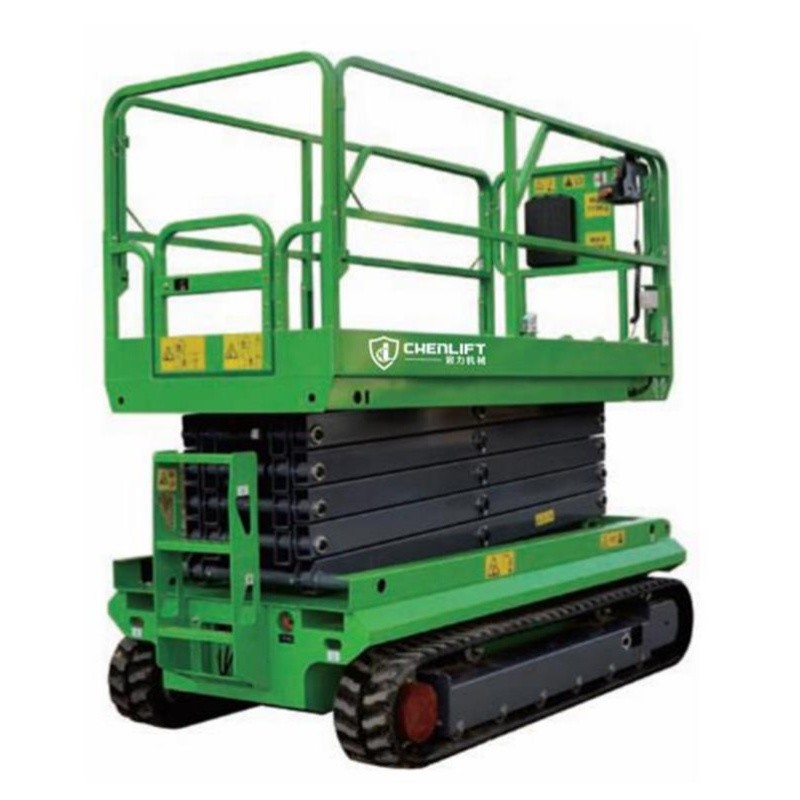

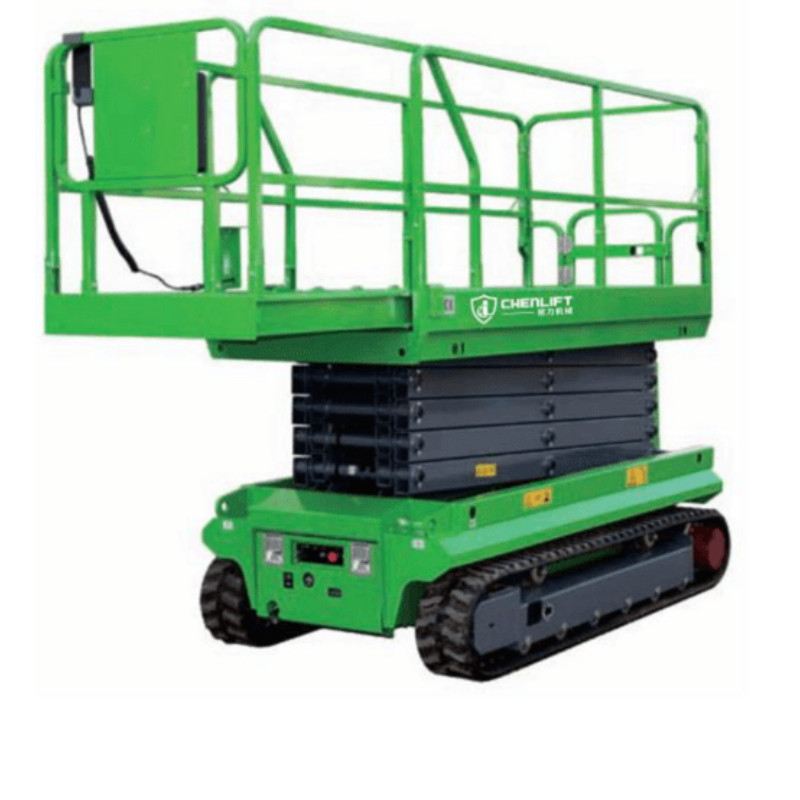

Track Crawler Self-Propelled Scissor Lift (Battery Powered)

The Track Crawler Scissor Lift is a self-propelled, battery-powered aerial work platform designed for outdoor use on rough, muddy, or uneven terrain. With rubber tracks and strong off-road capability, it ensures smooth movement and stable lifting even in challenging environments. One operator can drive and control the lift directly from the platform, improving efficiency and safety.

Key Features:

  • All-terrain rubber crawler tracks – Excellent traction on mud, gravel, and slopes

  • Self-propelled control – Operate and drive the lift from the platform

  • Battery-powered – Quiet, zero-emission, and suitable for indoor/outdoor use

  • Compact design – Fits through standard doors and narrow spaces

  • No outriggers needed – Stable performance without additional support

Ideal For:

  • Construction sites – Reach high areas for building and installation tasks

  • Warehouses – Navigate narrow aisles for inventory access

  • Equipment maintenance – Access hard-to-reach machinery

  • Building cleaning – Safe and efficient for facade cleaning and repairs

Choose our crawler scissor lift for reliable performance, flexible operation, and strong adaptability across various job sites.


Specification:
Model MC450 MC600 MC800 MC1000
Load Capacity 200kg 450kg 450kg 320kg
Extension Capacity 100kg 113kg 113kg 113kg
Occupants 1 2 2 2
Maximum Working Height 6.5m 8m 10m 12m
Maximum Platform Height 4.5m 6m 8m 9.75m
Overall Length ( Including ladder) 1410mm 2470mm 2470mm 2470mm
Overall Length ( Excluding ladder) 1340mm 2280mm 2280mm 2280mm
Overall Width 782mm 1390mm 1390mm 1390mm
Overall Height (Guardrail unfolded) 2070mm 2280mm 2400mm 2530mm
Overall Height (Guardrail folded) 1683mm 1745mm 1865mm 1995mm
Platform Size 1340*760mm 2270*1120mm 2270*1120mm 2270*1120mm
Platform Extension Size 500mm 900mm 900mm 900mm
Minimum Turning Radius 0m 0m 0m 0m
Lifting Motor 24V/12Kw 48V/4.5Kw 48V/4.5Kw 48V/4.5Kw
Traveling Motor 2*24V/12Kw 2*48V/4Kw 2*48V/4Kw 2*48V/4Kw
Machine Running Speed 1.7Km/h 2.4Km/h 2.4Km/h 2.4Km/h
Rising/Descending Speed 24/20sec 38/30sec 45/36sec 70/62sec
Batteries 2*12v/120Ah 8*6V/200Ah 8*6V/200Ah 8*6V/200Ah
Charger 24V/15A 48V/25A 48V/25A 48V/25A
Gradeability 0.3 0.3 0.3 0.3
Max.Working Slope 1.5°/3° 1.5°/3° 1.5°/3° 1.5°/3°
Overall Weight 790kg 2400kg 2550kg 2840kg

MC1000 12m Working Height Crawler Self-propelled Scissor Lift 0
