CHENLIFT (SUZHOU) MACHINERY CO., LTD.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Bestmax |
| Certification: | CE |
| Model Number: | MX1000S |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wrapped in pallets/ wooden case |
| Delivery Time: | 30 days |
| Supply Ability: | 80 sets per month |
| Laoding: | 320Kg | Exension Load Capacity: | 113kg |
|---|---|---|---|
| Max Worker Number: | 2 | Working Height: | 12m |
| Platform Height: | 10m | Measurement: | 2.43*1.15*1.91m |
| Platform Size: | 2.27*1.12m | Extension Platform: | 0.9m |
| Weight: | 2468kg | Power Source: | 4*6V/240Ah |
| Highlight: | self propelled work platform,scissor lift self propelled |
||

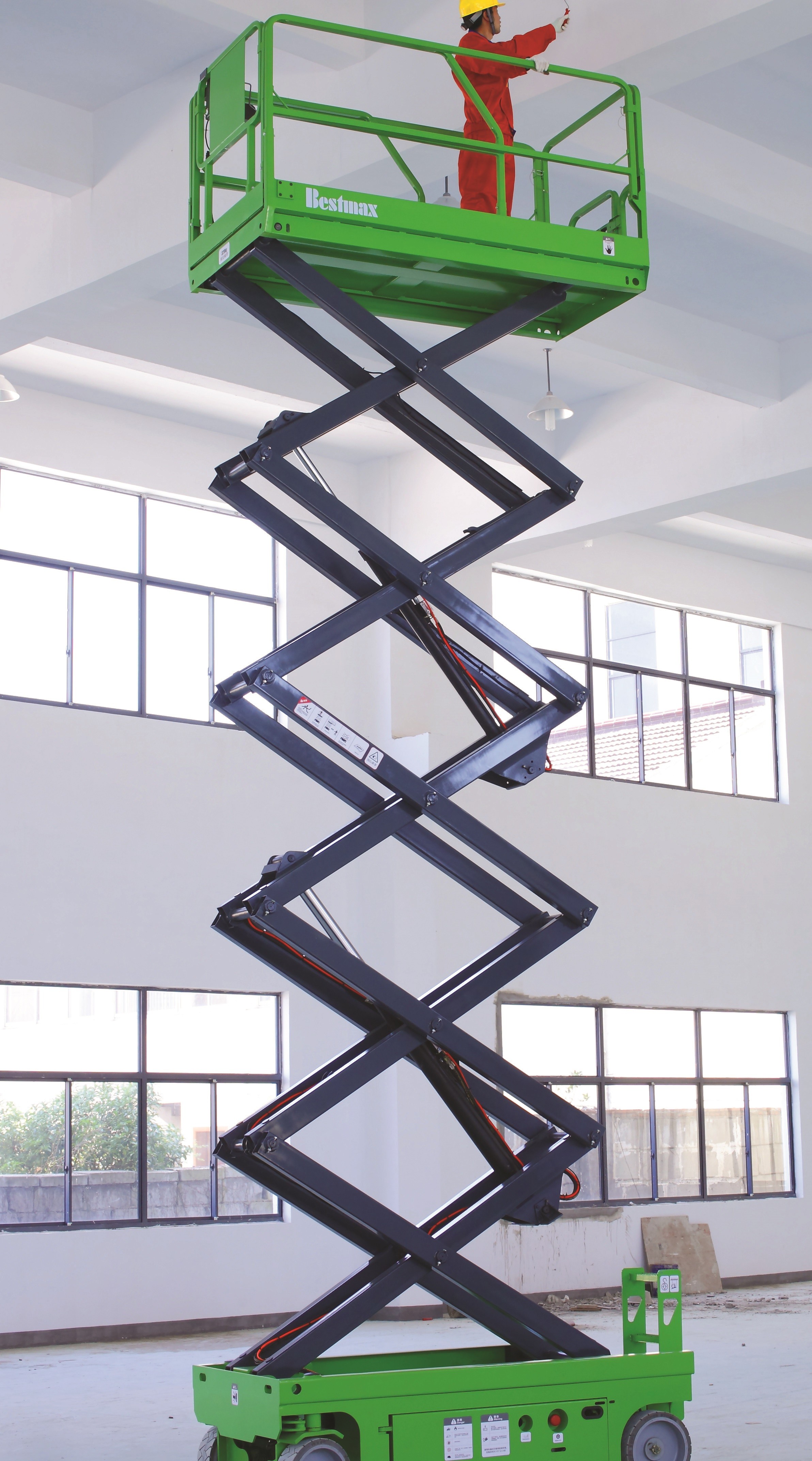

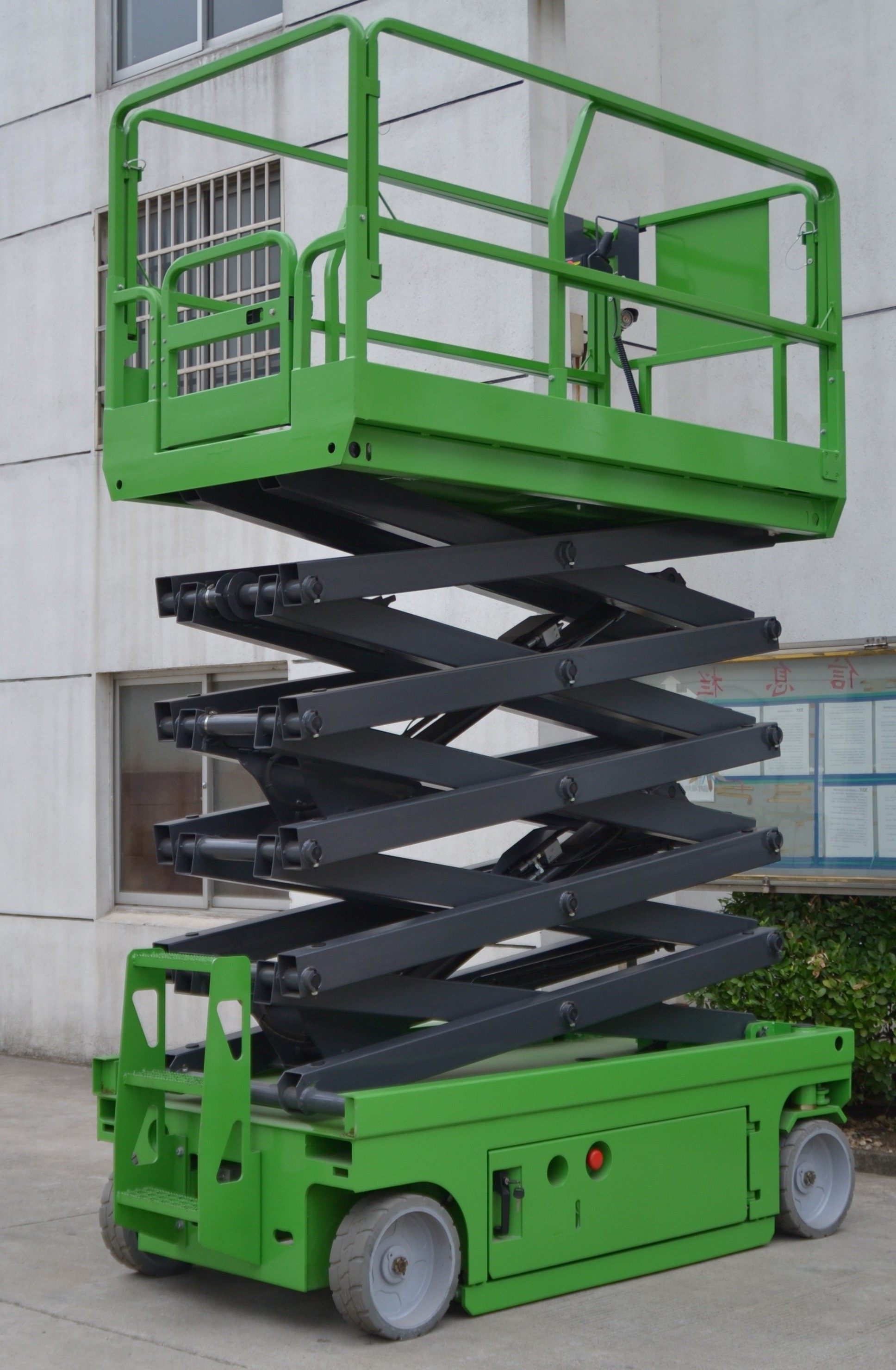

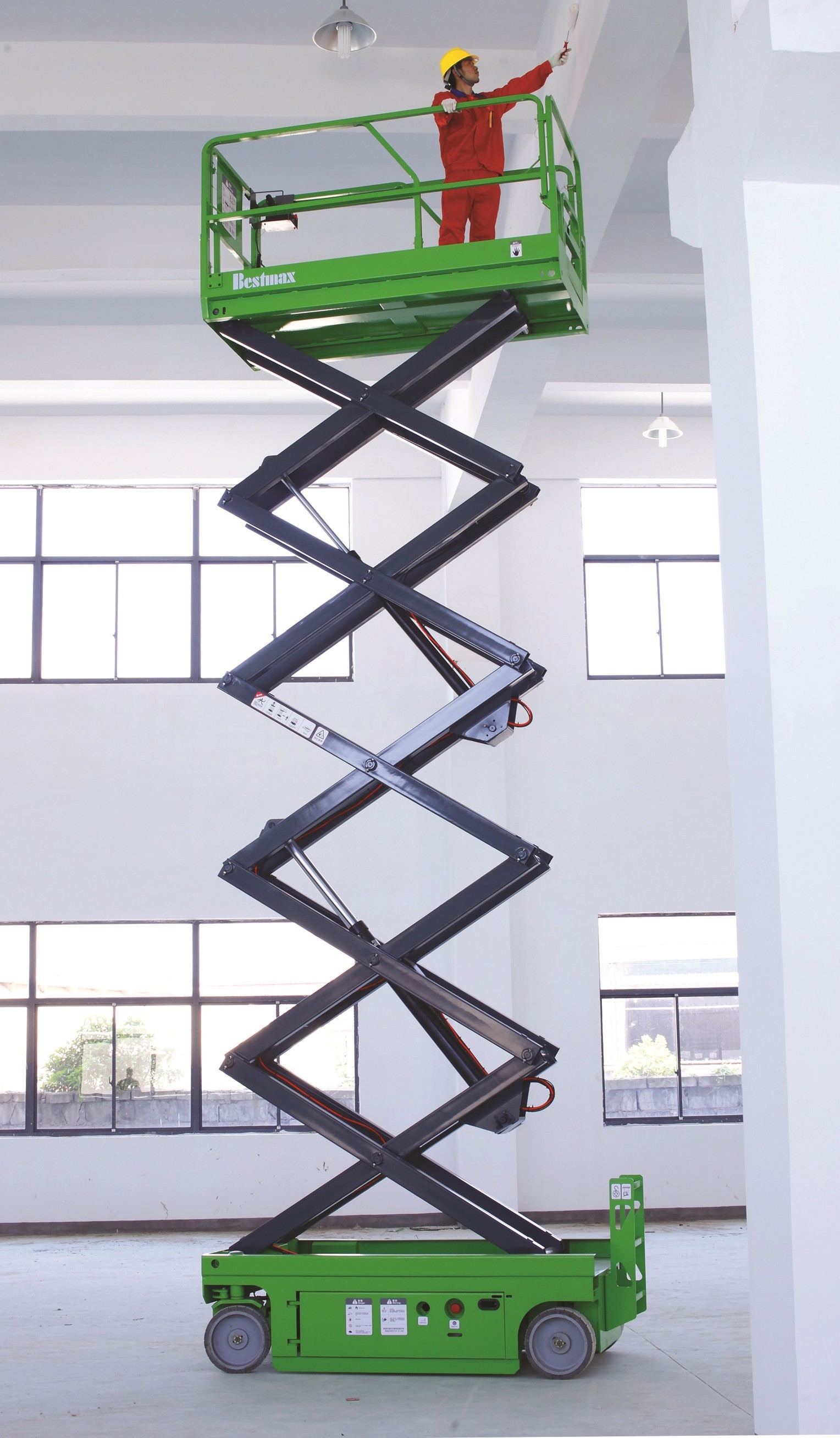

12m Electric Self-propelled Scissor Lift with Extension Platform
Description:
As safety is always the matter for all the lifting machines especially for the self-propelled scissor lift. To prevent tilting, if the self-propelled scissor lift is in lifted status, the driving speed shall be limited in 1km/h. And if the slope angle is large than the rated one, the tilting sensor will alarm and the machine can not move on the slope and no lifting is allowed.
Major Parameters
| Model | MX1000S |
| Load capacity | 320kg |
| Extension load capacity | 113kg |
| Max Worker number | 2 |
| Working height | 12m |
| Platform floor height | 10m |
| Measurement | 2.43*1.15*1.91m |
| Extension platform size | 2.27*1.12m |
| Ground clearance(stowed) | 0.1m |
| Ground clearance(raised) | 0.019m |
| Wheel base | 1.87m |
| Turning Radius(inside) | 0m |
| Turning Radius(outside) | 2.2m |
| Lifting / drive motor | 24V/3.3kw |
| Travelling speed(stowed) | 3.0km/h |
| Travelling speed(raised) | 1.0km/h |
| Lifting/ lowering speed | 60/40sec |
| Batteries | 4*6V/240Ah |
| Charger | 24V/ 30A |
| Gradeability | 25% |
| Max working slop | 2°/3° |
| Tyre | Ф380*129 |
| Weight | 2468kg |
Safety Configuration
Tilting Alarm
Buzzer
Pothole Protection System
Auxiliary Lowering Device
Aniti-Burst System
Charging Protection System
Qualities of BestMax Self-propelled Scissor Lift
1. Compact Design
2. Good Stability
3. Long Using period
4. Easy Operation
5. Excellent Function
Contact Person: Mr. Aijun Liu
Tel: 0086-13951119762
Fax: 86-512-67339762
