Place of Origin: | China |
Brand Name: | CHEN LIFT |
Certification: | CE ISO9001:2008 IPAF member |
Model Number: | MX800S |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiable |
Packaging Details: | wrapped in PVC film and Pallet |
Delivery Time: | 35 days after the order confirmed |
Supply Ability: | 30 sets per month |
Color: | Green, Customized Color Is Available | Driving: | Hydraulic Motor |
---|---|---|---|
Working Height: | 10m | Platform Height: | 8m |
Extension Length: | 0.9m | Loading Capacity: | 450kg |
Platform Size: | 2.27*1.12m | Overall Size: | 2.43*1.15*1.76m |
Weight: | 2175kg | Power Source: | 4*6V/225Ah |
High Light: | self propelled work platform,self propelled lift |

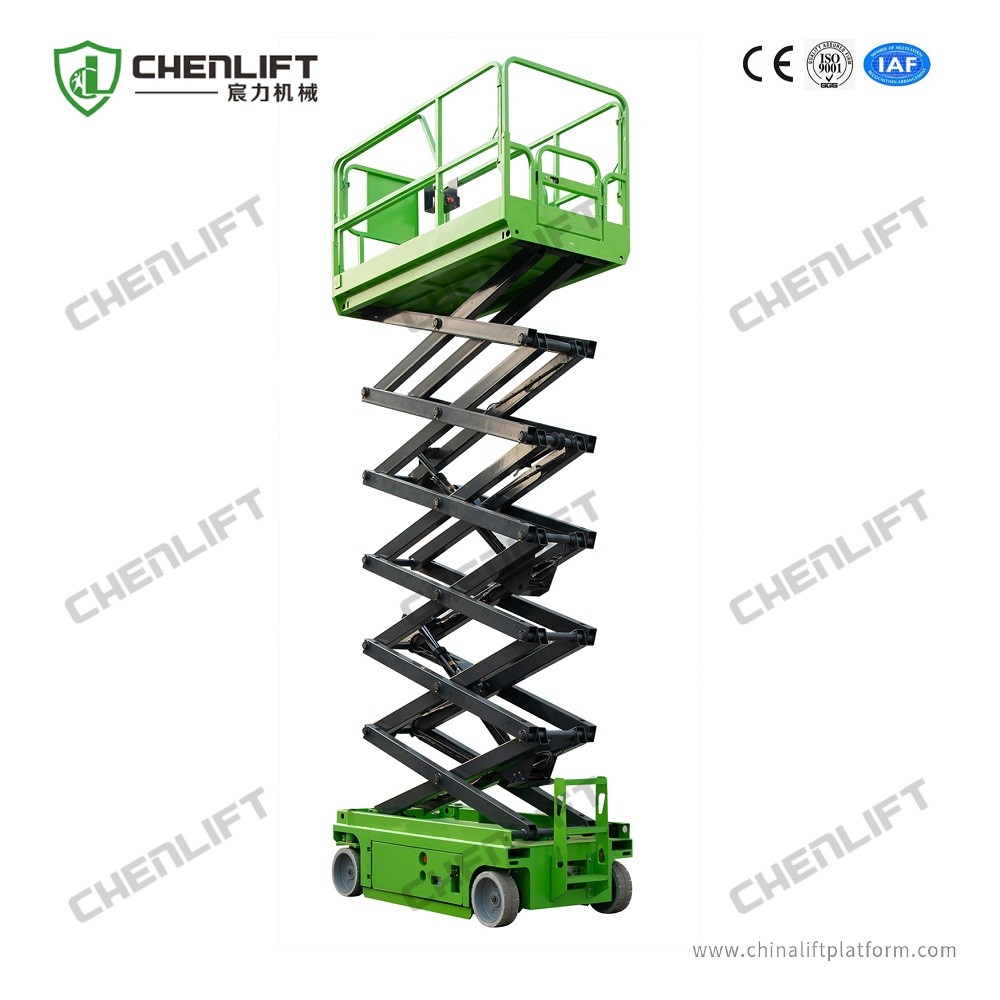

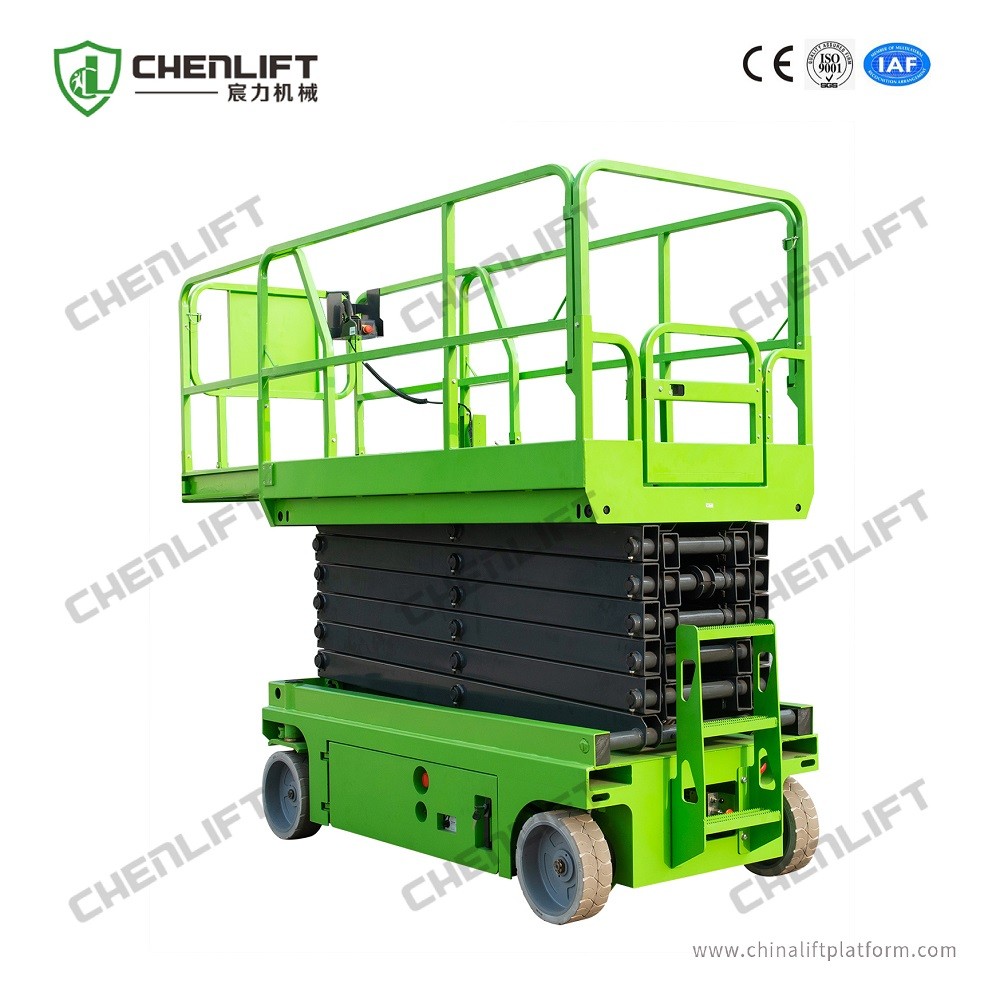

8m 450Kg Loading Self-propelled Scissor Lift Electrical Driving with CE certificate
Quick Detail:
Name |
Self-propelled Scissor Lift |
Model |
MX800S |
Loading Capacity |
450Kg |
Platform Height |
8m |
Platform Size |
2.27*1.12m |
Extension Length |
0.9m |
Gradeability |
25% |
Extension Loading |
113kg |
Travel Speed(Closed) |
3km/h |
Travel Speed(Raised) |
1km/h |
Description:
Self-propelled Scissor Lift is quite popular among our customers, as it is fully operated by the electricity, the moving and operating is very simple and human-force saving. Compare to our Mobile Scissor Lift, the using of it is more flexible, as even in the lifted position it also can be moved, but for safety consideration, the maximum moving speed of the self propelled scissor lift is limited 0.8km/h.
Main Features:
1. Passive pothole protection eliminates all moving parts in the pothole protection system, reducing the need for repair or replacement
2. Ability to traverse grades of up to 25%
3. Proportional Design enhances the stability of the machine and makes it look good
4. Fully Electrical Control
5. Alarm indicates lifting and descending
6. Folded fence for easy stock and transportation
7. With Extension Platform on width side
8. With time recorder on the platform to remind the working time of this machine
Safety Precaution:
1. The operation voltage on the platform is 24V
2. Both Platform Control and Ground Control Panels have Emergency Stop Button
3. Auxiliary platform lowering device in the chassis
5. Anti-burst Valve in cylinder
6. Tilting Protection System
7. Automatic Braking System
8. Inter-lock door on the platform
9. Automatic Pothole Protection
10. Charging Protection System
Why chose CHEN LIFT Self Propelled Scissor Lift?
· High Quality product
· Reasonable Price
· Easy payment mode
· Timely delivery
· Good after Service
· Client-centric approach
· one year warranty

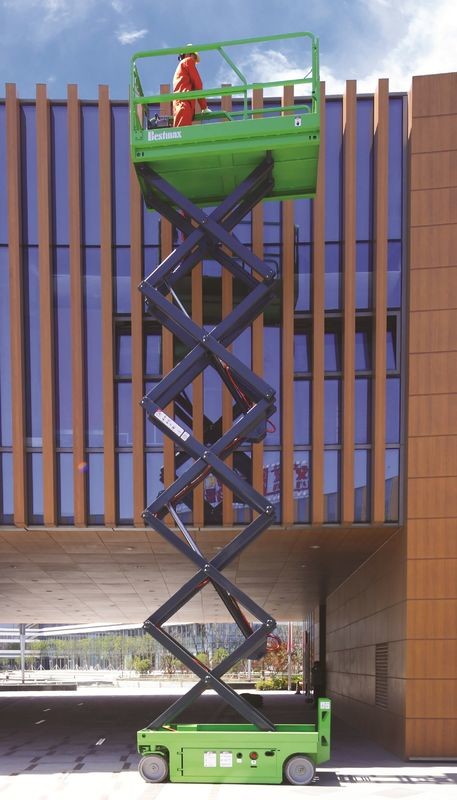

It is widely used in shopping mall, Coach Station, and rail way station. Most people use it to replace lights, maintenance facilities like crane.
