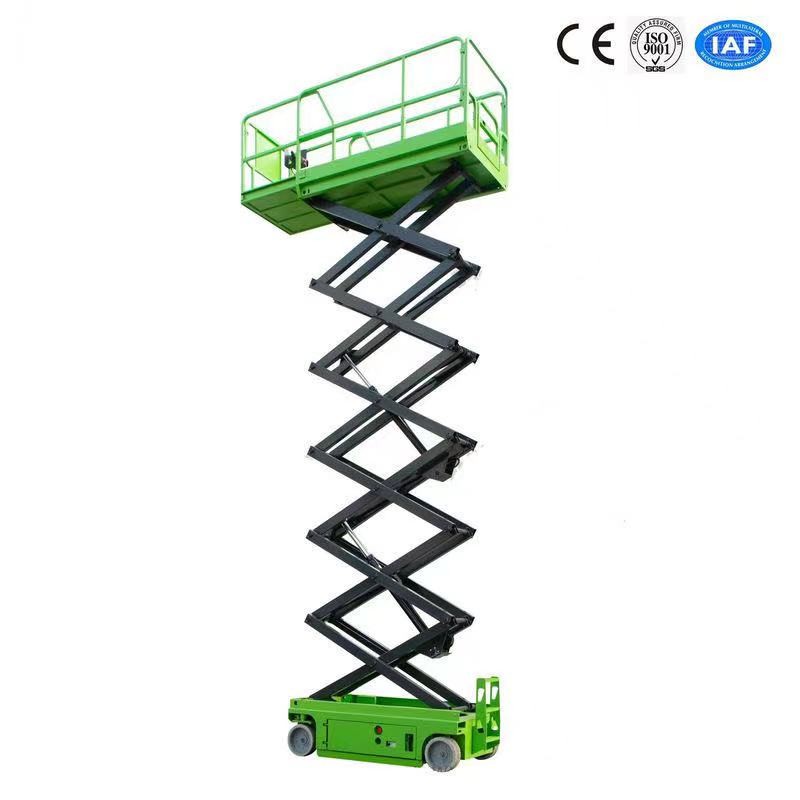

12m Automotive Self Propelled Scissor Lift Hydraulic Lift Platform 230Kg

12m Automotive Self Propelled Scissor Lift Hydraulic Lift Platform 230Kg

  • 12m Automotive Self Propelled Scissor Lift Hydraulic Lift Platform 230Kg
12m Automotive Self Propelled Scissor Lift Hydraulic Lift Platform 230Kg
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: MX1200S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wrapped in PVC film with pallet
Delivery Time: 35days after the order confirmed
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Working Height: 13.8m Platform Height: 11.8m
Extension Length: 0.9m Loading Capacity: 230kg
Extension Loading: 113kg Platform Size: 2.27*1.12m
Weight: 2830kg Power Source: 4*6V/240Ah
High Light:

self propelled work platform


self propelled lift

12m Automotive Self Propelled Scissor Lift Hydraulic Lift Platform 230Kg
1. Self propelled scissor lift, with automatic walking function, can be in different work condition, do not need external power supply, do not need artificial traction.
2. Mobile flexible, convenient operation, lift freely, only one people can finish forward, backward, steering, fast and slow walk, easily moved, spacious working platforms, high working efficiency.
3. Scissor lift can be move while extended and controlled from platform by the operator.
Data Sheet:

Working height max (m)13.8
Platform height max (m)11.8
Slide-out platform extention deck (m)0.9
Lift capacity (kg)230
Lift capacity (kg) (Platform extended)113
Weight (kg) CE / AUS Standard2830
Platform size (L×W) (m)2.27*1.12
Platform length extended (m)3.17
Stowed size (L×W) (m)2.43*1.15
Stowed height (m)2.55
Hydraulic system capacity (L)20
Ground clearance (m) Stowed0.1
Ground clearance (m)  Raised0.019
Platform occupancy max2
Raise / Lower time (s)70/45
Maximum Working Slope1.5°/3°
Lifting Motor Power4.5kw
Power source4*6V/240Ah
Tire size (mm)Ф380*129

Main Features:
1. Pointing control of lifting up and down.
2. Manganese steel lifting arm in high strength with rectangle shape
3. Anti-skid floor in platform
4. All the actions can be controlled through platform control panel
5. Fine grinding cylinder in good sealing performance
6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.
7. Extension Platform
Safety Precaution

  • Auxiliary Lowering Devices
  • Anti-burst System
  • Emergency Stop Button
  • Tilting Protection System
  • Charging Protection System
  • Automatic Pothole Protection
  • Automatic Braking System
  • Buzzer and Horn

Standard Configurations:

  1. Proportional Control
  2. Inter-lock door on the platform (spring loaded gate)
  3. Extension platform
  4. Hydraulic type braking system
  5. Hydraulic motor driving
  6. Trace-less tyre
  7. 2 Wheel Driving
  8. All motion alarm
  9. Flashing beacon
  10. Emergency stop button
  11. Fault diagnose system
  12. Automatic pothole protection
  13. Fold-able Fence
  14. 25% grad-ability
  15. Maintenance support bar
  16. Auxiliary Lowering
  17. Hour meter
  18. Battery Indicator
  19. Anti-burst valve
  20. Lateral Forklift pockets
  21. Drivable at full height
  22. Automatic charging (Over charging protection)
  23. Compact Turning Radius
  24. Swing out Tray
  25. Anchorage point (hook)
  26. Tilting level sensor with alarm
  27. Toe protection
  28. Battery (Trojan brand)
  29. Drive speed interlock limits speed while elevated
  30. Battery charging indicator
  31. Lifting hook
  32. Powder coating painting

Optional Configuration:

  1. Working light on the platform
  2. Air-tube to the platform
  3. AC power to the platform
  4. Overloading Sensor with alarm
  5. Wireless tracking
  6. Over hoisting(top limit protection auto stop device)
  7. Tool box
  8. Anti-collision system

It is widely used in shopping mall, Coach Station, and rail way station. Most people use it to replace lights, maintenance facilities like crane.
