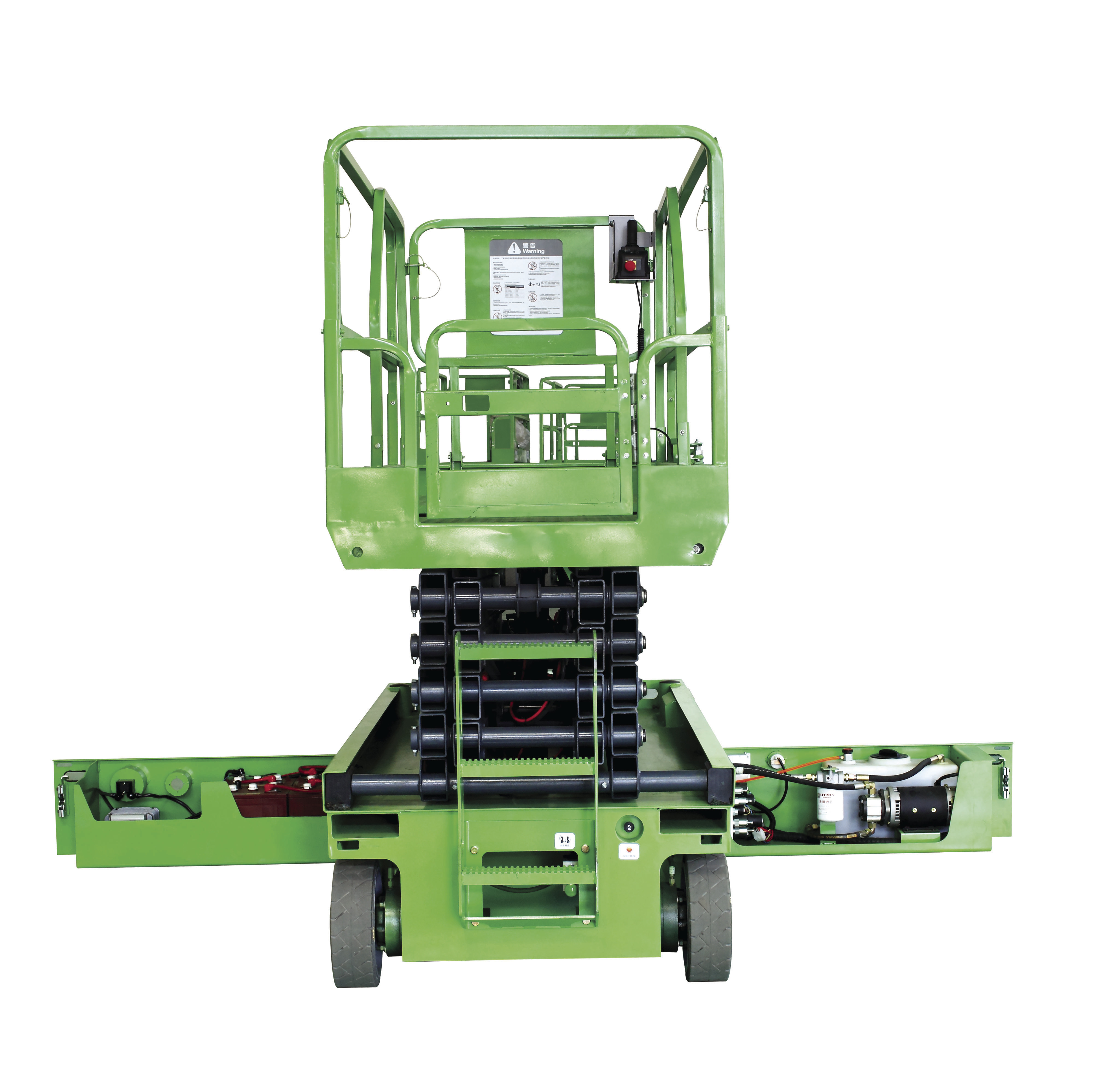

Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving

Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving

  • Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving
  • Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving
  • Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving
  • Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving
  • Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving
Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving
Product Details:
Place of Origin: China
Brand Name: BestMax
Certification: CE ISO9001:2008 IPAF member
Model Number: MX1000S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wraped with PVC film and pallet
Delivery Time: 30days after the down payment
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Paint: Powder Coating Platform Height: 10m
Working Height: 12m Loading Capacity: 320kg
Platform Size: 2.27*1.12m Lift/Drive Motor: 24V/ 3.3kw

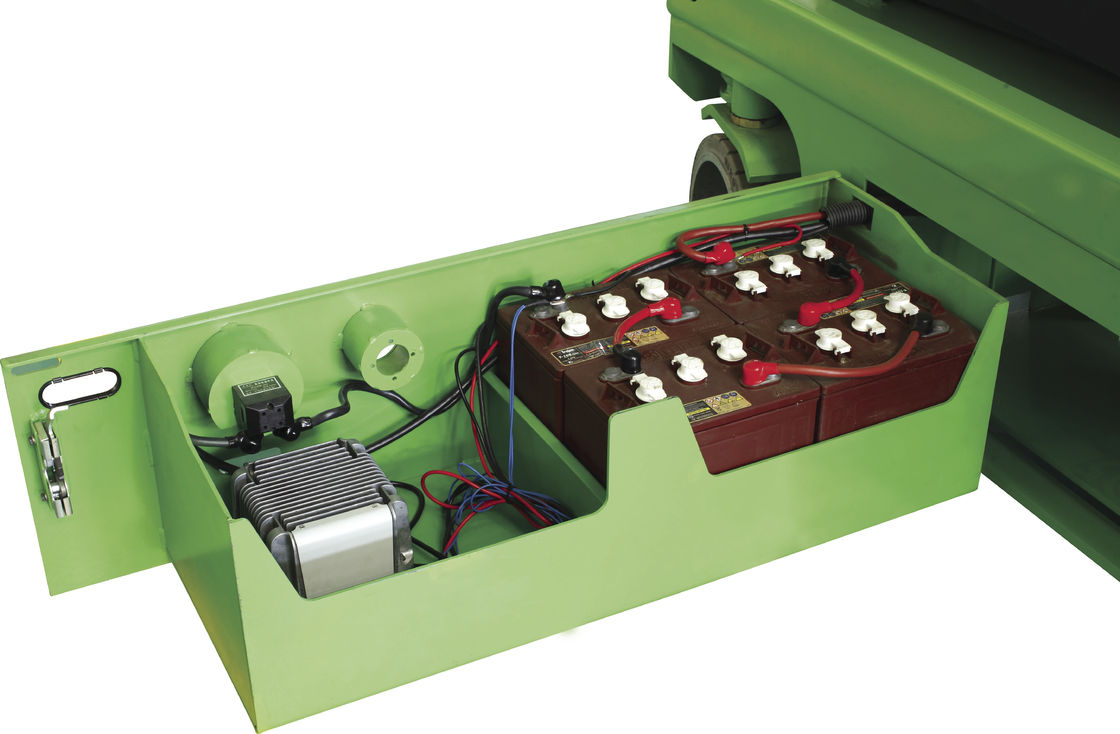

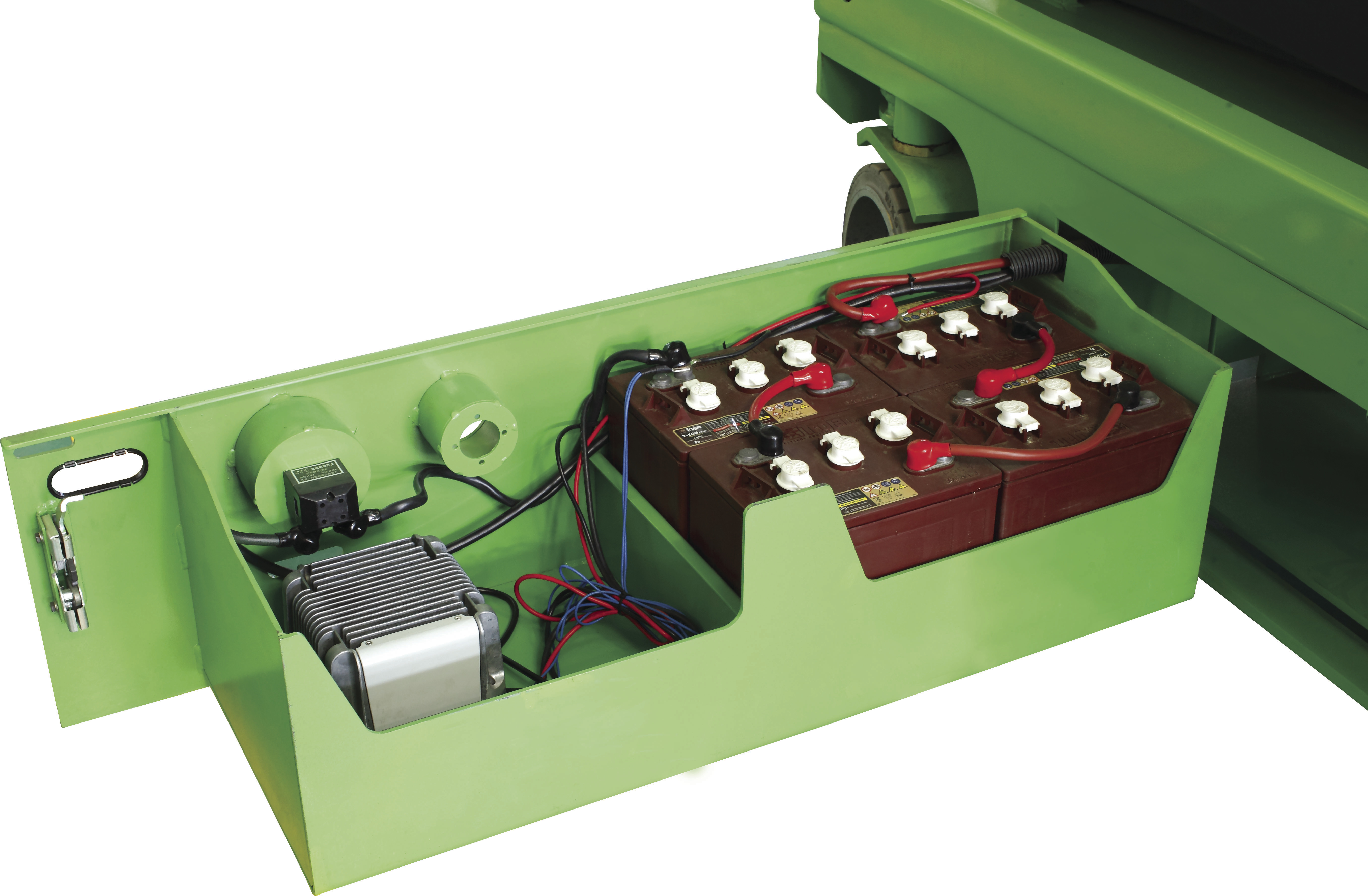

Power Source: 4*6V/240Ah Weight: 2468kg
High Light:

self propelled lift

,

scissor lift self propelled

10m Self-propelled Scissor Lift with Hydrauli Motor Driving





Quick Detail:



Name

 Fully Electrical Scissor Lift

Model



MX1000S

Loading Capacity

320Kg

Platform Height



10m

Ground clearance (m)

0.1

Extension Length

0.9m

Maximum Working Numbers

2 person

Extension Loading

113Kg

Moving Power

3.3Kw

Maximum Working Slope

2°/3°





Description:

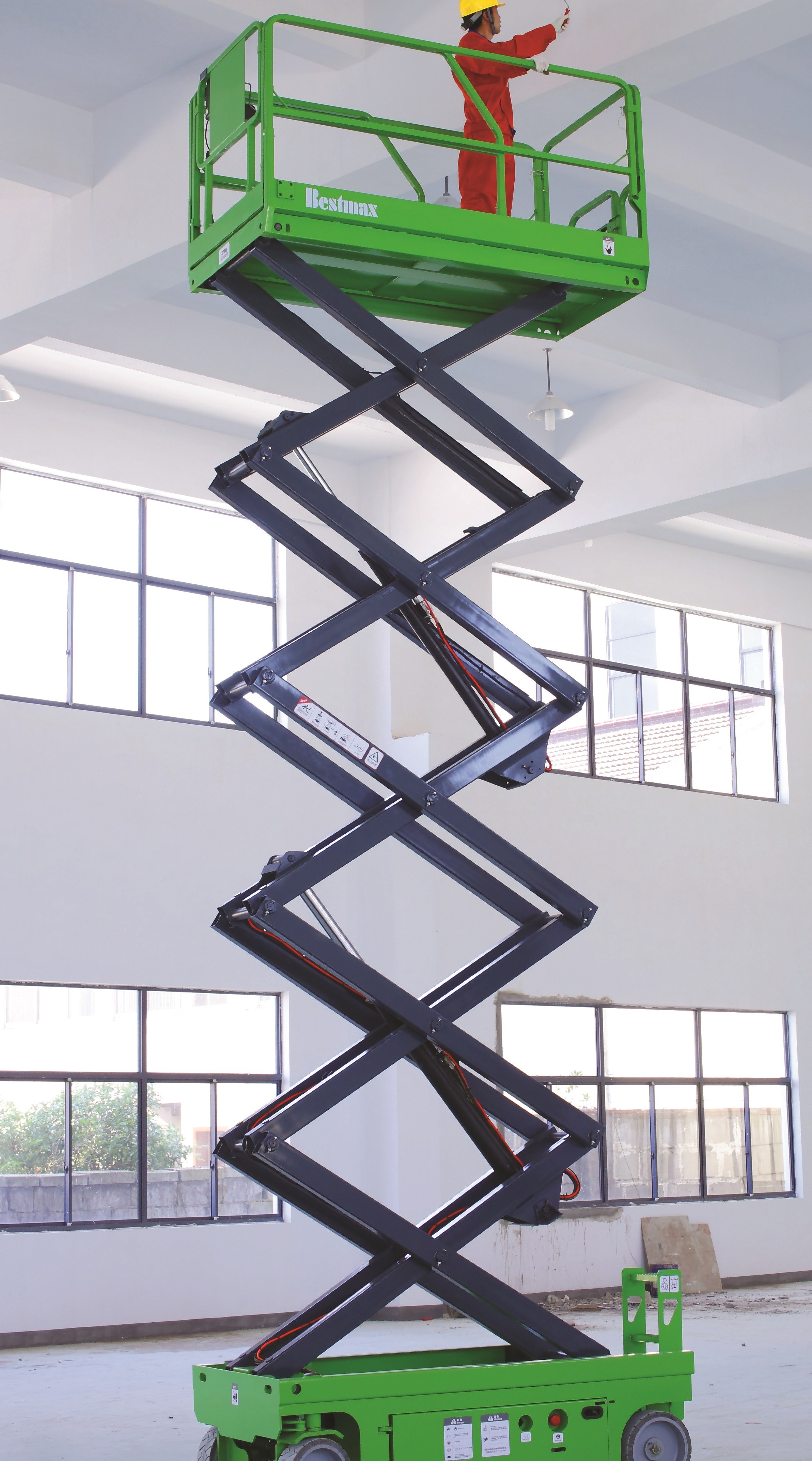

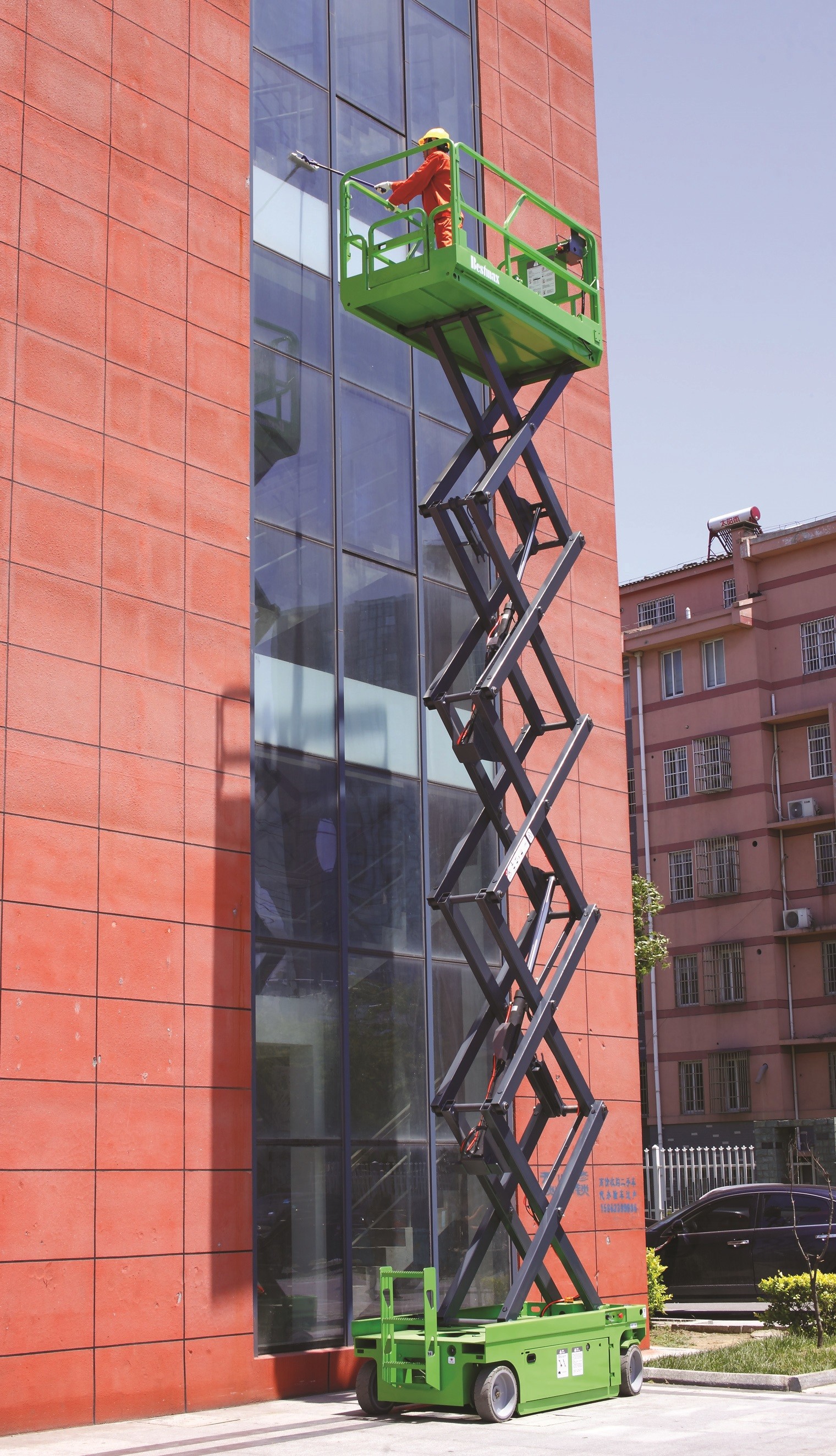

This machine is used to lift people to the high places to work with hydraulic motor driving. Unlike an articulating lift that offers a degree of horizontal outreach, electric scissor lifts are a flat platform that travels straight up and down.



Main Features:



1. The structure of this machine is made up of high strength rectangular Manganese steel.

2. When you stop pressing the button, it will stop lifting/ descending.

3. The platform surface is anti-skid to ensure the safety of the workers.

4. Good sealing performance oil cylinders

5. Folding fence to let the machine pass height-restrict space

6. No need of outriggers, so that it can work in narrow space



Main Configurations

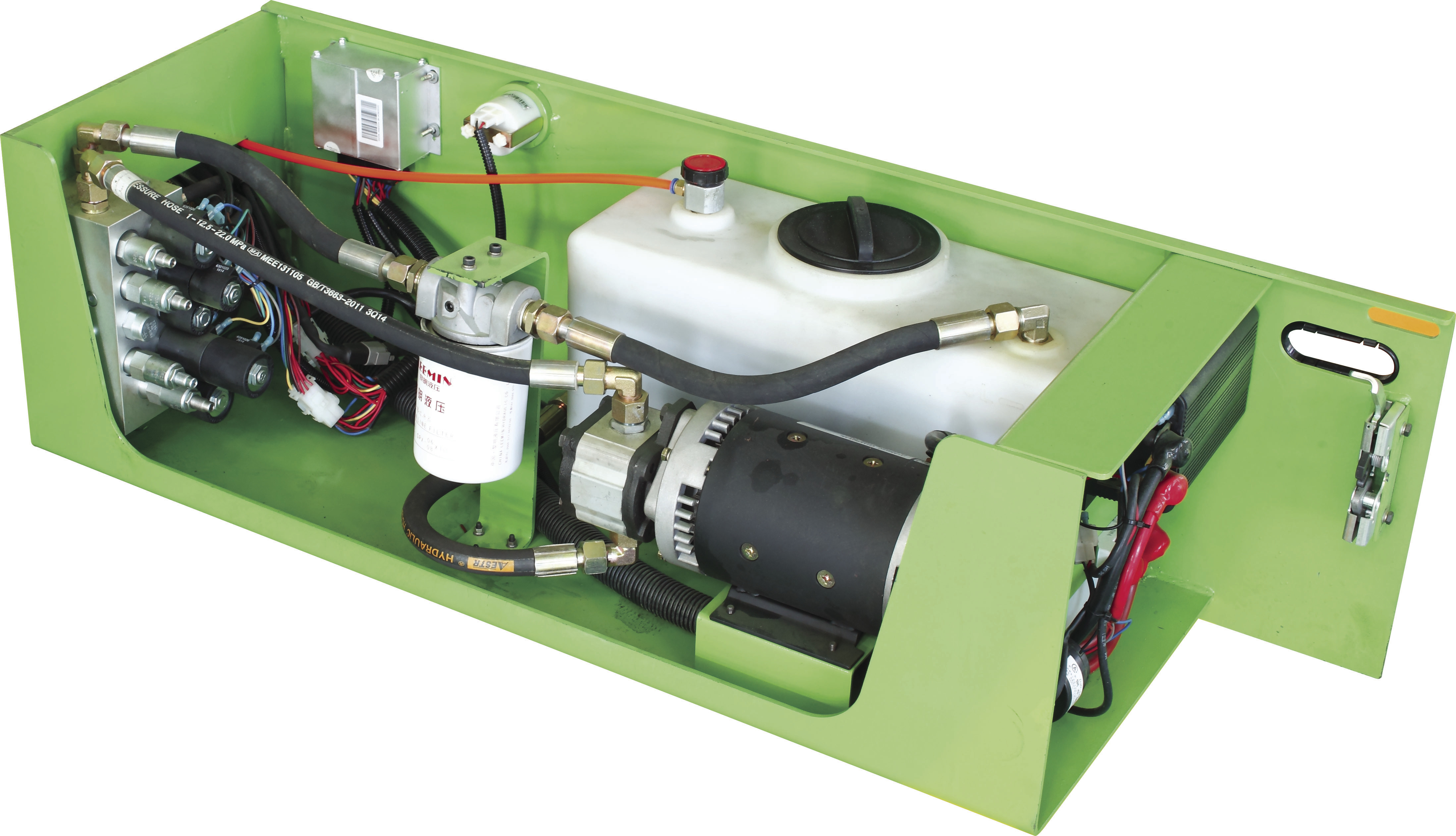

  1. Hydraulic Motor Driving

  2. Extension Platform

  3. Buzzer & Strobe Light

  4. Fork Lift Slots

Optional Configuration:

  • Over Load Protection Sensor Alarm

  • Working Light on the Platform

  • Airway Tube to the Platform

Applications:



Working Site: Library, Airport, Coach Station, Metro and Supermarket.
