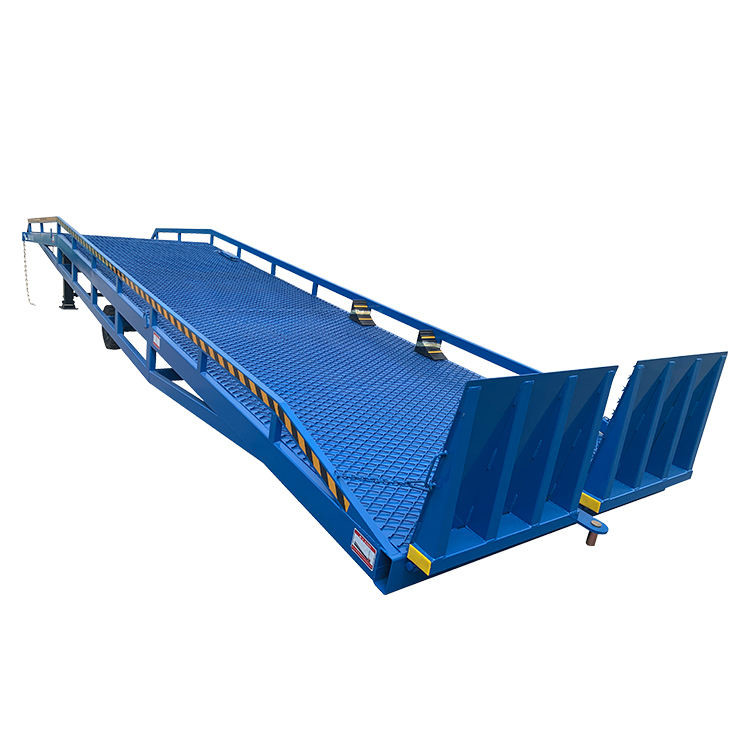

Warehouse Adjustable Container Ramp Hydraulic Mobile Loading Dock Ramp For Forklift Truck

Warehouse Adjustable Container Ramp Hydraulic Mobile Loading Dock Ramp For Forklift Truck

  • Warehouse Adjustable Container Ramp Hydraulic Mobile Loading Dock Ramp For Forklift Truck
Warehouse Adjustable Container Ramp Hydraulic Mobile Loading Dock Ramp For Forklift Truck
Product Details:
Place of Origin: China
Brand Name: Xunte
Certification: CE
Model Number: DCQ15-0.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Loading Capacity: 15000kg Supporting Legs: 2 Pieces Which Can Be Adjusted
Platform: Thickness Steel Plate And Anti-slip Wire Mesh Working Range: ±250mm
Motor Power: 0.75kw Weight: 1050kg
Power Voltage: AC380V
High Light:

Forklift Truck Loading Dock Ramp

,

Warehouse Loading Dock Ramp

,

Adjustable Mobile Dock Ramp

Warehouse Adjustable Container Ramp Hydraulic Mobile Loading Dock Ramp Yard Ramp For Forklift Truck



1. Competitive price

We are the manufacture,and have lots of orders from domestic and foreign each year,so we can purchase the raw material with much

cheaper price which will directly effects the price of the lifting machines.

2. Reliable quality

a. Material used.The thickness of the rectangular tube is 5mm which make the whole machine more steady and durable.

b. Oil Paint. The oil paint we used meet international standard which looks more bright and smoothly, also not easy to remove or come off.

3. Good service

We assure you reply the email within 24 hours.

We assure you 12 mouth quality warranty time.

4. Keeping innovations

We welcome every recommendation and opinion from you and make progress together with you.

We can design a new machine as your requirements,until to your satisfaction.



Quick Detail:

Name Stationary Dock Ramp Brand Name Xunte
Loading Capacity 15000Kg Working Range ±250mm
Platform Size 2.0*2.0m Color Blue Color or Optional
Voltage 380V/50Hz Power Supply AC
Motor Power 0.75Kw





Description:

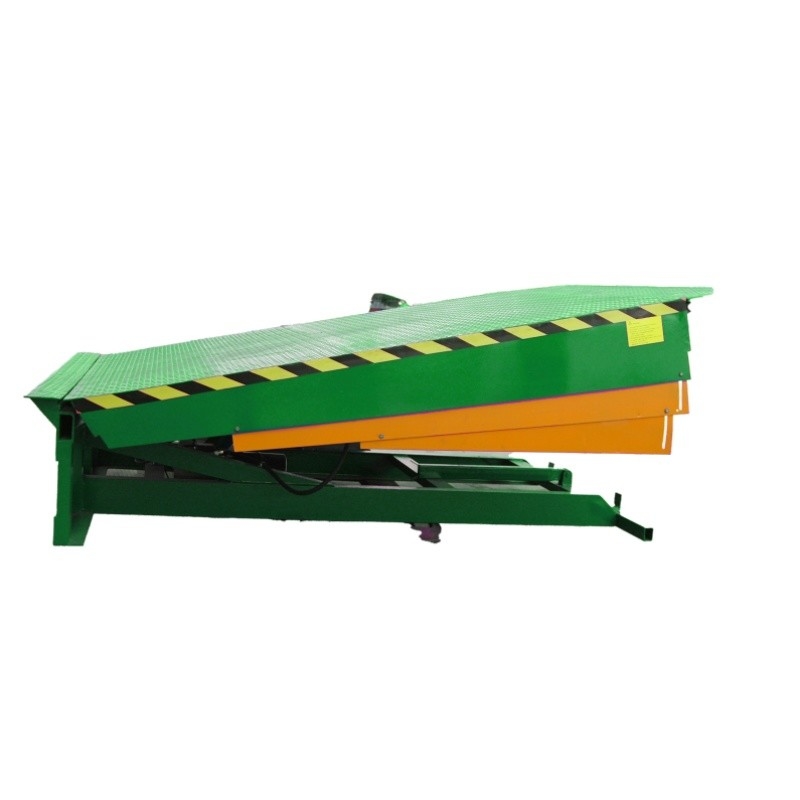

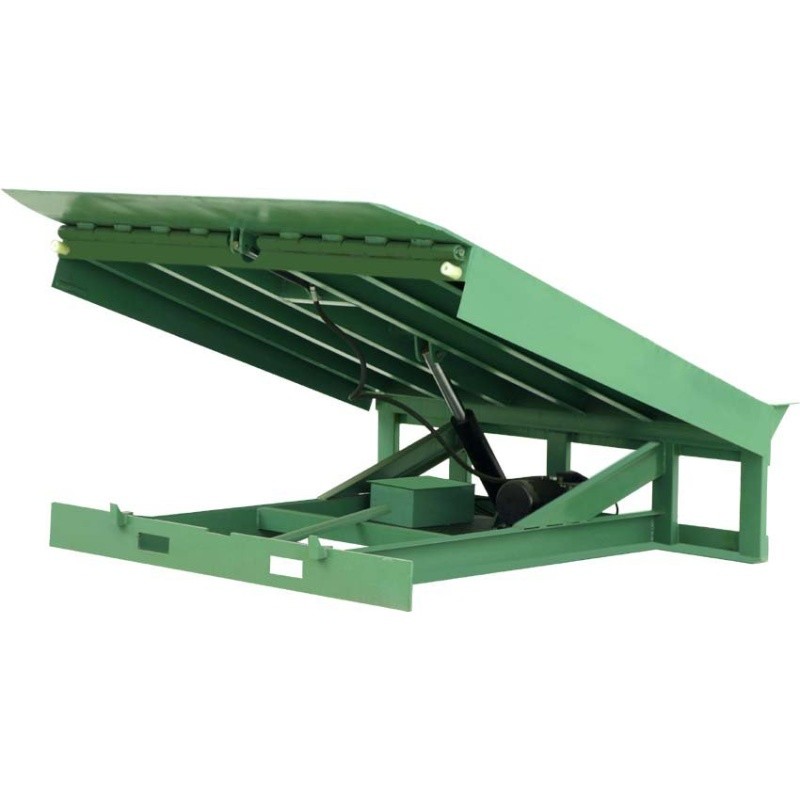

A stationary Dock Ramp is fixed loading equipment and is widely used as a bridge between the platform and the truck. It allows the forklift to move conveniently. One side of this equipment has the same height as the platform, and the other side connecting with the truck and it can adjust height according to the different truck and different carriage in the process of loading.Its size and loading ability can be designed according to customers' requirements.



Main Features:

  • 1. Reinforced gusseted lip
  • 2. Heavy-duty deck construction
  • 3. Anti-skid high-strength chequered platform and lip.
  • 4. Full width one -piece lip hinges pin and tube
  • 5. Heavy-duty high-pressure cylinders
  • 6. First class hydraulic power unit, good seal capacity and long life
  • 7. Rubber Bumpes
  • 8. Full range toe guard



Major Parameters

  • Loading Capacity 15000kg

  • Working Range    ±250mm

  • Platform Size       2000*2000mm

  • Lifting Power        0.75kw

  • Power Voltage     380V/50HZ

  • Pit Measurement 2020*2030*600mm
  • Weight 1050kg



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack ,Xunte made cylinder, Trellebogr sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Main Support: 10# I beam
  • Labial Plat: 14mm plate and 3mm checkered plate
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

Optional Configuration:

  • Hydraulic Power Pack: Italy brand:Microhy



Applications:



1. Site: Work Shop, logistic center etc.

2. Dock Leveler Purpose: Loading Cargo etc.





Why to choose Xunte Stationary Dock Ramp?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience
