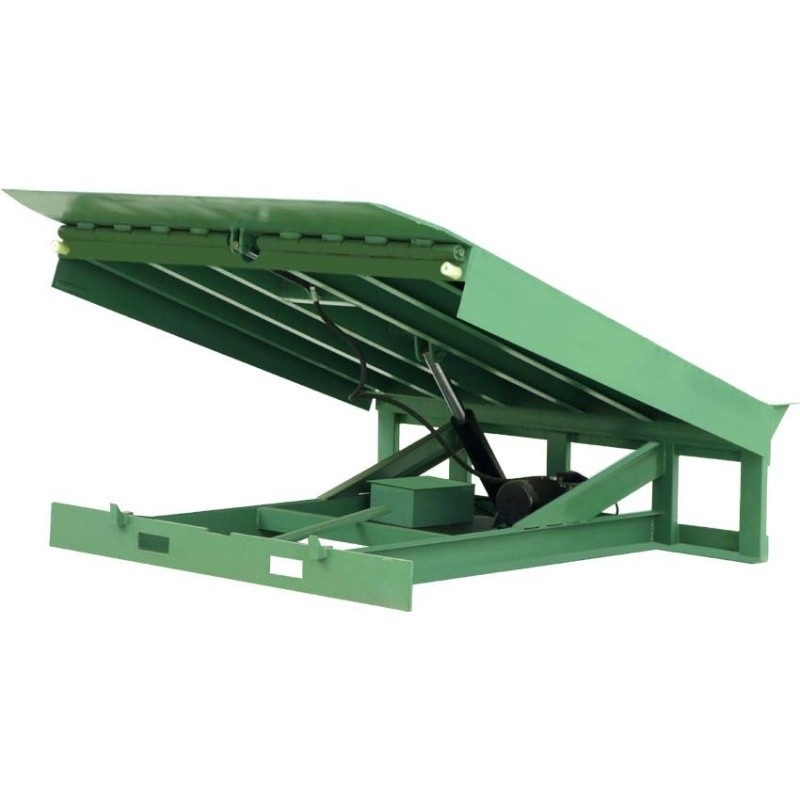

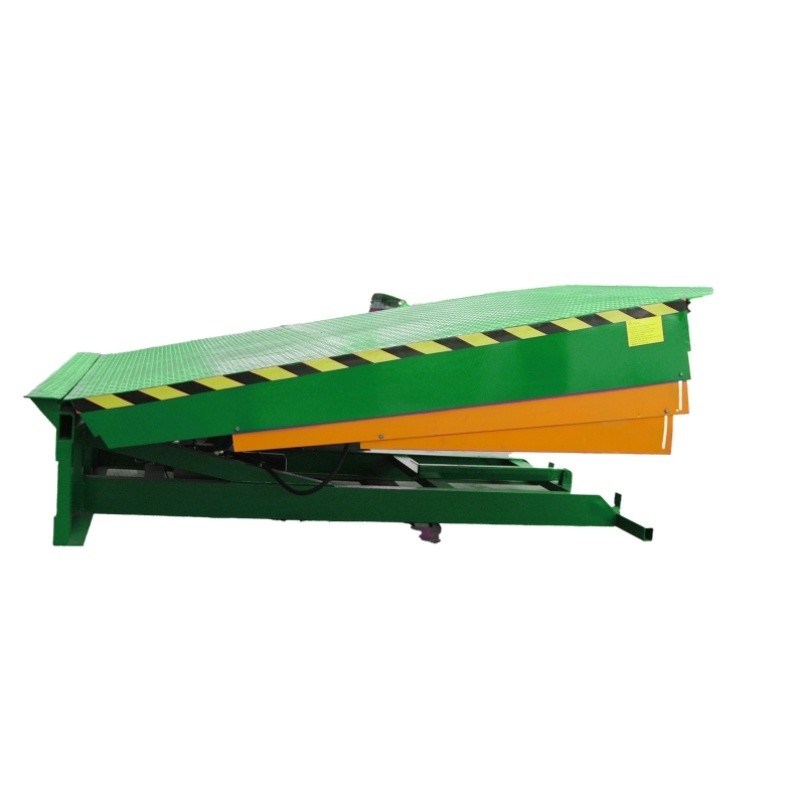

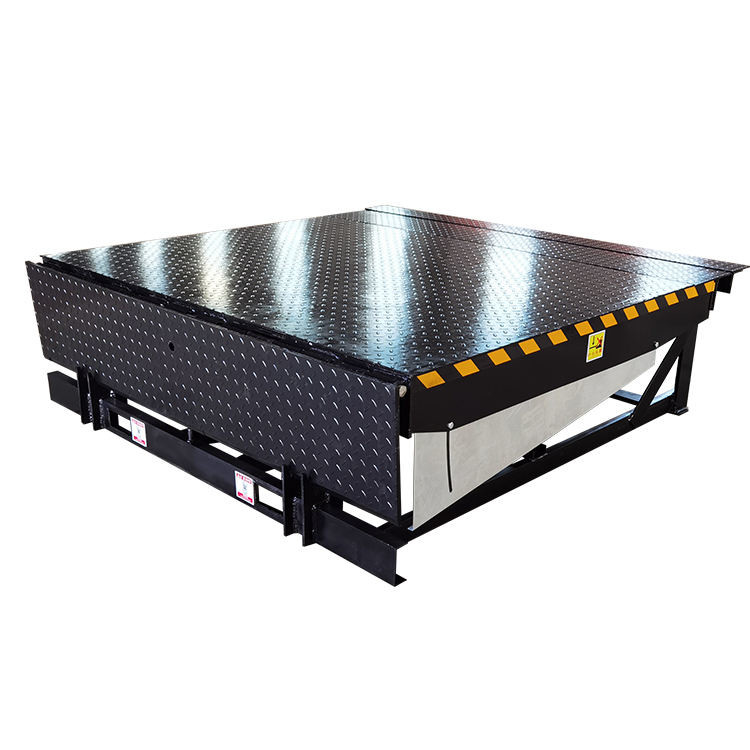

6000Kg Stationary Container Loading Dock Ramp , Adjustable Hydraulic Dock Levelers

6000Kg Stationary Container Loading Dock Ramp , Adjustable Hydraulic Dock Levelers

  • 6000Kg Stationary Container Loading Dock Ramp , Adjustable Hydraulic Dock Levelers
6000Kg Stationary Container Loading Dock Ramp , Adjustable Hydraulic Dock Levelers
Product Details:
Place of Origin: China
Brand Name: Xunte
Certification: CE
Model Number: DCQ6-0.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Loading Capacity: 6000kg Working Range: ±250mm
Platform Size: 2.0*2.0m Lip Length: 400mm
Motor Power: 0.75kw Power Voltage: AC380V
Weight: 810kg
High Light:

6000Kg Container Dock Ramp

,

Stationary Container Dock Ramp

,

6000Kg Hydraulic Dock Levelers

6000Kg Stationary Container Loading Dock Ramp , Adjustable Hydraulic Dock Levelers



1) Free maintenance and environment protection.
2) According to the customer's demand.
3) Fine steel-plate frame.
4) More ecological to meet the environmental protection.



Quick Detail:



Main features:
System The free maintenance designing for the long run
Safety Structural safety legs provide supporting and below-dock loading. 10 Amp motor, hydraulic pump, Motor-runs off 220V single-phase electrical outlet
Structure 50,000 PSI high-tensile steel deck
and lip assembly depending on selected dock levler capacity
Integral maintenance struck for deck spporting
optional 18'' or 20''for longer lip purchase
lip extension extends lip at full height
clean-frame design for easy clean-up,maintenance and inspction
Operation push-botton desinging for operating
Working range -250MM to + 300 MM; -300MM to +450 MM
Capacity 25000LBS to 35000LBS
Size 6''x8'';7''x8'',6.5''x8'';6.5''x8''(Ft.)
Color negotiation





Description:

Stationary Dock Ramp is a fixed loading equipment and widely used as a bridge between platform and the truck. It allows the forklift to move conveniently. One side of this equipment has the same height with platform, and the other side connecting with the truck and it can adjust height according to different truck and different carriage in the process of loading. Its size and loading ability can be designed according to customer's requirements.



Main Features:

  • 1. Reinforced gusseted lip
  • 2. Heavy duty deck construction
  • 3. Anti-skid high-strength chequered platform and lip.
  • 4. Full width one -piece lip hinges pin and tube
  • 5.Heavy duty high pressure cylinders
  • 6.First class hydraulic power unit, good seal capacity and long life
  • 7. Rubber Bumpes
  • 8. Full range toe guard



Major Parameters

  • Model: DCQ6-0.5
  • Loading Capacity 6000kg
  • Working Range ±250mm
  • Platform Size 2000*2000mm
  • Lifting Power 0.75kw
  • Power Voltage 380V/50HZ
  • Measurement 2000*2000*600mm
  • Pit Measurement 2000*2030*600mm
  • Weight 810kg



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack ,Xunte made cylinder, Trellebogr sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Main Support: 10# I beam
  • Labial Plat: 14mm plate and 3mm checkered plate
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



Optional Configuration:

  • Hydraulic Power Pack: Italy brand:Microhy



Applications:



1. Site: Work Shop, logistic center etc.

2. Dock Leveler Purpose: Loading Cargo etc.





Why to choose Xunte Stationary Dock Ramp?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience
