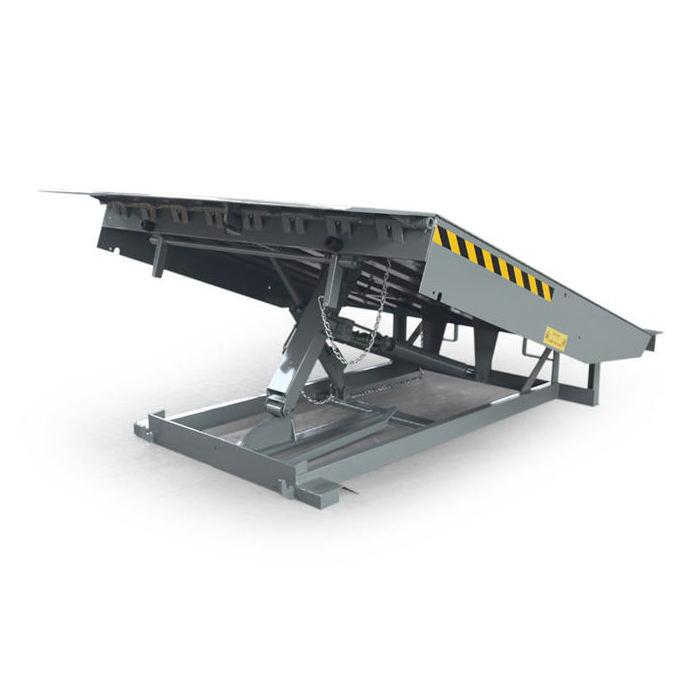

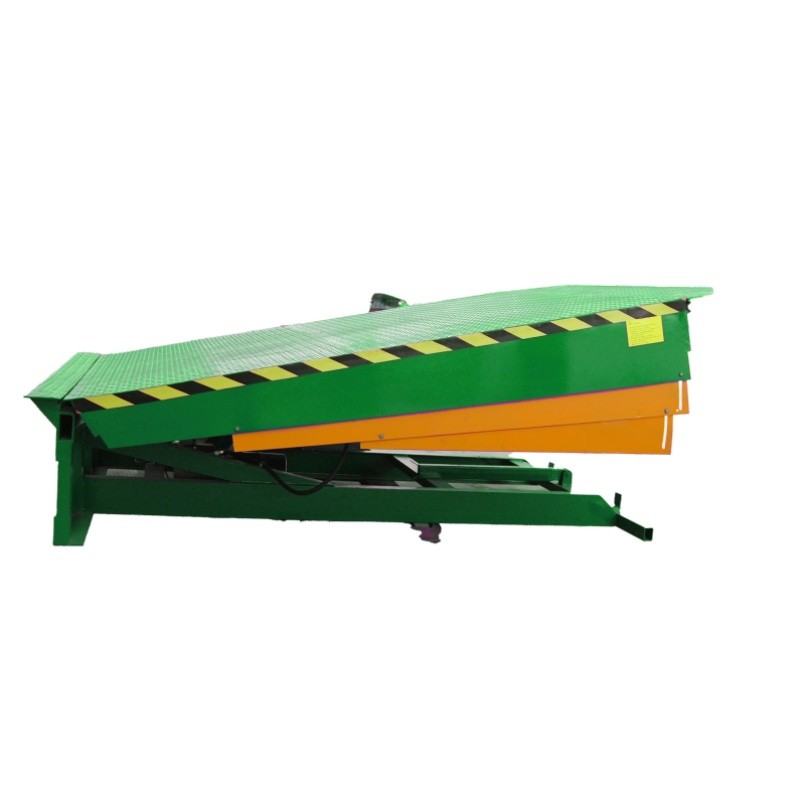

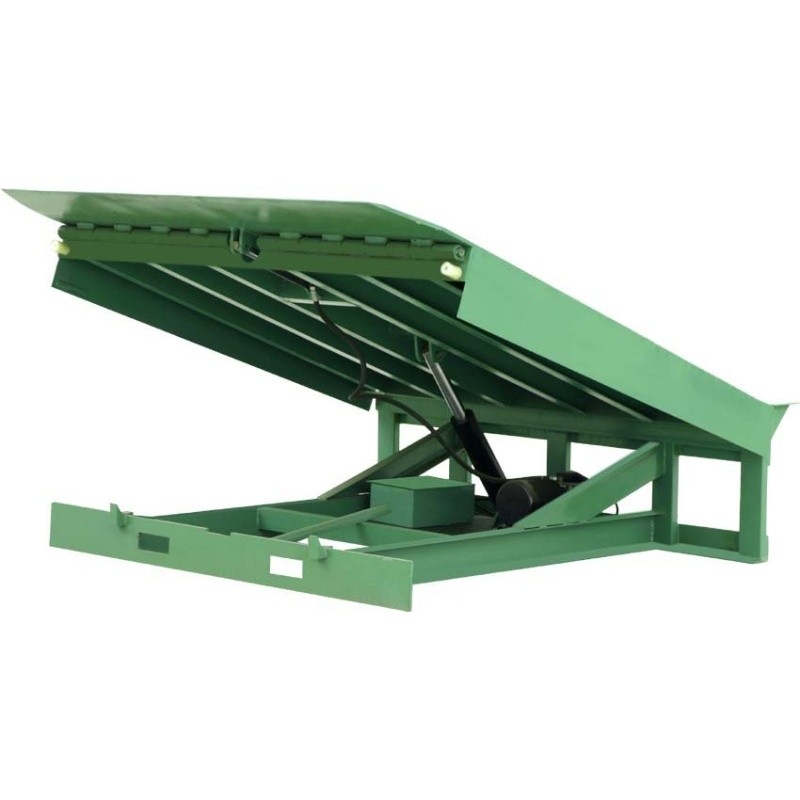

Loading Dock Ramp for Warehouse Loading and Unloading Cargos with Adjustable Height

Loading Dock Ramp for Warehouse Loading and Unloading Cargos with Adjustable Height




Quick Detail:


Description:

Dock Ramp or Loading Ramp, widely used in loading bays of logistics centers, warehouses and dispatch area of fact- ories. In most cases, the container floor of truck will not be on the same level with loading bay floor. And this lead to that, forklifts or trolley can not be used to load or unload goods into container. It will take much labor to move the goods by hand. This will be very low efficient.

But with a automatic dock leveler, such problem with be solved perfectly. The stationary fixed dock leveler will be placed into a pre-built concrete pit on the loading bay. A hydraulic motor drives the platform up and down, realizing seamless joint between room ground and truck floor. Then,forklifts or trolleys can transfer goods quickly on the dock leveler platform. Thus it improves the loading&unloading efficiency obviously and also save much labor.

Applications:
Used in loading bays or docks, to realize forklifts entering the truck containers directly. It can improve the loading and
unloading efficiency a lot, thus widely used in modern warehouses and factories.


Main Features:

• 1. Reinforced gusseted lip
• 2. Heavay duty deck construction
• 3. Anti-skid high-strength chequered platform and lip.
• 4. Full width one -piece lip hinges pin and tube
• 5.Heavy duty high pressure cylinders
• 6.First class hydraulic power unit, good seal capacity and long life
• 7. Rubber Bumpes
• 8. Full range toe guard


Major Parameters

• Loading Capacity 10000kg

• Working Range    ±300mm

• Platform Size       2500*2300mm

• Lifting Power        0.75kw

• Power Voltage     380V/50HZ

• Pit Measurement 2520*2030*600mm


Configurations:

• Electric system: Schneider contactor, SANLICO button, CHNT electrical
• Hydraulic System: Hycman brand power pack , Trellebogr sealing
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate
• Main Support: 10# I beam
• Labial Plat: 14mm plate and 3mm checkered plate
• High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

Optional Configuration:

• Hydraulic Power Pack: Italy brand:Microhy
