Adjustable Loading Dock Equipment , Hydraulic Dock Leveler

Adjustable Loading Dock Equipment , Hydraulic Dock Leveler

  • Adjustable Loading Dock Equipment , Hydraulic Dock Leveler
  • Adjustable Loading Dock Equipment , Hydraulic Dock Leveler
  • Adjustable Loading Dock Equipment , Hydraulic Dock Leveler
  • Adjustable Loading Dock Equipment , Hydraulic Dock Leveler
  • Adjustable Loading Dock Equipment , Hydraulic Dock Leveler
Adjustable Loading Dock Equipment , Hydraulic Dock Leveler
Product Details:
Place of Origin: China
Brand Name: CHENLIFT
Certification: CE
Model Number: DCQ10-0.6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Loading Capacity: 10000kg Working Range: ±300mm
Platform Size: 2.5*2.0m Power Voltage: 380V
Motor Power: 0.75kw Lip Length: 400mm
Weight: 980kg
Highlight:

loading dock ramps

,

Stationary Dock Ramp

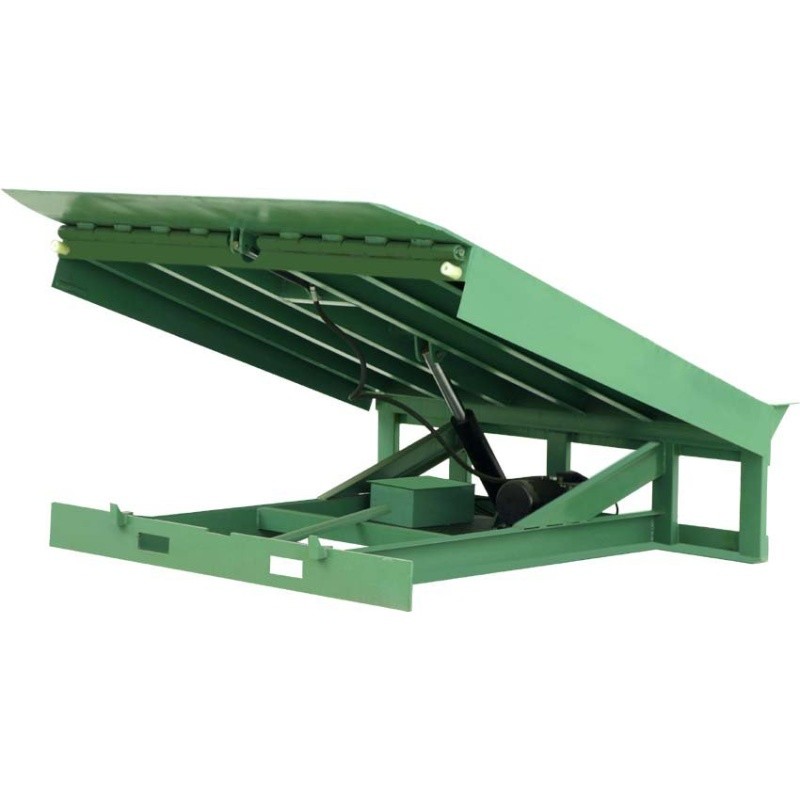

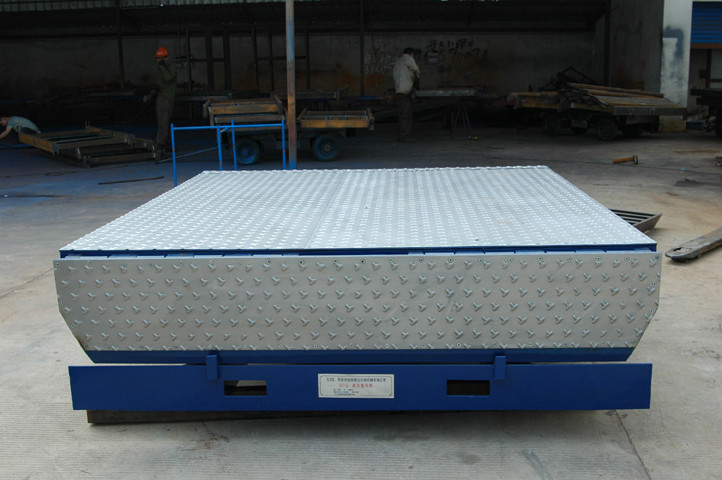

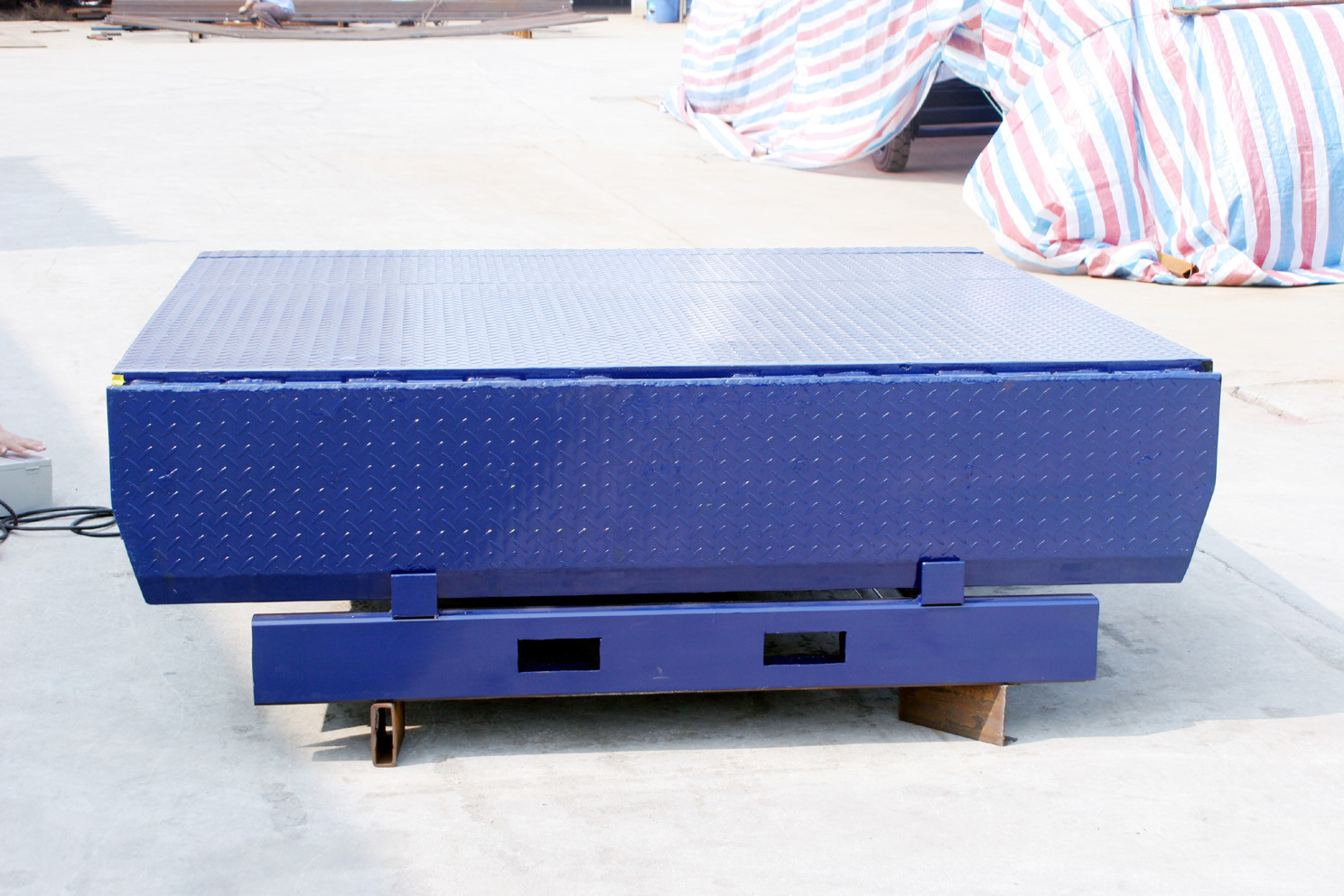

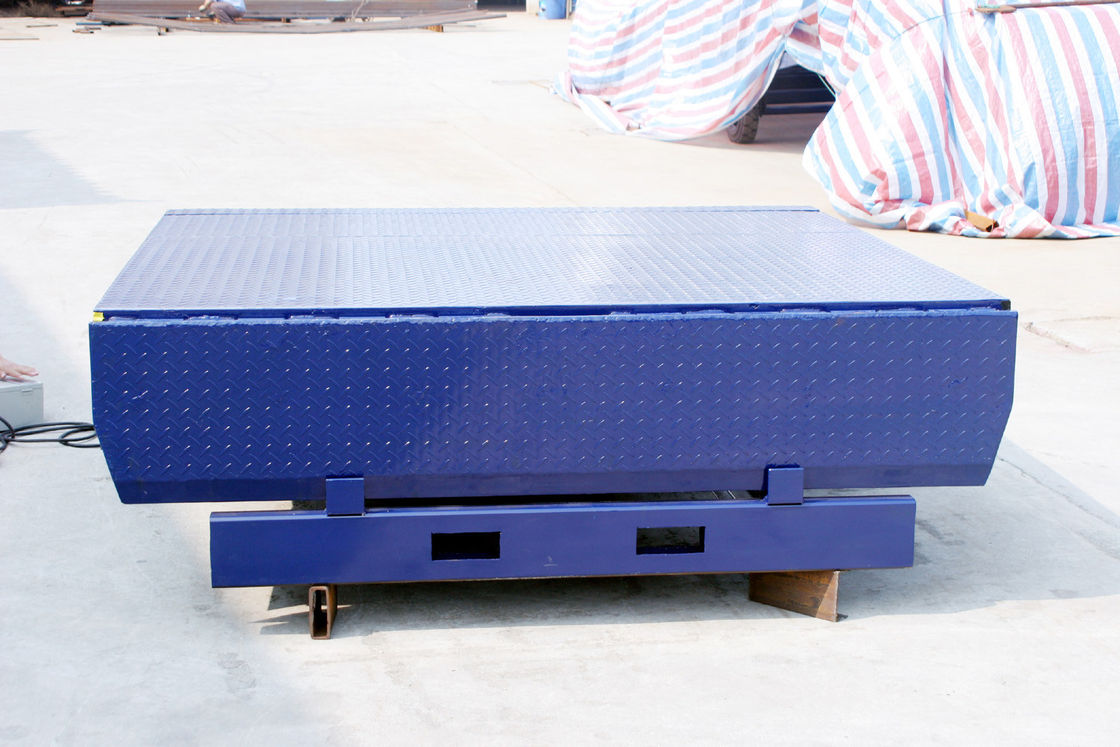

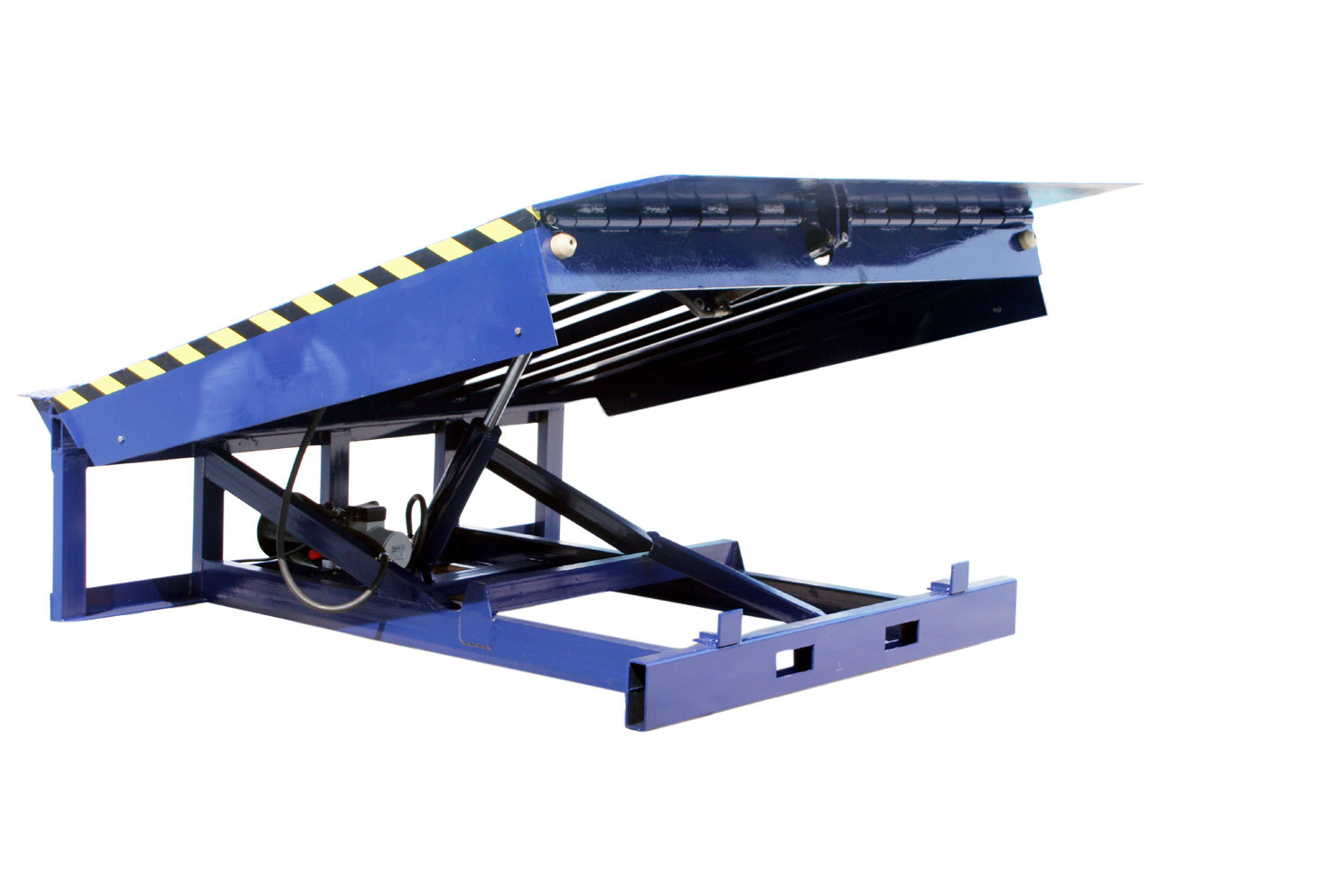

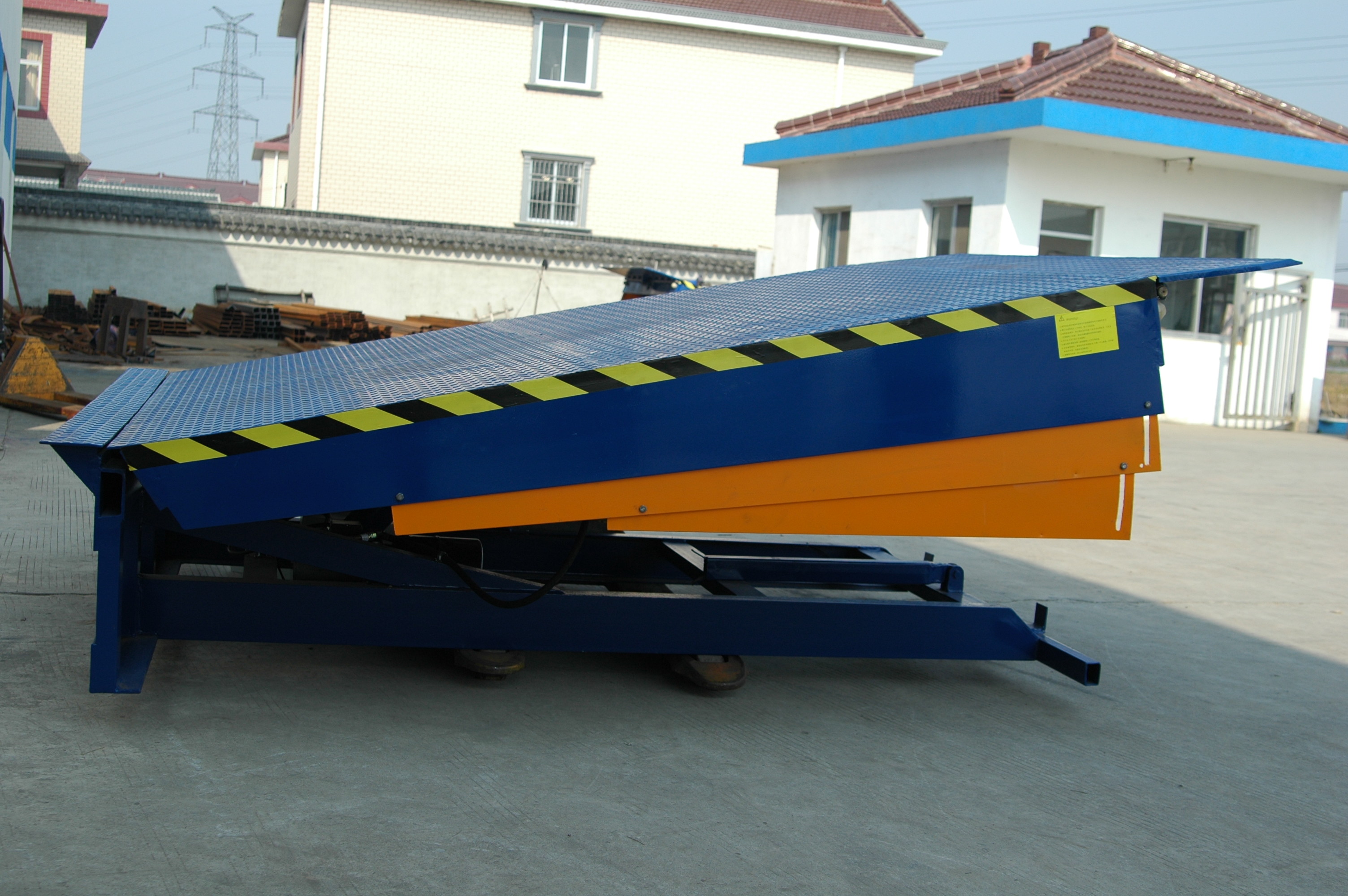

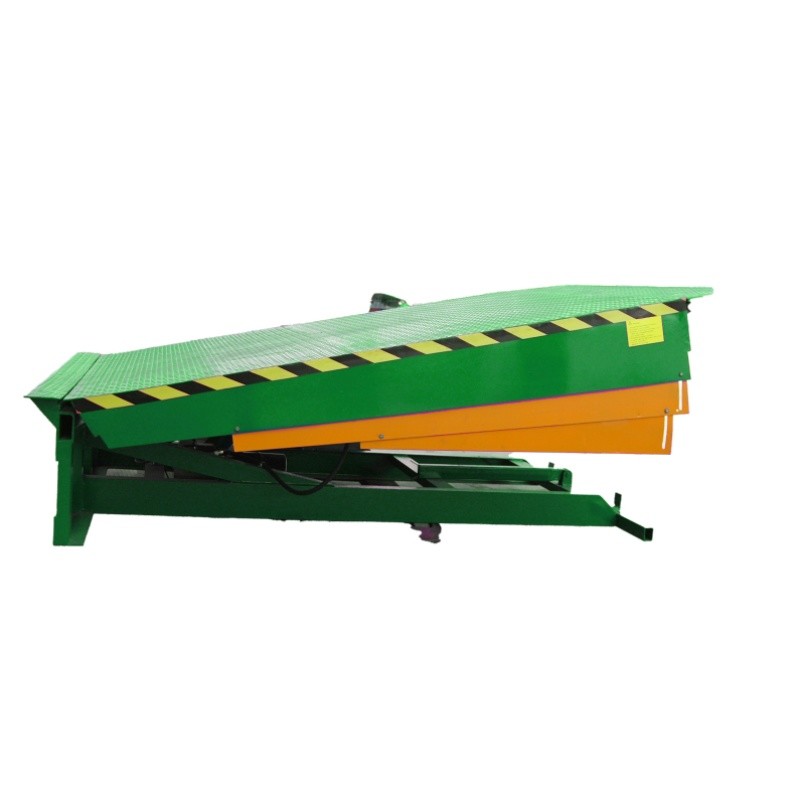

Adjustable Loading Dock Equipment , Hydraulic Dock Leveler





Quick Detail:



Name Stationary Dock Leveler Brand Name Xunte
Loading Capacity 10000Kg Working Range ±300mm
Platform Size 2.5*2.0m Color Blue Color or Optional
Voltage 380V/50Hz Power Supply AC
Motor Power 0.75Kw





Description:

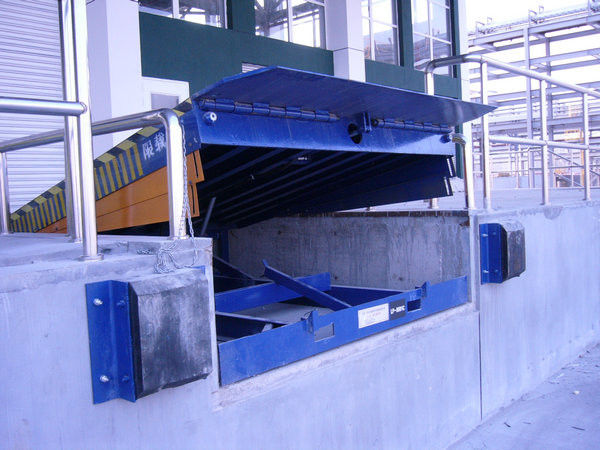

  • Stationary Dock Ramp is a fixed loading equipment and widely used as a bridge between platform and the truck. It allows the forklift to move conveniently. One side of this equipment has the same height with platform, and the other side connecting with the truck and it can adjust height according to different truck and different carriage in the process of loading .Its size and loading ability can be designed according to customer's requirements.



Main Features:

  • 1. Reinforced gusseted lip
  • 2. Heavy duty deck construction
  • 3. Anti-skid high-strength chequered platform and lip.
  • 4. Full width one -piece lip hinges pin and tube
  • 5.Heavy duty high pressure cylinders
  • 6.First class hydraulic power unit, good seal capacity and long life
  • 7. Rubber Bumpes
  • 8. Full range toe guard



Major Parameters

  • Model: DCQ10-0.6
  • Loading Capacity 10000kg
  • Working Range ±300mm
  • Platform Size 2500*2300mm
  • Lifting Power 0.75kw
  • Power Voltage 380V/50HZ
  • Measurement 2500*2000*600mm
  • Pit Measurement 2520*2030*600mm
  • Weight 980kg



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack ,Xunte made cylinder, Trellebogr sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Main Support: 10# I beam
  • Labial Plat: 14mm plate and 3mm checkered plate
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



Optional Configuration:

  • Hydraulic Power Pack: Italy brand:Microhy



Applications:



1. Site: Work Shop, logistic center etc.

2. Dock Leveler Purpose: Loading Cargo etc.





Why to choose CHENLIFT Stationary Dock Ramp?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience
