MC450 6.5m Working Height Crawler Self-propelled Scissor Lift Table

Basic Information
Place of Origin: China
Brand Name: CHENLIFT
Certification: CE
Model Number: MC450
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wrapped in pallets
Delivery Time: 10 days
Payment Terms: T/T L/C
Supply Ability: 200 sets/month
Detail Information
Highlight:

forklift clamp attachment

,

forklift drum attachment


Product Description

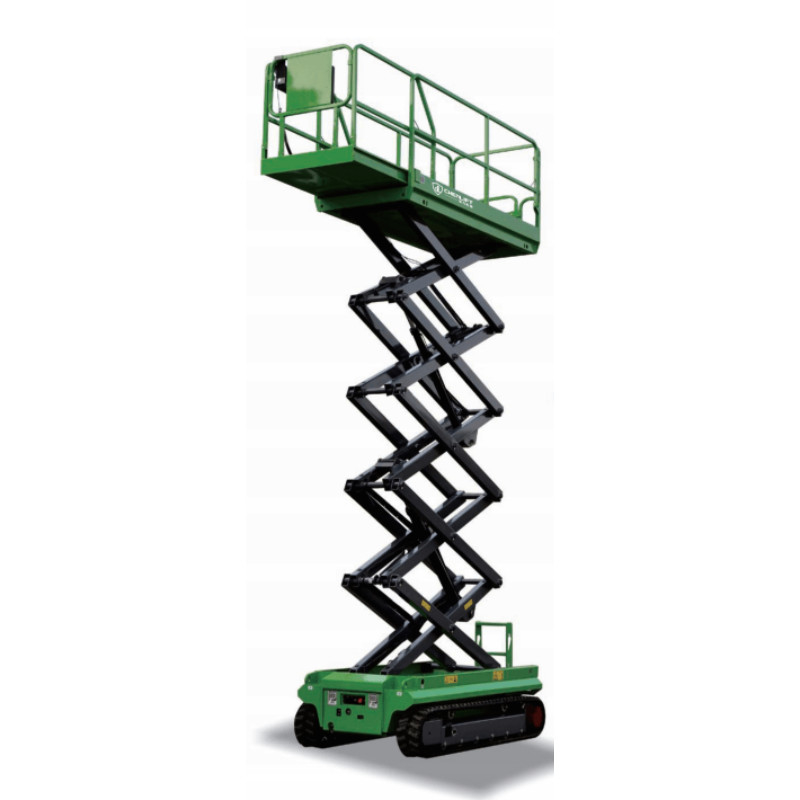

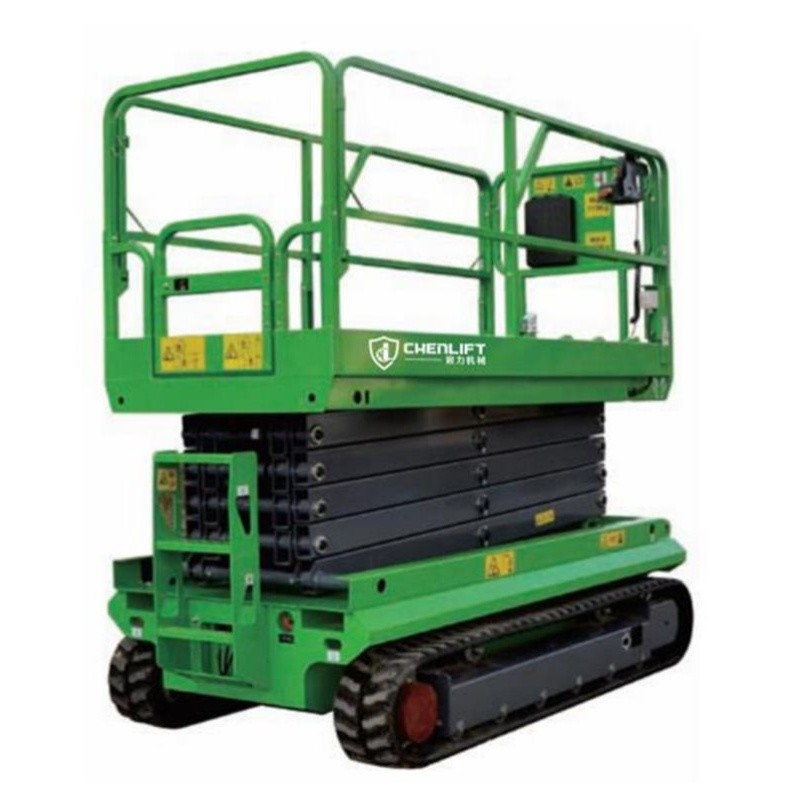

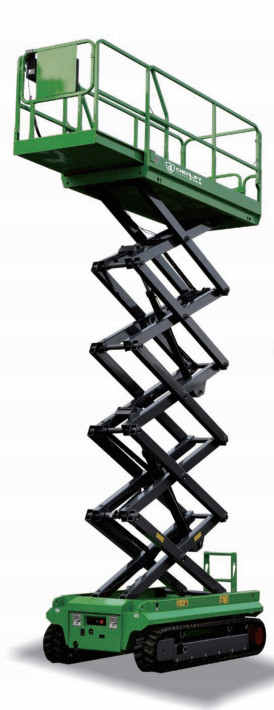

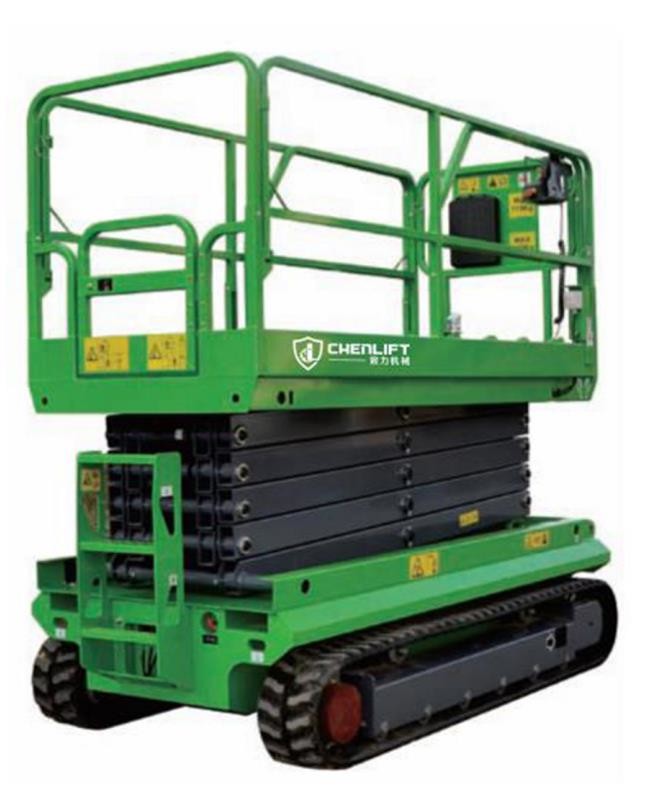

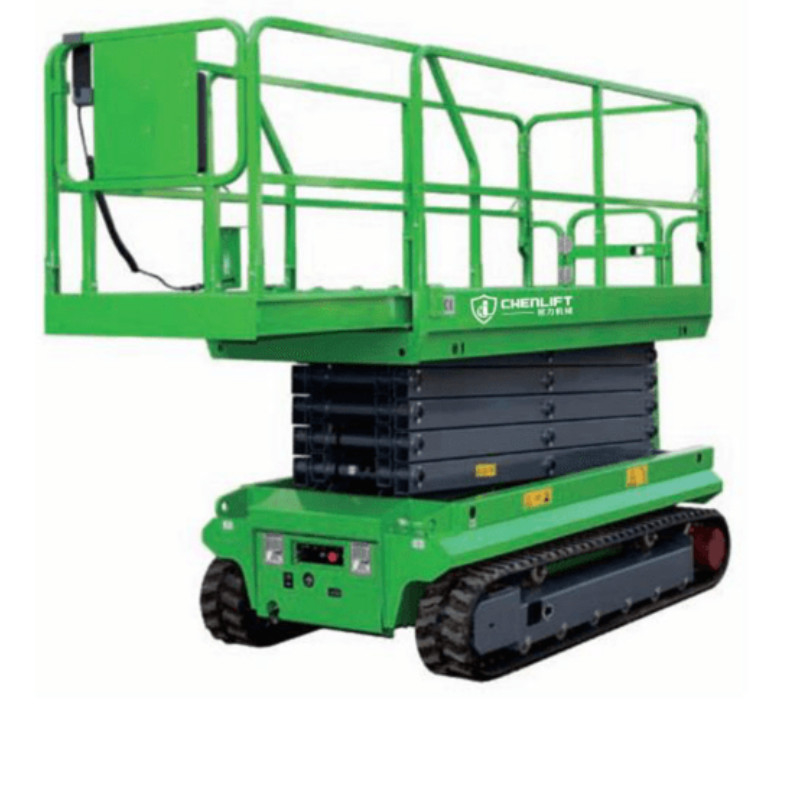

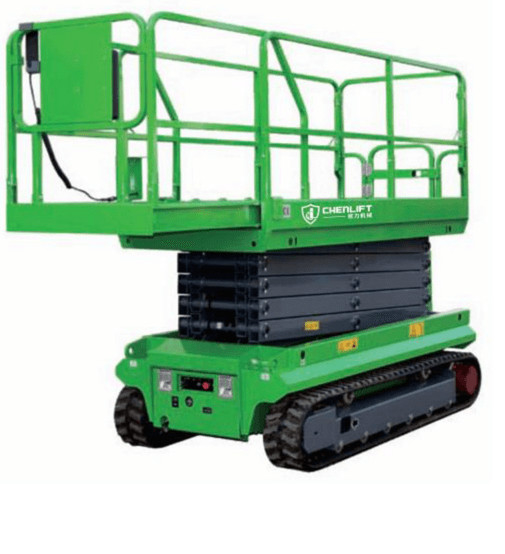

Crawler Scissor Lift Table

The Crawler-Type Scissor Lift Table is a highly versatile and reliable piece of equipment designed for construction and maintenance tasks on rugged outdoor terrain. Its crawler track system allows it to operate safely and efficiently on slightly uneven or unstable ground, providing a secure platform for workers at height.

With its durable crawler design, this lift offers exceptional maneuverability over challenging surfaces such as gravel, rocks, mud, and loose soil. This makes it an ideal solution for outdoor construction environments where stability, mobility, and safety are critical.

Equipped with a smart control system, this mobile elevated work platform ensures smooth operation and precise movement, enhancing both productivity and user safety. Whether you’re working in remote job sites, uneven landscapes, or unfinished construction areas, the crawler scissor lift delivers dependable performance in demanding conditions.

Key Benefits:

  • Excellent Terrain Adaptability – Operates confidently on uneven, soft, or rough ground.

  • Smart Control System – Intuitive interface for smooth lifting, lowering, and positioning.

  • Enhanced Stability – Built for outdoor safety where solid footing is essential.

  • Reliable Mobility – Navigate tough terrain with ease, reducing the need for repositioning or additional equipment.

Specification:
Model MC450 MC600 MC800 MC1000
Load Capacity 200kg 450kg 450kg 320kg
Extension Capacity 100kg 113kg 113kg 113kg
Occupants 1 2 2 2
Maximum Working Height 6.5m 8m 10m 12m
Maximum Platform Height 4.5m 6m 8m 9.75m
Overall Length ( Including ladder) 1410mm 2470mm 2470mm 2470mm
Overall Length ( Excluding ladder) 1340mm 2280mm 2280mm 2280mm
Overall Width 782mm 1390mm 1390mm 1390mm
Overall Height (Guardrail unfolded) 2070mm 2280mm 2400mm 2530mm
Overall Height (Guardrail folded) 1683mm 1745mm 1865mm 1995mm
Platform Size 1340*760mm 2270*1120mm 2270*1120mm 2270*1120mm
Platform Extension Size 500mm 900mm 900mm 900mm
Minimum Turning Radius 0m 0m 0m 0m
Lifting Motor 24V/12Kw 48V/4.5Kw 48V/4.5Kw 48V/4.5Kw
Traveling Motor 2*24V/12Kw 2*48V/4Kw 2*48V/4Kw 2*48V/4Kw
Machine Running Speed 1.7Km/h 2.4Km/h 2.4Km/h 2.4Km/h
Rising/Descending Speed 24/20sec 38/30sec 45/36sec 70/62sec
Batteries 2*12v/120Ah 8*6V/200Ah 8*6V/200Ah 8*6V/200Ah
Charger 24V/15A 48V/25A 48V/25A 48V/25A
Gradeability 0.3 0.3 0.3 0.3
Max.Working Slope 1.5°/3° 1.5°/3° 1.5°/3° 1.5°/3°
Overall Weight 790kg 2400kg 2550kg 2840kg

MC450 6.5m Working Height Crawler Self-propelled Scissor Lift Table 0

Company Introduction

Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
