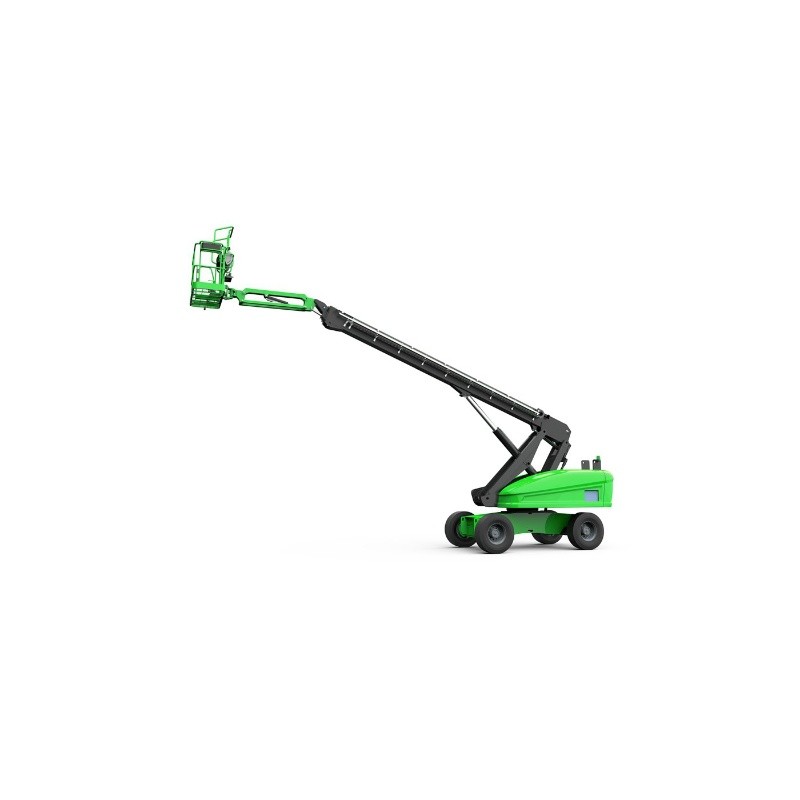

Name: 26.2m Working Height 86 Foot Telescopic Cherry Picker For High Reach Work
Brand: CHENLIFT (SUZHOU) MACHINERY CO LTD
SKU: DG1500C
Price: 6,850.00 USD
Availability: InStock

Detail Information

Color:

Yellow

Load Capacity:

500kg*3

Net Weight:

106kg

Highlight:

26.2m telescopic cherry picker

60 ft telescopic boom lift

86 foot boom lift

Product Description

Telescopic Boom Lifts: Engineering the Future of High-Reach Work

Unmatched Performance at Height

When your projects demand superior reach and reliability, our telescopic boom lifts deliver industry-leading performance. Engineered for the most demanding jobsites, these robust machines combine:

• Record-Breaking Extension - Maximum vertical and horizontal reach in their class

• Pro-Level Stability - Optimized weight distribution for secure operation

• Smart Control Systems - Intuitive interfaces with real-time diagnostics

Built for the Toughest Challenges

✓ Rugged steel construction withstands daily jobsite punishment

✓ Advanced load monitoring for consistent capacity at full extension

✓ Emergency descent systems and multiple fail-safes

✓ All-terrain capability for outdoor applications

Main Configurations of Man Pushing Around Aluminum Aerial Work Platform

1-Power Source: Diesel Engine And Battery

2-Integrated Design Work Platform, Integrated Control System, Convenient To Control The Front And Back, Left And Right, Elevation And Lowering Of The Equipment

3-Hydraulic Cylinder Adopts Imported Double-Layer Sealing Ring, No Oil Leakage For Long-Term Use, Safe And Stable, And Low Failure Rate

4-Microcomputer Electrical Control System Supports The Equipment Self-Inspection And Timely Grasps The Working Dynamics Of The Equipment, So As To Facilitate The Inspection Of Equipment Failures

5-Optimize The Overall Layout Of The Equipment, Reduce The Deviation Of The Center Of Gravity Of The Equipment, Balance The Working Torque, And Improve The Stability Of The Equipment

Model	HT18J	HT20J	HT24JLi	HT26JLi
Max.Working Height	20.5m	21.6m	26.2m	28.8m
Max.Platform Height	18.5m	19.6m	24.2m	26.8m
Max.Working Radius	13.2m	14.5m	20m	22m
Length(Stowed)	9.8m	10.3m	10.9m	11.7m
Width(Stowed)	2.49m	2.49m	2.49m	2.49m
Height(Stowed)	2.26m	2.26m	2.92m	2.92m
Platform Size	1.8*0.75m	1.8*0.75m	2.4*0.9m	2.4*0.9m
Wheel Base	2.5m	2.5m	3.2m	3.2m
Ground Clearance	0.3m	0.3m	0.3m	0.3m
Max Load Capacity	300kg	300kg	300kg/450kg	300kg/450kg
Platform Rotation	±80°	±80°	±80°	±80°
Jib Range	±70°	±70°	±70°	±70°
Turntable Rotation	continuous 360°	continuous 360°	continuous 360°	continuous 360°
Drive Speed(Stowed)	4.8km/h	4.8km/h	5.5km/h	5.5km/h
Gradeability	45%	45%	45%	45%
Max. Working Slope	3°	3°	3°	3°
Turning Radius (Outer)	5m	5m	6.5m	6.5m
Driving Steering Mode	4*2	4*2	4*2	4*2
Power Source	48V/420AH	48V/420AH	80V/500AH	80V/500AH
Pump Motor	12kw	12kw	30kw	30kw
Driving Motor	3.3kw	3.3kw	5.2kw	5.2kw
Control Voltage	12v	12v	12v	12v
Weight	8520kg	9100kg	15100kg	16600kg

Our Company

Chenlift (Suzhou) Machinery Co Ltd. is a Suzhou-based world-wide supplier of lifting equipment. With over 20 years of experience in the lifting industry, we have the knowledge to assist you in aquiring your next lifting equipment.

We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application. Based on our own manufacturing experience and refer to European advances design theory and manufacturing technology.
