Name: Aerial Work Platform Articulated Boom Lift Table Ultimate Solution For Precision Access
Brand: CHENLIFT (SUZHOU) MACHINERY CO LTD
SKU: DG360D
Price: 6,850.00 USD
Availability: InStock

Detail Information

Color:

Yellow

Load Capacity:

360kg

Net Weight:

60kg

Highlight:

Aerial Work articulated boom lift

Precision Access articulated boom lift

Aerial Work articulating boom lift

Product Description

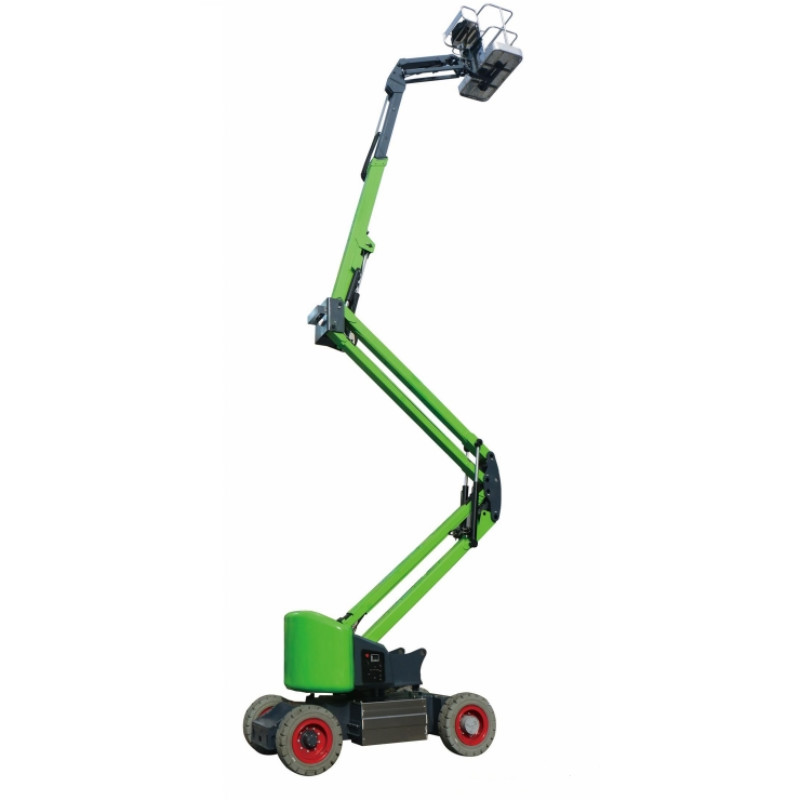

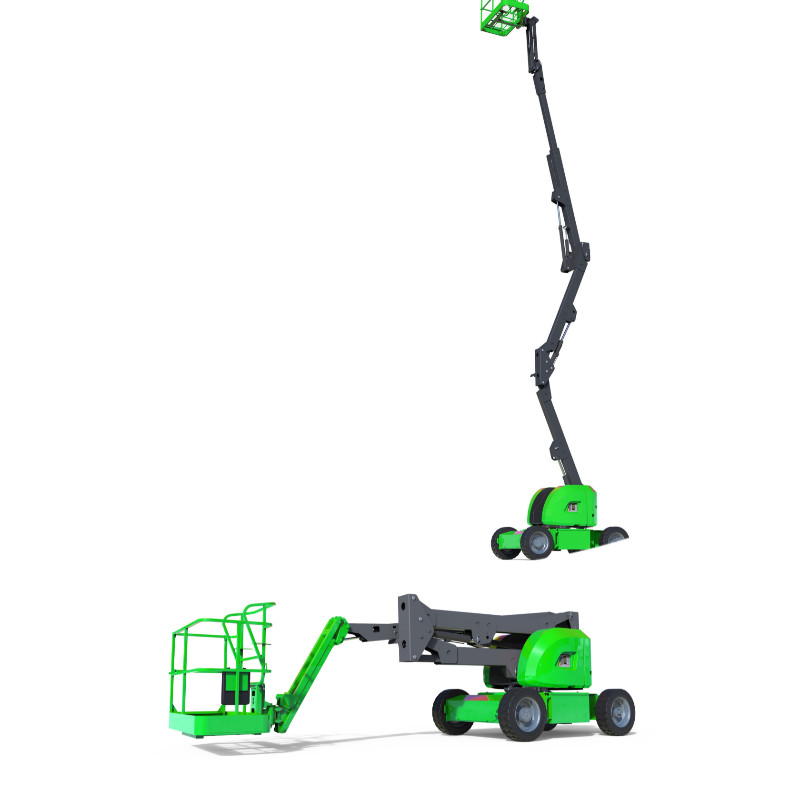

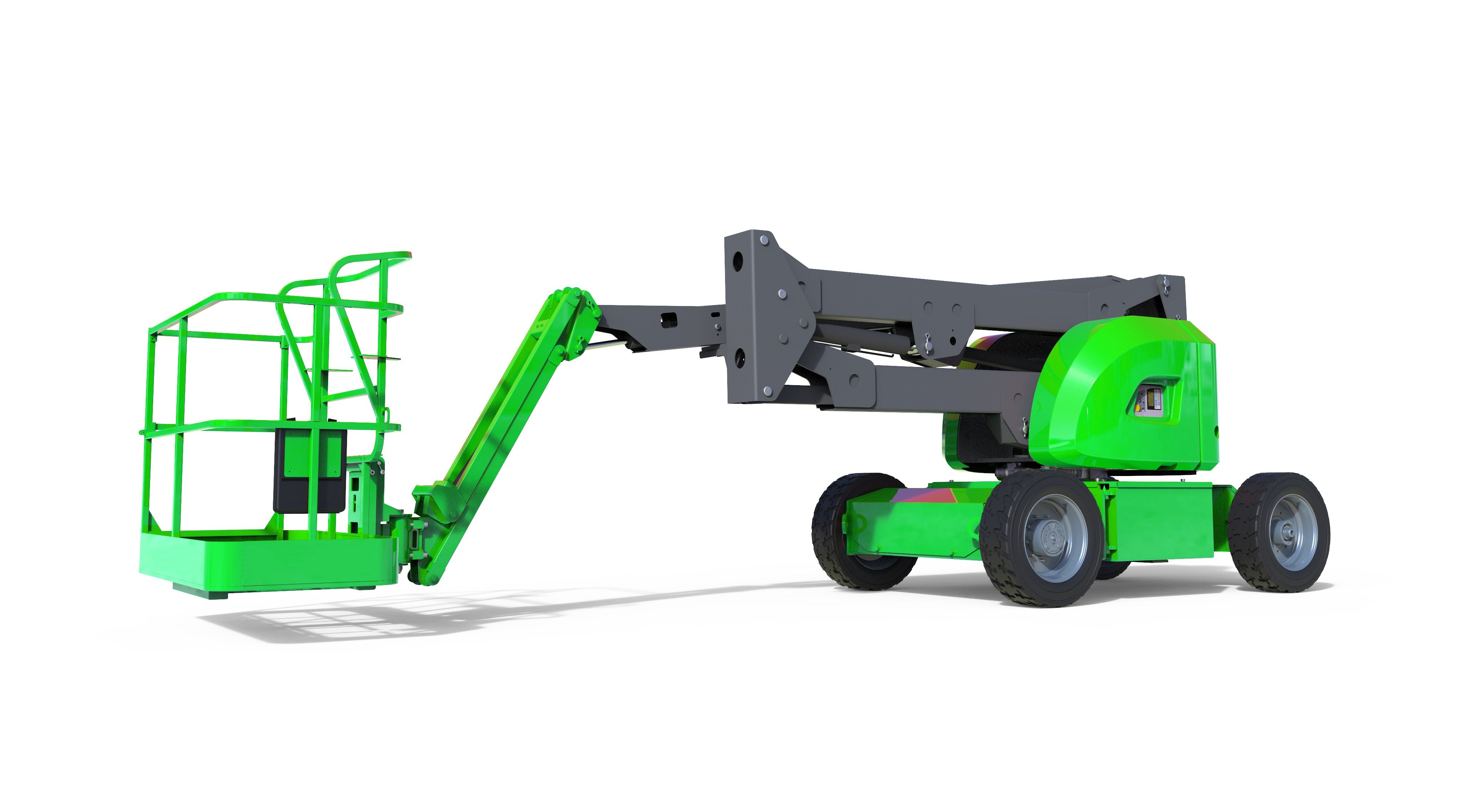

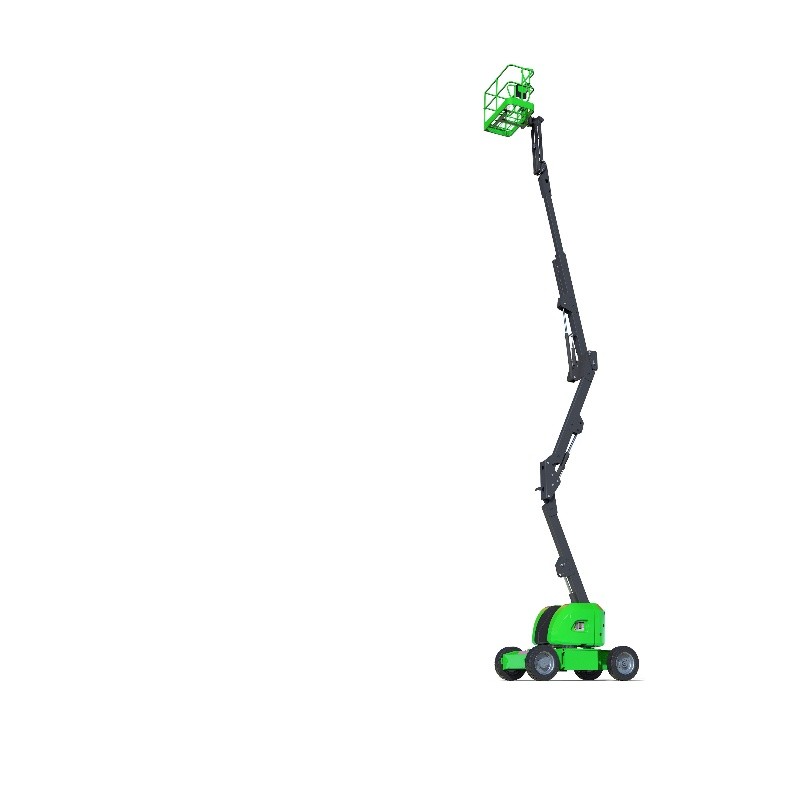

Articulating Boom Lifts: The Ultimate Solution for Precision Access

Redefining Worksite Accessibility

Modern job sites demand equipment that combines power with precision. Our articulating boom lifts deliver exactly that - unparalleled flexibility through innovative jointed-arm technology that outperforms traditional straight boom designs.

Key Advantages:

✔ Multi-Axis Articulation - Navigates complex spaces with 2-3 pivot points

✔ Pinpoint Positioning - Millimeter-accurate control for delicate operations

✔ Compact Yet Powerful - Fits through standard doorways

✔ 360° Continuous Rotation - Complete work area coverage

Professional-Grade Features:

• Smart Control System - Proportional hydraulics for smooth operation

• Advanced Telematics - Real-time diagnostics and performance monitoring

• Rugged Construction - Heavy-duty steel frame for demanding environments

• Global Certifications - Complies with CE standards

Industry-Proven Applications:

▸ Industrial facility maintenance in confined spaces

▸ Precision HVAC system installations

▸ Stadium lighting and structural maintenance

▸ Historical building preservation projects

▸ Sensitive environment operations

Product Paramenters:

1-Power Source: Diesel Engine And Battery

2-Integrated Design Work Platform, Integrated Control System, Convenient To Control The Front And Back, Left And Right, Elevation And Lowering Of The Equipment

3-Hydraulic Cylinder Adopts Imported Double-Layer Sealing Ring, No Oil Leakage For Long-Term Use, Safe And Stable, And Low Failure Rate

4-Microcomputer Electrical Control System Supports The Equipment Self-Inspection And Timely Grasps The Working Dynamics Of The Equipment, So As To Facilitate The Inspection Of Equipment Failures

5-Optimize The Overall Layout Of The Equipment, Reduce The Deviation Of The Center Of Gravity Of The Equipment, Balance The Working Torque, And Improve The Stability Of The Equipment.

Model	HA9J	HA11J	HA14J	HA16J	HA18J	HA20J
Max. Working Height	11.5m	12.52m	15.8m	17.7m	20.2m	22.5m
Max. Platform Height	9.5m	10.52m	13.8m	15.7m	18.2m	20.5m
Max. Up and Over Clearance	4.5m	4.65m	7m	7.3m	8m	9.4m
Max. Working Radius	6.2m	6.5m	7.5m	8.9m	11.1m	11.8m
Platform Size	1.4*0.7m	1.4*0.7m	1.4*0.76m	1.4*0.76m	1.8*0.76m	1.8*0.76m
Length-stowed	5.2m	5.6m	6.5m	7.2m	8.49m	8.99m
Width-stowed	1.27m	1.5m	1.76m	1.9m	2.49m	2.49m
Height-stowed	2.0m	2.0m	2.0m	2.0m	2.38m	2.38m
Wheelbase	1.75m	1.95m	2.0m	2.0m	2.5m	2.5m
Ground Clearance	0.14m	0.14m	0.25m	0.25m	0.3m	0.3m
Platform Capacity	200kg	200kg	230kg	230kg	230/350kg	230/350kg
Platform Rotation	±80°	±80°	±80°	±80°	±80°	±80°
Turntable Rotation	355°	355°	355°	355°	355°	355°
Vertical Jib Rotation(Up/Down)	±70°	±70°	±70°	±70°	±70°	±70°
Drive Speed (Stowed)	4.8km/h	4.8km/h	5.1km/h	5.0km/h	4.8km/h	4.5km/h
Gradeability (Stowed)	35%	35%	30%	30%	45%	40%
Max. Working Angle	3°	3°	3°	3°	3°	3°
Turning Radius (Out.)	3.3m	4.08m	3.2m	3.45m	5.0m	5.0m
Drive and Steer	2*2	2*2	2*2	2*2	4*2	4*2
Battery	48V/320Ah	48V/320Ah	48V/320Ah	48V/320Ah	48V/420Ah	48V/420Ah
Pump Motor Power	4kw	4kw	4kw	4kw	12kw	12kw
Driving Motor Power	3.3kw	3.3kw	3.3kw	3.3kw	3.3kw	3.3kw
Control Voltage	24V	24V	24V	24V	24V	24V
Weight	4800kg	5200kg	5960kg	6630kg	9100kg	10000kg

Our Company
Chenlift (Suzhou) Machinery Co Ltd. is a Suzhou-based world-wide supplier of lifting equipment. With over 20 years of experience in the lifting industry, we have the knowledge to assist you in aquiring your next lifting equipment.

We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application. Based on our own manufacturing experience and refer to European advances design theory and manufacturing technology.

Other Related Products

Tag:

Place of Origin:	China
Brand Name:	CHENLIFT
Certification:	CE
Model Number:	DG360D

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wrapped in pallets
Delivery Time:	30 days
Payment Terms:	T/T L/C
Supply Ability:	200 sets/month
