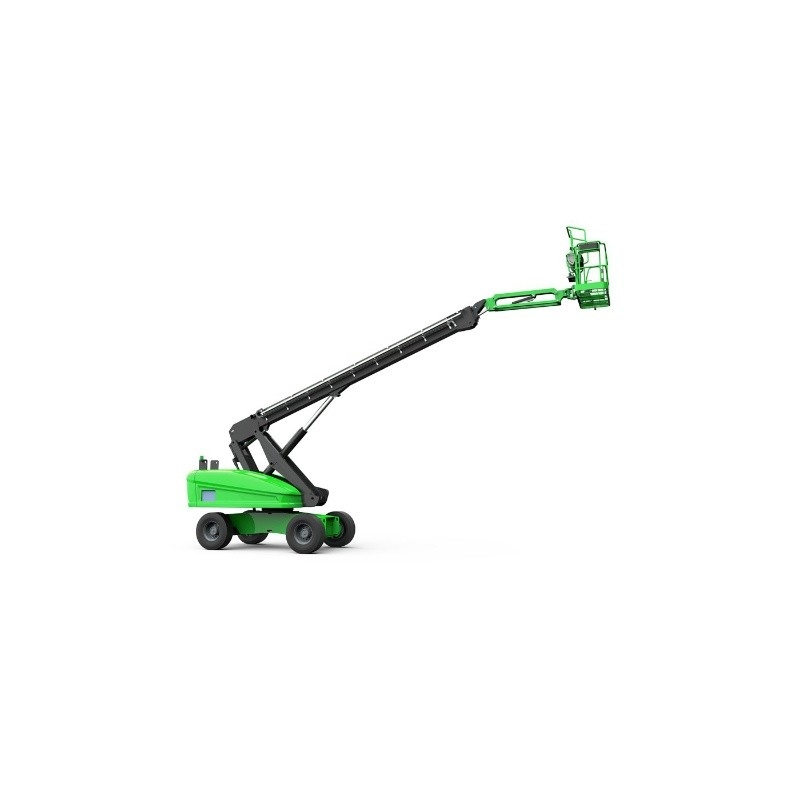

Name: 20.5m Working Height Aerial Work Platform Telescopic Boom Lift Unmatched Reach For Elevated Work
Brand: CHENLIFT (SUZHOU) MACHINERY CO LTD
SKU: HT18J
Price: 6,850.00 USD
Availability: InStock

Detail Information

Highlight:

20.5m telescopic boom lift

Elevated Work telescopic boom lift

20.5m telescoping boom lift

Product Description

Telescopic Boom Lifts: Unmatched Reach for Elevated Work

Key Features:

Industry-leading extension capability with telescoping arm system
Heavy-duty construction for demanding outdoor applications
Superior height and horizontal reach compared to articulated models
360° rotation available on select models for optimal positioning
Rugged all-terrain tires for stable operation

Ideal Applications:

✓ High-rise construction (steel beams, facades)

✓ Infrastructure maintenance (bridges, cell towers)

✓ Stadium and arena upgrades

✓ Industrial exterior services

✓ Arboricultural operations

Why Professionals Choose Telescopic Booms:

• Exceptional horizontal extension

• Continuous operation at full extension

• Designed for outdoor durability

Perfect for projects requiring:

Extended work periods at height
Material handling to elevated positions
Access to difficult-to-reach areas
Stable performance on uneven terrain

Main Configurations of Man Pushing Around Aluminum Aerial Work Platform

1-Power Source: Diesel Engine And Battery

2-Integrated Design Work Platform, Integrated Control System, Convenient To Control The Front And Back, Left And Right, Elevation And Lowering Of The Equipment

3-Hydraulic Cylinder Adopts Imported Double-Layer Sealing Ring, No Oil Leakage For Long-Term Use, Safe And Stable, And Low Failure Rate

4-Microcomputer Electrical Control System Supports The Equipment Self-Inspection And Timely Grasps The Working Dynamics Of The Equipment, So As To Facilitate The Inspection Of Equipment Failures

5-Optimize The Overall Layout Of The Equipment, Reduce The Deviation Of The Center Of Gravity Of The Equipment, Balance The Working Torque, And Improve The Stability Of The Equipment

Model	HT18J	HT20J	HT24JLi	HT26JLi
Max.Working Height	20.5m	21.6m	26.2m	28.8m
Max.Platform Height	18.5m	19.6m	24.2m	26.8m
Max.Working Radius	13.2m	14.5m	20m	22m
Length(Stowed)	9.8m	10.3m	10.9m	11.7m
Width(Stowed)	2.49m	2.49m	2.49m	2.49m
Height(Stowed)	2.26m	2.26m	2.92m	2.92m
Platform Size	1.8*0.75m	1.8*0.75m	2.4*0.9m	2.4*0.9m
Wheel Base	2.5m	2.5m	3.2m	3.2m
Ground Clearance	0.3m	0.3m	0.3m	0.3m
Max Load Capacity	300kg	300kg	300kg/450kg	300kg/450kg
Platform Rotation	±80°	±80°	±80°	±80°
Jib Range	±70°	±70°	±70°	±70°
Turntable Rotation	continuous 360°	continuous 360°	continuous 360°	continuous 360°
Drive Speed(Stowed)	4.8km/h	4.8km/h	5.5km/h	5.5km/h
Gradeability	45%	45%	45%	45%
Max. Working Slope	3°	3°	3°	3°
Turning Radius (Outer)	5m	5m	6.5m	6.5m
Driving Steering Mode	4*2	4*2	4*2	4*2
Power Source	48V/420AH	48V/420AH	80V/500AH	80V/500AH
Pump Motor	12kw	12kw	30kw	30kw
Driving Motor	3.3kw	3.3kw	5.2kw	5.2kw
Control Voltage	12v	12v	12v	12v
Weight	8520kg	9100kg	15100kg	16600kg

Our Company

Chenlift (Suzhou) Machinery Co Ltd. is a Suzhou-based world-wide supplier of lifting equipment. With over 20 years of experience in the lifting industry, we have the knowledge to assist you in aquiring your next lifting equipment.

We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application. Based on our own manufacturing experience and refer to European advances design theory and manufacturing technology.
