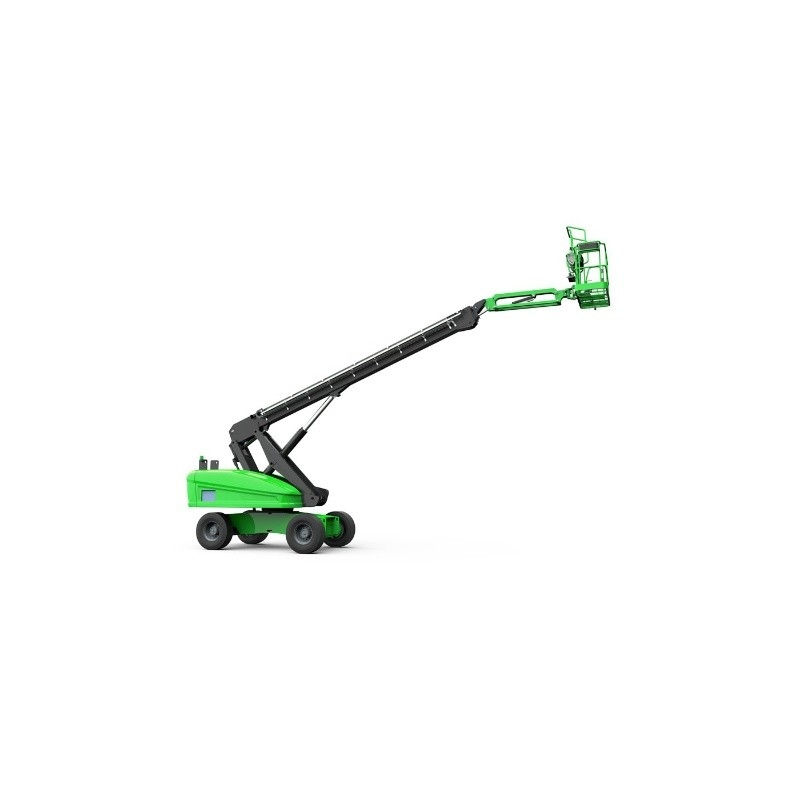

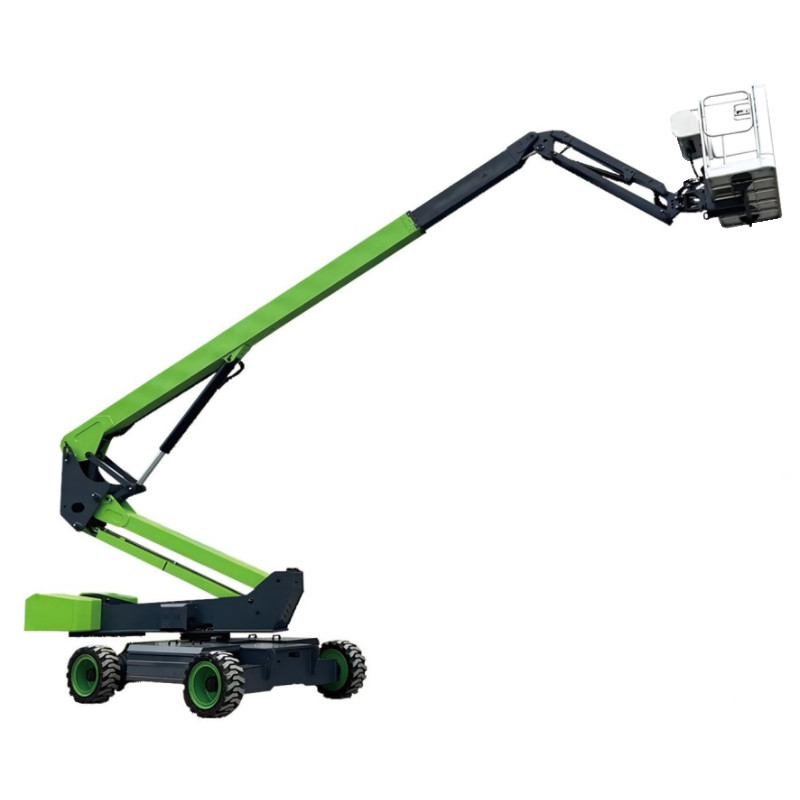

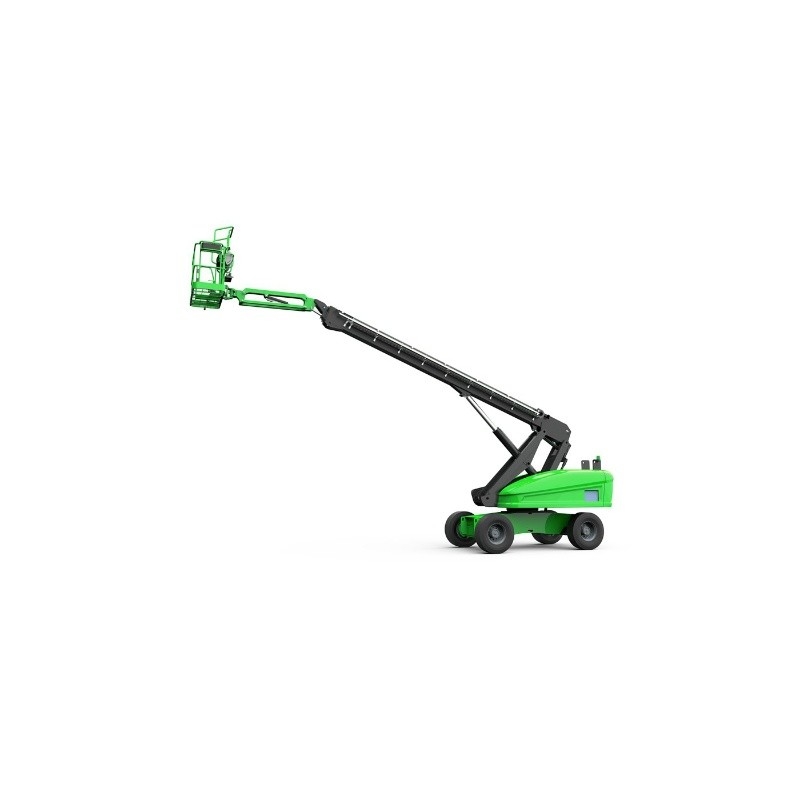

Telescopic Boom Lift: Unrivaled Reach for Demanding Jobsites
Power Meets Precision
Engineered for professional-grade performance, our telescopic boom lift delivers:
✔ Industry-leading reach – Exceptional vertical height + horizontal extension
✔ Heavy-duty capacity – Built to handle demanding loads with stability
✔ All-terrain reliability – Confident operation in challenging conditions
Engineered for Real-World Productivity
• Rugged steel construction withstands daily jobsite demands
• Smart load management maintains full capacity at maximum extension
• Advanced stability systems for secure positioning
Professional-Grade Applications
▸ High-rise construction & facade work
▸ Industrial plant maintenance
▸ Infrastructure projects (bridges, utilities)
▸ Event production & stadium maintenance
▸ Signage installation & lighting maintenance
Main Configurations of Man Pushing Around Aluminum Aerial Work Platform
1-Power Source: Diesel Engine And Battery
2-Integrated Design Work Platform, Integrated Control System, Convenient To Control The Front And Back, Left And Right, Elevation And Lowering Of The Equipment
3-Hydraulic Cylinder Adopts Imported Double-Layer Sealing Ring, No Oil Leakage For Long-Term Use, Safe And Stable, And Low Failure Rate
4-Microcomputer Electrical Control System Supports The Equipment Self-Inspection And Timely Grasps The Working Dynamics Of The Equipment, So As To Facilitate The Inspection Of Equipment Failures
5-Optimize The Overall Layout Of The Equipment, Reduce The Deviation Of The Center Of Gravity Of The Equipment, Balance The Working Torque, And Improve The Stability Of The Equipment
| Model |
HT18J |
HT20J |
HT24JLi |
HT26JLi |
| Max.Working Height |
20.5m |
21.6m |
26.2m |
28.8m |
| Max.Platform Height |
18.5m |
19.6m |
24.2m |
26.8m |
| Max.Working Radius |
13.2m |
14.5m |
20m |
22m |
| Length(Stowed) |
9.8m |
10.3m |
10.9m |
11.7m |
| Width(Stowed) |
2.49m |
2.49m |
2.49m |
2.49m |
| Height(Stowed) |
2.26m |
2.26m |
2.92m |
2.92m |
| Platform Size |
1.8*0.75m |
1.8*0.75m |
2.4*0.9m |
2.4*0.9m |
| Wheel Base |
2.5m |
2.5m |
3.2m |
3.2m |
| Ground Clearance |
0.3m |
0.3m |
0.3m |
0.3m |
| Max Load Capacity |
300kg |
300kg |
300kg/450kg |
300kg/450kg |
| Platform Rotation |
±80° |
±80° |
±80° |
±80° |
| Jib Range |
±70° |
±70° |
±70° |
±70° |
| Turntable Rotation |
continuous 360° |
continuous 360° |
continuous 360° |
continuous 360° |
| Drive Speed(Stowed) |
4.8km/h |
4.8km/h |
5.5km/h |
5.5km/h |
| Gradeability |
45% |
45% |
45% |
45% |
| Max. Working Slope |
3° |
3° |
3° |
3° |
| Turning Radius (Outer) |
5m |
5m |
6.5m |
6.5m |
| Driving Steering Mode |
4*2 |
4*2 |
4*2 |
4*2 |
| Power Source |
48V/420AH |
48V/420AH |
80V/500AH |
80V/500AH |
| Pump Motor |
12kw |
12kw |
30kw |
30kw |
| Driving Motor |
3.3kw |
3.3kw |
5.2kw |
5.2kw |
| Control Voltage |
12v |
12v |
12v |
12v |
| Weight |
8520kg |
9100kg |
15100kg |
16600kg |
Our Company
Chenlift (Suzhou) Machinery Co Ltd. is a Suzhou-based world-wide supplier of lifting equipment. With over 20 years of experience in the lifting industry, we have the knowledge to assist you in aquiring your next lifting equipment.
We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application. Based on our own manufacturing experience and refer to European advances design theory and manufacturing technology.
