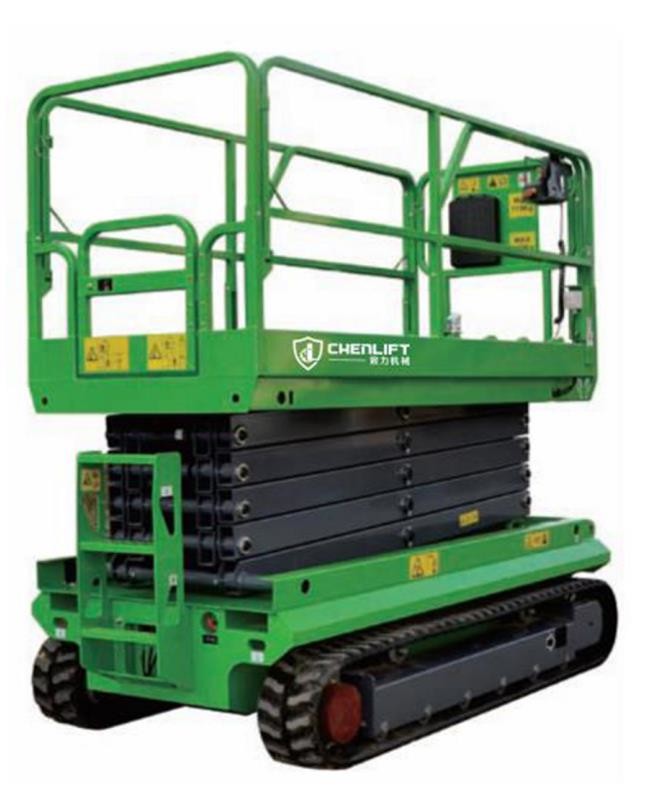

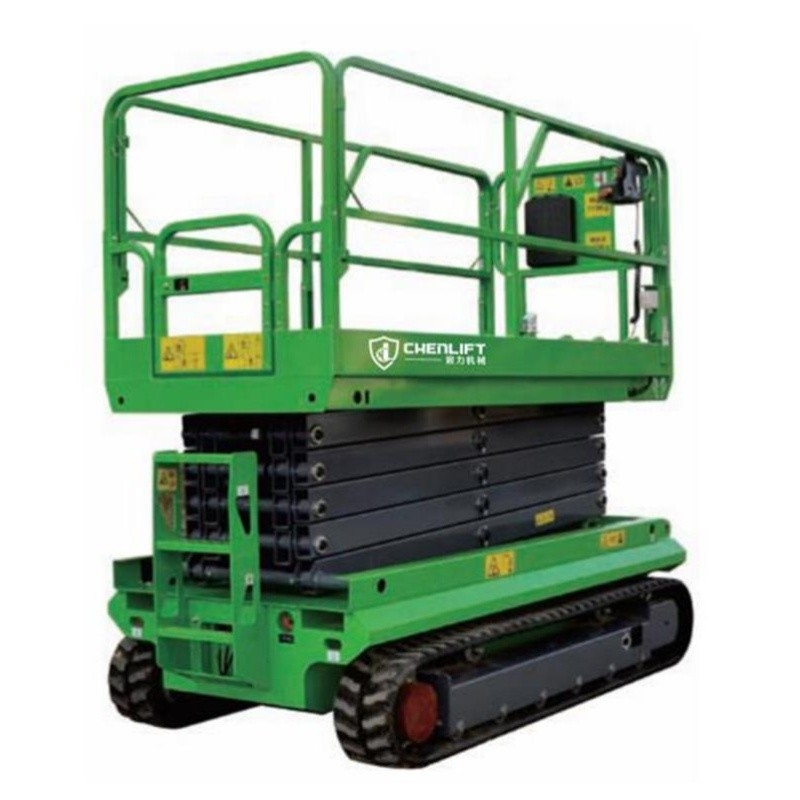

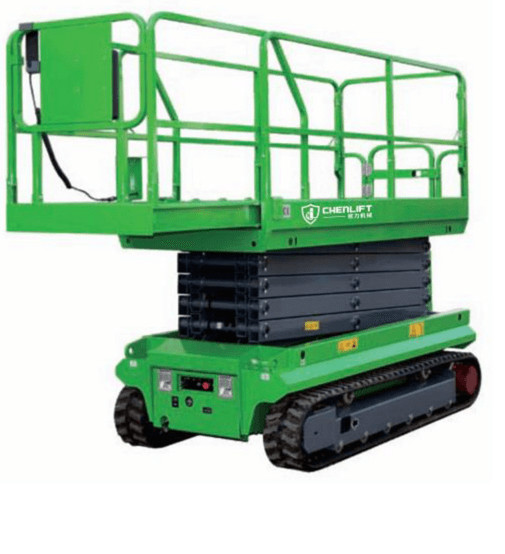

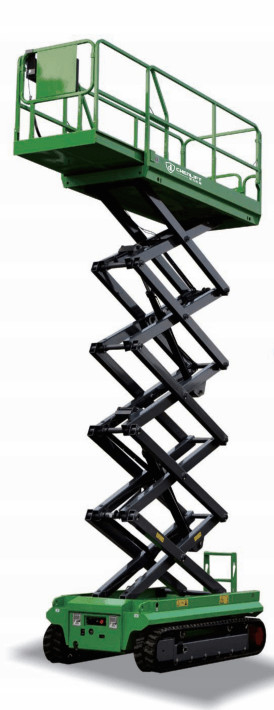

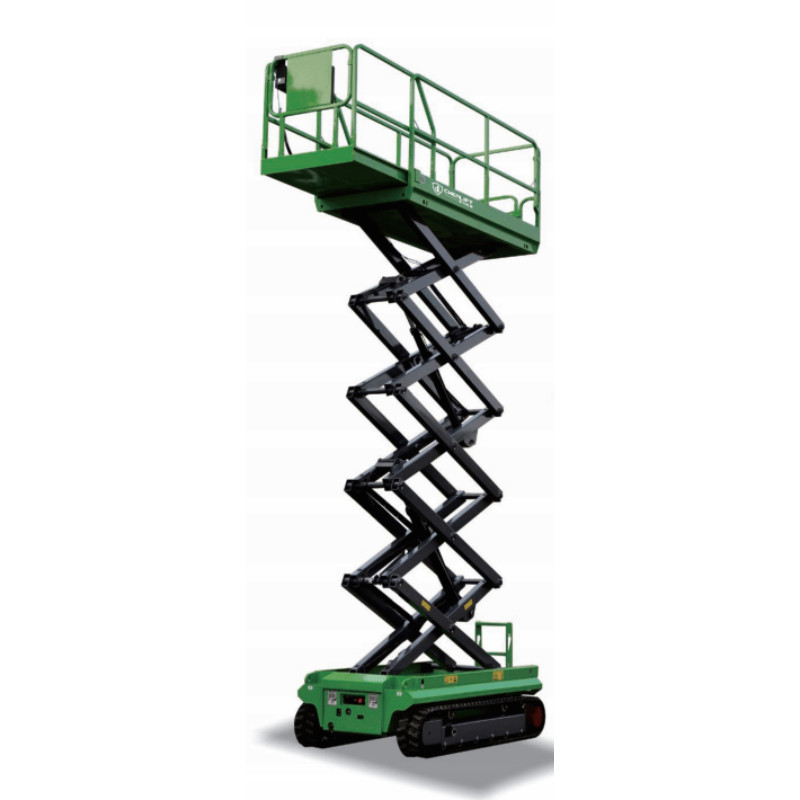

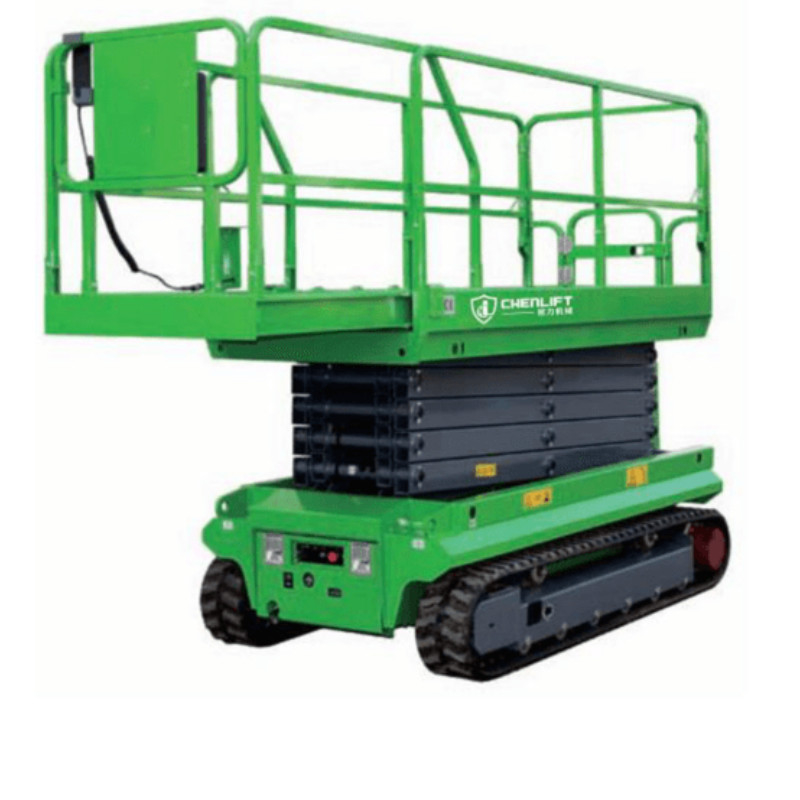

Crawler Scissor Lifts are compact, lightweight, and equipped with durable rubber tracks, enabling smooth, fast, and safe travel across challenging terrain. Powered by standard AC electricity, these lifts operate with zero emissions, making them an eco-friendly choice for both indoor and outdoor applications.
Thanks to their tracked wheel design, crawler scissor lifts can easily climb slopes, while the narrow chassis allows them to pass through gates, courtyards, standard doorways, and even elevators—making them ideal for use in public buildings, urban environments, and confined spaces.
High-Capacity Batteries Long-lasting battery power supports extended operation time without frequent recharging, ideal for all-day work.
Compact & Lightweight Design Easily fits into elevators and tight-access areas, ensuring mobility in multi-floor buildings and indoor environments.
Tracked Drive with Low Noise The combination of an electric motor and crawler drive ensures quiet operation and strong off-road performance, making it suitable for noise-sensitive areas.
In-Place Rotation Capable of turning 360° in place, allowing excellent maneuverability in confined or restricted workspaces.
Elevated Travel Capability The lift can move slowly while the platform is raised, enhancing productivity by reducing downtime for repositioning.
No Outriggers Required Featuring a weighted chassis for enhanced stability, the crawler lift eliminates the need for support legs, speeding up setup and increasing operational efficiency.
Strong Terrain Adaptability Designed to perform reliably in complex outdoor environments without external power sources or level ground—perfect for remote job sites.
Model | MC450 | MC600 | MC800 | MC1000 |
Load Capacity | 200kg | 450kg | 450kg | 320kg |
Extension Capacity | 100kg | 113kg | 113kg | 113kg |
Occupants | 1 | 2 | 2 | 2 |
Maximum Working Height | 6.5m | 8m | 10m | 12m |
Maximum Platform Height | 4.5m | 6m | 8m | 9.75m |
Overall Length ( Including ladder) | 1410mm | 2470mm | 2470mm | 2470mm |
Overall Length ( Excluding ladder) | 1340mm | 2280mm | 2280mm | 2280mm |
Overall Width | 782mm | 1390mm | 1390mm | 1390mm |
Overall Height (Guardrail unfolded) | 2070mm | 2280mm | 2400mm | 2530mm |
Overall Height (Guardrail folded) | 1683mm | 1745mm | 1865mm | 1995mm |
Platform Size | 1340*760mm | 2270*1120mm | 2270*1120mm | 2270*1120mm |
Platform Extension Size | 500mm | 900mm | 900mm | 900mm |
Minimum Turning Radius | 0m | 0m | 0m | 0m |
Lifting Motor | 24V/12Kw | 48V/4.5Kw | 48V/4.5Kw | 48V/4.5Kw |
Traveling Motor | 2*24V/12Kw | 2*48V/4Kw | 2*48V/4Kw | 2*48V/4Kw |
Machine Running Speed | 1.7Km/h | 2.4Km/h | 2.4Km/h | 2.4Km/h |
Rising/Descending Speed | 24/20sec | 38/30sec | 45/36sec | 70/62sec |
Batteries | 2*12v/120Ah | 8*6V/200Ah | 8*6V/200Ah | 8*6V/200Ah |
Charger | 24V/15A | 48V/25A | 48V/25A | 48V/25A |
Gradeability | 0.3 | 0.3 | 0.3 | 0.3 |
Max.Working Slope | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° |
Overall Weight | 790kg | 2400kg | 2550kg | 2840kg |
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
