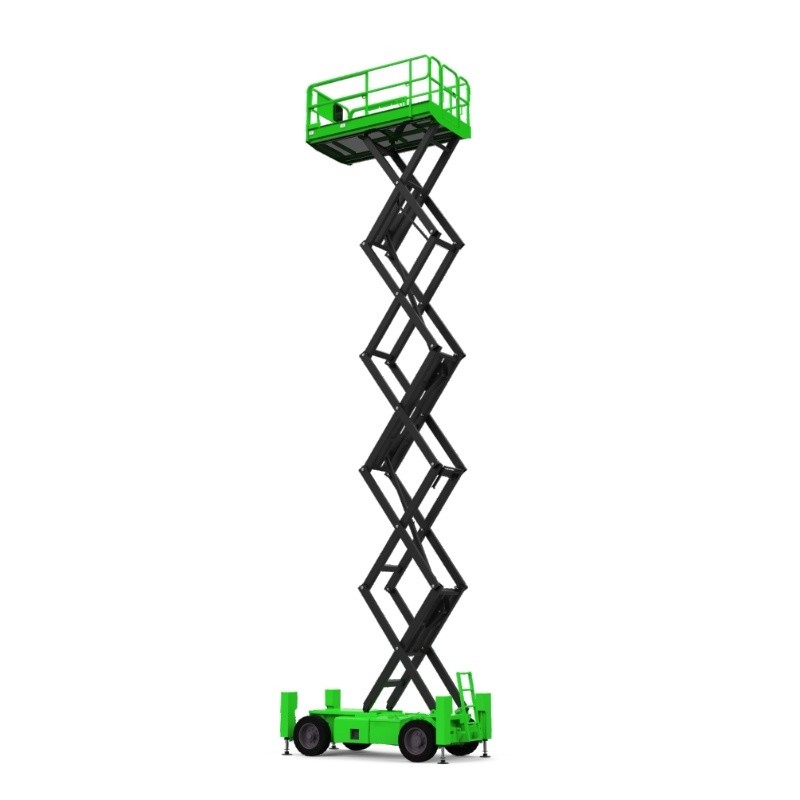

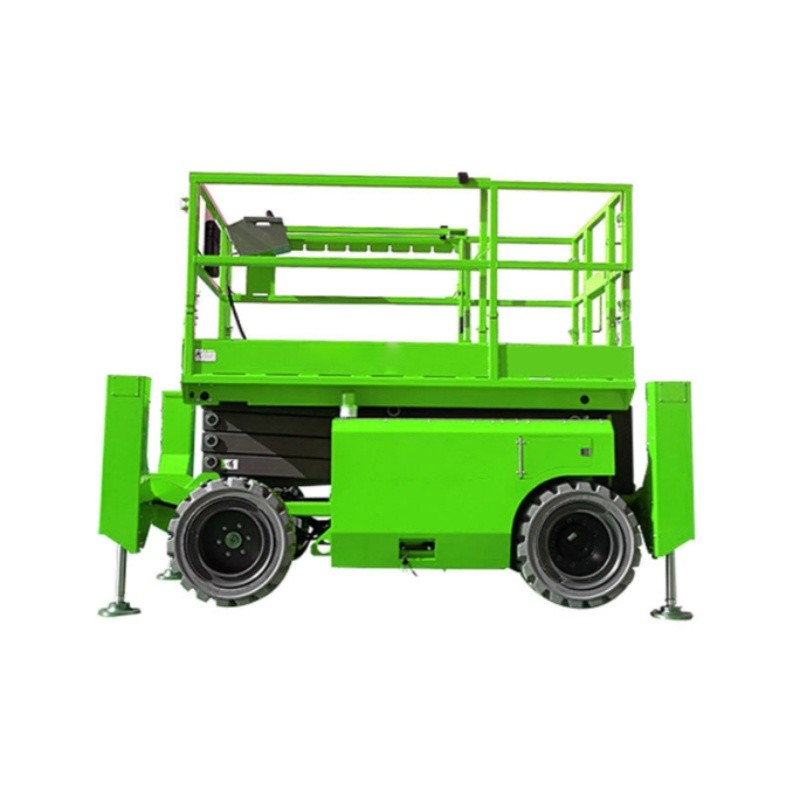

MRT1000 Self-propelled Rough Terrain Scissor Lift

Basic Information
Place of Origin: China
Brand Name: CHENLIFT
Certification: CE
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 200 sets/month
Detail Information
Highlight:

forklift clamp attachment

,

drum handling equipment forklift attachment


Product Description

Conquer Any Terrain with Confidence – Self-Propelled Rough Terrain Scissor Lift

Built for performance, durability, and safety, our Self-Propelled Rough Terrain Scissor Lift is the ideal solution for elevated work in demanding outdoor conditions. Engineered to navigate uneven and rugged surfaces with ease, it delivers outstanding stability and dependable operation—wherever the job takes you.

Key Features:

  • Exceptional Rough Terrain Performance: Outfitted with robust 4x4 drive, heavy-duty tires, and high ground clearance, this lift handles gravel, mud, and sloped surfaces with confidence.

  • Self-Propelled Convenience: Easily maneuver between work areas without external towing, boosting productivity and saving time on site.

  • Spacious Platform & Heavy Load Capacity: A large extendable platform supports multiple workers and heavy tools, maximizing both efficiency and comfort at height.

  • Reliable Safety Systems: Equipped with dual safety controls, automatic leveling, and emergency lowering functions to ensure secure operation at every elevation.

Whether you're installing structural steel, performing façade maintenance, or handling exterior construction tasks, this lift gives you the height, mobility, and rugged power to get the job done—safely and efficiently.

Built to Rise Above. Engineered for the Extreme.



Specification:

MRT1000 Self-propelled Rough Terrain Scissor Lift 0


Model MRT800 MRT1000 MRT1200 MRT1300 MRT1600
Max Working Height 10m 12m 14m 15m 18m
Max Platform Height 8m 10m 12m 13m 16m
Max Outreach 1.5m 1.5m 1.5m 1.2m 1.2m
Length-PLatform Extended 4m 4m 4m 6.3m 6.3m
Length with Outreach 3.23m 3.23m 3.23m 4.88m 4.88m
Width Stowed 1.81m 1.81m 1.81m 2.3m 2.3m
Height Stowed(guardrails unfolded) 2.62m 2.74m 2.87m 2.99m 3.26m
Height Stowed(guardrails folded) 1.91m 2.04m 2.16m 2.19m 2.47m
Wheelbase 1.89m 1.89m 1.89m 2.97m 2.97m
Ground Clearance 0.31m 0.31m 0.31m 0.32m 0.32m
Platform Size 2.5*1.6*1.15m 2.5*1.6*1.15m 2.5*1.6*1.15m 3.9*1.9*1.15m 3.9*1.9*1.15m
Skirting Board Height 0.15m 0.15m 0.15m 0.15m 0.15m
Lifting Capacity 567kg 454kg 345kg 680kg 680kg
Extension Lifting Capacity 136kg 136kg 136kg 230kg 230kg
Drive Speed(Stowed) 4.5km/h 4.5km/h 4.5km/h 4.5km/h 4.5km/h
Drive Speed(Raised) 0.7km/h 0.7km/h 0.7km/h 0.7km/h 0.7km/h
Rising Time 40s 45s 50s 68s 75s
Lowering Time 35s 37s 42s 50s 55s
Gradeability 35% 30% 30% 45% 45%
Turning Radius 1.58m/3.89m 1.58m/3.89m 1.58m/3.89m 2.72m/5.9m 2.72m/5.9m
Tilt Sensor-Front to Back
Tilt Sensor-Side to Side 1.5° 1.5° 1.5° 1.5° 1.5°
Tire Specification 675*280mm 675*280mm 675*280mm 33*12-20solid tire 33*12-20solid tire
Outrigger Level Ability-Front to Back 6.6° 6.6° 6.6°
Outrigger Level Ability-Side to Side 10.6° 10.6° 10.6° 11° 11°
Drive Mode Electric Drive,4WD*2WS Electric Drive,4WD*2WS Electric Drive,4WD*2WS Electric Drive,4WD*2WS Electric Drive,4WD*2WS
Power Unit Motor 48V/4.5kw 48V/4.5kw 48V/4.5kw 48V/4.5kw 48V/4.5kw
Hydraulic Tank Capacity 68L 68L 68L 120L 120L
Battery Specification 235Ah 235Ah 235Ah 235Ah 235Ah
Control Voltage 24V 24V 24V 48V 48V
Charger 90-264V/40A 90-264V/40A 90-264V/40A 48V/40A 48V/40A
Weight(with Outriggers) 4170kg 4440kg 5480kg 8103kg 9010kg



Company Introduction

Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
