Payment & Shipping Terms:
|Working Height:||5m||Platform Size:||1.15m*0.6m|
|Power:||DC Power||Optional Extension:||0.55 M|
|Optional Extension Load:||100 Kg||Weight:||630kg|
self propelled lift,
scissor lift self propelled

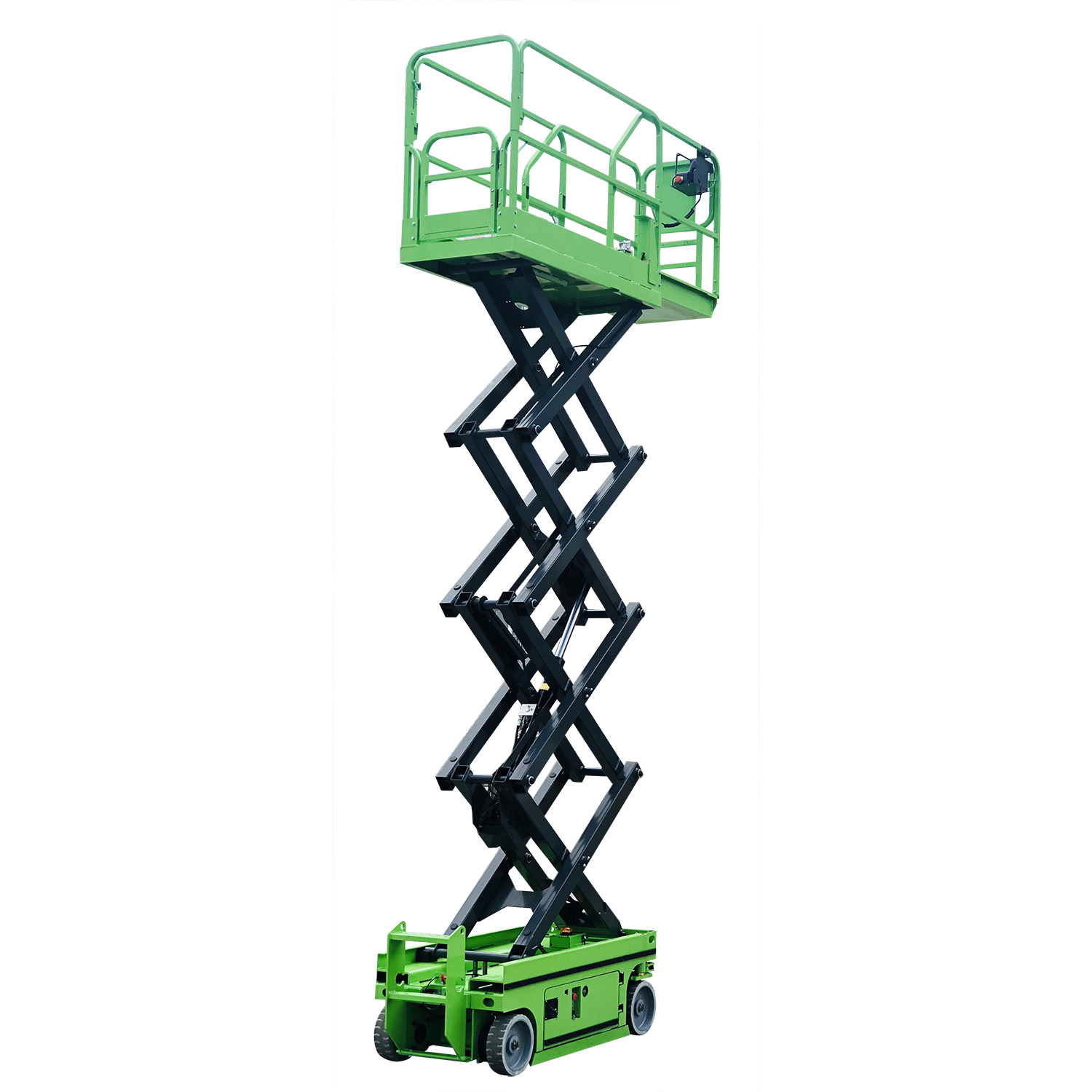

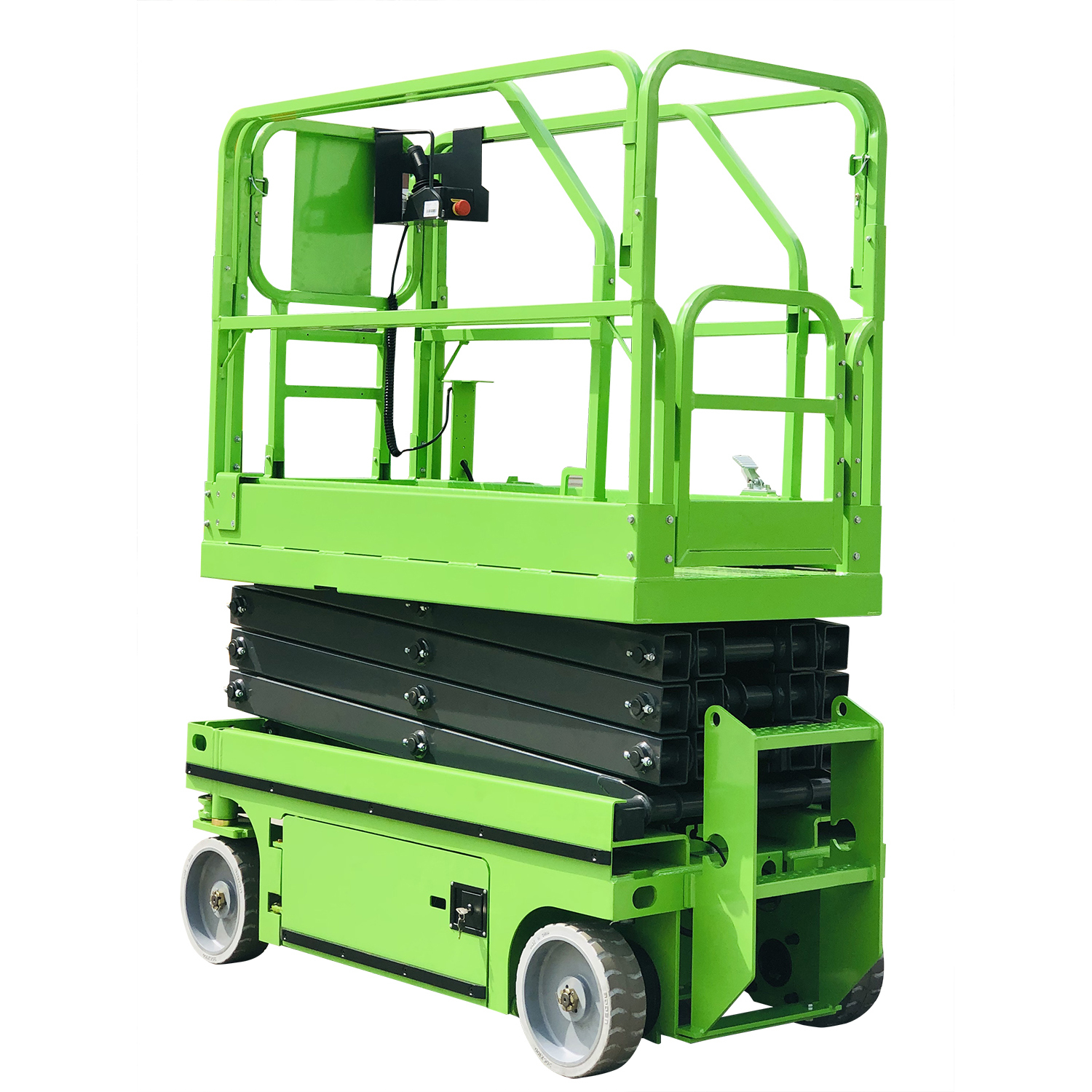

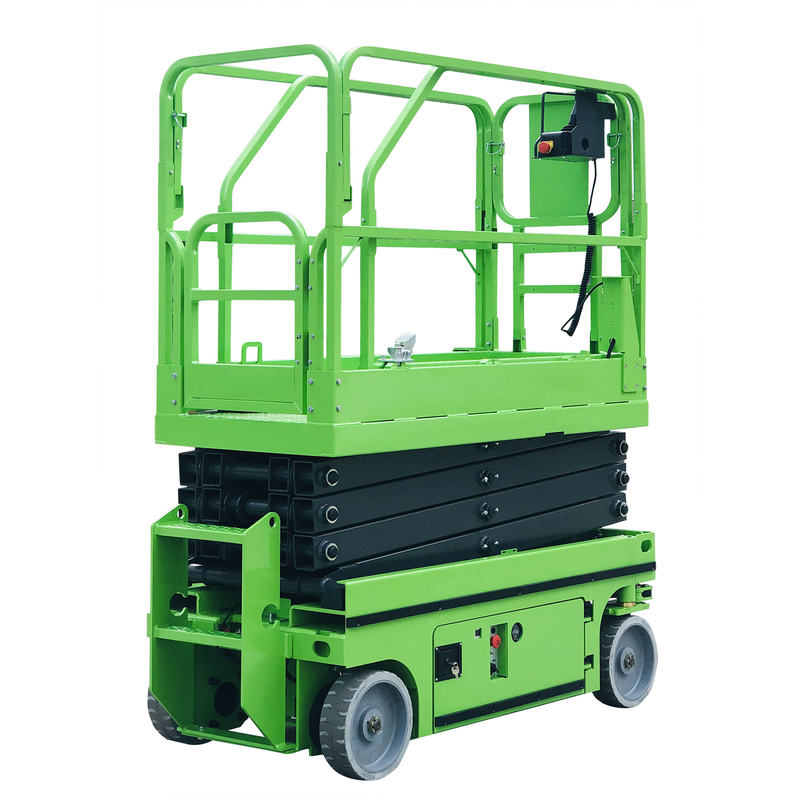

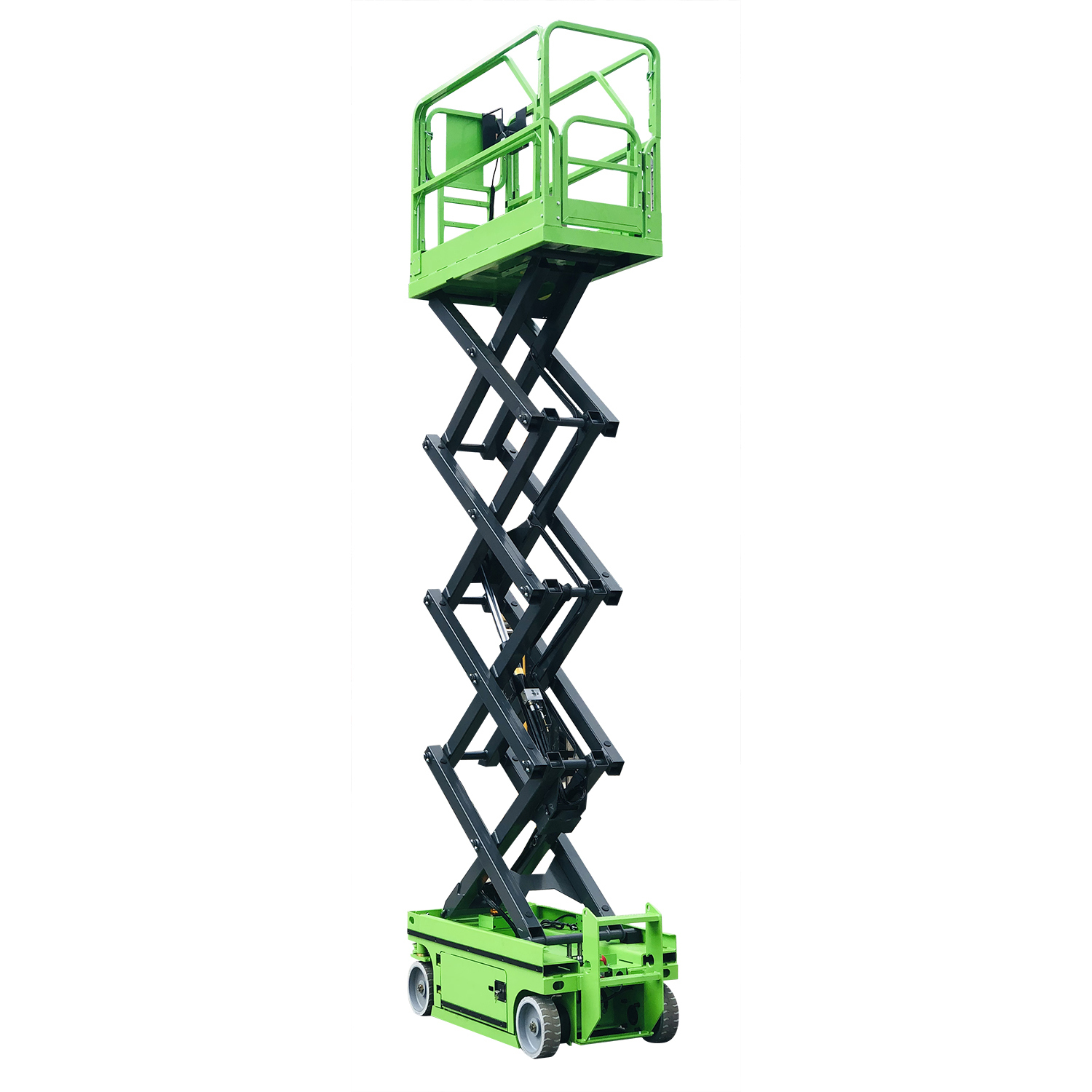

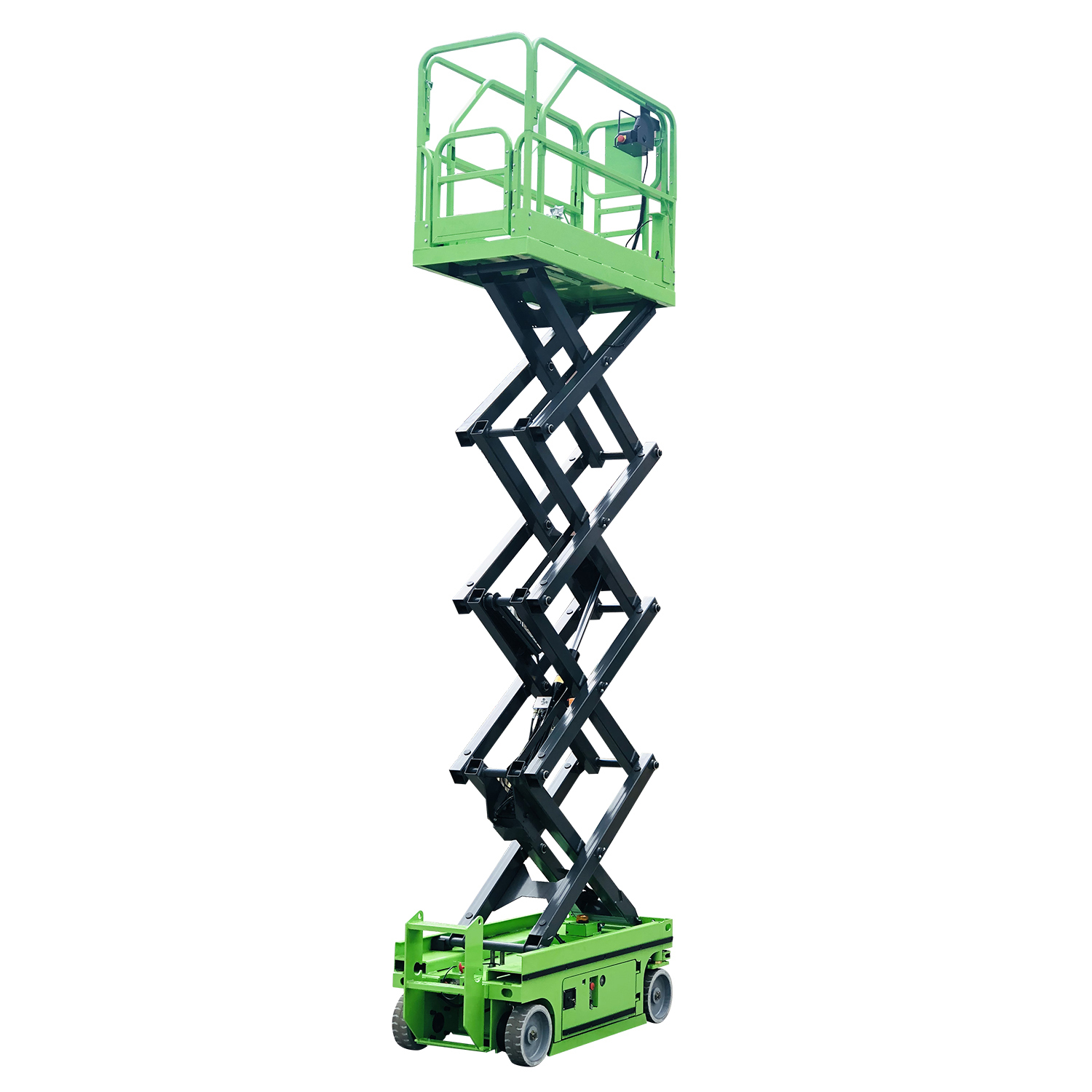

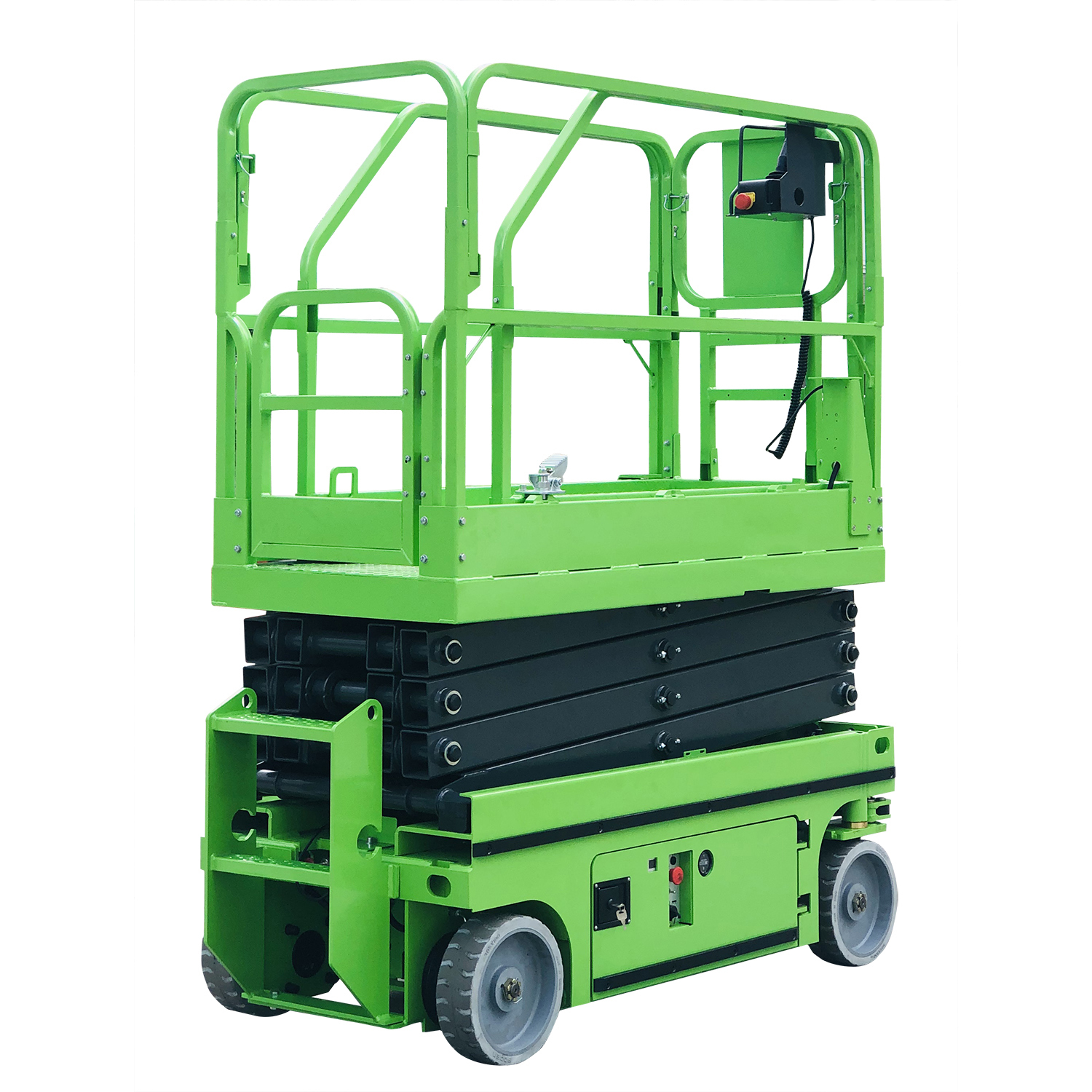

240Kg loading portable industrial mini self propelled lift for painting, cleaning, 5m working height
Mini self-propelled scissor lifts are also called as mini electric scissor lifts or mini electric elevated work platform; they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance and construction work. They are designed to lift limited weights and capable of being fully operated by a single person. It is unique in carrying capacity and a wide platform that can bring more workers and tool set, whether indoors or outdoors.

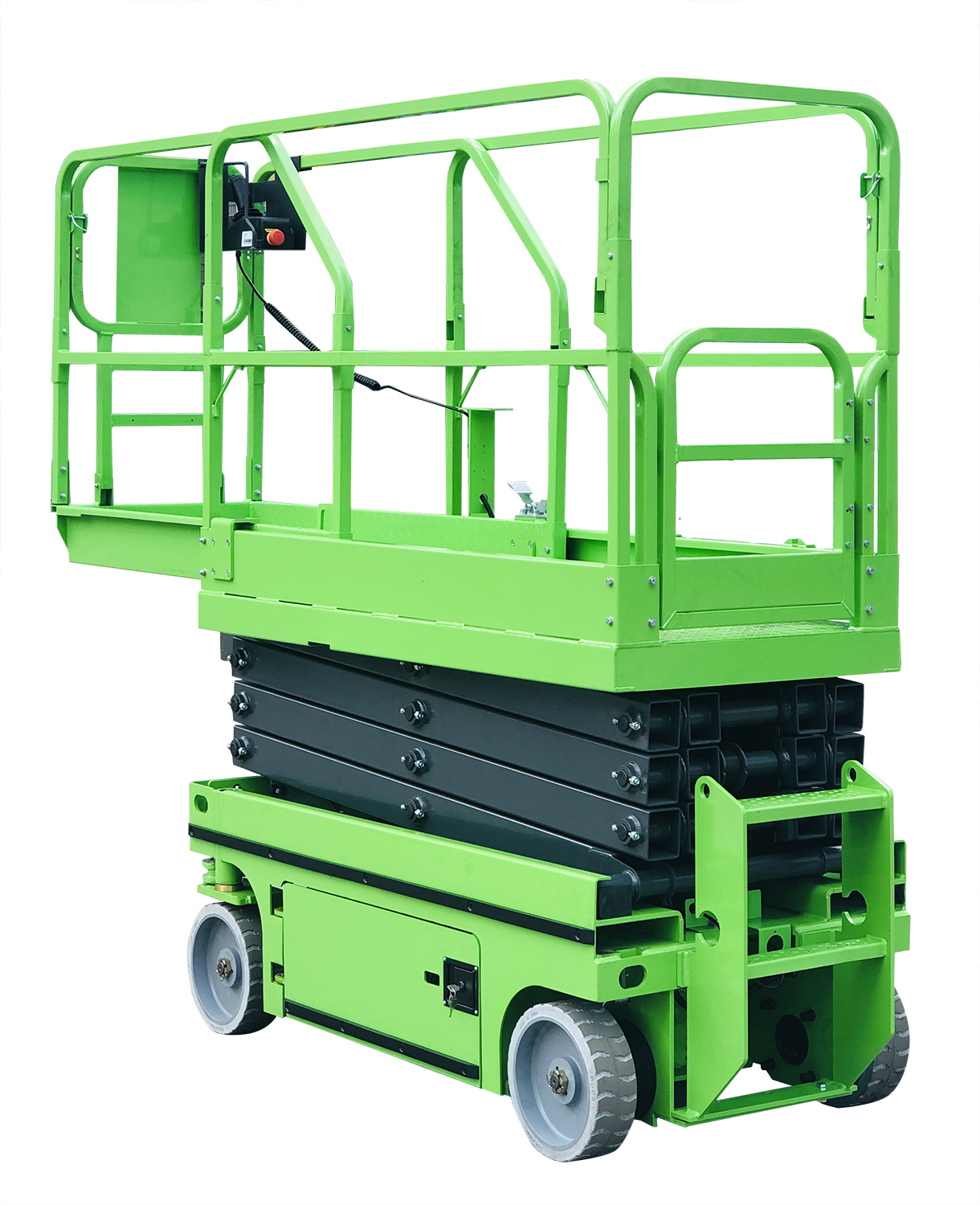

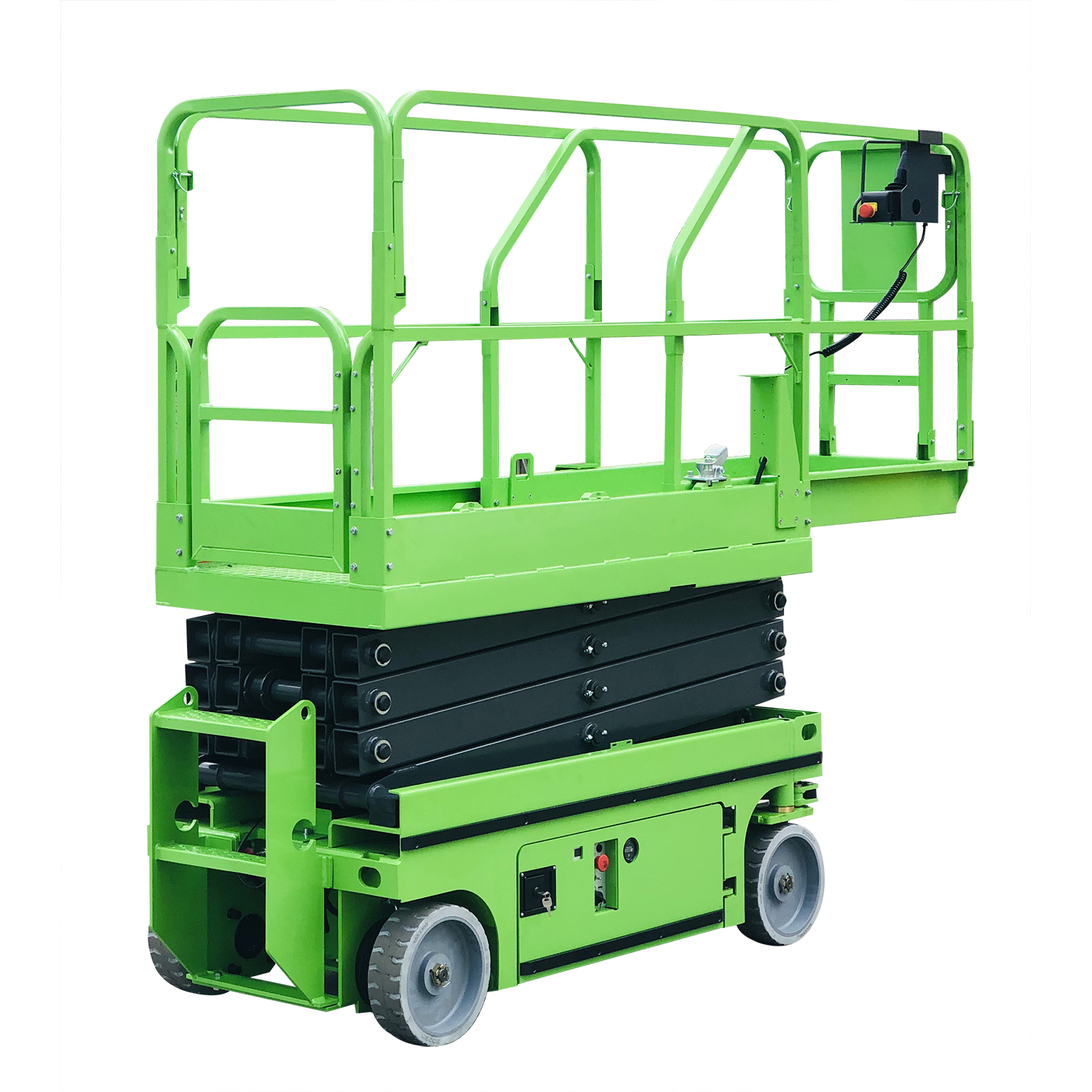

1. Roll-out extension platform provide more workspace.
2. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.
3. Different models are available with the maximum working height at 6m to 16m
4. Zero-turn radius and compact design provide access in and around confined work areas.
5. 25% grade ability when driving on slopes.
6. On-board diagnostic help operators troubleshoot on the fly and make adjustments in the field to maximize uptime
7. Single extension platform provide more workspace.
8. Manganese steel lifting arm in high strength with rectangle shape
9. The antiskid design endows the platforms with excellent antiskid property

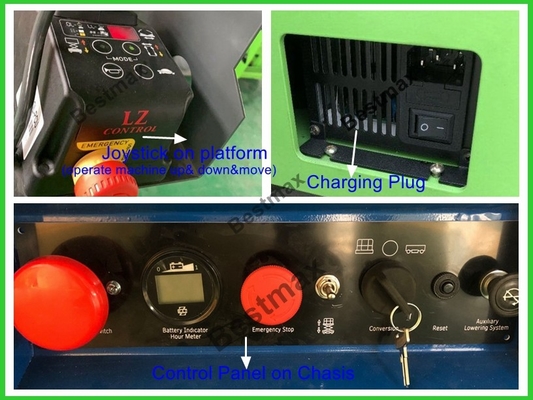

10. The control panels are available on the platforms and ground.
11. Fine grinding cylinder in good sealing performance
12. Equipped with safeguard valve to avoid hydraulic pipe rupture
13. Swing-out tray for easy maintenance access
|Working height max (m)||5|
|Platform height max (m)||3|
|Lift capacity (kg)||240|
|Weight (kg) CE / AUS Standard||630|
|Platform size (L×W) (m)||
1.15*0.6( without extension)
1.15* 0.7( with extension)
|Stowed size (L×W) (m)||1.32*0.76|
|Stowed height (m)(guradrails unfolded)||1.83|
|Stowed height (m) (guradrails folded)||1.43|
|Ground clearance (m)||0.05|
|Turning radius (m)||0|
|Platform occupancy max||1|
|Raise / Lower time (s)||34/20|
|Drive speed (km/h) (stowed)||4|
|Drive speed (km/h) (raised)||0.5|
|Maximum Working Slope||1.5°/2°|
|Lifting Motor Power||0.8Kw|
|Front tire (mm)||6in|
1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
2, Aerial Working Purpose: machine maintenance, painting, cleaning etc
Why to choose Bestmax Self-propelled Scissor Lift?
All Bestmax MX-series adopt high-performance battery power, pollution-free and no emissions, low noise electric pump, can also be used even in the area of high environmental requirements, such as office buildings, hotel, hospital, school and so on.
Fully proportional joystick control, either lifting or moving, all can easily operate in the joystick.
Zero inside turning radius allowing users to use in a narrow space, and also facilitate changing positions. MX-series has two kinds of moving speed to secure move quickly and lift safely. All the MX-series scissor lifts have extended platforms which makes the operator get close to the work points much easier and breakthrough the space obstacles.
Bestmax MX-series give full consideration to the convenience of the users in their daily work maintenance. All the Bestmax Electric Self-propelled Scissor Lifts have fault diagnosis system, this makes the user can find the point of failure in one time. Door-open control box and battery box allow maintenance person to find the maintenance point quickly and easily. Also it is easier to change the spare parts. The scissor booms repair bracket, so that the user dose not need the help of lifting equipment, boom system can be easily overhaul.
