Place of Origin: | China |
Brand Name: | CHENLIFT |
Certification: | CE ISO9001:2008 IPAF member |
Model Number: | SZDG1-4 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Wrapped in pallets |
Delivery Time: | 30 days |
Payment Terms: | T/T L/C |
Supply Ability: | 200 sets/month |
Rated Load: | 1000kg | Vertical Travel: | 4000mm |
---|---|---|---|
Cloased Height: | 85 Mm | Platform Size: | 2*1.5m |
Motor Power: | 2.2 Kw | Power Voltage: | AC380V |
Weight: | 1260 Kg | ||
Highlight: | hydraulic drum lift,forklift drum handler |
1T Load 4m Height 2.2 kw Motor Power Hydraulic Cargo Lifting Platform with CE
ChenLift lifting platform goods lift for home warehouse: guide rail, chain, control box and hydraulic pump station. When the platform running, the chain drives platform up or down. The customers can use the control button to control platform from the first floor up to any other floor freely and stop at any floor.
Cargo lift moves materials--in factories, warehouses, industrial plants, institution anywhere that products or supplies need to move from one level to another.
1. The electric lift is elevated by heavy duty special leaf chain.
2. It has two-post, four-post and multi-post goods lift types, with smooth movement, simple and reliable operation.
3. Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the preconcerted and accurate location, great load capacity, safe and Reliable.
4. There are optional sensitive overload protection devices and locking devices for falling protections.
Detail Parts of Lift
1. Platform: Checkered Steel Plate reinforced by high strength channel steel.
2. Pump station: Brand Italy Hydrappp or Lisheng.
3. Hydrocylinder: both way high precision wear-resiting hydrocylinder with locking device
for fall protection.
4. Hydraulic pipe: high pressure pipe with double expanded metal protected.
Safety Precautions:
1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency or the power off.

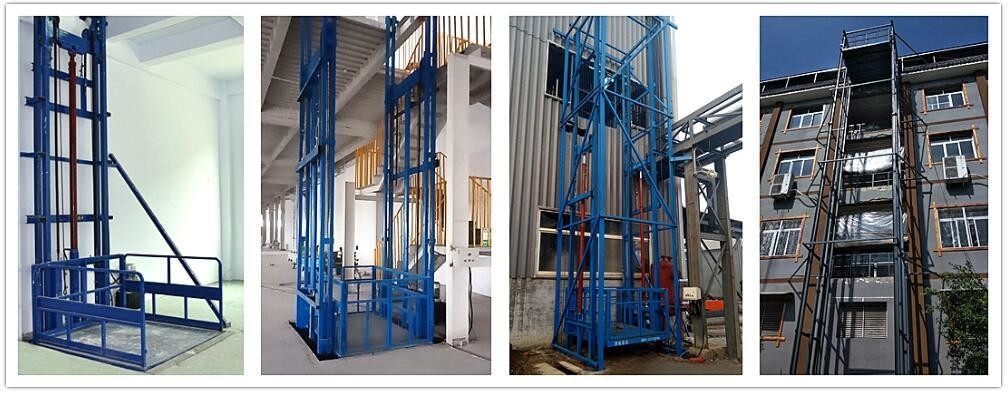

Different Types of Electric Lift ( Accordingly Customer Require)
Two-post
It is used for the electric lift of smaller platform size, lower height and lighter load capacity.
Four-post
This electric lift is many of the most commonly used for warehouse, workshop.
Multi-post
This electric lift is used for bigger platform and heavy load capacity.

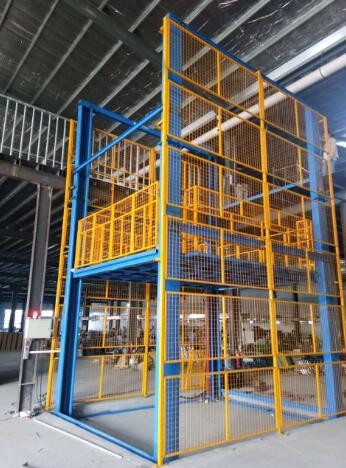

With steel mesh protection model
The electric lift could be surrounded by steel mesh to prevent goods from falling.
Our Company
ChenLift(Suzhou) Machinery Co.,Ltd. is mainly manufacturing hydraulic lift, aerial working platform, etc, providing specialized lifting equipment and scheme.
The main products are : Scissor Lift, Aluminum Aerial Work Platform, Four-post Car Lift, Vertical cargo Lift, Hydraulic dock leveler and other special customized products.
Contact Person: Mr. Aijun Liu
Tel: 0086-13951119762
Fax: 86-512-67339762
