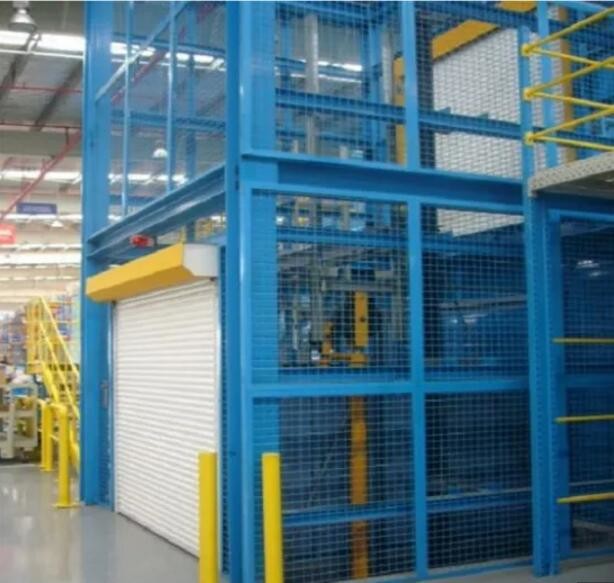

Effective Cargo Transfer 5m Hydraulic Guide Rail Elevator with 2000Kg Loading Capacity

Effective Cargo Transfer 5m Hydraulic Guide Rail Elevator with 2000Kg Loading Capacity

  • Effective Cargo Transfer 5m Hydraulic Guide Rail Elevator with 2000Kg Loading Capacity
Effective Cargo Transfer 5m Hydraulic Guide Rail Elevator with 2000Kg Loading Capacity
Product Details:
Place of Origin: China
Brand Name: CHENLIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: SZDG2-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Loading Capacity: 2000 Kg Vertical Travel: 5 M
Closed Height: 85 Mm Platform Size: 2000*2000 Mm
Motor Power: 3 Kw Power Voltage: AC 380V/50HZ
Weight: 1680 Kg
High Light:

cargo transport systems

,

guide rail lift platform for cargo

Effective Cargo Transfer 5m Hydraulic Guide Rail Elevator with 2000Kg Loading Capacity





Quick Detail:



Name Guide Rail Platform Brand Name BestmaxLift
Loading Capacity 2000Kg Lifting Height 5m
Platform Size 2.0*2.0m Color Yellow or Optional
Lifting Power 3Kw Power Supply AC





Description:



Guide Rail Lift as an ideal cargo transport equipment is mainly used for cargo transportation between different floors, equipped with anti-falling interactive chain, overload protection, the control buttons are available every floor and the platform.





Main Features:



1. Large loading capacity, fluctuation floor interactive interlocking.

2. High hoisting capacity, with side cylinder, durable and long lasting.

3. Only four square meters required on the over storage, no larger places required.

4. Manual lowing when power off, emergency stop button, convenient, fast and practical.

5. Can be customized according to the environment, reasonable price, economical and practical.

6. Layer door can be well versed in, workshop can be mutual split, convenient, save a space;

7. Can be installed inside and outside, special circumstances with derrick, without foundation.

8. Especially suitable for 2-3 layer steel structure workshop.





Advantages of lift:
1.Equipped single side or double sides hydro cylinder to keep the machinery works smooth and
steady with noiseless, it is convenient and long working life.

2.safe manual operation in case of black out,emergence stop can give protection when some
urgency happened.

3.the pit should be 15-30cm,the height of the top is unlimited.
4.custom made according to the multistoried building.
5.imported and domestic pump is optional.
6.Hydro-cylinder and sealing element adopt imported parts.
7.Imported controlling system is optional(Schneider,Siemens,ect)



Effective Cargo Transfer 5m Hydraulic Guide Rail Elevator with 2000Kg Loading Capacity 0



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: NOK sealing
  • Platform Surface : Antiskid checkered plate
  • Platform Frame: Q345B Manganese steel and 100*40*4 rectangular tube
  • Guide Rail: 14# U Bar
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



Applications:



1. Site: Work Shop, etc.

2. Aerial Working Purpose: cargo loading etc.





Why to choose CHENLIFT Guide Rail Lift?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience
