Save Space 4M Lifting Height 2000Kg Loading Capacity Guide Rail Elevator for Steel Structure Workshop

Save Space 4M Lifting Height 2000Kg Loading Capacity Guide Rail Elevator for Steel Structure Workshop

  • Save Space 4M Lifting Height 2000Kg Loading Capacity Guide Rail Elevator for Steel Structure Workshop
  • Save Space 4M Lifting Height 2000Kg Loading Capacity Guide Rail Elevator for Steel Structure Workshop
Save Space 4M Lifting Height 2000Kg Loading Capacity Guide Rail Elevator for Steel Structure Workshop
Product Details:
Place of Origin: China
Brand Name: CHENLIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: SZDG2-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Loading Capacity: 2000 Kg Vertical Travel: 4000 Mm
Platform Size: 2000*2000 Mm Closed Height: 85 Mm
Motor Power: 3 Kw Power Voltage: AC380V/50HZ
Weight: 1400 Kg
High Light:

Guide Rail Platform

,

guide rail lift platform for cargo

Save Space 4M Lifting Height 2000Kg Loading Capacity Guide Rail Elevator for Steel Structure Workshop


Quick Detail:

Name Guide Rail Platform Brand Name BestmaxLift
Loading Capacity 2000Kg Lifting Height 4m
Platform Size 2.0*2.0m Color Optional
Lifting Power 3Kw Power Supply AC


Product Description

Hydraulic guide rail lift: Mainly used for transport goods from ground to another floor. Each floors are set button operation to achieve multi- point control. And the interaction between the upper and lower floors interlock to insure the safety when lift running.

Installation by no pit: there will have a ramp bettwen the lift platform and ground, it is easier to load&unload:

Main Features:

1. Large loading capacity, fluctuation floor interactive interlocking.
2. High hoisting capacity, with side cylinder, durable and long lasting.
3. Only four square meters required on the over storage, no larger places required.
4. Manual lowing when power off, emergency stop button, convenient, fast and practical.
5. Can be customized according to the environment, reasonable price, economical and practical.
6. Layer door can be well versed in, workshop can be mutual split, convenient, save a space;
7. Can be installed inside and outside, special circumstances with derrick, without foundation.
8. Especially suitable for 2-3 layer steel structure workshop.

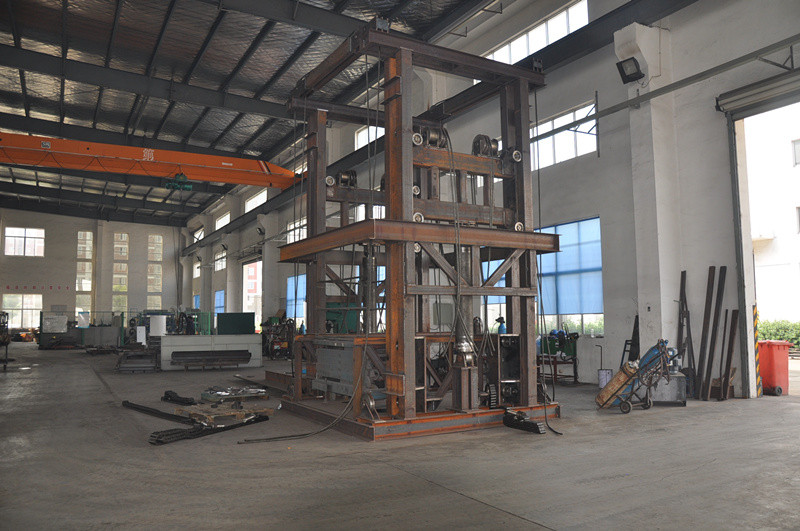

Save Space 4M Lifting Height 2000Kg Loading Capacity Guide Rail Elevator for Steel Structure Workshop 0
Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: NOK sealing
  • Platform Surface : Antiskid checkered plate
  • Platform Frame: Q345B Manganese steel and 100*40*4 rectangular tube
  • Guide Rail: 14# U Bar
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose


Applications:

1. Site: Work Shop, etc.
2. Aerial Working Purpose: cargo loading etc.


Why to choose CHENLIFT Guide Rail Lift?


· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience
