Place of Origin: | China |
Brand Name: | CHENLIFT |
Certification: | CE ISO9001:2008 IPAF member |
Model Number: | SZDG3-5 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Wrapped in pallets |
Delivery Time: | 30 days |
Payment Terms: | T/T L/C |
Supply Ability: | 200 sets/month |
Load Capacity: | 3000 Kg | Vertical Travel: | 5000 Mm |
---|---|---|---|
Closed Height: | 105 Mm | Platform Size: | 2500* 2000 Mm |
Motor Power: | 4 Kw | Power Voltage: | AC380V/50HZ |
Weight: | 1850 Kg | ||
Highlight: | hydraulic drum lift,forklift drum handler |
Heavy Duty Cargo Lift Table Hydraulic Guide Rail Cargo Elevator Lifting Platform

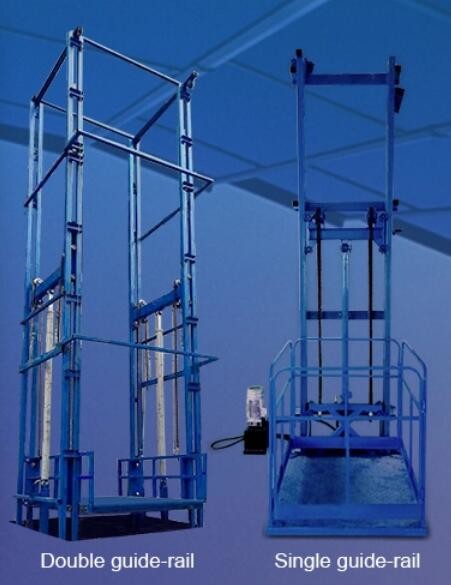

Guide-rail cargo lift moves materials- in factories, warehouses, industrial plants, institutions- anywhere that products or supplies need to move from one level to another. It is an ideal replacement of elevator that provides fast, efficient, convenient and safe access to or from mezzanines, balconies, basements, and between levels in multi-storey buildings. For mechanical structures, there are two types: single guide-rail and double guide-rail. We offer the most complete line guide-rail cargo lift from mechanical to hydraulic to fully automatic, customized systems for various requirements.
Specification:
Model | SZDG1-4 | SZDG2-4 | SZDG3-4 | SZDG1-5 | SZDG2-5 | SZDG3-5 | SZDG1-6 | SZDG2-6 | SZDG3-6 |
Load | 1000kg | 2000kg | 3000kg | 1000kg | 2000kg | 3000kg | 1000kg | 2000kg | 3000kg |
Vertical Travel | 4m | 4m | 4m | 5m | 5m | 5m | 6m | 6m | 6m |
Closed Height | 85mm | 85mm | 105mm | 85mm | 85mm | 105mm | 85mm | 85mm | 105mm |
Platform Size | 2*1.5m | 2*2m | 2.5*2m | 2*1.5m | 2*2m | 2.5*2m | 2*1.5m | 2*2m | 2.5*2m |
Motor Power | 2.2kw | 3kw | 4kw | 3kw | 3kw | 4kw | 3kw | 3 kw | 4kw |
Power Voltage | AC380V | AC380V | AC380V | AC380V | AC380V | AC380V | AC380V | AC380V | AC380V |
Weight | 1260kg | 1400kg | 1700kg | 1360kg | 1680kg | 1850kg | 1500kg | 1780kg | 2000kg |
Main Features:
1. Large loading capacity, fluctuation floor interactive interlocking.
2. High hoisting capacity, with side cylinder, durable and long lasting.
3. Only four square meters required on the over storage, no larger places required.
4. Manual lowing when power off, emergency stop button, convenient, fast and practical.
5. Can be customized according to the environment, reasonable price, economical and practical.
6. Layer door can be well versed in, workshop can be mutual split, convenient, save a space;
7. Can be installed inside and outside, special circumstances with derrick, without foundation.
8. Especially suitable for 2-3 layer steel structure workshop.
