Electric Fixed Loading Dock Ramp for Container Loading 6000Kg, ±300mm Working Range

Electric Fixed Loading Dock Ramp for Container Loading 6000Kg, ±300mm Working Range

Quick Detail:

Description:

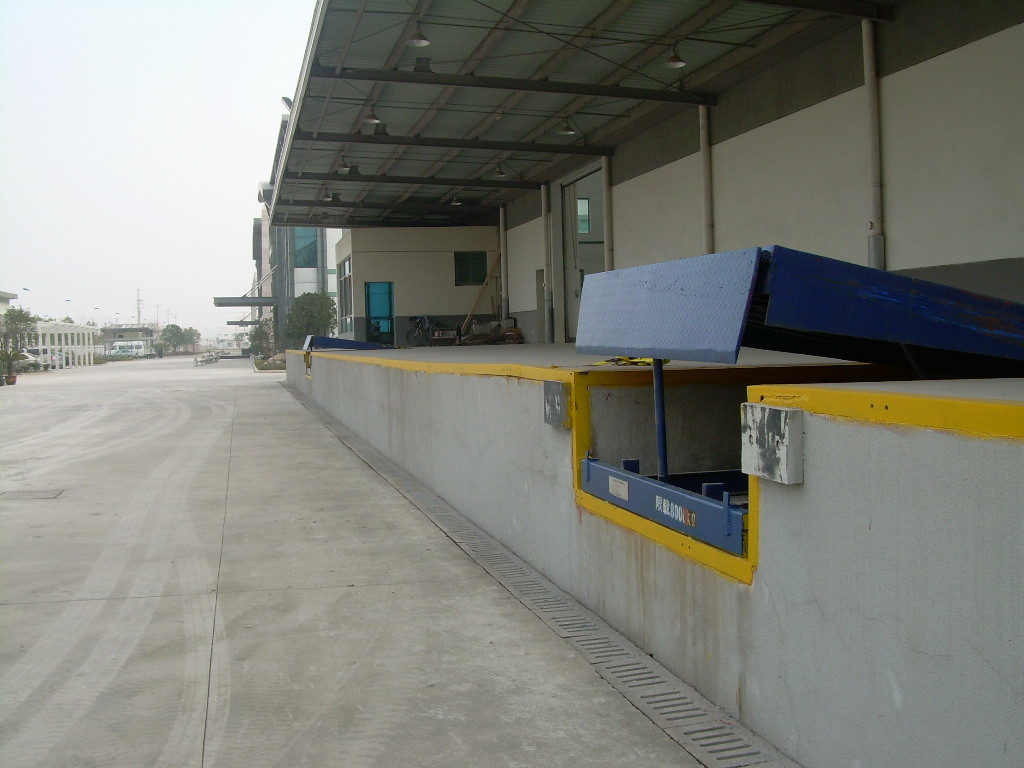

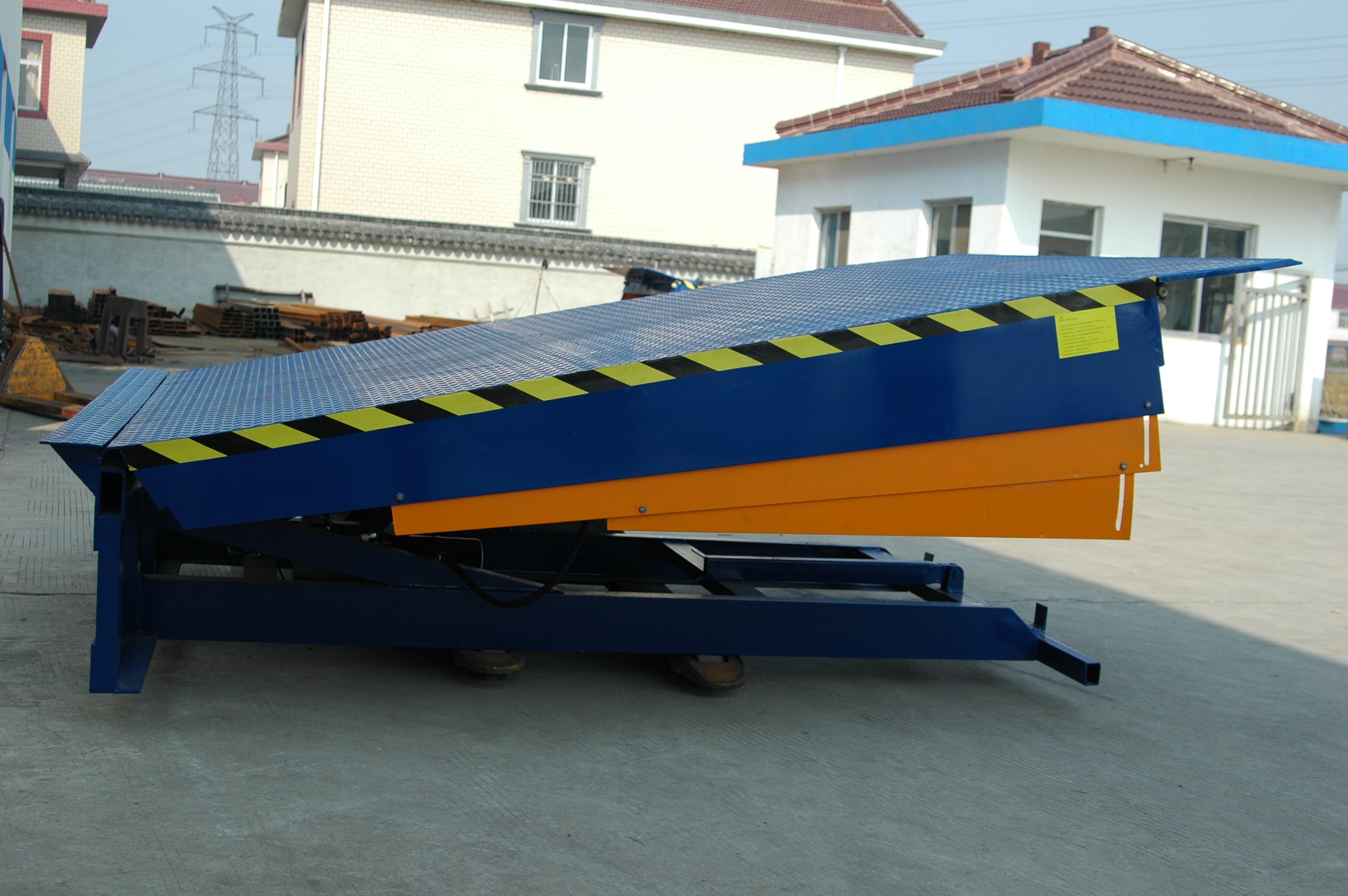

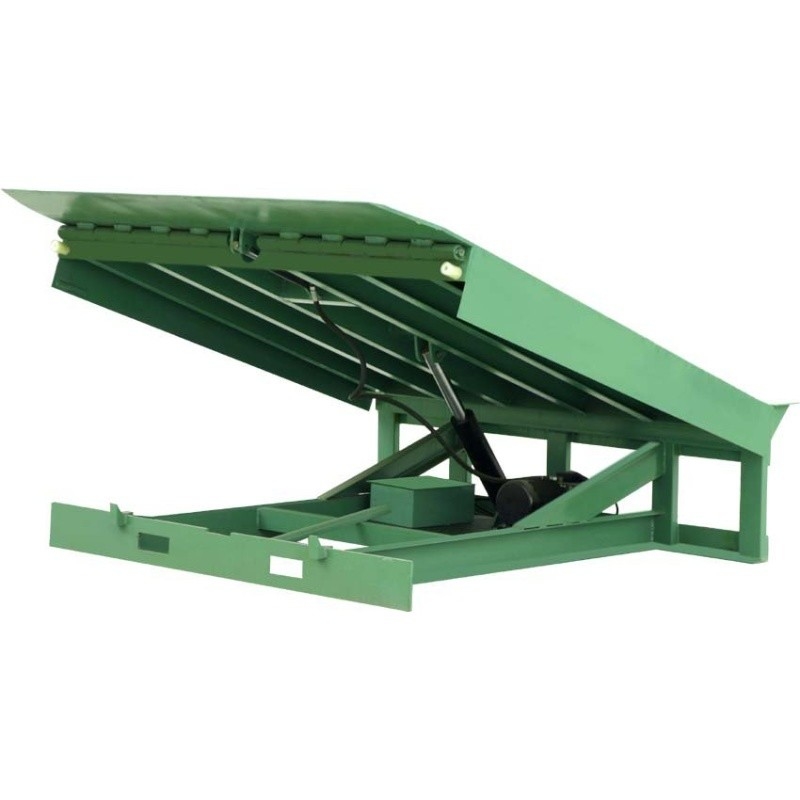

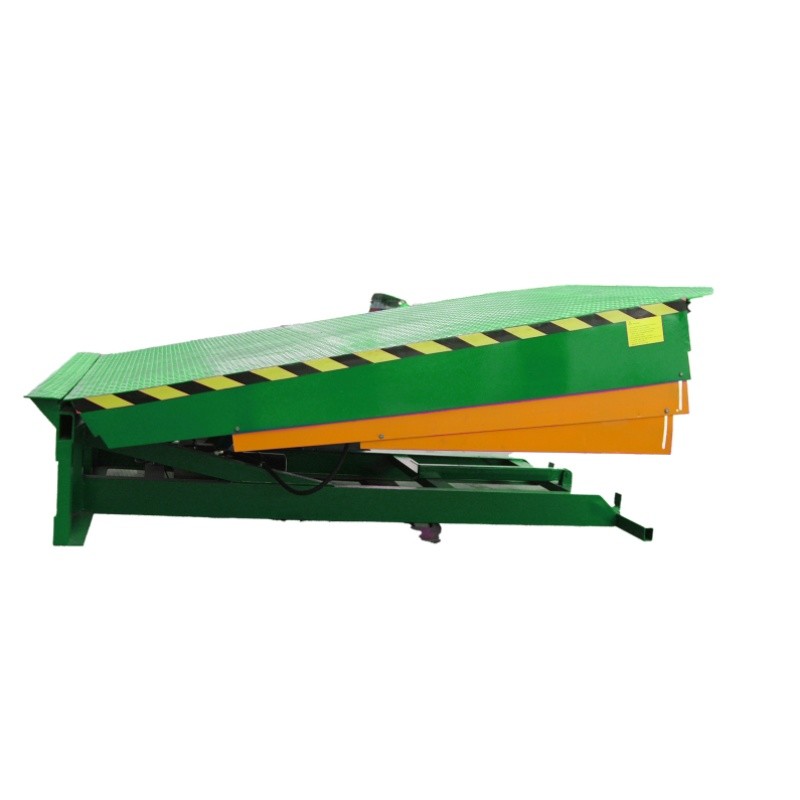

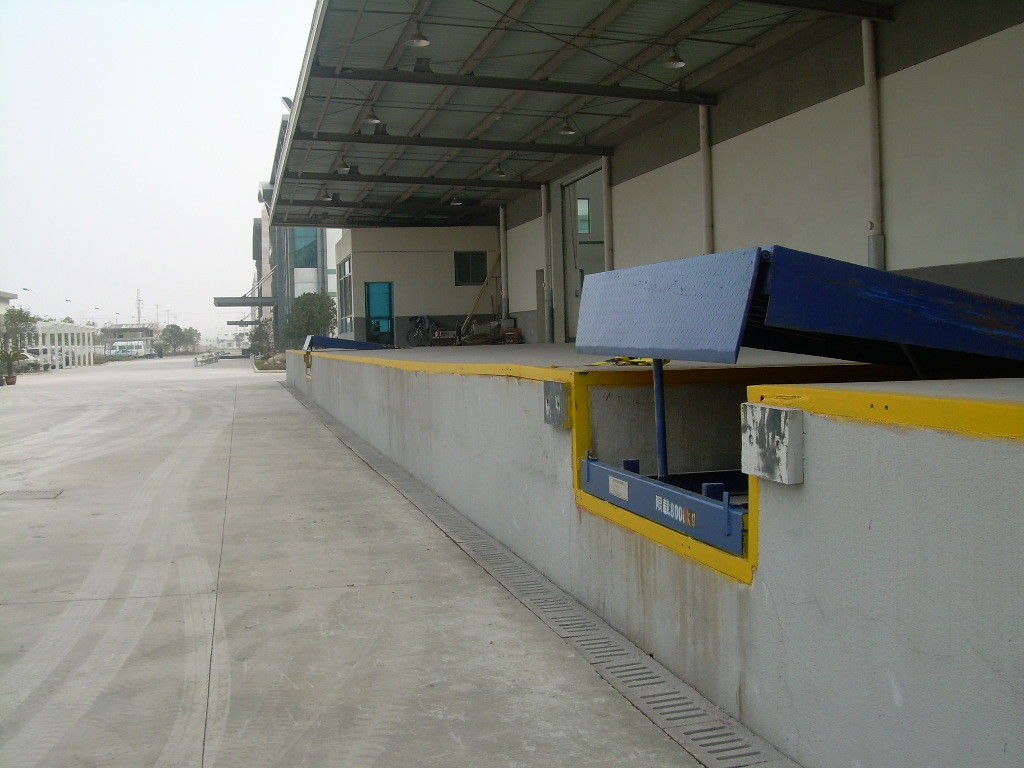

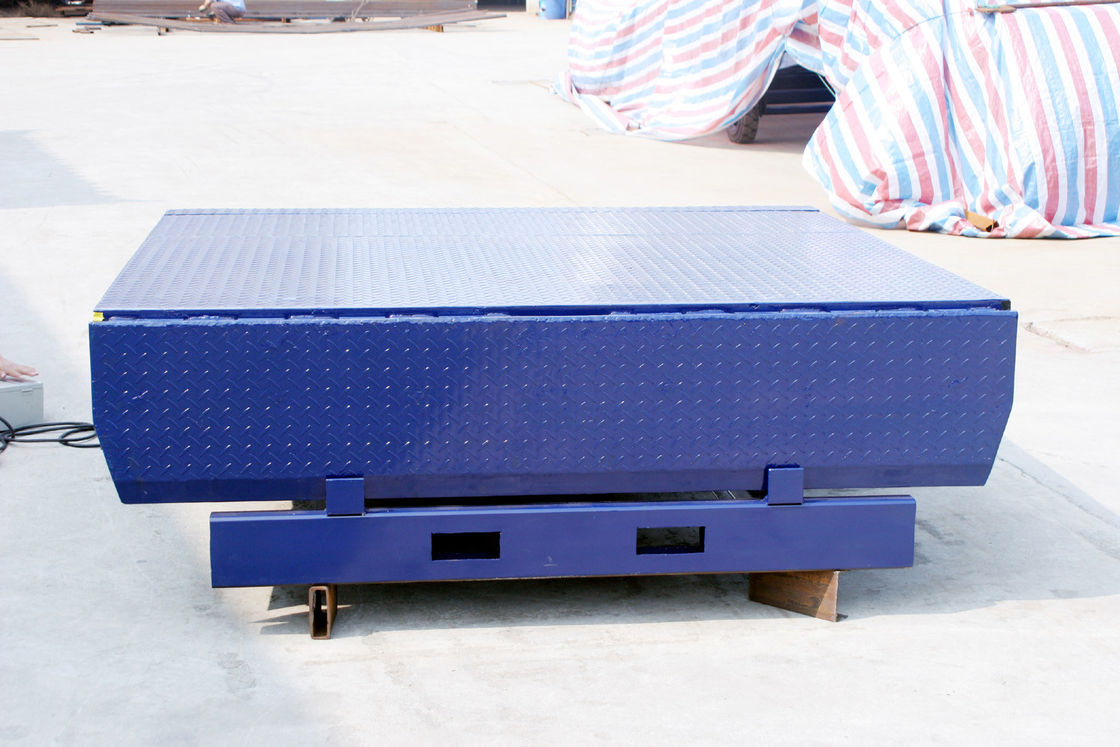

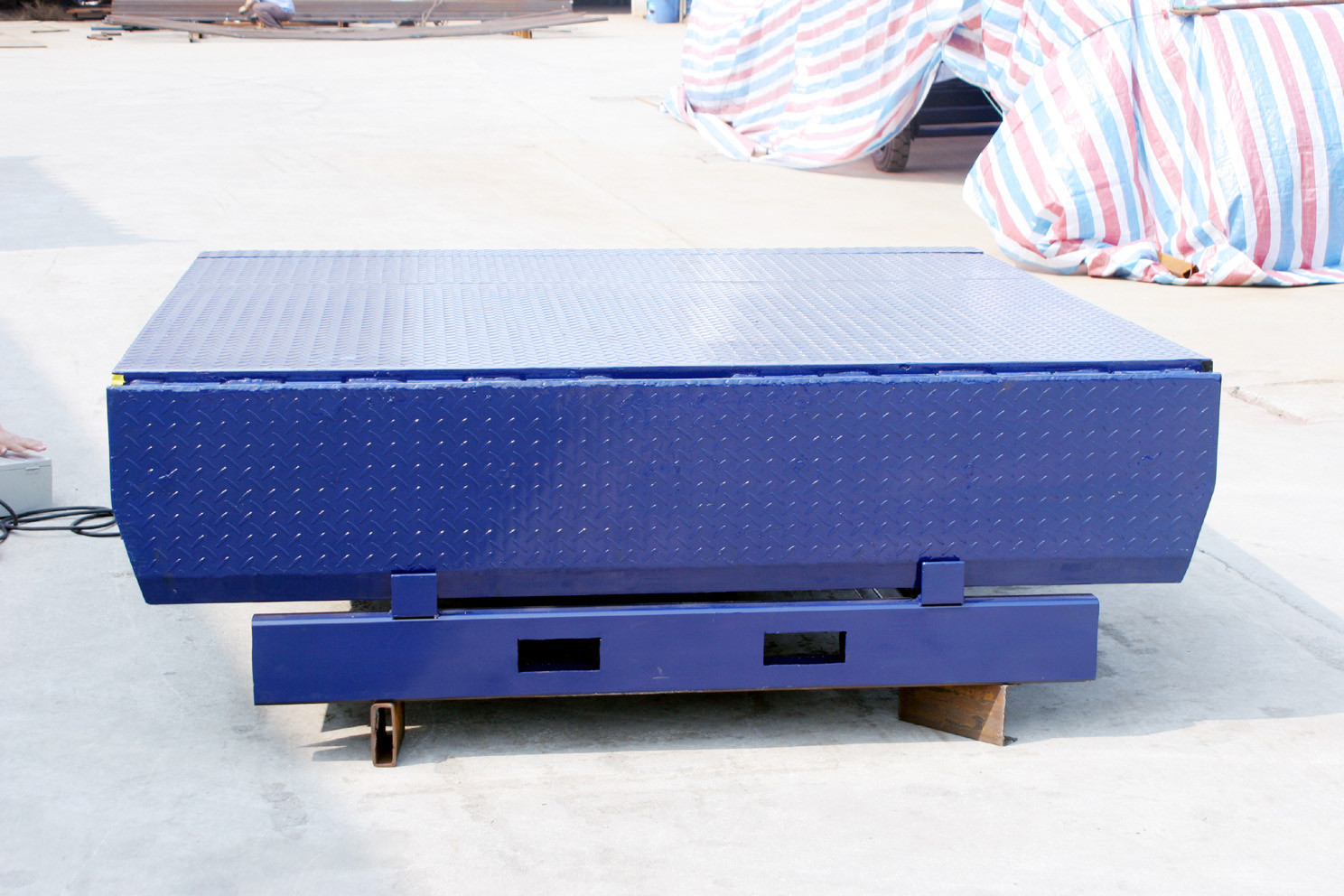

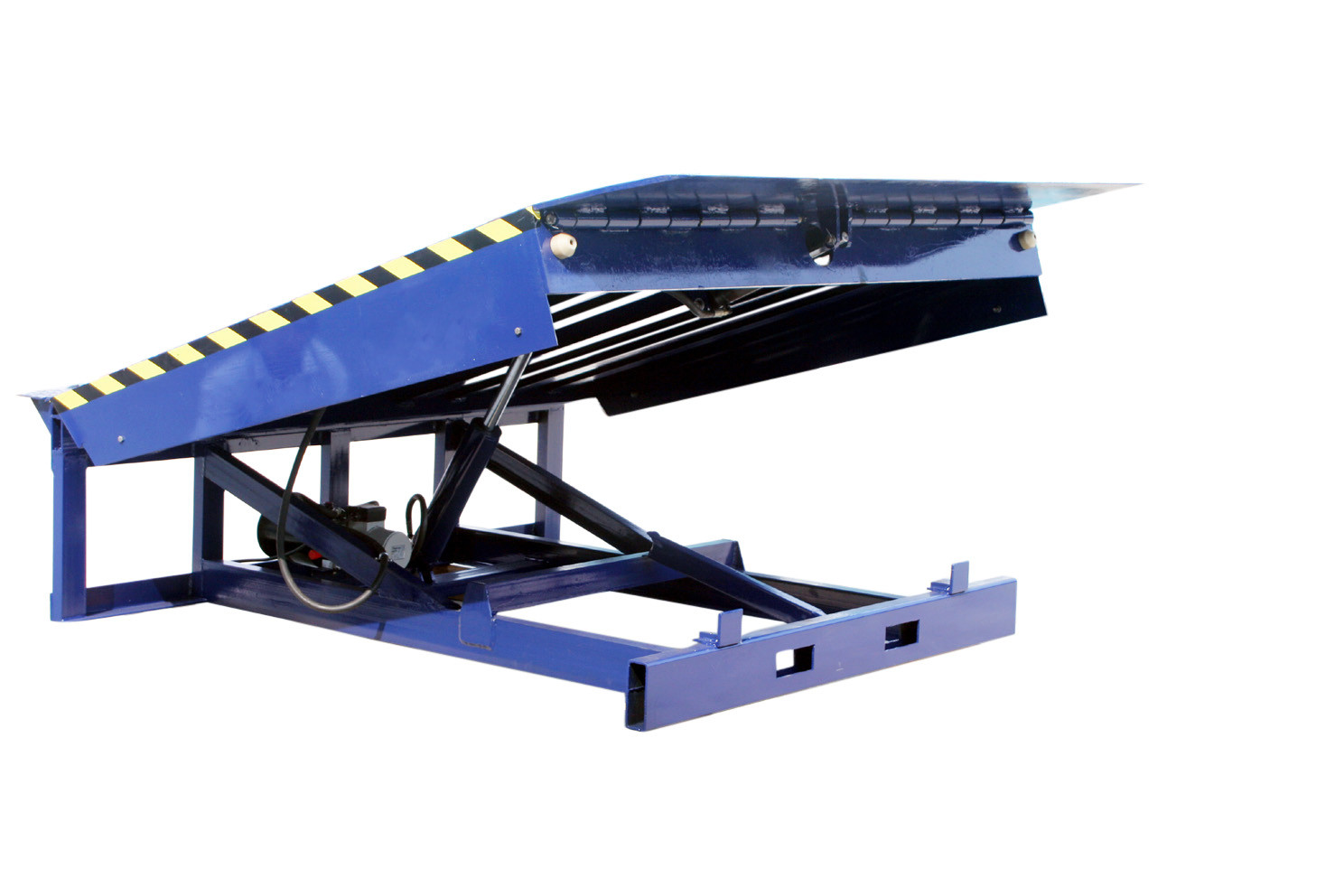

Stationary Dock Ramp is a fixed loading equipment and widely used as a bridge between platform and the truck. It allows the forklift to move conveniently. One side of this equipment has the same height with platform, and the other side connecting with the truck and it can adjust height according to different truck and different carriage in the process of loading .Its size and loading ability can be designed according to customer's requirements.

Main Features:

• 1. Reinforced gusseted lip
• 2. Heavay duty deck construction
• 3. Anti-skid high-strength chequered platform and lip.
• 4. Full width one -piece lip hinges pin and tube
• 5.Heavy duty high pressure cylinders
• 6.First class hydraulic power unit, good seal capacity and long life
• 7. Rubber Bumpes
• 8. Full range toe guard

Major Parameter

• Model: DCQ 6-0.6
• Loading Capacity: 6000kg
• Working Range: ±300mm
• Platform Size: 2500*2000mm
• Lifting Power: 0.75kw
• Power Voltage: 380V/50HZ
• Measurement: 2500*2000*600mm
• Pit Measurement: 2500*2030*600mm

Configurations:

• Electric system: Schneider contactor, SANLICO button, CHNT electrical
• Hydraulic System: Hycman brand power pack, Trellebogr sealing
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate
• Main Support: 10# I beam
• Labial Plat: 14mm plate and 3mm checkered plate
• High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

Optional Configuration:

• Hydraulic Power Pack: Italy brand:Microhy

Applications:

1. Site: Work Shop, Logistic center etc.

2. Dock Leveler Purpose: Loading Cargo etc.

Company Profile:
We are a Suzhou-based world-wide supplier of lifting equipment. With over 20 years of experience in the lifting industry, we have the knowledge to assist you in aquiring your next lifting equipment.

We specialize in producing in a range of aerial lift and aerial work platform and lifting equipment for your unique application.

Based on our own manufacturing experience and refer to European advances design theory and manufacturing technology.

We are also the CE certified manufacture and joined IPAF member.

Communication with Customers:
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1. Strict quality control system on the whole process of production
2. Imported key arts to ensure the high quality of our products
3. Advanced equipment and tools for examination and quality control
4. 100% strict examining products before shipment
5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

A: What is the delivery time for your goods?
B: It is 30 days after order confirmation.

A: How long is your quality guarantee period?
B: We have one year warranty.
