| Place of Origin: | Original of China |
| Brand Name: | CHEN LIFT |
| Certification: | CE ISO9001:2008 IPAF member |
| Model Number: | MX1000S |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packed with Pallet, Wrapped with Film |
| Delivery Time: | 30 day after receipt of deposit |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets/ month |
| Model: | MX1000S | Material: | Q345 Steel |
|---|---|---|---|
| Platform Size: | 2.27*1.12m | Measurement: | 2.43*1.15*2.42m |
| Battery: | 4*6V/ 240Ah | Total Weight: | 2750kg |
| Color: | Green, Customized Color Is Available | Loading Capacity: | 320kg |
| Working Height Max: | 12m | Platform Height Max: | 10m |
| High Light: | self propelled work platform,scissor lift self propelled |
||

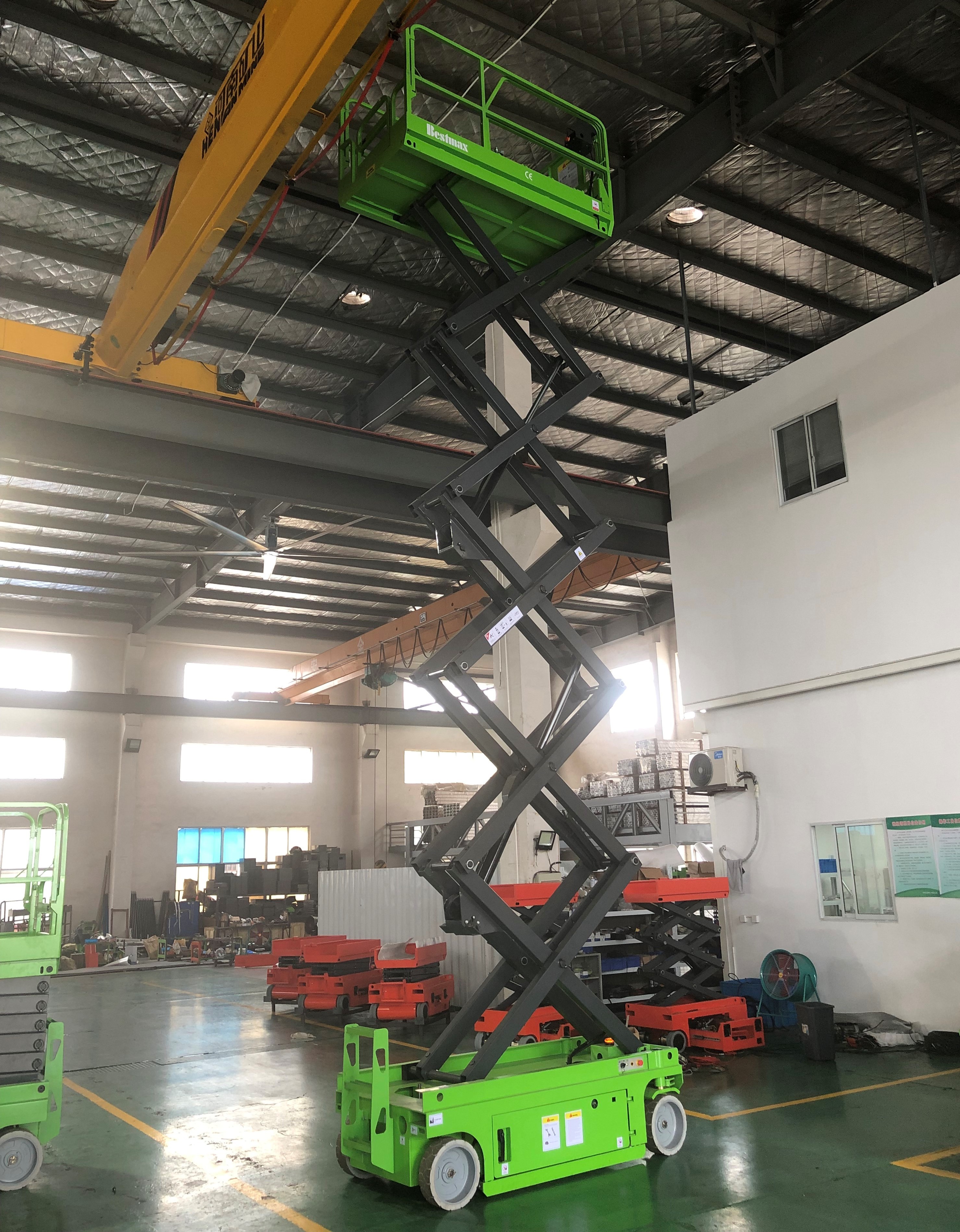

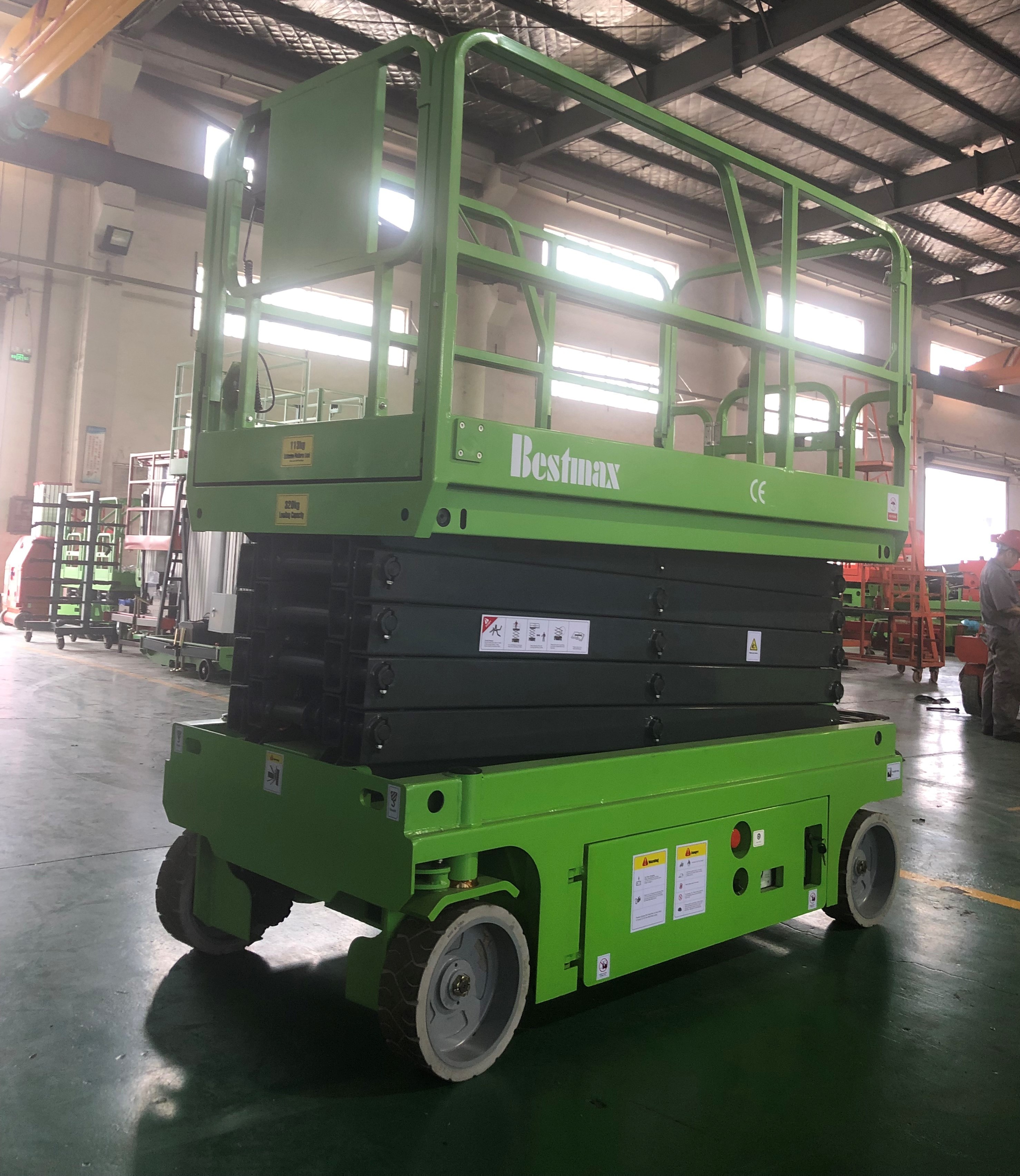

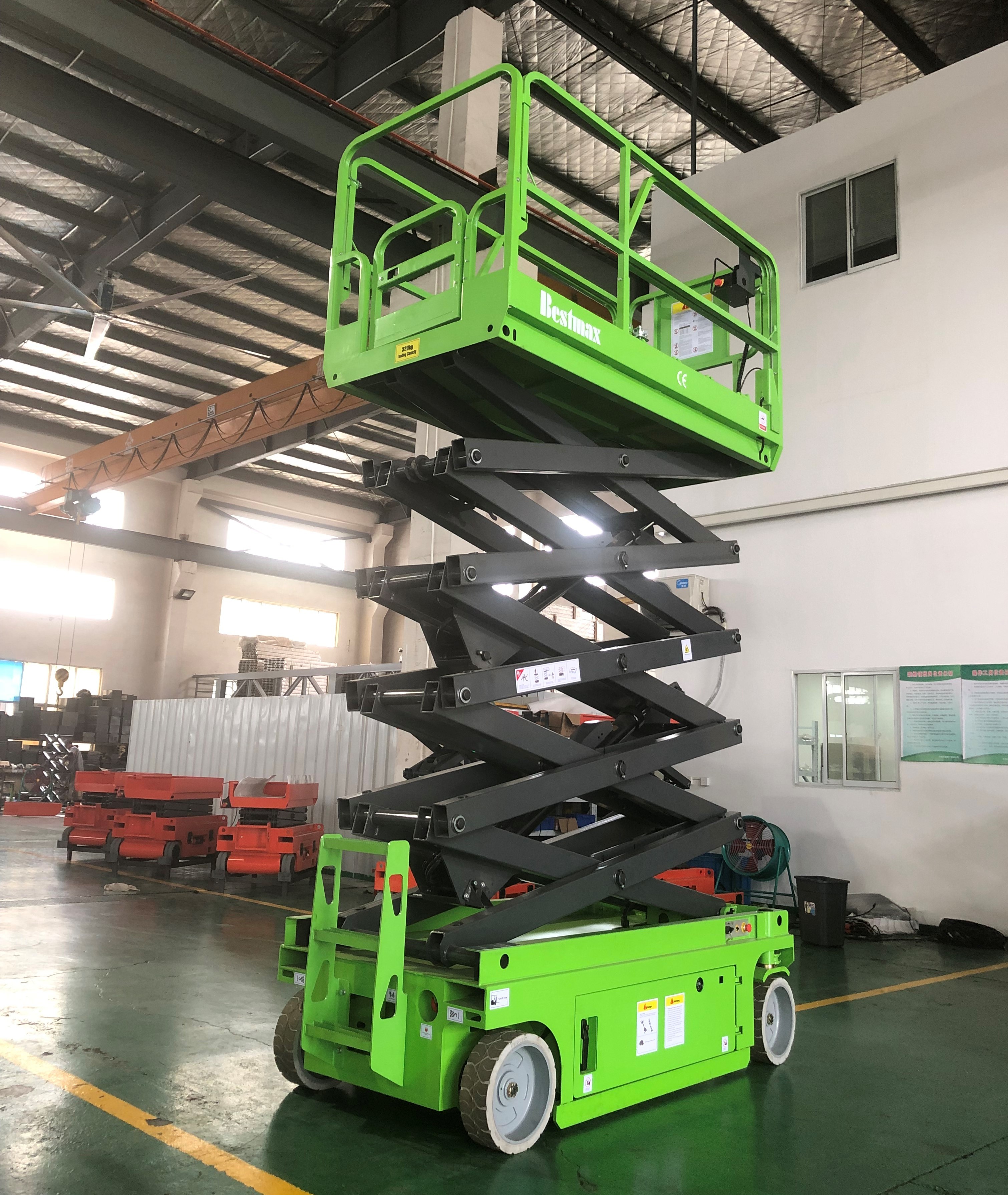

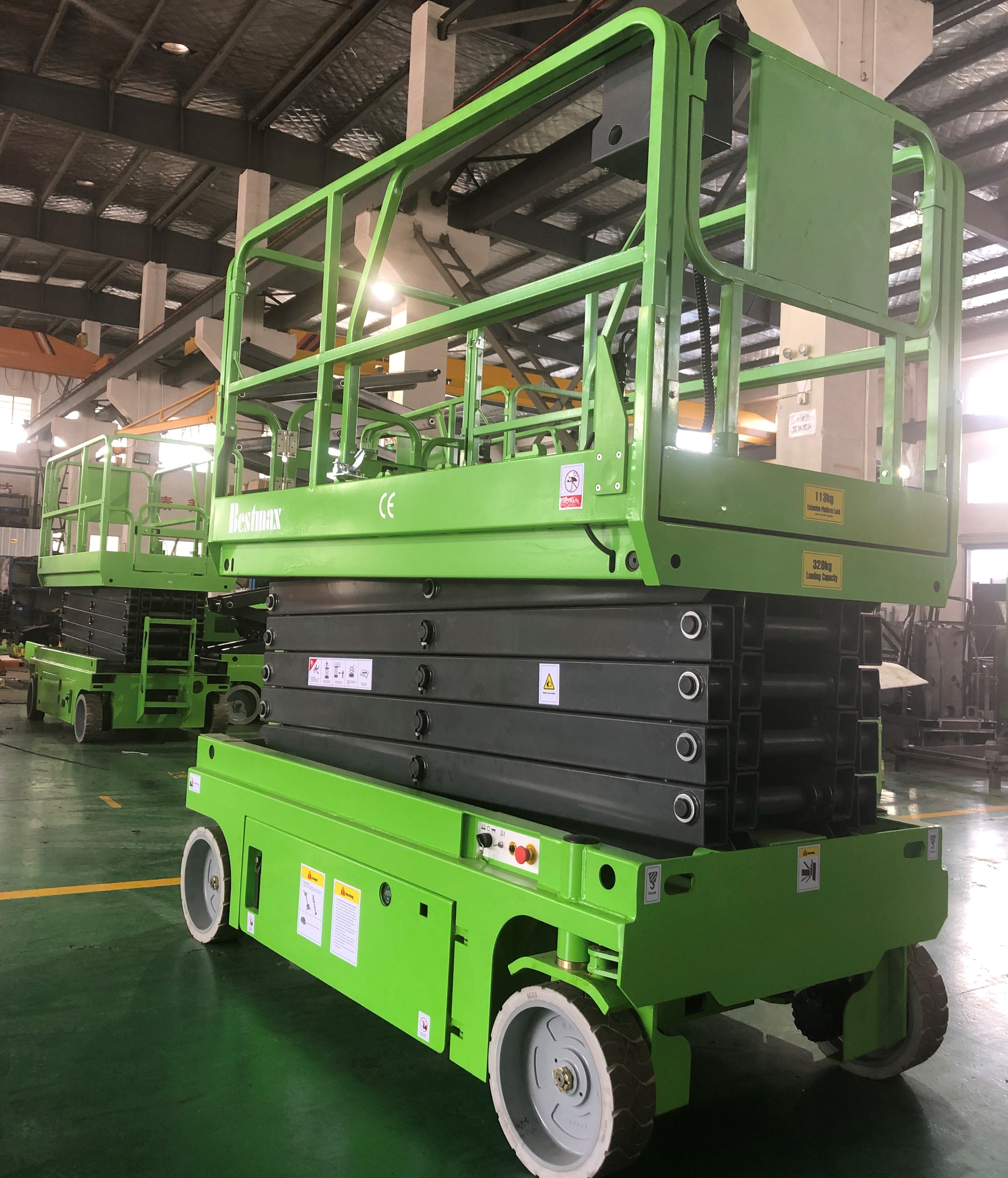

Electric Self Propelled Scissor Lift Aerial Working Platform 10m
Description:
The Self Propelled Scissor lift is powerful, intelligent and flexible for material handling, construction, mending and fixing. With electrical drive, it have more comfortable and steady driving feeling, low maintenance costs, easier handling. It needs no human power to pull or push it around and it can be operated by one single to control on the platform. In any status whether lifted or stowed, it can be drived. with extensible platform, working light, airway tube, AC wiring to make it more competent to help finish various aerial work tasks in different situations. Its classic traditional design is popular with users.
Parameters
|
Model |
MX1000S |
|
Load capacity |
320kg |
|
Extension load capacity |
113kg |
|
Max Worker number |
2 |
|
Working height |
12m |
|
Platform floor height |
10m |
|
Measurement |
2.43 m x 1.15m x1.91m |
|
Extension platform size |
2.27*1.12m |
|
Ground clearance(stowed) |
0.1m |
|
Ground clearance(raised) |
0.019m |
| Wheel base | 1.87m |
|
Turning Radius(inside) |
0m |
|
Turning Radius(outside) |
2.1m |
| Drive motor | 24V/1.5kw |
| Lifting motor | 24V/3.3kw |
| Travelling speed(stowed) | 4.0km/h |
| Travelling speed(raised) | 0.8km/h |
| Lifting/ lowering speed | 42/30sec |
| Batteries | 4*6V/240Ah |
| Charger | 24V/ 30Ah |
| Gradeability | 25% |
| Max working slop | 1.5°/3° |
| Tyre | 15*5 |
| Weight | 2500KG |
Flexible Operation
Platform control by joystick, advancing, backwards, right turning and left turning, auto-braking. Fully proportional control, either lifting or moving, easy operating. Zero inside turning radius for travelling in narrow space, and also facilitate changing positions.
Key-type lock sliding
Key-type lock sliding door to protect misuse by not equipment keeper, particularly suitable for protect the electrical components when the rent out
Platform Swing Gate
Platform Swing Gate make enter and out space more large, no restrictions to the guardrails.
Fold-able guardrail make the machine can be easily through standard doors when move during working area.
Platform work light (optional)
The professional platform work lights allows construction of the user easier lighting and operating
Airway tube to platform
User can be optional airway tube to platform to make sure pneumatic tools and equipment can be used in the platform
AC wiring to platform
AC wiring and socket to platform to meet the customers demand to make sure the electic tools can be used in the platform.
Traceless tire
Configured with traceless tire to protect the ground surface and suitable for indoor application. The wheels and tires are very very tough and rigid able to travel through uneven terrain and rough surface
Motion alarm and Horn
The machine is equipped with motion alarm and horn when mowing to remind around person to take necessary precaution.
Easy Maintenance
It gives full consideration to the convenience of the user in their daily work. Central management with side opening drawer for hydraulic pump, batteries and charger. It has fault diagnosis system help the user can find the failure point one time. And also reduce the losses caused by forgotten maintenance.
Safety Precaution:
Why choose CHEN LIFT Self Propelled Scissor Lift?
· High Quality product
· Reasonable Price
· Easy payment mode
· Timely delivery
· Good after Service
· Client-centric approach
· one year warranty
Thank you for your reading and welcome your inquiry. We will respond you as soon as possible.
