Place of Origin: | China |
Brand Name: | CHEN LIFT |
Certification: | CE ISO9001:2008 IPAF member |
Model Number: | MX800SN |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | PVC Film Wrapped in Pallets or in wooden Case |
Delivery Time: | 30 days after order confirmed |
Payment Terms: | T/T or L/C |
Supply Ability: | 100 sets/month |
Loading Capacity: | 230Kg | Platform Height: | 8m |
---|---|---|---|
Working Height: | 10m | Platform Size: | 2.27*0.81m |
Lifting Power: | 3.3kw | Lifting Time: | 40s |
Highlight: | self propelled lift,scissor lift self propelled |

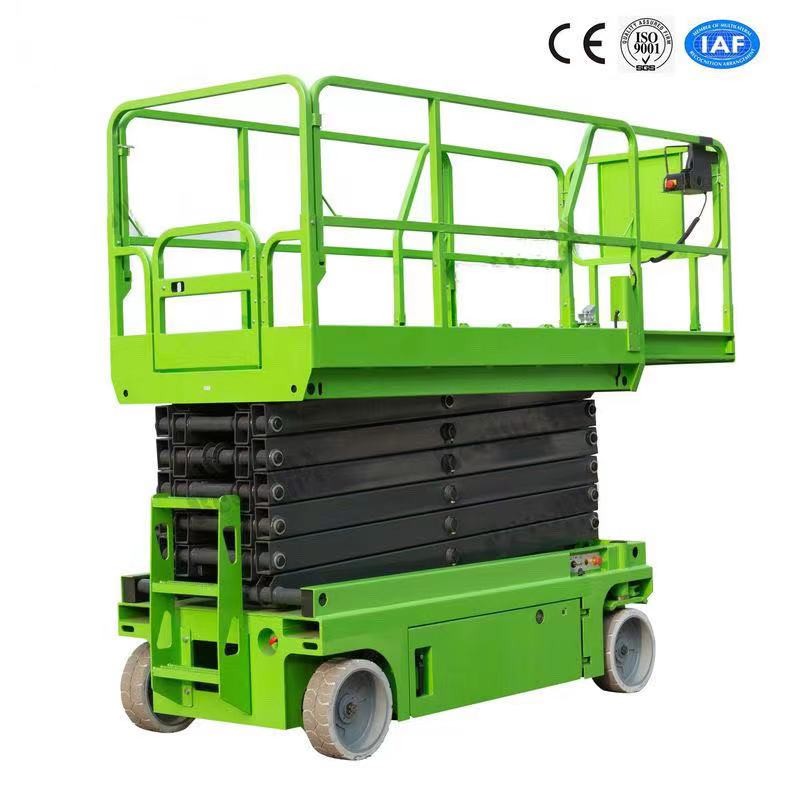

Electric Self Propelled Scissor Lift Platform Hydraulic Lift 10m Working Height 230Kg
Description:
Fully proportional control system, larger loading capacity, reach further with extensible platform, solid tough tire make it more competent assist finish various aerial work tasks in different situations more efficiently. Powerful, intelligent and flexible for aerial work and material handling.
It does not need any outriggers, one man operates on the working platforms; Moving forward and backward, turning around and lifting up are easily operated. Short chargeable time and long dual time of the battery; Easily moved, spacious working platforms, smooth working condition and high working efficiency. Moving method: The chargeable battery provides the power to move and steer around.
Parameters:
Model | MX800SN |
Load capacity | 230kg |
Extension load capacity | 113kg |
Max Worker number | 2 |
Working height | 10m |
Platform floor height | 8m |
Platform size | 2.27*0.81m |
Lifting / drive motor | 24V/3.3kw |
Travelling speed(stowed) | 3.0km/h |
Travelling speed(raised) | 1.0km/h |
Lifting/ lowering speed | 40/30sec |
Batteries | 4*6V/225Ah |
Charger | 24V/ 30A |
Gradeability | 25% |
Max working slop | 1.5°/3° |
Weight | 2100kg |
Flexible Operation
Fully proportional control, either lifting or moving, all can easily operating in the joystick. Zero inside turning radius, allowing users to use in a narrow space, and also facilitate changing positions. It has two kinds of moving speed to secure move quickly and lift safe.
Built-In Safety Features
It can be controlled from either the ground or platform and has a battery charge indicator . It also has an emergency stop button, a descent alarm, an electronic horn, and a manual platform lowering valve for safety
Easy Maintenance
It give full consideration to the convenience of the user in their daily work. It has fault diagnosis system help the user can find the failure point one time. And also reduce the losses caused by forgotten maintenance.
Platform Swing Gate
Platform Swing Gate make enter and out space more large, no restrictions to the guardrails.
Fold-able guardrail make the machine can be easily through standard doors when move during working area.
Key-type lock sliding
Key-type lock sliding door to protect misuse by not equipment keeper, particularly suitable for protect the electrical components when the rent out
Platform work light (optional)
The professional platform work lights allows construction of the user easier lighting and operating
Motion alarm and Horn
The machine is equipped with motion alarm and horn when moving to remind around person to take necessary precaution.
Standard Configuration:
Proportional control Auto-brake system
Auto-lock door on platform Extension Platform
Drivable when lifted Traceless tire
4 x 2 Driving Auxiliary lowering device
Emergency stop button Horn
Fault diagnosis system Tilting protection system
Action buzzer Time Recorder
Supporting bar Fork Lift Slot
Charging protection system Strobe light
Detachable fence Automatic pothole protection
Optional Configuration:
Applications:
1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.
Why choose Our Scissor Lift?
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 10 Years Experience
Communication with Customers:
A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?
B: The main difference is from the structure and the material
The scissor lift is in scissor structure with steel material
The aerial work platform is in mast structure with aluminum material
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1.Strict quality control system on the whole process of production
2.Imported key arts to ensure the high quality of our products
3.Advanced equipment and tools for examination and quality control
4.100% strict examining products before shipment
5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
A: What is the delivery time for your goods?
B: it is 30 days after order confirmation
A: What spare parts that you can offer?
B: We provide following spare parts freely for your maintenance of the machine:
Item | Quantity |
Fuse | 3 |
"O" Rubber Seals Φ11 | 3 |
Wrench | 1 |
Pressure Oiler | 1 |
Cross Screwdriver | 1 |
Straight Screwdrive | 1 |
