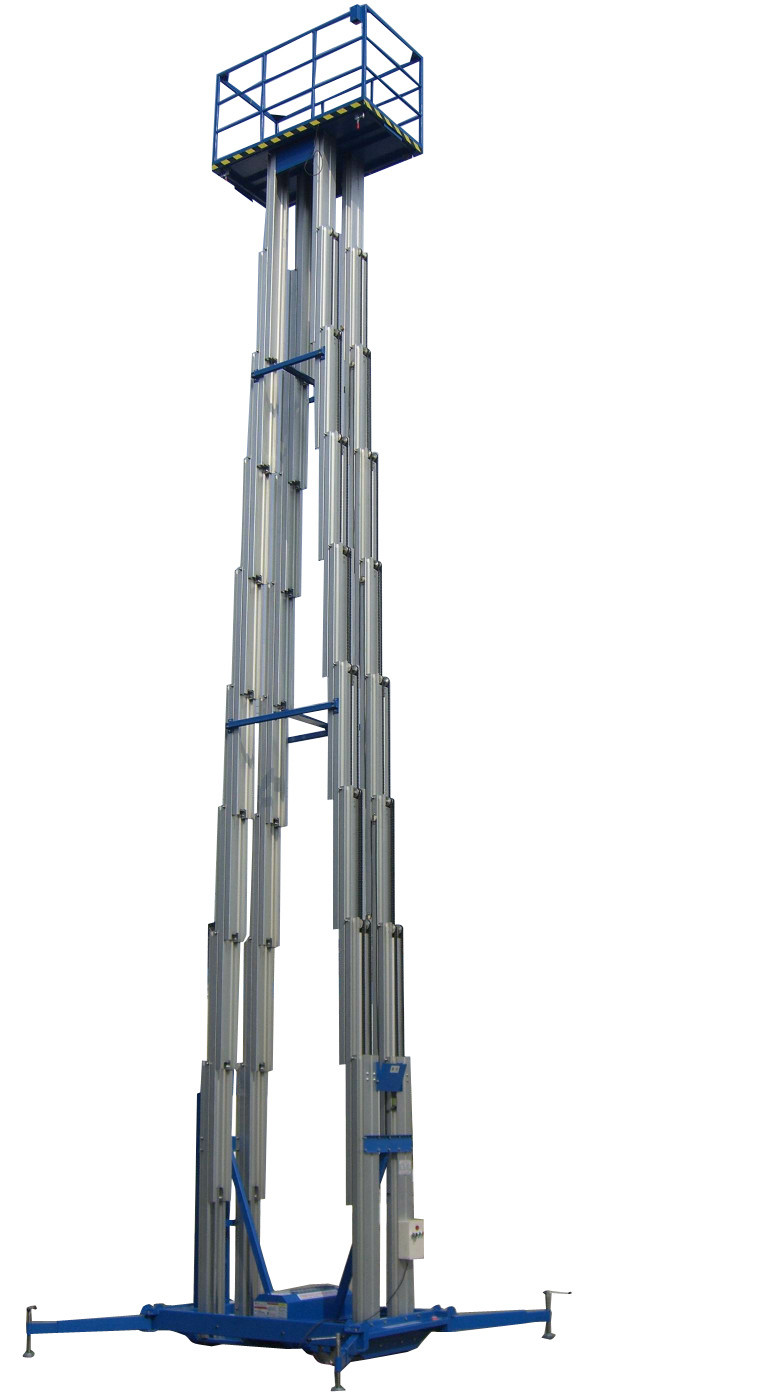

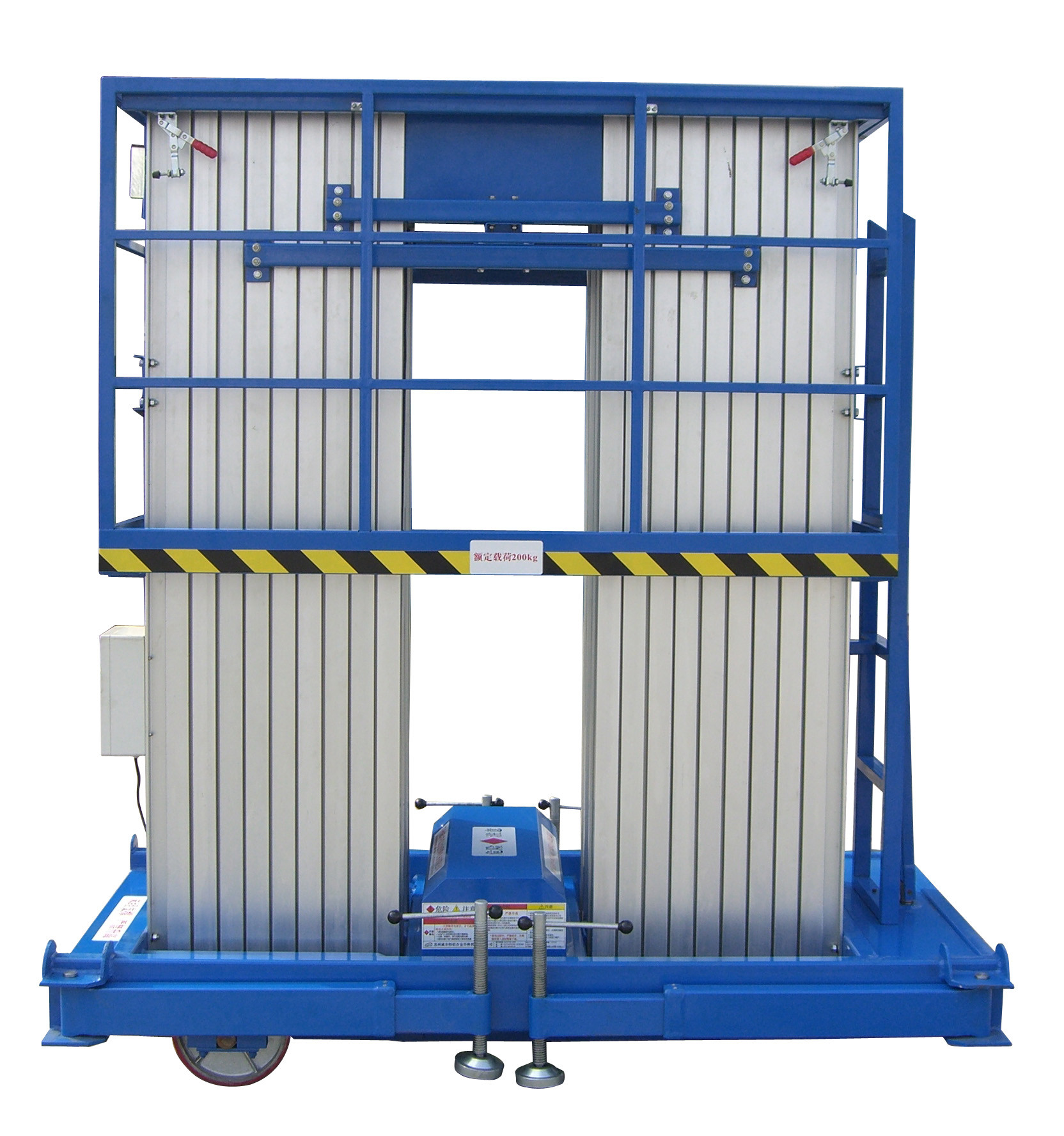

Quadruple Mast Insulated 10m Aerial Work Platform 300Kg with Rigid Aluminum Alloy Profile

Quadruple Mast Insulated 10m Aerial Work Platform 300Kg with Rigid Aluminum Alloy Profile

    • Quadruple Mast Insulated 10m Aerial Work Platform 300Kg with Rigid Aluminum Alloy Profile
    • Quadruple Mast Insulated 10m Aerial Work Platform 300Kg with Rigid Aluminum Alloy Profile
  • Quadruple Mast Insulated 10m Aerial Work Platform 300Kg with Rigid Aluminum Alloy Profile

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Certification: CE
    Model Number: GTWY10-400 (ME1000-4)

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallet or in wooden case
    Delivery Time: 30day after down payment
    Payment Terms: T/T L/C
    Supply Ability: 200 sets per month
    Contact Now
    Detailed Product Description
    Loading Capacity: 300kg Platform Height: 10m
    Working Height: 12m Platform Size: 1.43*0.88m
    Motor Power: 2.2kw Lifting Time: 88s
    Overall Size: 1.82*1.15*2.08m Outrigger Size: 2.33*2.23m
    Weight: 1100kg



    Quadruple Mast Insulated 10m Aerial Work Platform 300Kg with Rigid Aluminum Alloy Profile





    Quick Detail:



    Name Mobile Aerial Work Platform Brand Name Xunte
    Loading Capacity 300Kg Platform Height 10m
    Platform Size 1.43*0.88m Color Blue or Optional
    Motor Power 2.20Kw Power Supply AC/DC





    Descriptions



    Insulated Aerial Work Platform is designed for using the machine in insulated situation like plants or other place with electricity for protecting the operators consideration. The platform is made up of insulated materials and all the type and height aerial work platform can be made into this type.





    Applications:



    It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 10m to 14m and lifting capacity varies from 300kg.The power sources could be 220V, 380V or chargeable battery.





    Main Features:



    1. Most rigid aluminum alloy profile

    2. Auxiliary platform lowering

    3. Multi-guide pulley on mast

    4. Durable base system

    5. Chassis with level gauge

    6. DC working power on the platform

    7. Easily rolls through a narrow space

    8. Emergency stop button

    9. Over load protection

    10 .Built-in pressure release valve

    11. Dual activated up/down switch

    12. Locking Key Switch

    13. Optional extended platform

    14. Entry ladder





    Specifications:



    MODEL GTWY10-400 (ME1000-4)
    PRODUCTIVITY US Metric
    Lift capacity 661lbs 300kg
    Working height 39ft 4.44in 12m
    Platform floor height 32ft 9.70in 10m
    Platform length 4ft 8.30in 1.43m
    Platform width 2ft 10.65in 0.88m
    Ground Clearance 5.91in 0.06m
    Lifting Power 2.2kw
    Lifting Speed 0.09-0.1m/s
    Motorized Power 2.2Kw
    Descending Speed 0.08m/s
    Anti Wind Capacity Max. force 5
    Overall length 5ft 11.65in 1.82m
    Overall width 3ft 9.28in 1.15m
    Overall height 6ft 9.89in 2.08m
    Outrigger footprint:
    A Length 7ft 7.73in 2.33m
    B Width 7ft 3.80in 2.23m
    C Corner access 3.94in 0.10m
    D Wall access front 10.24in 0.26m
    E Wall access side 2ft 0.41in 0.62m
    Weight 2425lbs 1100kg

    Quadruple Mast Insulated 10m Aerial Work Platform 300Kg with Rigid Aluminum Alloy Profile





    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V
    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Flame proof electric cabinet



    Competitive Advantage:



    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience





    Communication with Customers



    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1. Strict quality control system on the whole process of production
    2. Imported key arts to ensure the high quality of our products
    3. Advanced equipment and tools for examination and quality control
    4. 100% strict examining products before shipment
    5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: Find the list below which we are offering with the machine when shipment for free:

    Item Model Quantity
    O-shape rubber ring 40×3.1 4
    O-shape rubber ring 11×1.9 2
    O-shape rubber ring 40×30×6 1
    Spanner   1
    screwdriver 4# 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
