ME800-1 Model Aerial Work Platform Vertical Lift 8 M Max Platform Height

ME800-1 Model Aerial Work Platform Vertical Lift 8 M Max Platform Height

    • ME800-1 Model Aerial Work Platform Vertical Lift 8 M Max Platform Height
    • ME800-1 Model Aerial Work Platform Vertical Lift 8 M Max Platform Height
    • ME800-1 Model Aerial Work Platform Vertical Lift 8 M Max Platform Height
  • ME800-1 Model Aerial Work Platform Vertical Lift 8 M Max Platform Height

    Product Details:

    Place of Origin: CN
    Brand Name: BestmaxLift
    Certification: ISO; IPAF; CE
    Model Number: ME800-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: USD 1800-2200
    Packaging Details: Packed in Pallet, Wrapped with Film
    Delivery Time: Within 15 days
    Payment Terms: L/C, T/T
    Supply Ability: 2000 units per month
    Contact Now
    Detailed Product Description
    Material: Aluminum Max Platform Height: 8 M
    Max Working Height: 10 M Platform Size: 0.6* 0.55 M
    Standard Power: AC Optional Power: DC; AC+DC
    Color: Any Color

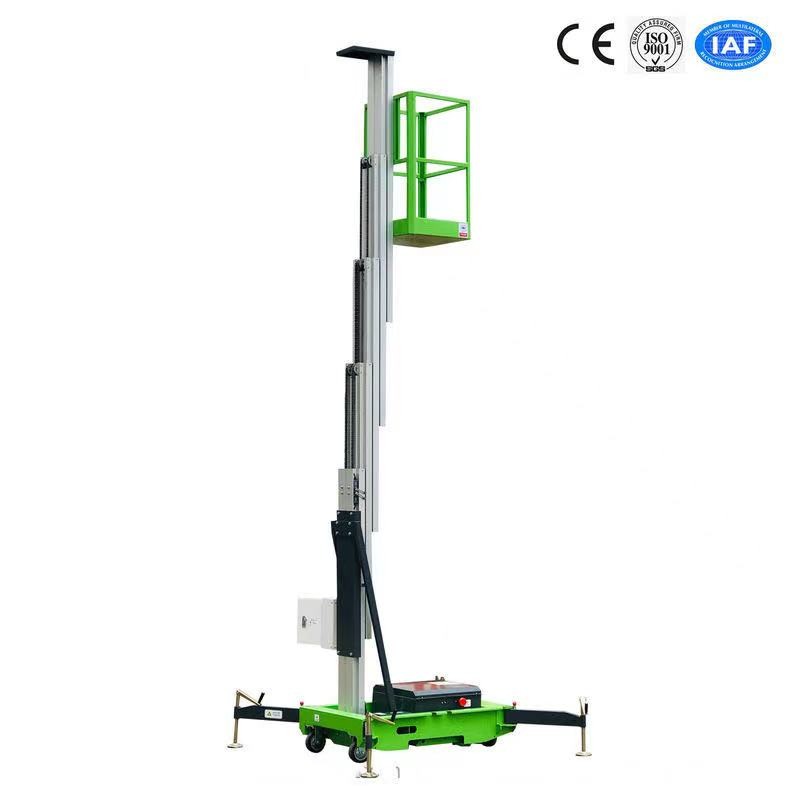

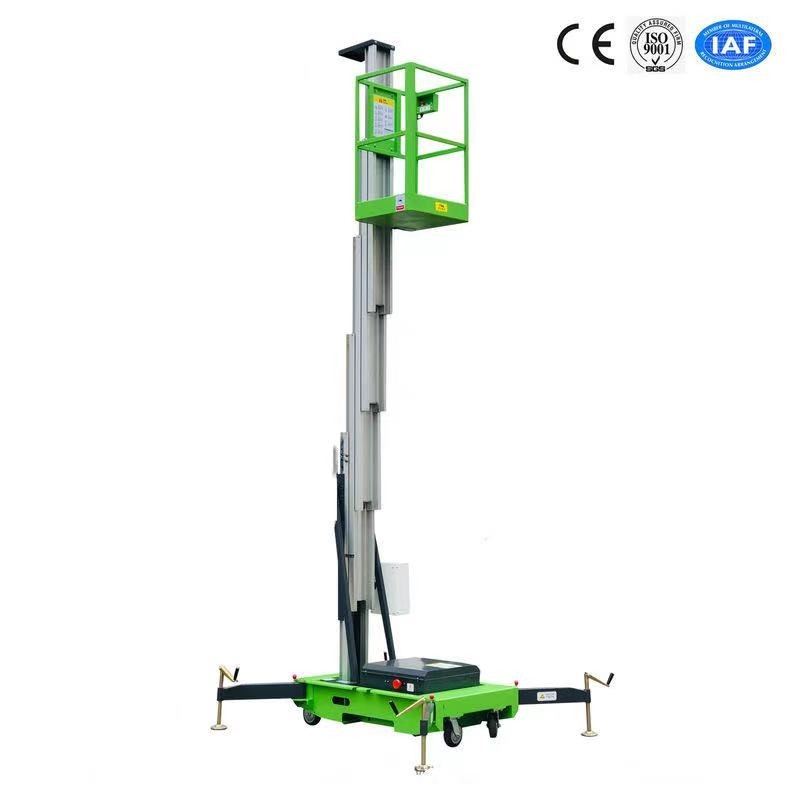

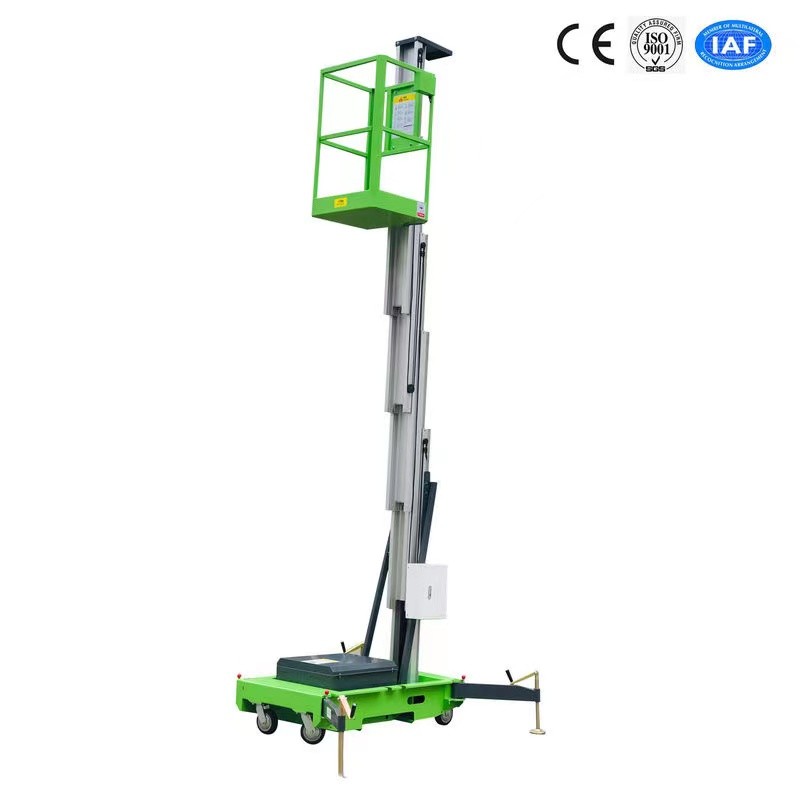

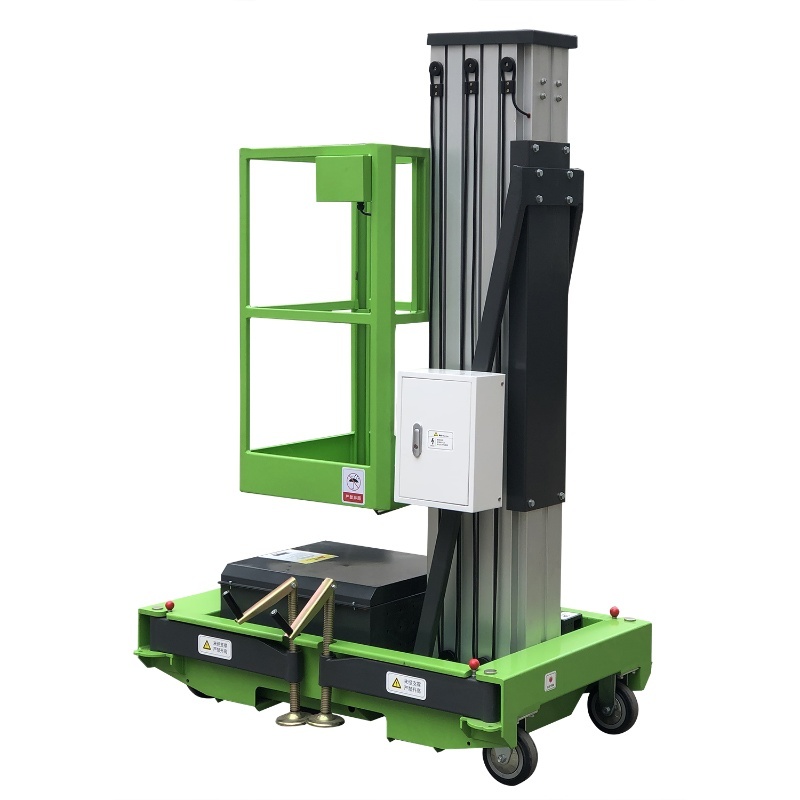

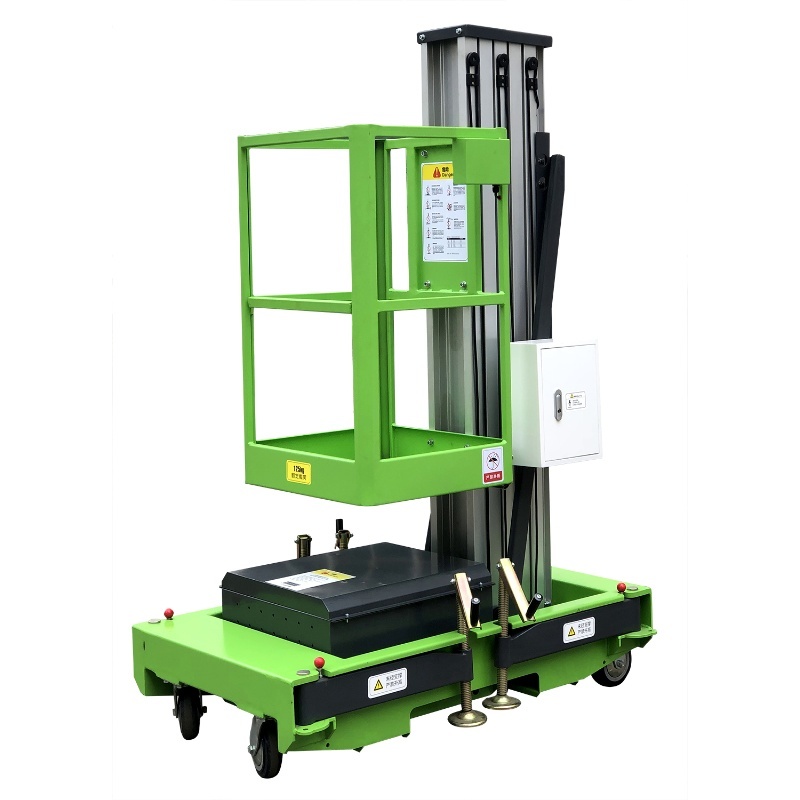

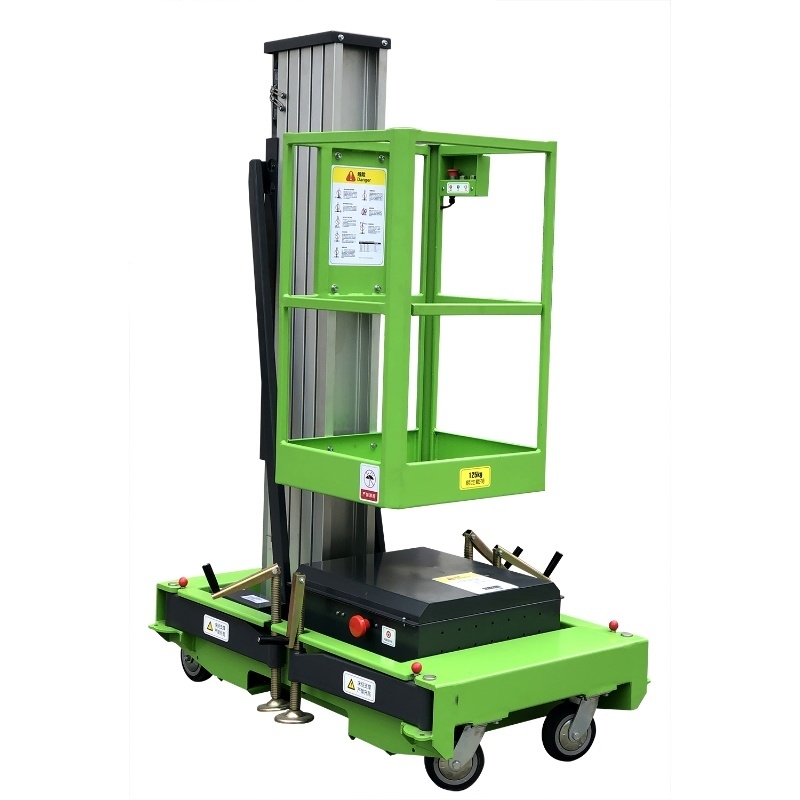

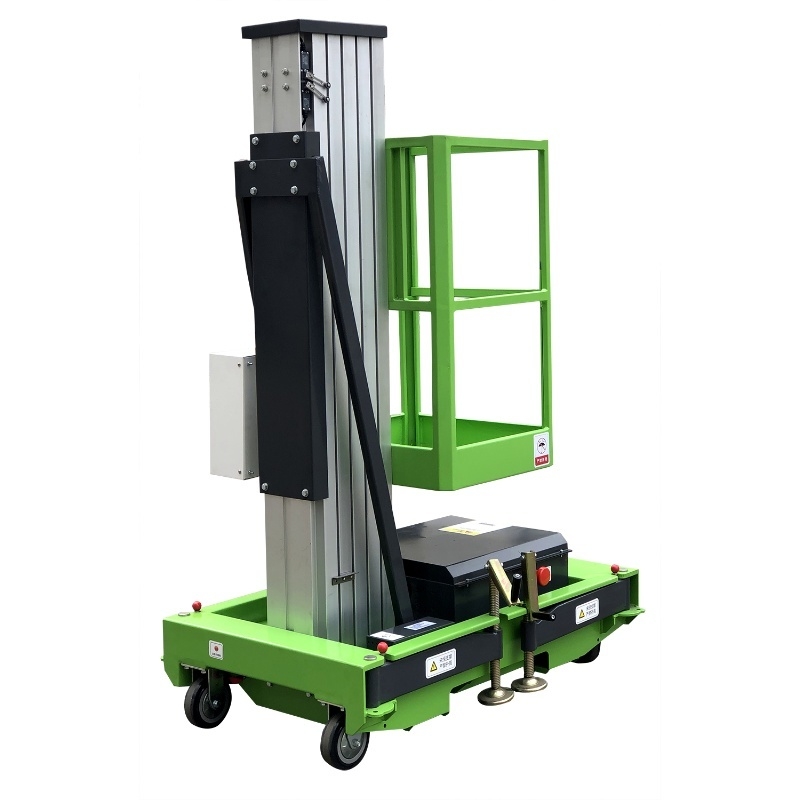

    ME800-1 Model 130kg Load Single Mast Aluminum Aerial Work Platform Vertical Lift



    Description
    By the mast quantity: single mast, double mast, triple mast, quadruple mast and six masts (four plus two) are ranked in the product range of man pushing around aerial work platform
    Features non-marking tires and anodized aluminum mast. Easily pushed around to the designated sites, beautiful structure, compact main body, light weighted, safe and reliable. It is operated by the telescopic cylinder which is strong and reliable working and the control panels are available on the lift platforms and ground.

    Power supply standard is AC version (110V or 220V) and DC chargeable battery version (12V or 24V) or AC &DC version are both optional. Extendable platform can be made also for double mast type.
    DC battery version always comes with battery charger, batteries can be recharged using automatic, built-in charger, and battery discharge indicator warns of low charge conditions.

    The lifting height ranges from 4m to 22m for different mast Aluminum Aerial Work Platform and the loading capacity varies from 130Kg to 300Kg.


    Application
    It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds.


    Main Configurations of Man Pushing Around Aluminum Aerial Work Platform

    ME800-1 Model Aerial Work Platform Vertical Lift 8 M Max Platform Height

    Safety Features of Man pushing Around Aluminum Aerial Work Platform

    • Toe protection boards on the platform
    • Anti-skid deck on the platform
    • Auxiliary Lowering
    • Dual limit switch for safety
    • Operation voltage at 24V
    • Safety belt holding
    • Anti-burst valve on the cylinder
    • Emergency stop button both on platform and ground
    • Short Circuit and leakage protection system for AC version
    • Fuse for DC version for electric shock protection

    Major Parameter of Single Mast Aluminum Aerial Work Platform

    Model NO. Working Height (m) Loading Capacity (Kg) Platform
    Size (m)
    Lifting
    Power (Kw)
    Weight
    (Kg)
    Dimension (m)
    GTWY6-100 8 130 0.60x0.55 0.75 260 1.38x0.80x1.65
    GTWY8-100 10 130 0.60x0.55 0.75 300 1.38x0.80x1.98
    GTWY9-100 11 130 0.60x0.55 0.75 326 1.44x0.85x1.98
    GTWY10-100 12 130 0.60x0.55 0.75 400 1.44x0.85x1.98



    Major Parameters of Double Mast Aluminum Aerial Work Platform

    Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
    GTWY6-200 8 200 1.18x0.62 1.1 380 1.38x0.85x2.00
    GTWY8-200 10 200 1.18x0.62 1.1 480 1.38x0.95x2.00
    GTWY9-200 11 200 1.38x0.62 1.1 548 1.58x0.95x2.00
    GTWY10-200 12 200 1.38x0.62 1.1 610 1.68x0.95x2.00
    GTWY12-200 14 200 1.48x0.62 1.1 650 1.68x0.95x2.00
    GTWY14-200 16 150 1.48x0.62 1.1 650 1.68x0.95x2.00


    Major Parameters of Triple Mast Aluminum Aerial Work Platform

    Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
    GTWY10-300 12 300 1.40x0.88 2.2 900 1.78x1.10x2.05
    GTWY12-300 14 300 1.40x0.88 2.2 950 1.78x1.10x2.05
    GTWY14-300 16 250 1.53x0.88 2.2 980 1.90x1.10x2.32


    Major Parameters of Quadruple Mast Aluminum Aerial Work Platform

    Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
    GTWY10-400 12 300 1.40x0.80 2.2 950 1.78x1.25x2.05
    GTWY12-400 14 300 1.40x0.80 2.2 980 1.78x1.25x 2.32
    GTWY14-400 16 200 1.40x0.80 2.2 1000 1.90x1.25x2.32
    GTWY16-400 18 200 1.40x0.80 2.2 1100 2.28x1.35x2.82


    Major Parameters of Six Mast Aluminum Aerial Work Platform

    Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
    GTWY16-420 18 150 1.45x0.90 2.2/1.1 1200 2.28x1.35x2.18
    GTWY18-420 20 150 1.45x0.90 2.2/1.1 1400 2.28x1.35x2.42
    GTWY20-420 22 150 1.55x0.90 2.2/1.1 1780 2.50x1.40x2.62
    GTWY22-420 24 150 1.55x0.90 2.2/1.1 2000 3.00x1.60x2.82



    Tilting type can be made for height limitation place

    ME800-1 Model Aerial Work Platform Vertical Lift 8 M Max Platform Height



    Company Introduction

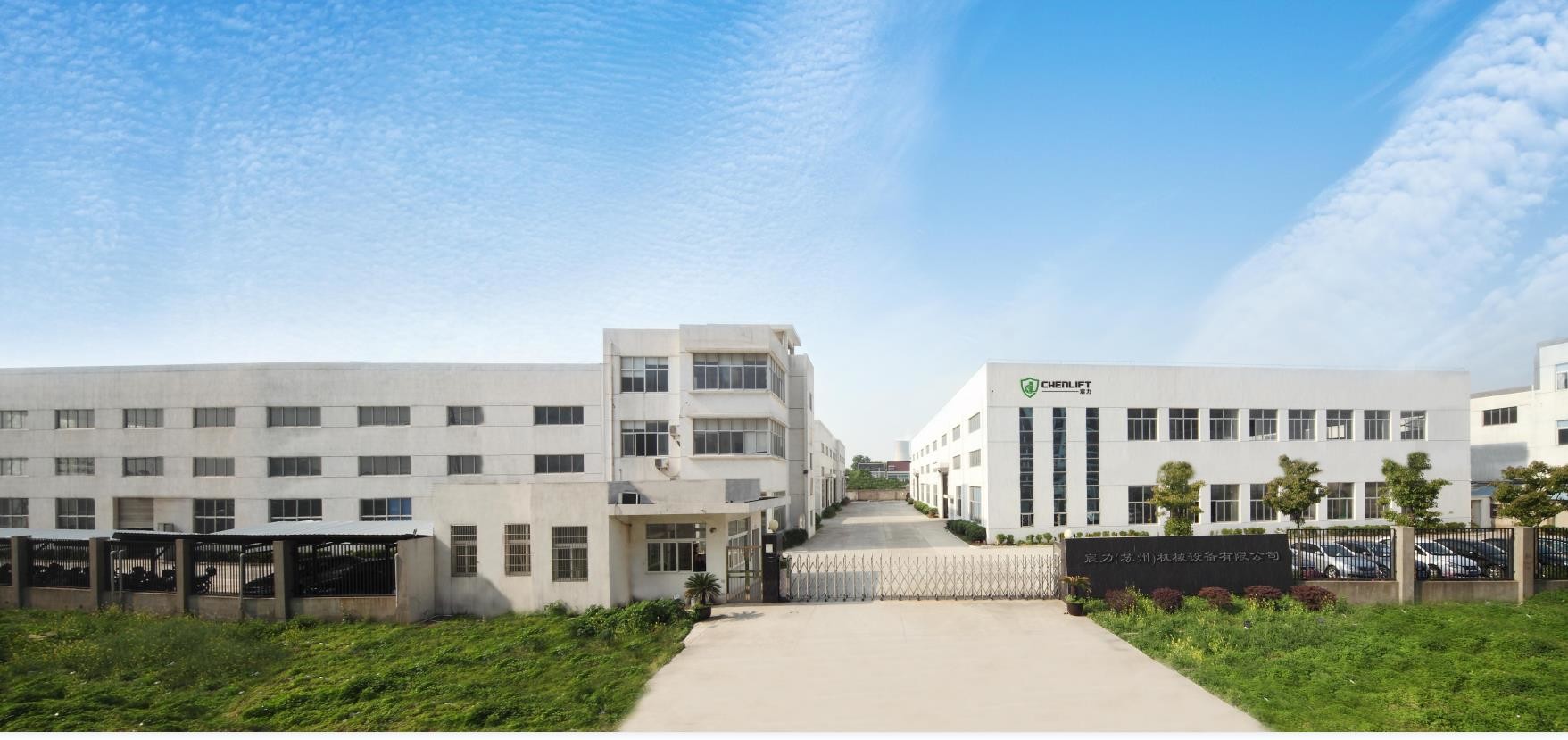

    As a subsidiary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
