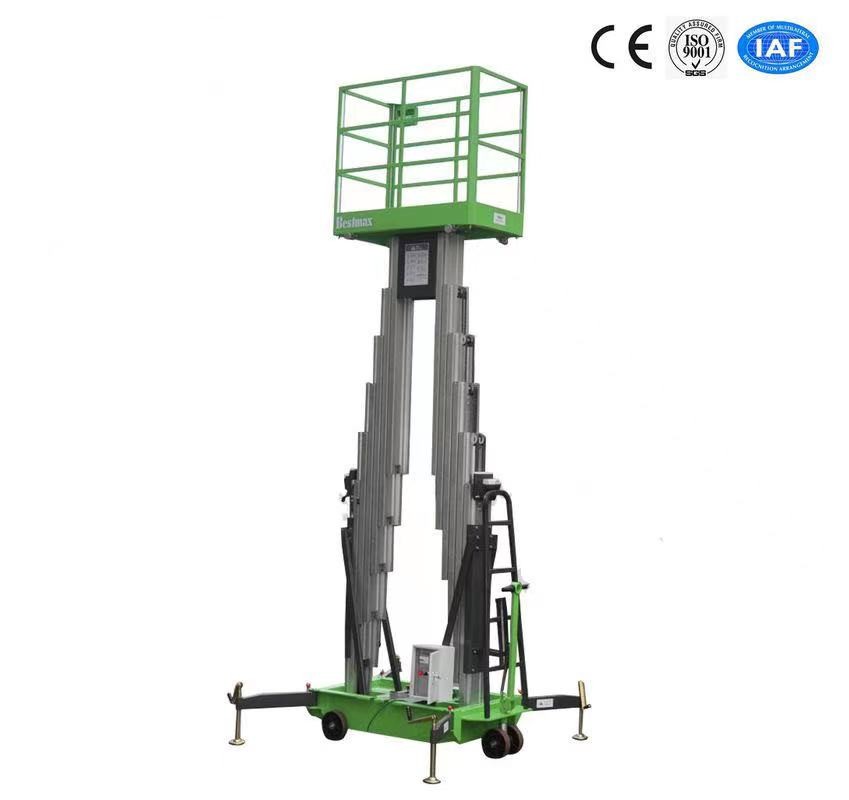

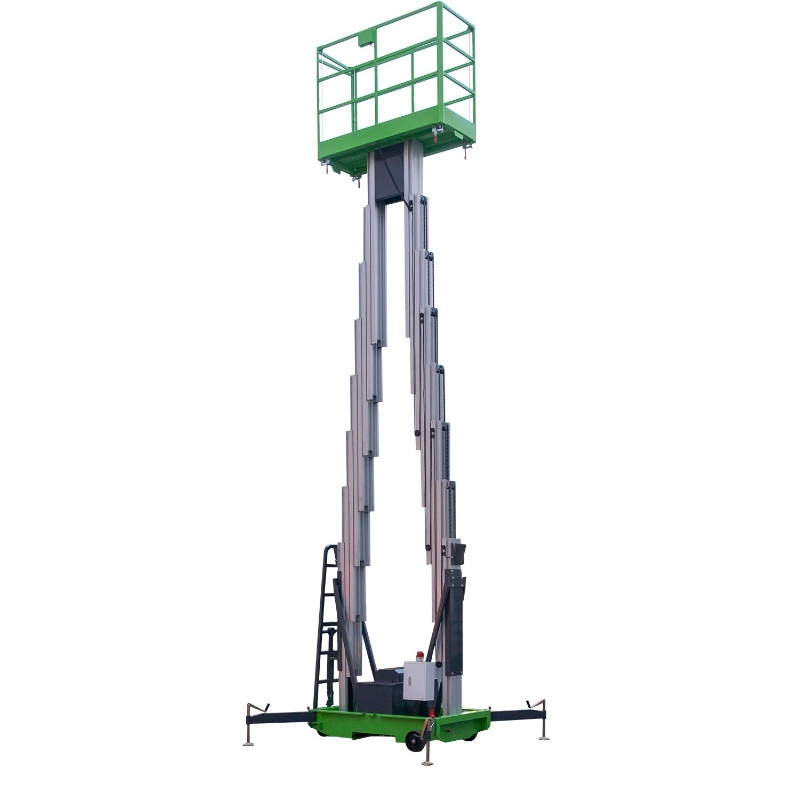

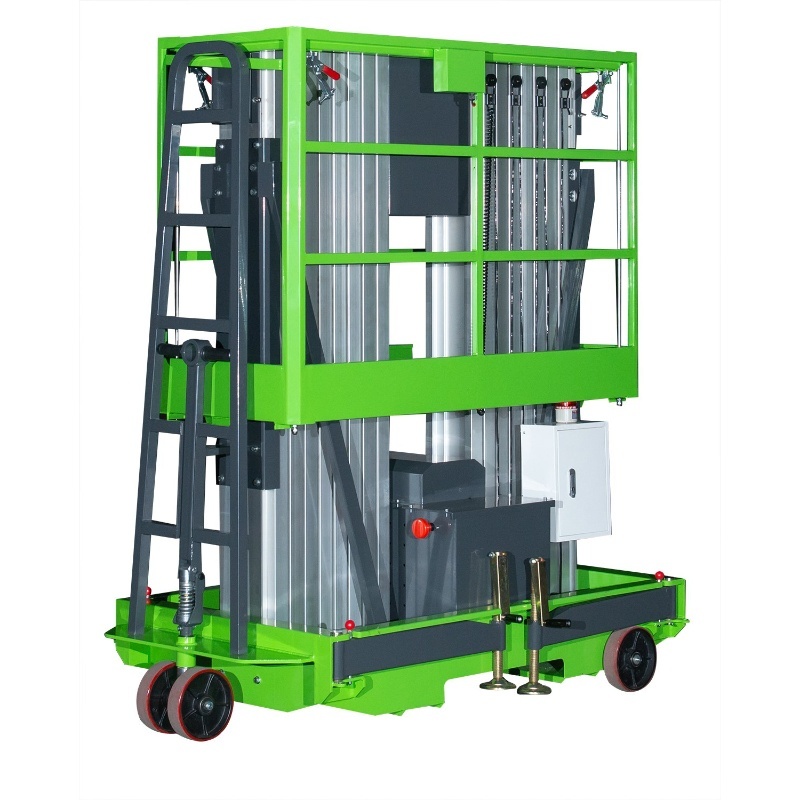

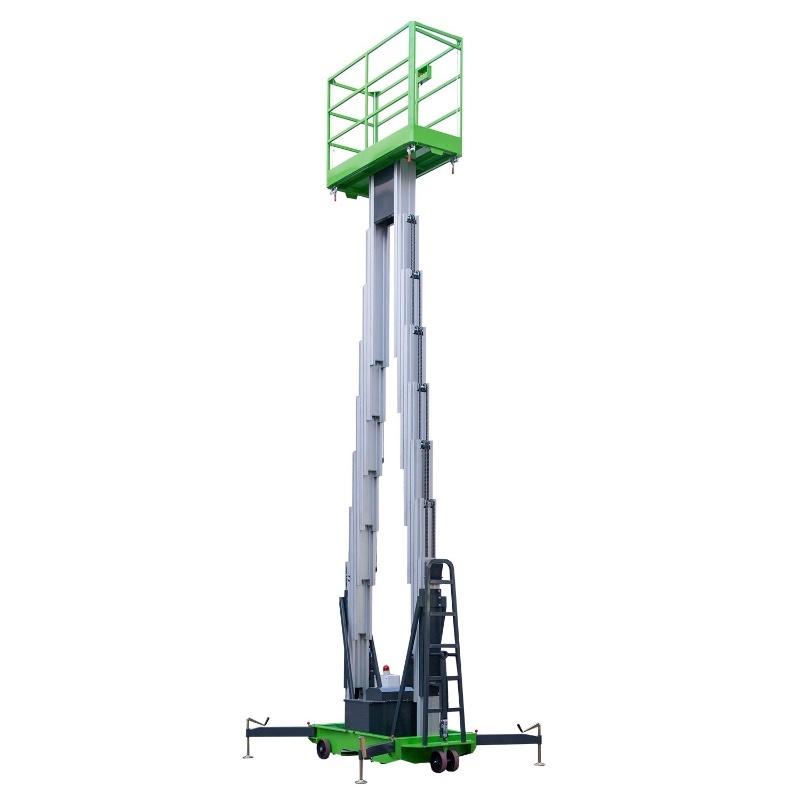

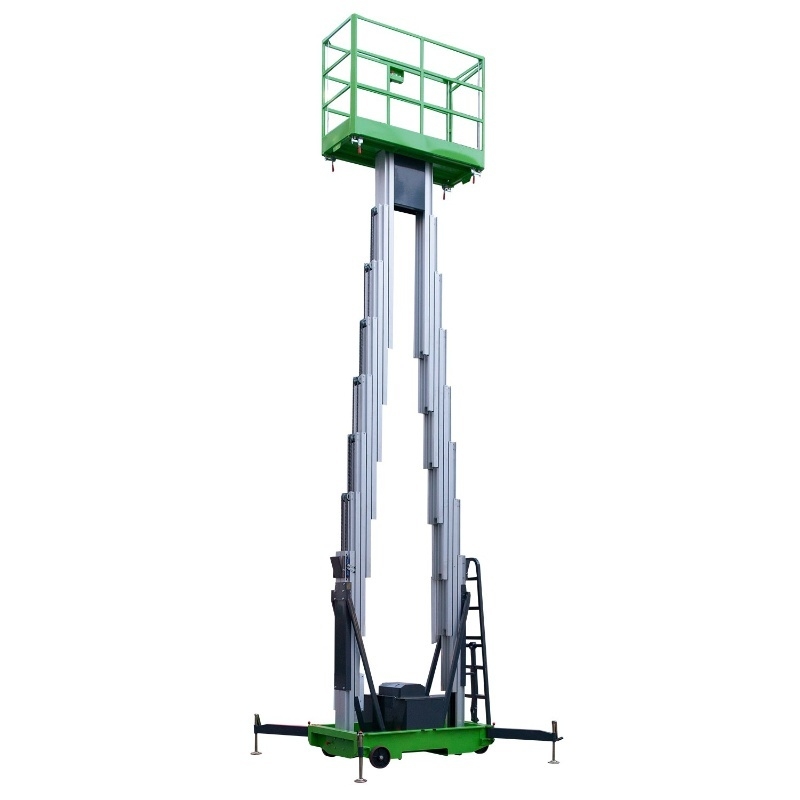

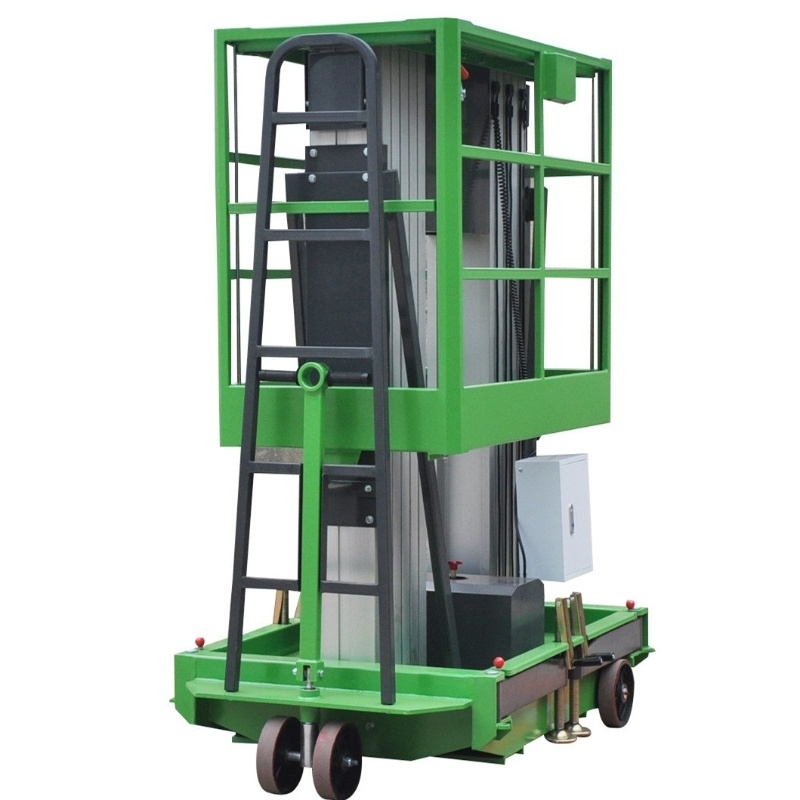

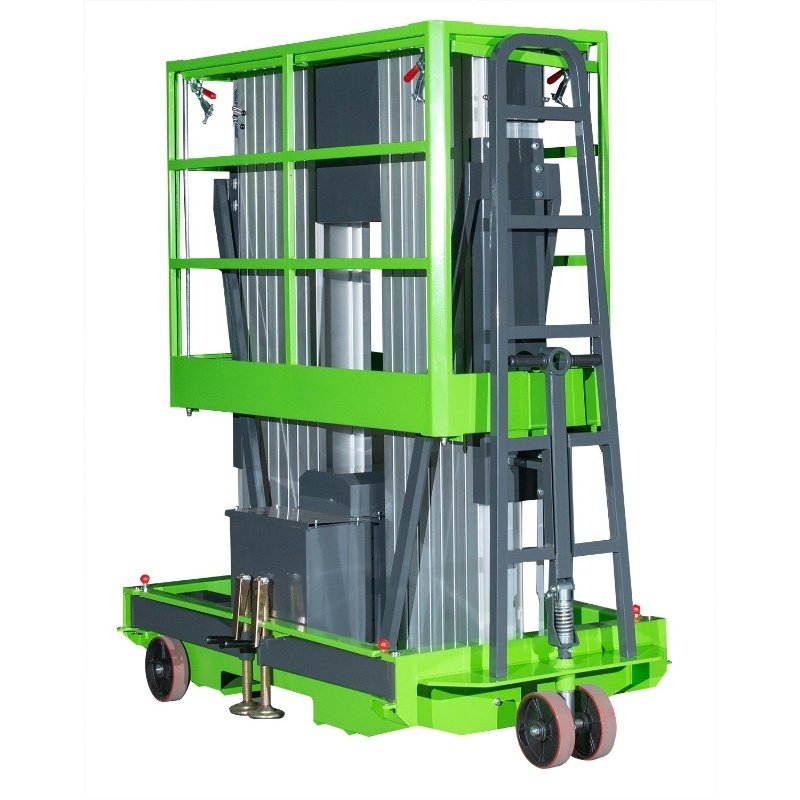

10 Meters Height Aerial Work Platform Double Mast Hydraulic Vertical Lift Table

10 Meters Height Aerial Work Platform Double Mast Hydraulic Vertical Lift Table

  • 10 Meters Height Aerial Work Platform Double Mast Hydraulic Vertical Lift Table
  • 10 Meters Height Aerial Work Platform Double Mast Hydraulic Vertical Lift Table
10 Meters Height Aerial Work Platform Double Mast Hydraulic Vertical Lift Table
Product Details:
Place of Origin: China
Brand Name: Bestmax Lift
Certification: CE
Model Number: ME1000-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wrapped in pallet or in wooden case
Delivery Time: 30 days after down payment
Payment Terms: T/T, L/C
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Lift Capacity: 200kg Platform Height: 10m
Working Height: 12m Platform Size: 1.52*0.62m
Lifting Motor: 1.1kw Overall Size: 1.76*1.00*2.00m
High Light:

hydraulic aerial work platform

,

aerial work platform



10 Meters Height Aerial Work Platform Double Mast Hydraulic Vertical Lift Table



Quick Detail:

Name Mobile Aerial Work Platform Brand Name Bestmax
Loading Capacity 200Kg Platform Height 10m
Platform Size 1.52*0.62m Color Green or Optional
Motor Power 1.1Kw Power Supply AC/DC



Description:

By the mast quantity: single mast, double mast, triple mast, quadruple mast and six masts (four plus two) are ranked in the product range of man pushing around aerial work platform
Features non-marking tires and anodized aluminum mast. Easily pushed around to the designated sites, beautiful structure, compact main body, light weighted, safe and reliable. It is operated by the telescopic cylinder which is strong and reliable working and the control panels are available on the lift platforms and ground.

Power supply standard is AC version (110V or 220V) and DC chargeable battery version (12V or 24V) or AC &DC version are both optional. Extendable platform can be made also for double mast type.
DC battery version always comes with battery charger, batteries can be recharged using automatic, built-in charger, and battery discharge indicator warns of low charge conditions.

The lifting height ranges from 4m to 22m for different mast Aluminum Aerial Work Platform and the loading capacity varies from 130Kg to 300Kg.



Applications:

It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 4m to 9m and lifting capacity varies from 100kg to 125kg.The power sources could be 220V, 380V or chargeable battery.



Main Features:

1. Most rigid aluminum alloy profile

2. Auxiliary platform lowering

3. Multi-guide pulley on mast

4. Durable base system

5. Chassis with level gauge

6. DC working power on the platform

7. Easily rolls through a narrow space

8. Emergency stop button

9. Over load protection

10. Built-in pressure release valve

11. Dual activated up/down switch

12. Locking Key Switch



Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Flame proof electric cabinet







Why choose Our Mobile Vertical Lift?
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 20 Years Experience

Communication with Customers:
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1. Strict quality control system on the whole process of production
2. Imported key arts to ensure the high quality of our products
3. Advanced equipment and tools for examination and quality control
4. 100% strict examining products before shipment
5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

A: What is the delivery time for your goods?
B: It is 30 days after order confirmation.

A: How long is your quality guarantee period?
B: We have one year warranty.
