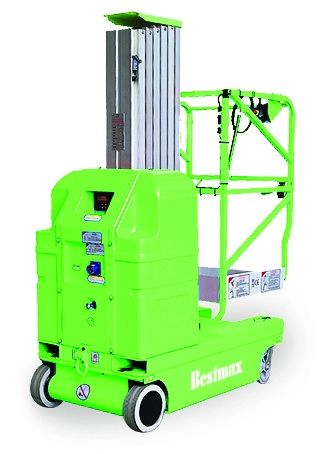

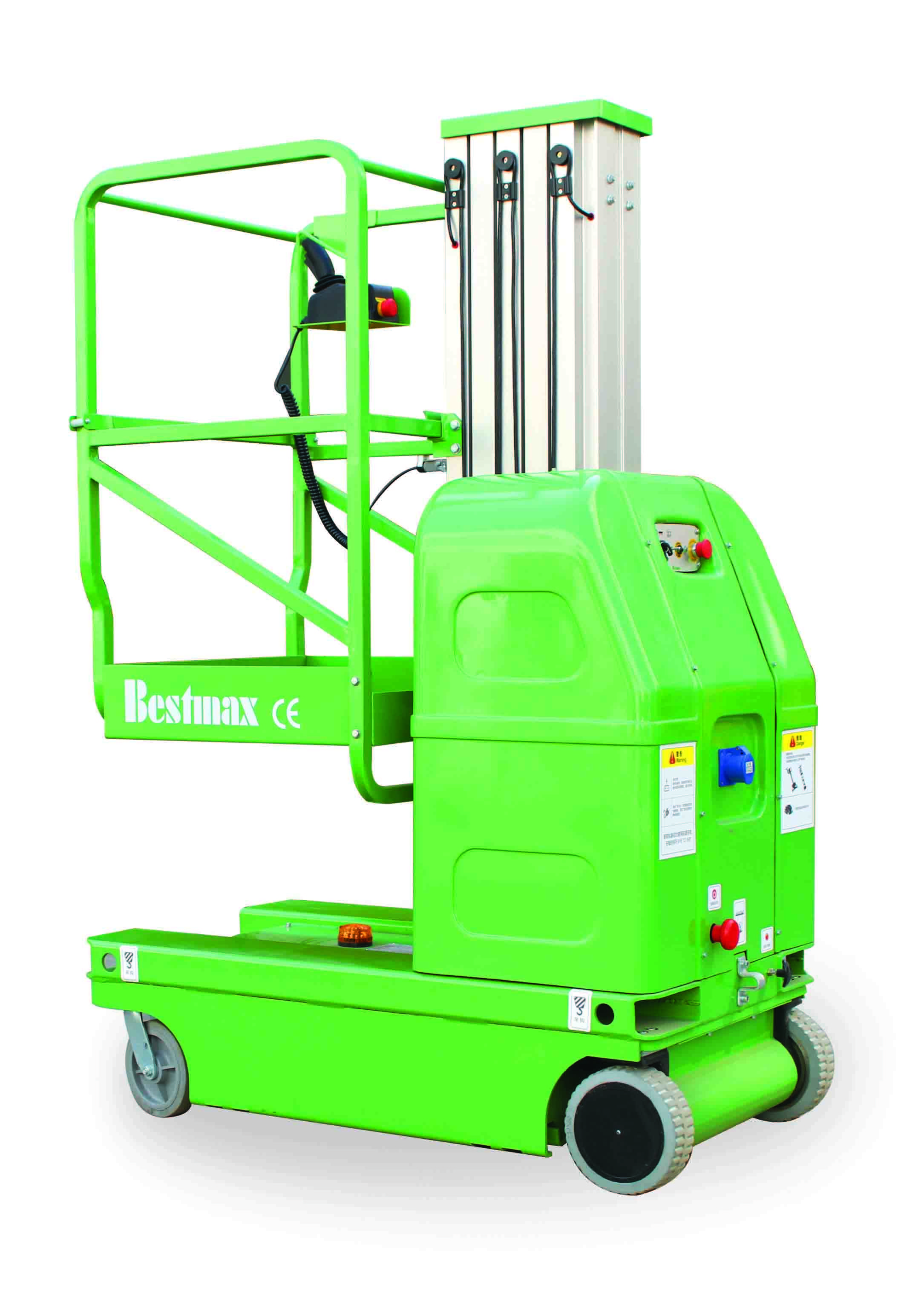

7.5m Lift Capacity of 125kg Self-Propelled Aluminum Aerial Work Platform

7.5m Lift Capacity of 125kg Self-Propelled Aluminum Aerial Work Platform

  • 7.5m Lift Capacity of 125kg Self-Propelled Aluminum Aerial Work Platform
  • 7.5m Lift Capacity of 125kg Self-Propelled Aluminum Aerial Work Platform
7.5m Lift Capacity of 125kg Self-Propelled Aluminum Aerial Work Platform
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: MG750-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wrapped in pallets/ wooden case
Delivery Time: 30 days after receipt of deposit
Supply Ability: 1000 units/ month
Contact Now
Detailed Product Description
Model: MG750-1 Lift Capacity: 125kg
Platform Height Max: 7.5m Working Height: 9.5 M
Platform Size: 0.78*0.70m Power Source: 2*12V/115Ah
Charger: 24V/12A Weight: 880kg
Color: Customizable Extension Platform: Optional Configuration
High Light:

hydraulic aerial work platform

,

aerial work platform

7.5m Lift Capacity of 125kg Self-Propelled Aluminum Aerial Work Platform

Self-Propelled Economical Vertical Lift is is light and exquisite, convenient and flexible. It can pass through the general foyer, can enter and exit the elevator at will, save energy and electricity, and work without hurting the ground. It can be used for wall-mounted work and exploration work, and is widely used in hotels, hotels, hospitals, stations, airports, warehouses and other occasions.
Safe and reliable operation performance, the base pothole protection device gives you a hundred times peace of mind

Specification
Swivel Turning Type

Model MG600-1 MG750-1 MG750-2 MG900-2
Lift Capacity 125Kg 125Kg 200Kg 150Kg
Platform Height Max 6m 7.5m 7.5m 9m
Stowed Length 1.36m 1.36m 1.5m 1.5m
Stowed Width 0.79m 0.79m 1.0m 1.0m
Stowed Height 1.98m 1.98m 1.99m 1.99m
Platform Size 0.78*0.70m 0.78*0.70m 1.00m*0.70m 1.00m*0.70m
Ground Clearance 0.05m 0.05m 0.05m 0.05m
Wheelbase 1.15m 1.15m 1.28m 1.28m
Gradeability 25% 25% 25% 25%
Maximum Working Slope 1.5° 1.5° 1.5° 1.5°
Driving Wheel 0.23*0.08m 0.23*0.08m 0.25*0.08m 0.25*0.08m
Front Tire 8in 8in 8in 8in
Driving Motor 0.4Kw 0.4Kw 0.5Kw 0.5Kw
Lifting Motor 2Kw 2Kw 2Kw 2Kw
Power Source 2*12V/120Ah 2*12V/120Ah 2*12V/120Ah 2*12V/120Ah
Charger 24V/12A 24V/12A 24V/12A 24V/12A
Weight 850Kg 880Kg 1100Kg 1250Kg


Hydraulic Turning Type

Model MG600-1S MG750-1S MG750-2S MG900-2S
Lift Capacity 125Kg 125Kg 200Kg 150Kg
Platform Height Max 6m 7.5m 7.5m 9m
Stowed Length 1.44m 1.44m 1.55m 1.55m
Stowed Width 0.82m 0.82m 1.0m 1.0m
Stowed Height 2.09m 2.09m 2.09m 2.09m
Platform Size 0.78*0.70m 0.78*0.70m 1.00m*0.70m 1.00m*0.70m
Ground Clearance 0.05m 0.05m 0.05m 0.05m
Wheelbase 1.15m 1.15m 1.28m 1.28m
Gradeability 25% 25% 25% 25%
Maximum Working Slope 1.5° 1.5° 1.5° 1.5°
Driving Wheel 0.23*0.08m 0.23*0.08m 0.305*0.1m 0.305*0.1m
Front Tire 8in 8in 8in 8in
Driving Motor 0.8Kw 0.8Kw 0.8Kw 0.8Kw
Lifting Motor 2Kw 2Kw 2Kw 2Kw
Power Source 2*12V/105Ah 2*12V/105Ah 2*12V/105Ah 2*12V/105Ah
Charger 24V/15A 24V/15A 24V/15A 24V/15A
Weight 1100Kg 1200Kg 1350Kg 1500Kg


Details

Swivel Turning Type

Hydraulic Turning Type



Standard Configuration for Self-Propelled Economical Vertical Lift


  1. Proportional controls
  2. DC power supply
  3. Drivable at full height
  4. Beacon
  5. Non marking tyre
  6. 2WD
  7. Automatic braking system
  8. Anti burst valve on cylinder
  9. Emergency stop button
  10. Auxiliary lowering
  11. On board Diagnostic system
  12. Tilt sensor with alarm
  13. Forklift pockets
  14. Charger protection
  15. All motion alarm
  16. Horn
  17. Double wheel brake
  18. Hydraulic braking release
  19. Anti-dust cover on the mast
  20. Powder coating painting


Optional Configuration for Self-Propelled Economical Vertical Lift
1.AC power to platform
2.Overload sensor with alarm
3.Platform working light
4.Air tube to the platform
5.Platform extension
6.Self -lock gate on platform(Hinge type top open door)
7.Hour meter
8.Machine Body cover
9.Wireless tracking



Company Introduction

  1. Located at Suzhou City Jiangsu Province(we are the largest manufacturer in this line in Jiangsu)
  2. Founded in 2001
  3. A standardized modern factory of 11,000 square meters
  4. Professional organization in manufacturing, sales, services and refurbishment of hydraulic lifting machinery and aerial working platform
  5. Established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America, Europe and Africa
