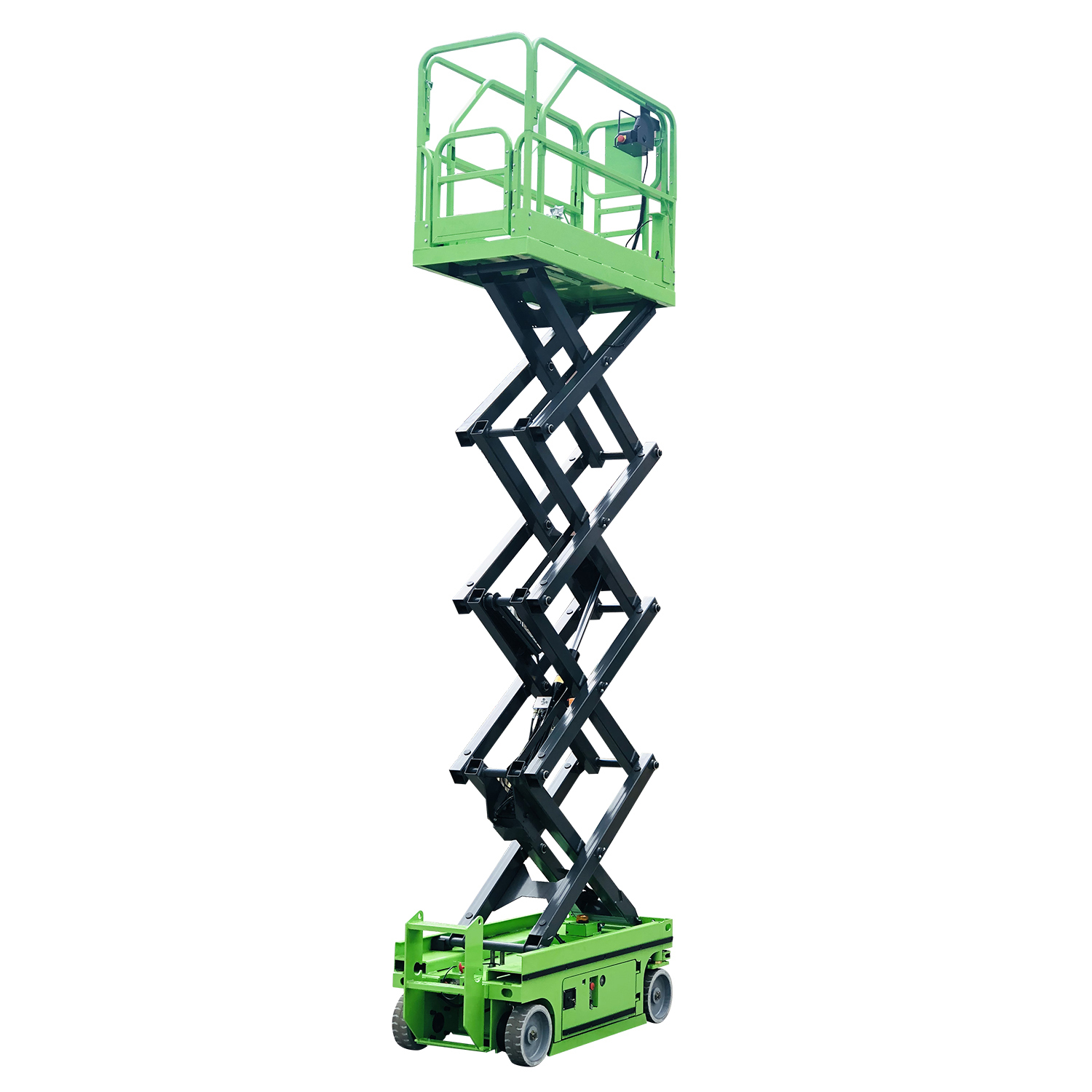

450 kg Load Self Propelled Electric Scissor Lift with CE

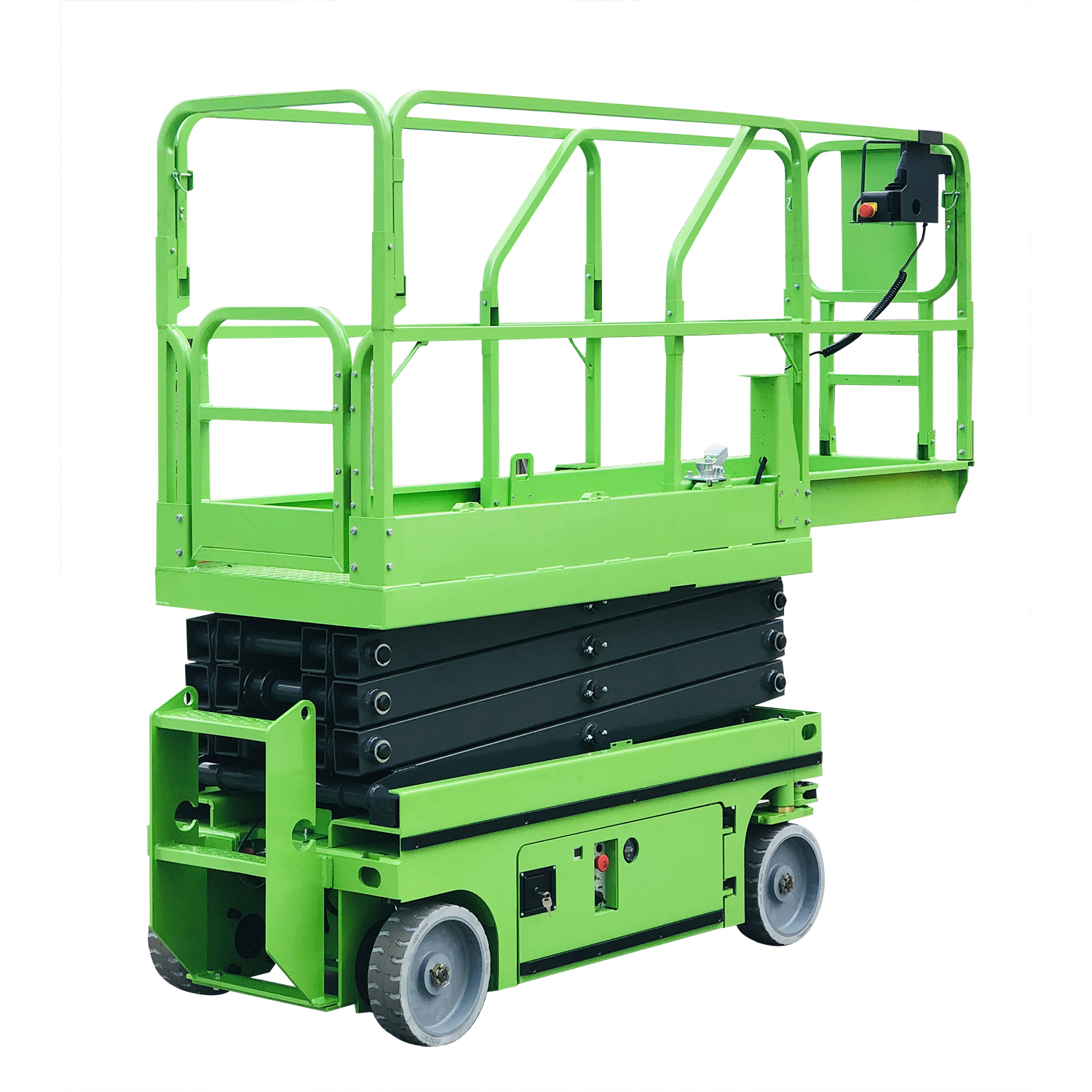

450 kg Load Self Propelled Electric Scissor Lift with CE

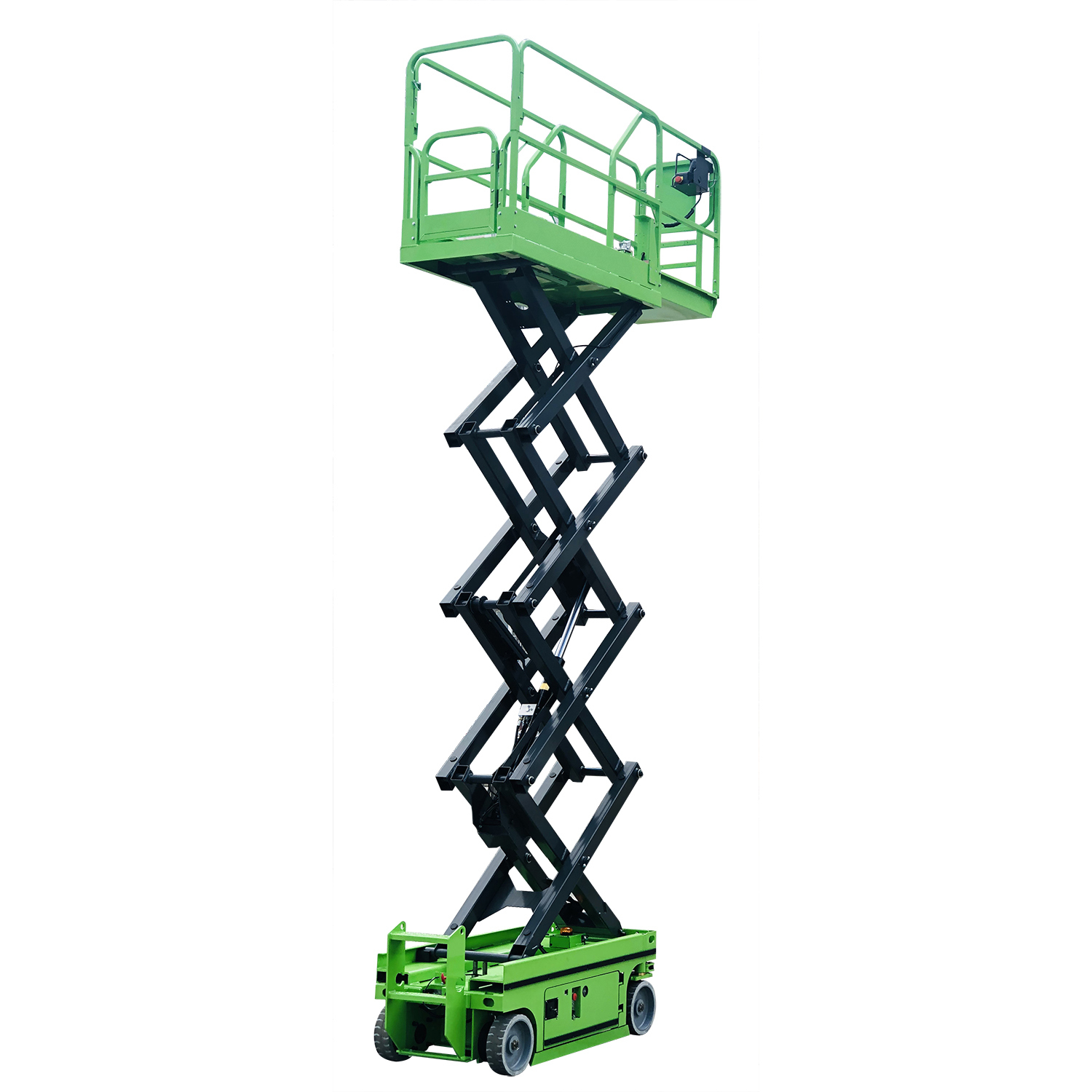

450 kg Load Self Propelled Electric Scissor Lift with CE

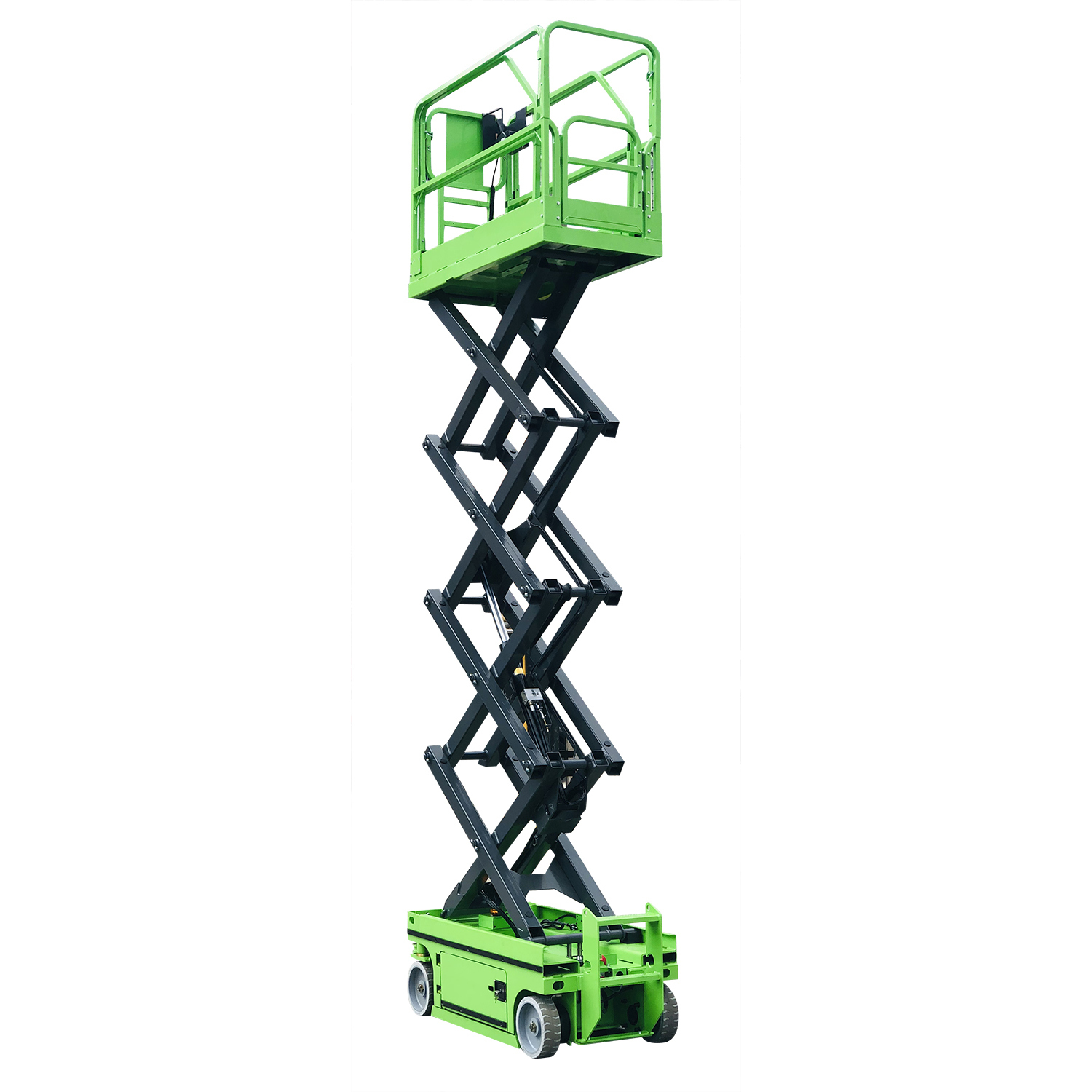

Large Image :  450 kg Load Self Propelled Electric Scissor Lift with CE

Product Details:

Place of Origin: Original of China
Brand Name: CHEN LIFT
Certification: ISO,CE
Model Number: MX800S

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wrapped in pallets/ wooden case
Delivery Time: 30 day after confirmed the order
Payment Terms: T/T, L/C
Supply Ability: 3000 units per year
Detailed Product Description
Model: MX800S Max Platform Height: 8 M
Max Working Height: 10 M Platform Size: 2.27* 1.12 M
Load Capacity: 450 Kg Extension Length: 0.9 M
Extension Load: 113 Kg Measurement: 2.43* 1.15* 1.76 M
Battery: 4*6V/ 225Ah Total Weight: 2225KG
High Light:

self propelled work platform

,

self propelled lift

8m Platform Height DC Motor Drive 450kg Load Self Propelled Electric Scissor Lift with CE



Description:



It is ideal for construction and material handling in various application. With intelligent and convenient function, it is unique in for carrying capacity and travle through outdoors unenven terrain and rough surface. Larger loading capacity, reach further with extensible platform, working light, airway tube, AC wiring  to make it more competent assist finish various aerial work tasks in different situations more effiently.  With hyraulic motor driving, it needs no human power to pull or push it around and it can be operated by one single to control on the platform. It can travel in any status whether lifted or stowed, smarter, more flexible and faster.



Parameters



Model

MX800S

Load capacity

450kg

Exension load capacity

113kg

Max Worker number

2

Working height

10m

Platform floor height

8m

Measurement

2.43 m x 1.15m x1.76m

Extension platform size

2.27*1.12m

Ground clearance(stowed)

0.1m

Ground clearance(raised)

0.019m

Wheel base 1.87m

Turning Radius(inside)

0m

Turning Radius(outside)

2.2m

Lift/Drive motor 24V/3.3kw
Travelling speed(stowed) 3.0km/h
Travelling speed(raised) 1 km/h
Lifting/ lowering speed 40/30 sec
Batteries 4*6V/225Ah
Charger 24V/ 30A
gradeability 25%
Max working slop 2°/3°
Tyre 380*129
Weight 2225KG





Flexible Operation

Platform control by joystick, advancing, backwards, right turning and left turning, auto-braking. Fully proportional control, either lifting or moving, easy operating. Zero inside turning radius for travelling in narrow space, and also facilitate changing positions.



Easy Mantenance

It gives full consideration to the convenience of the user in their daily work. Central management with side opening drawer for hydraulic pump, batteries and charger. It has fault diagnosis system help the user can find the failure point one time. And also reduce the losses caused by forgotten maintenance.



Traceless tire

Configtured with traceless tire to protect the ground surface and suitable for indoor application. The wheels and tires are very very tough and rigid able to travel through uneven terrain and rough surface



Platform Swing Gate

Platform Swing Gate make enter and out space more large, no restrictions to the guardrails.

Foldable guardrail make the machine can be easily through standard doors when move during working area.



Airway tube to platform---Optional Configuration

User can be optional airway tube to platform to make sure pneumatic tools and equipment can be used in the platfrom



AC wiring to platform---Optional Configuration

AC wiring and socket to platform to meet the customers demand to make sure the electic tools can be used in the platform.



Key-type lock sliding

Key-type lock sliding door to protect misuse by not equipment keeper, particularly suitable for protect the electrical components when the rent out



Platform work light---Optional Configuration

The professional platform work lights allows construction of the user easier lighting and operating



Motion alarm and Horn

The machine is equipped with motion alarm and horn when mowing to remind arond person to take neccessory procaution. Action buzzer.



Safety Precaution:

  • Auxiliary lowering device
  • Auto-brake system
  • Tilting protection system
  • Automatic pohole protection
  • Emergency stop button
  • Charging protection system
  • Auto-lock door on platform
  • Overload protection sensor with alarm (optional)

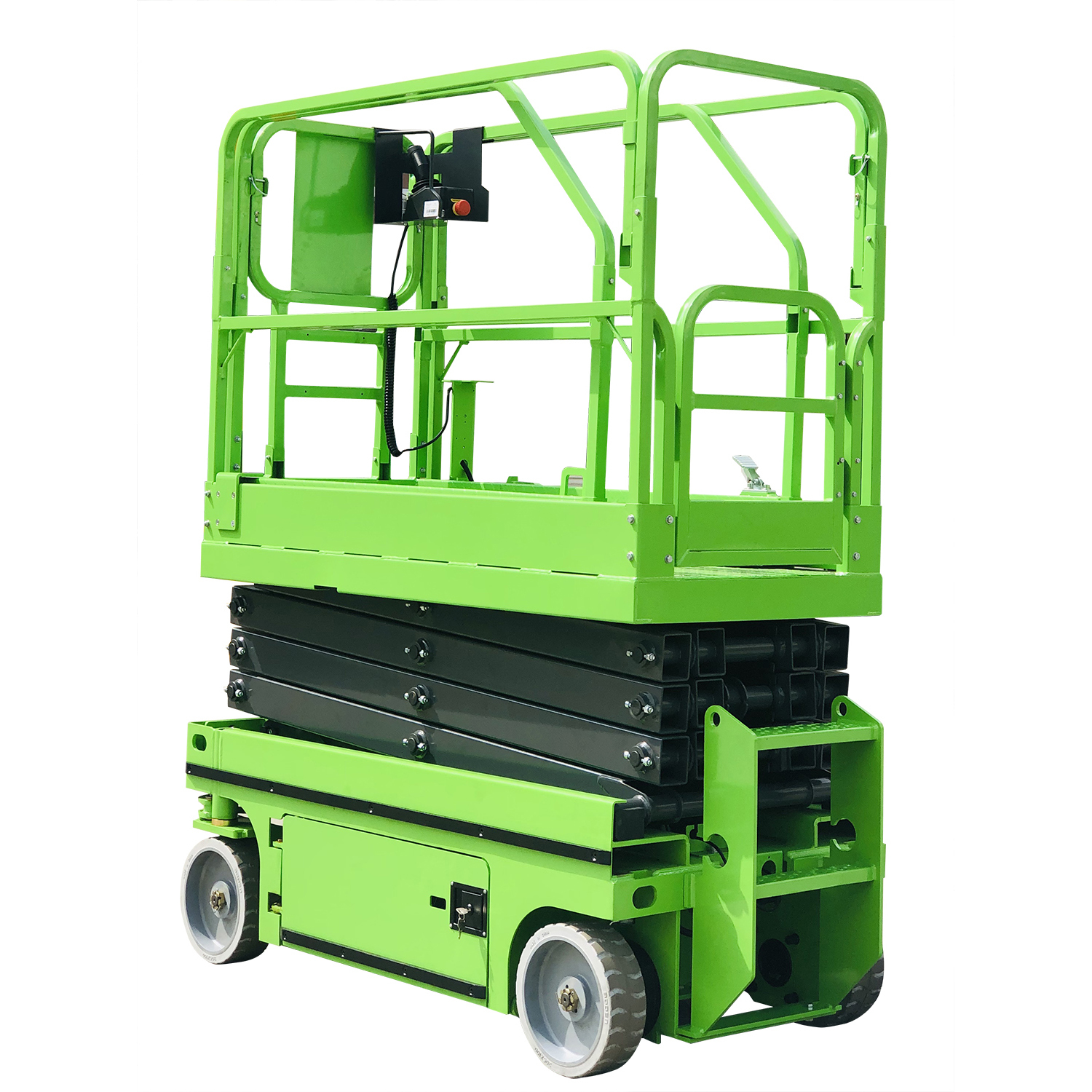

450 kg Load Self Propelled Electric Scissor Lift with CE 0

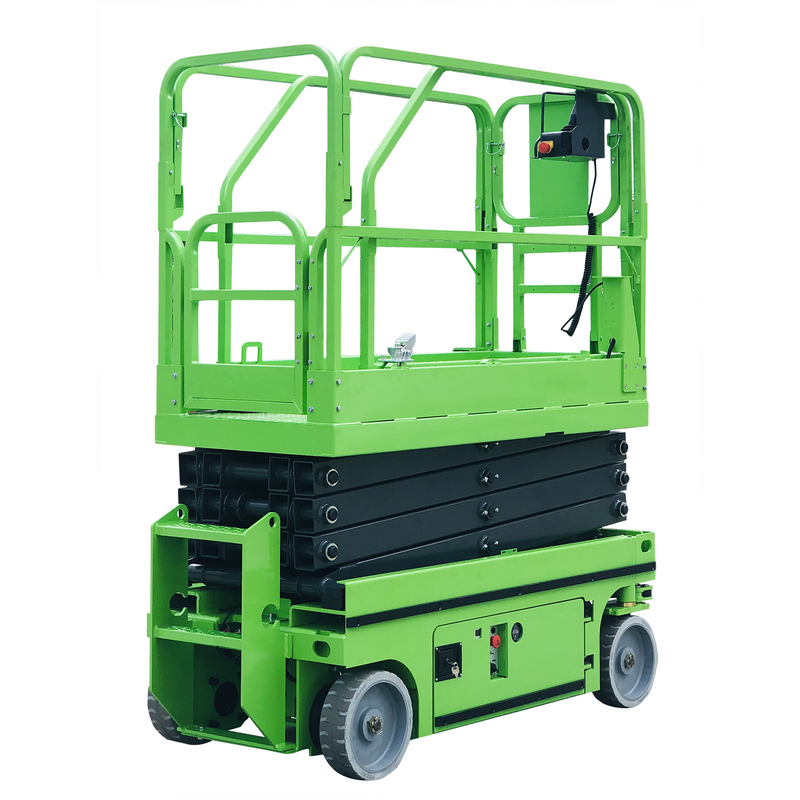

450 kg Load Self Propelled Electric Scissor Lift with CE 1

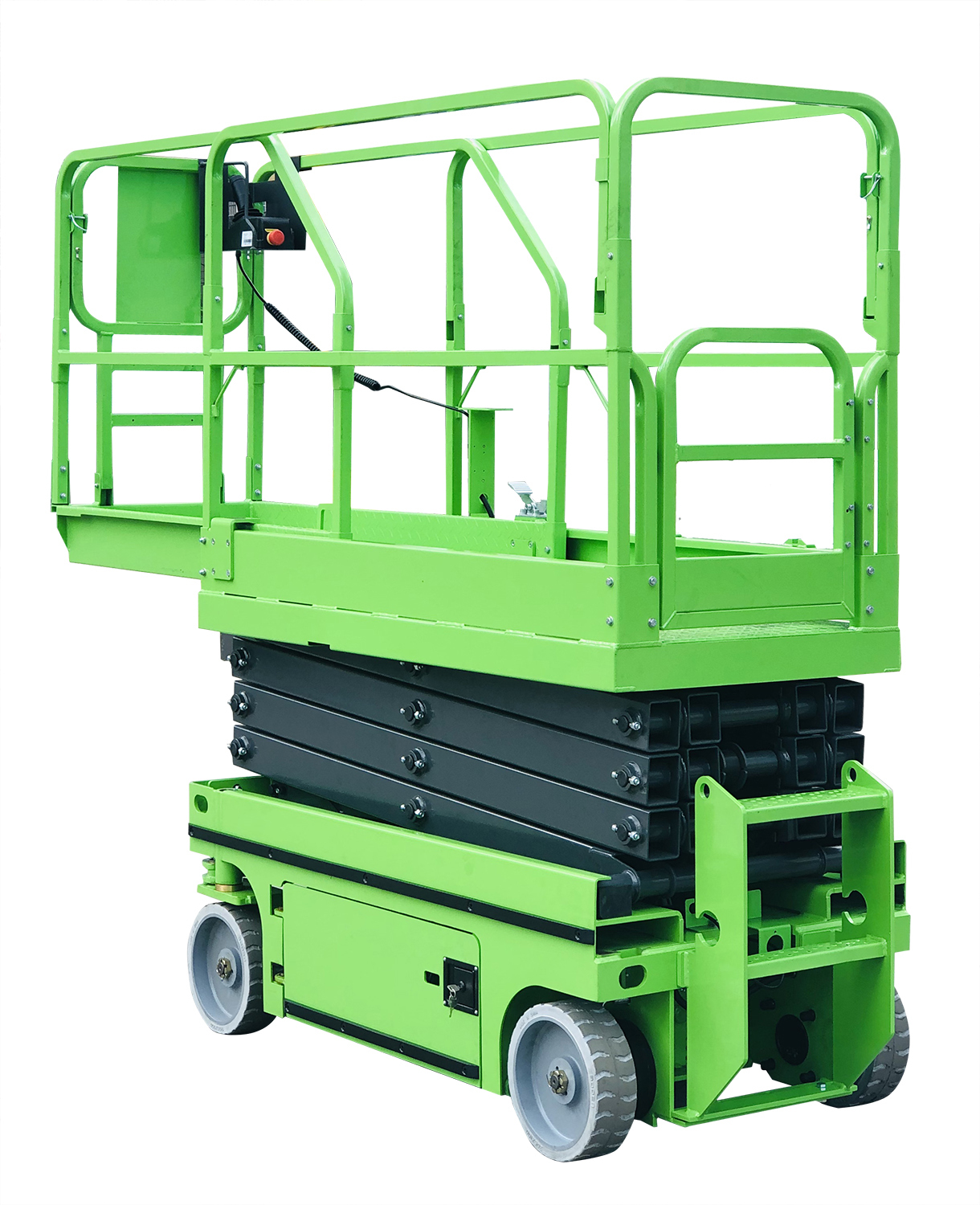

450 kg Load Self Propelled Electric Scissor Lift with CE 2



Why choose CHEN LIFT Self Propelled Scissor Lift?
· High Quality product
· Reasonable Price
· Easy payment mode
· Timely delivery
· Good after Service
· Client-centric approach
· one year warranty
