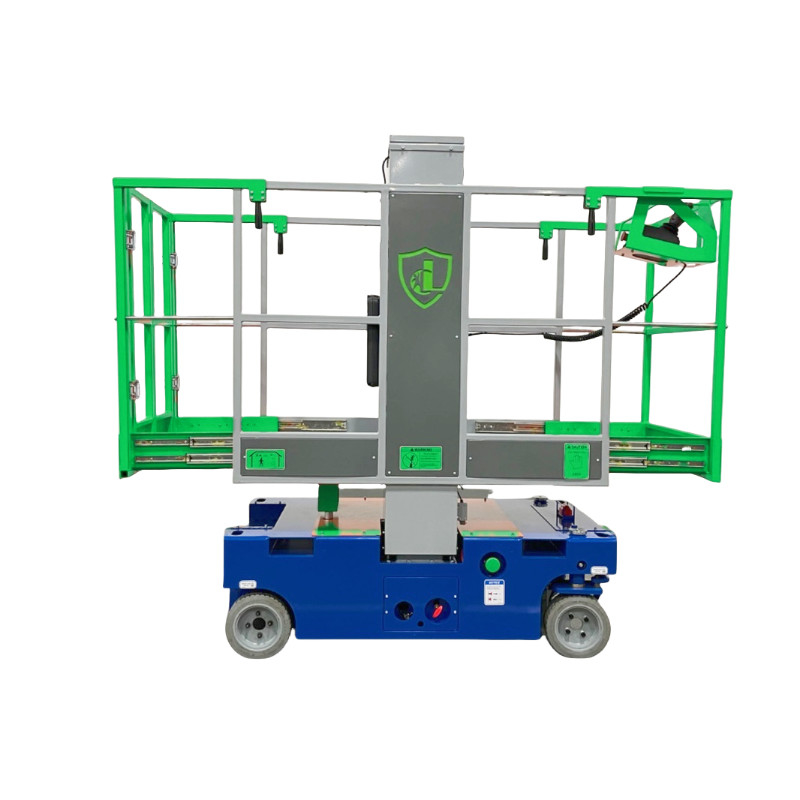

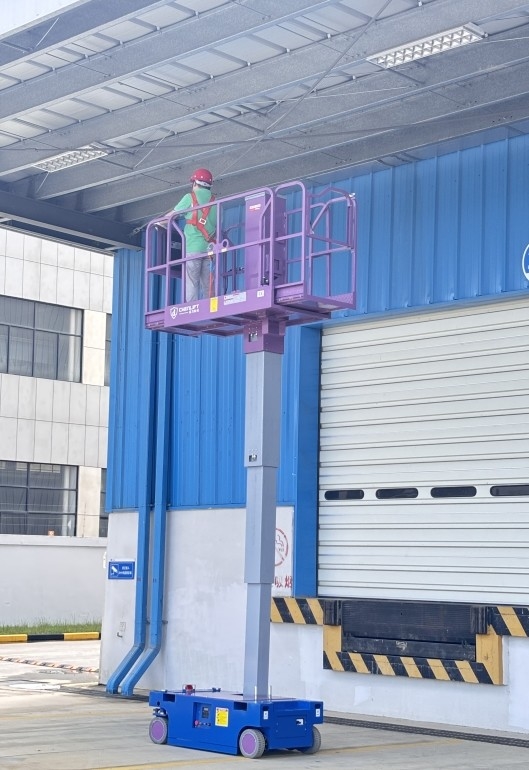

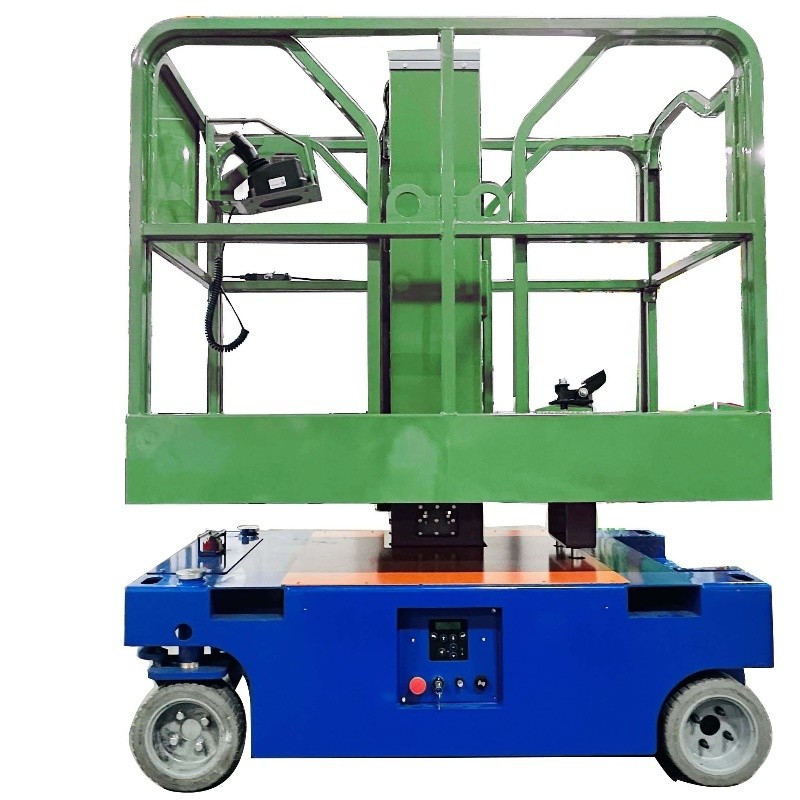

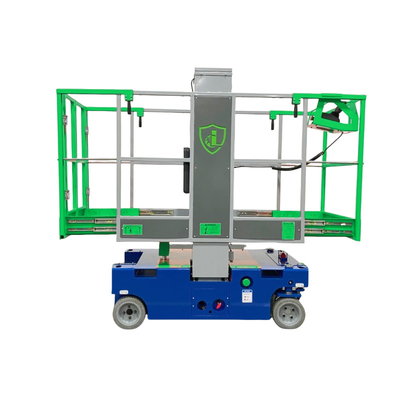

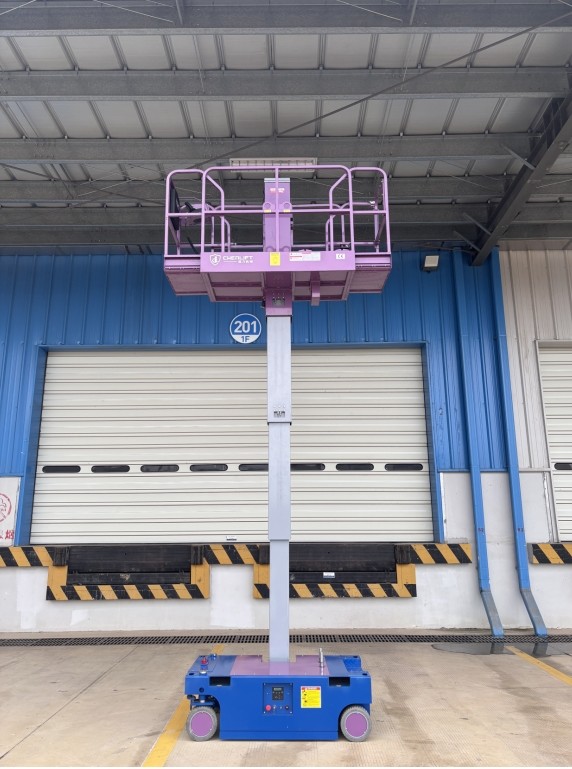

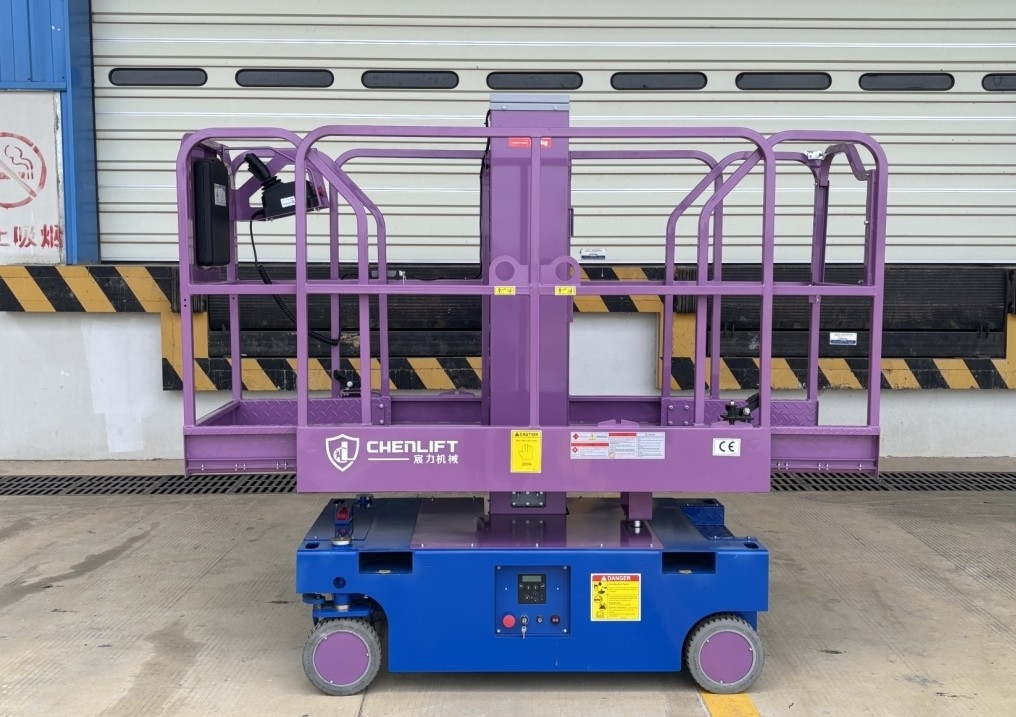

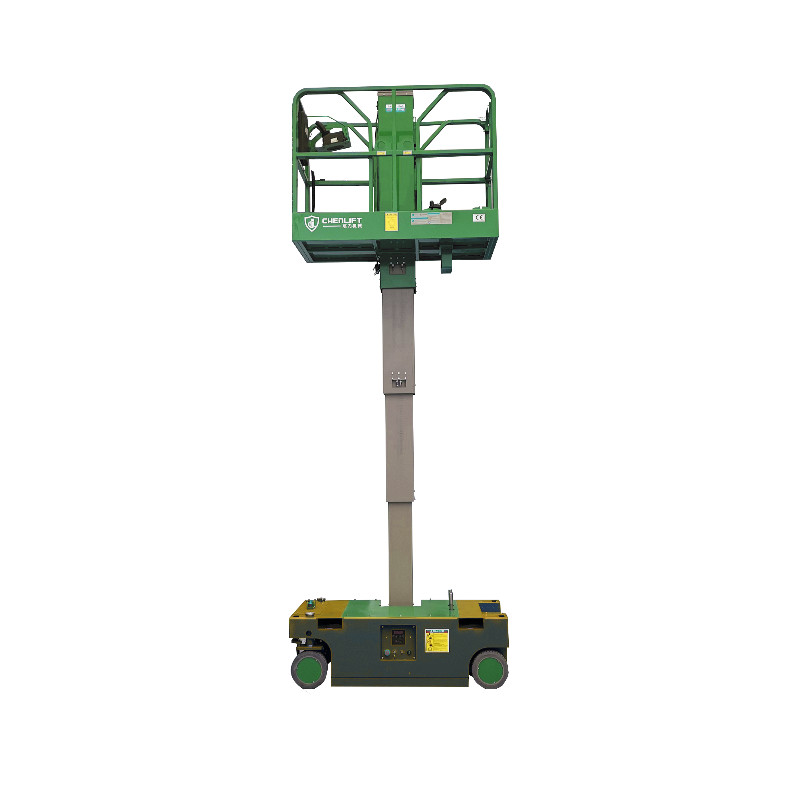

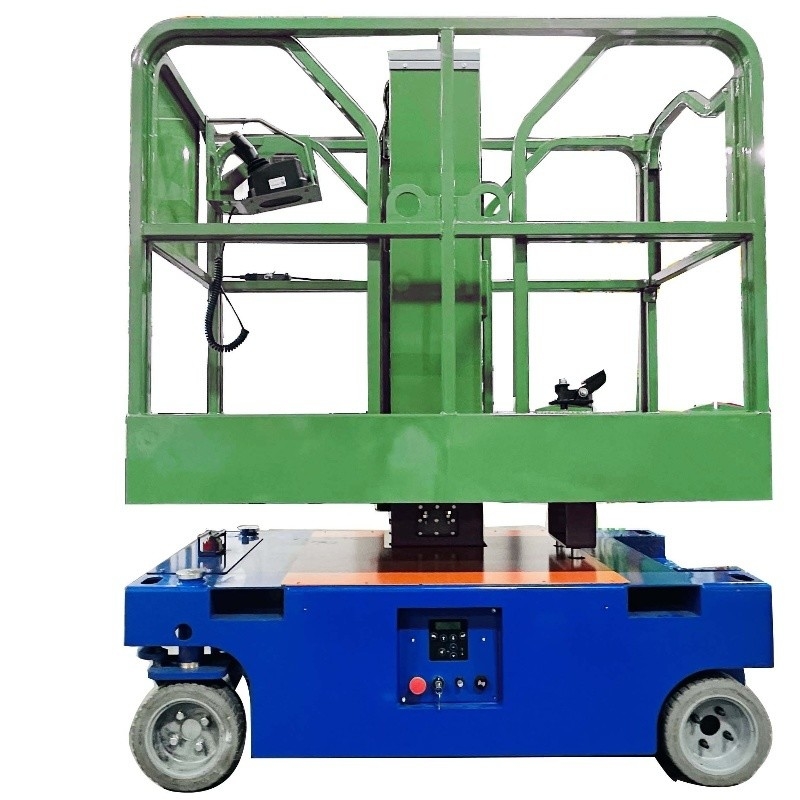

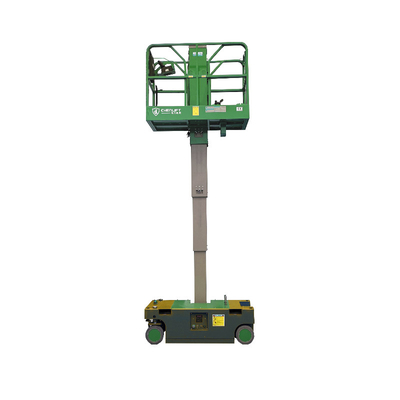

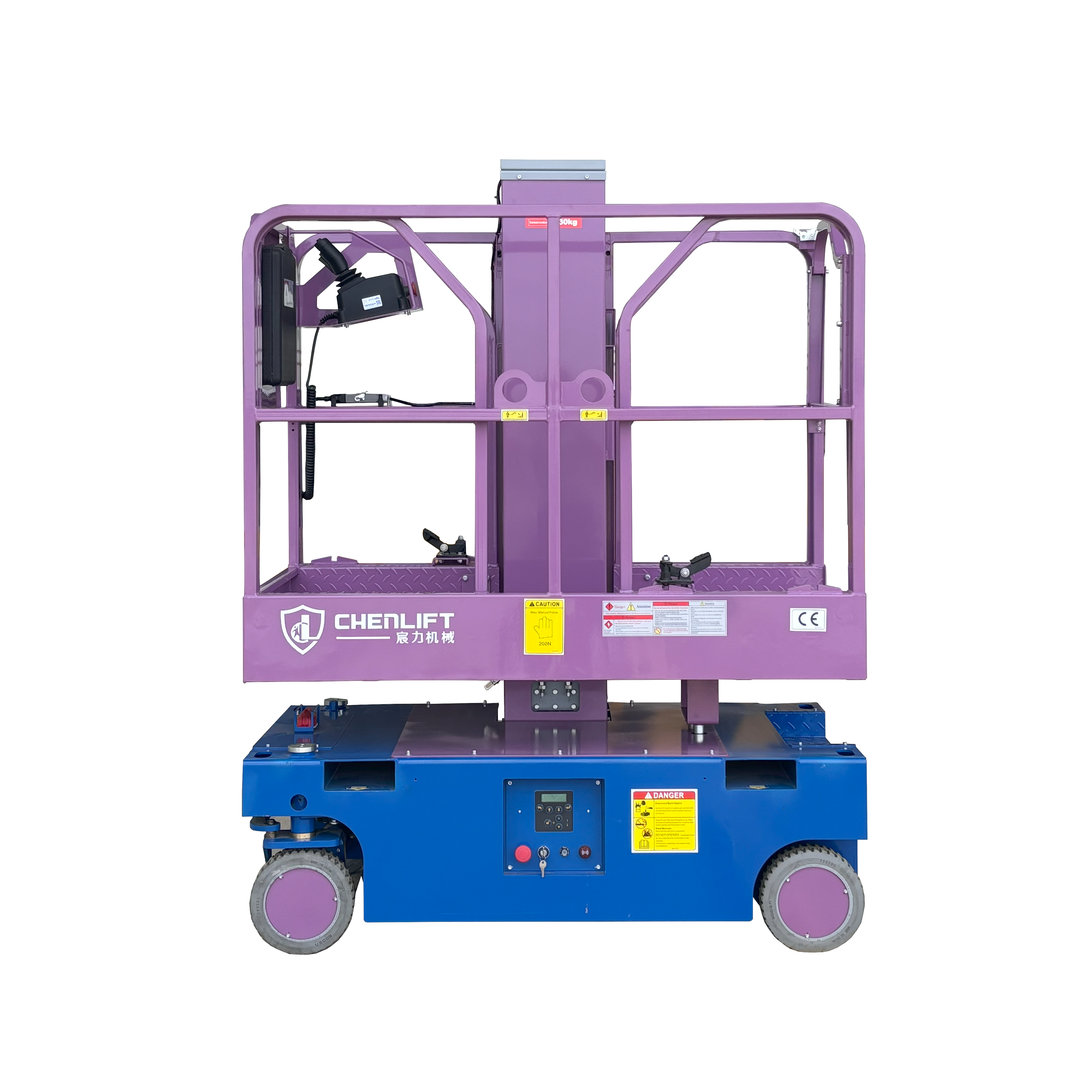

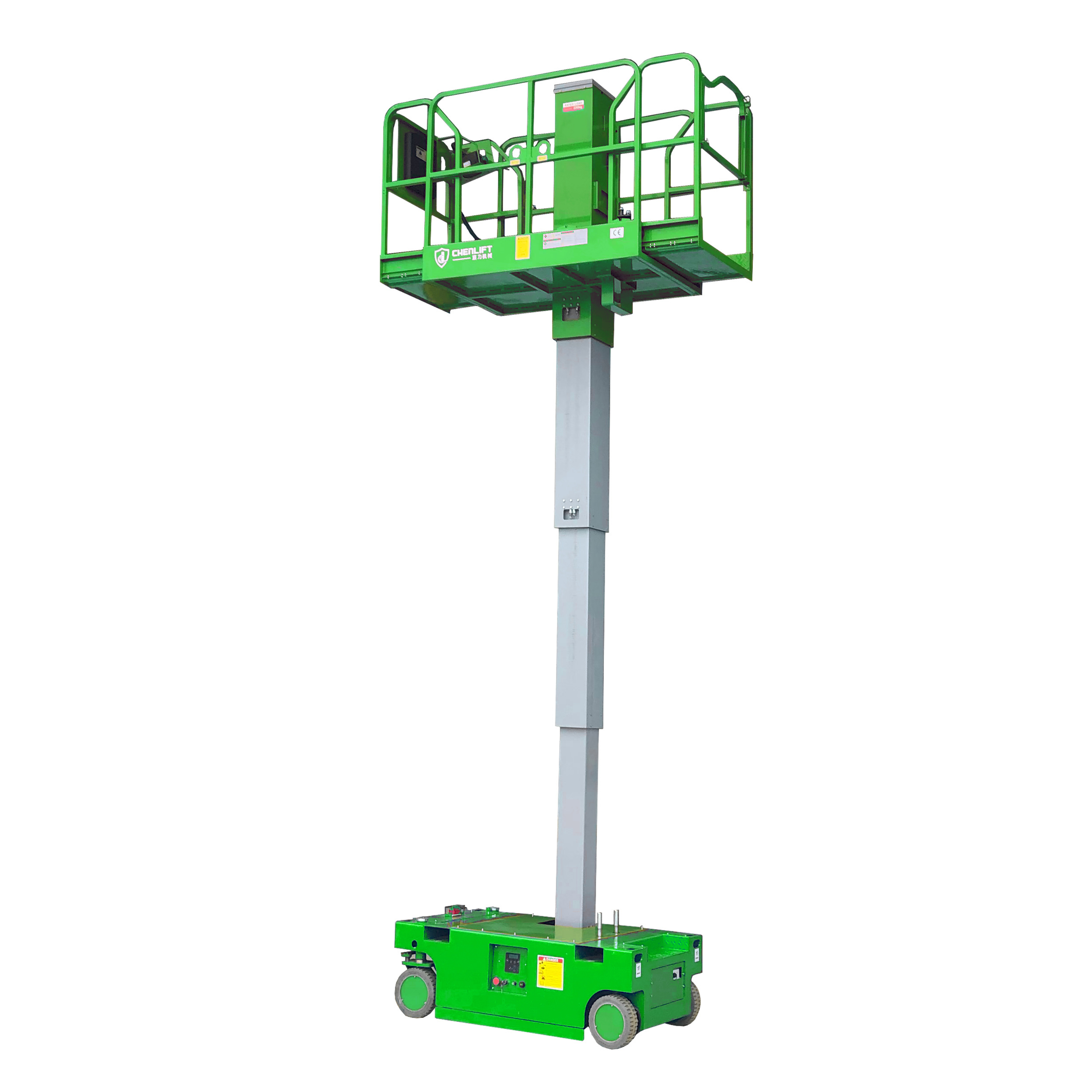

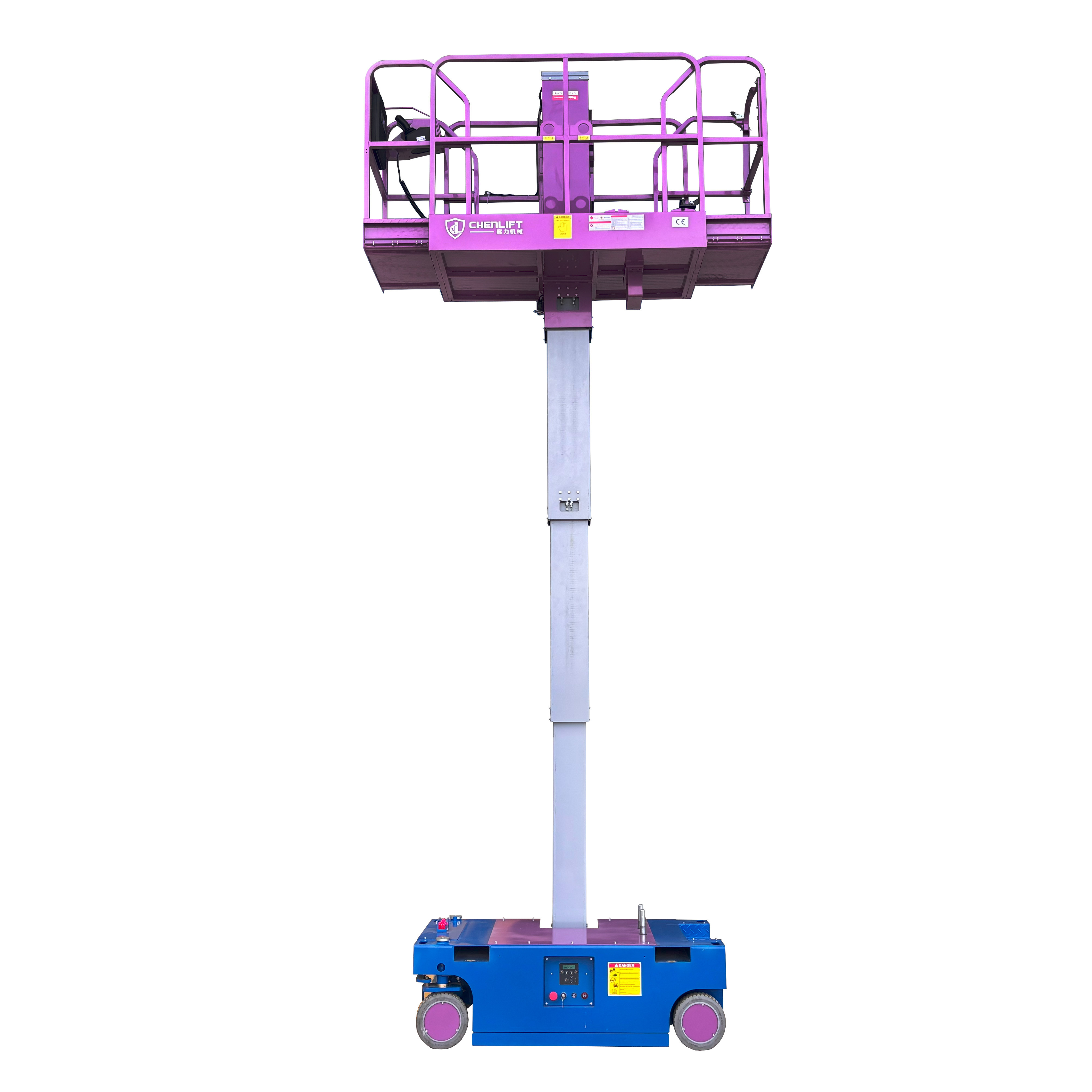

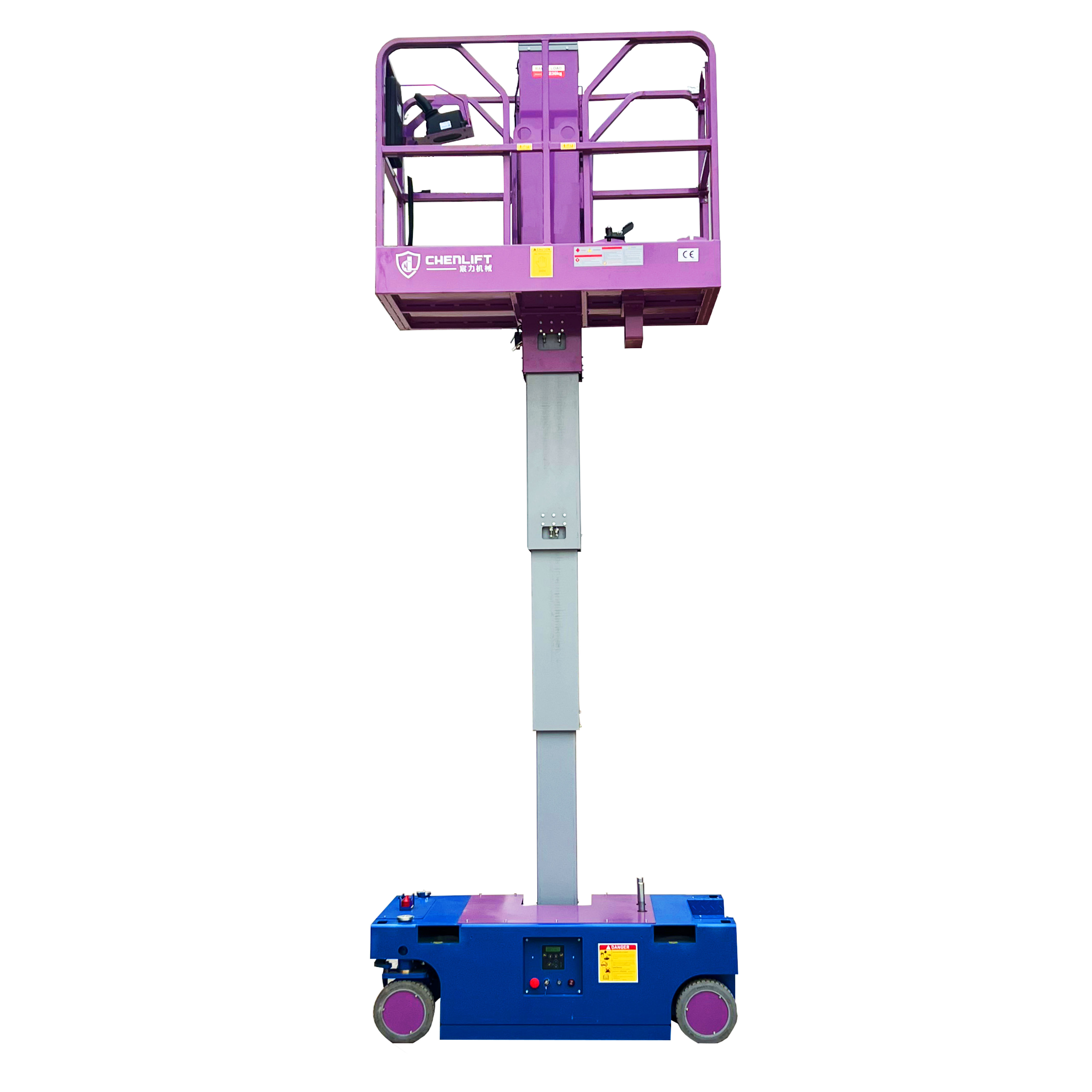

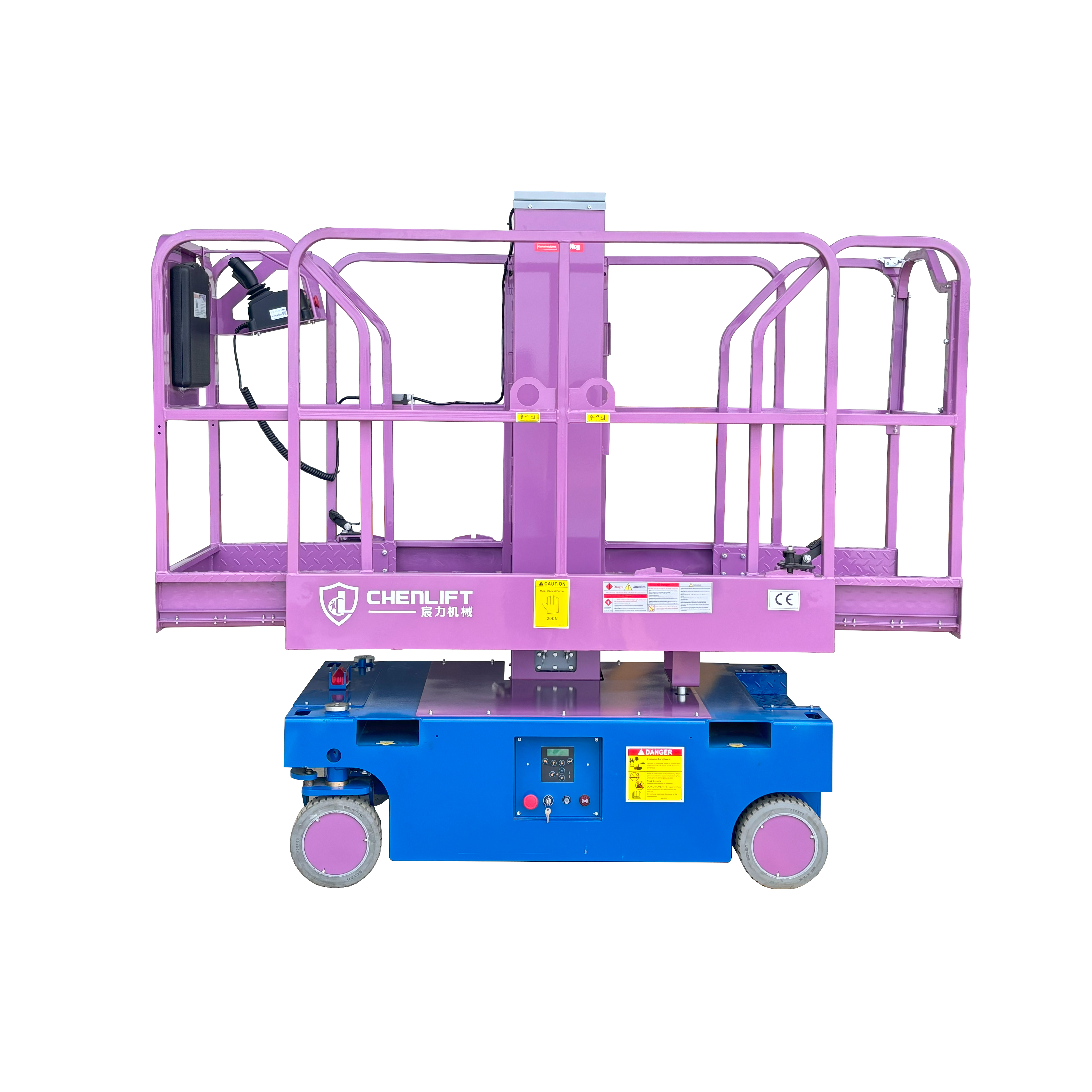

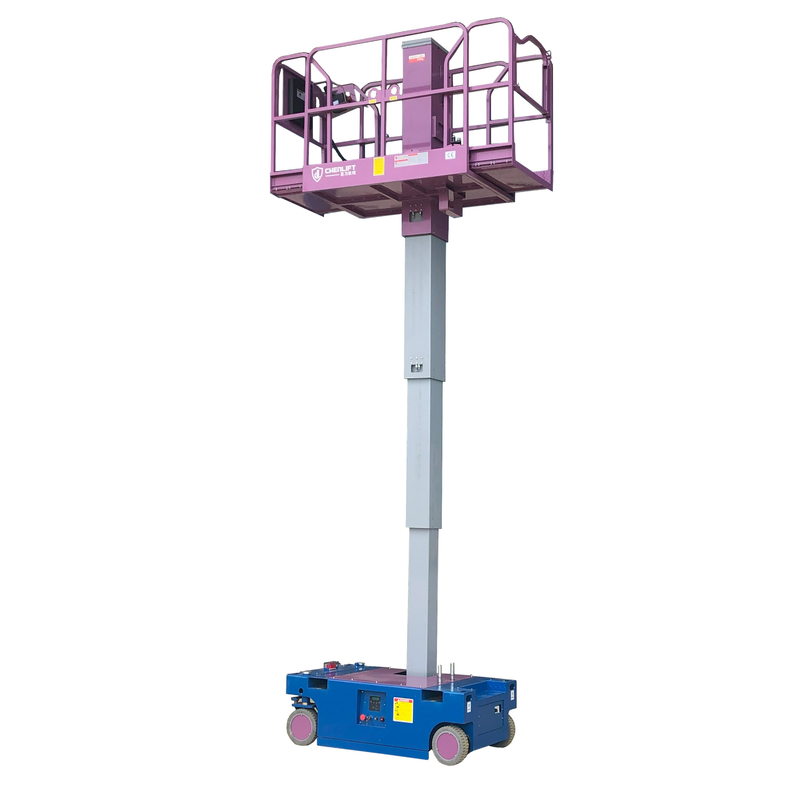

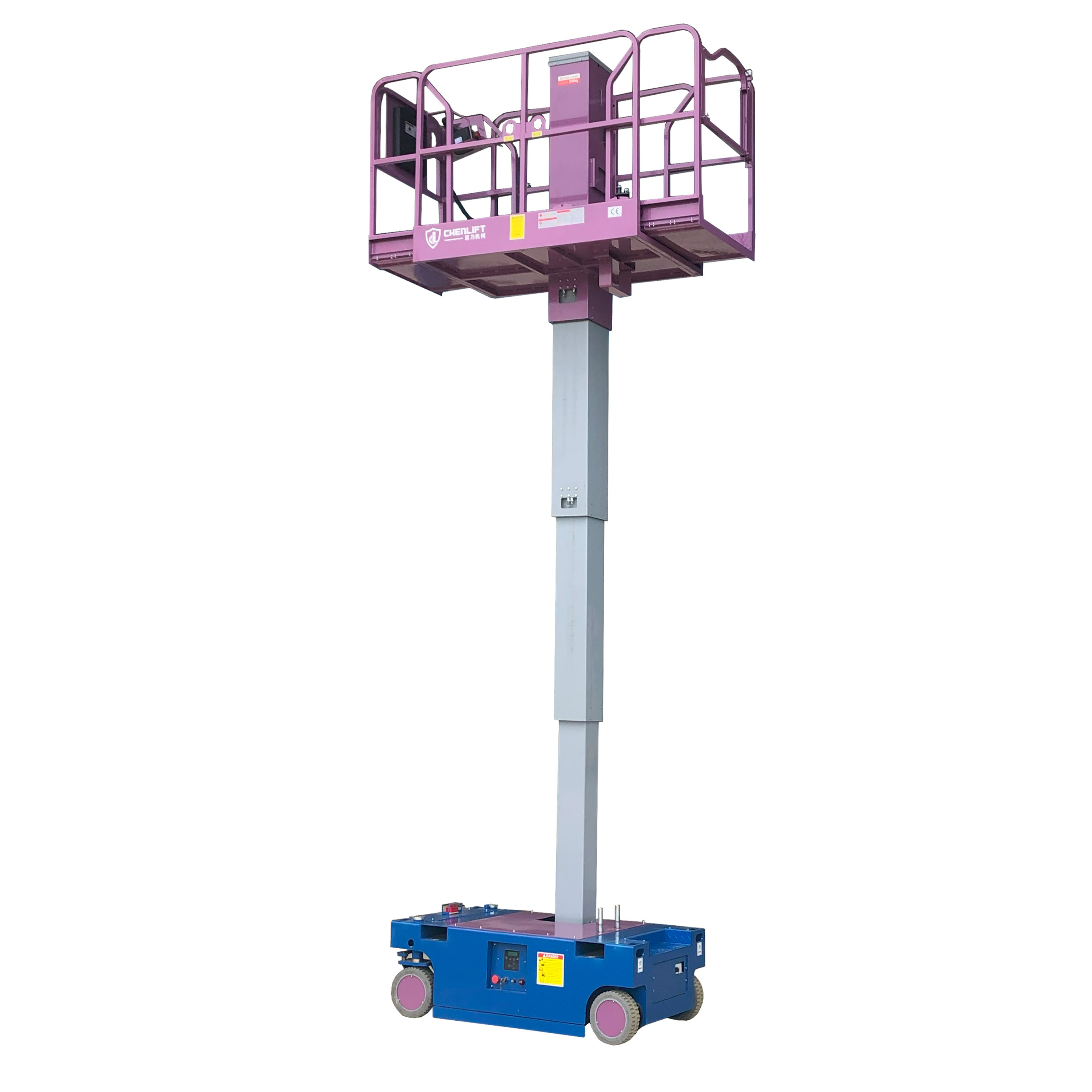

MD390-2 Fully Electric Self Propelled Vertical Lift 230kg Lift Capacity

Basic Information
Place of Origin: China
Brand Name: CHENLIFT
Certification: CE
Model Number: MD390-2
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 200 sets/month
Detail Information
Name: Oil Free Full Electric Vertical Lift Model: MD400
Load Capacity: 230kg Platform Size: 1.5*0.8m
Extension Platform: 0.4+0.4m Extension Load: 120kg
Stowed Size: 2.3*0.8*1.99m Power: DC24V 100AH
Charger: 24V 30A Keyword: Oil Free,Full Electric,Vertical Lift,Self Propelled Vertical Lift
Highlight:

Electric self propelled vertical lift

,

230kg self propelled vertical lift

,

vertical lift 390 electric self propelled


Product Description

Product Description:



CHEN LIFT launched a range of fully oil-free machines ,comprising vertical mast lifts with no hydraulic oil



Standard Configuration:

*Oil Free

*CAN BUS Protocol

*Proportional Joystick Control

*Self locking Gates

*Drivable at Full Heigh

*Non-Marking Tires

*Dual Wheel Automatic Braking

*Emergency Descent System

*Fault Diagnose System

*Tilt Alarm/Motion Alarm/Horn/Hour meter

*Extension Platform for both two sides

*Overloading sensor

*Forklift Slot

*Pothole Protection



Optional Configuration:

*AC Power to Platform

*Platform Working Light

*Platform Positioning Laser Lights

*Wireless Tracking



Specification:

Model MD390-2
Max. Working Height-A 6m
Max. Platform Height-B 4m
Platform Size 1.5*0.8m
Platform Extension 0.4+0.4m
Stowed Length-C 2.30m
Stowed Width-D 0.8m
Stowed Height-E 1.99m
Wheelbase 1.11m
Ground Clearance 0.07m
Lift Capacity

230kg

Platform Extension Capacity 120kg
Travel Speed(Stowed) 4km/h
Travel Speed(Raised) 0.8km/h
Turning Radius-Inside 0.5m
Turning Radius-Outside 1.2m
Up/Down Speed 20S/25S
Gradeability 25%
Maximum Working Slope(Side/Width) 1.5°/3°
Tyre 305*100
Battery 2*12V/100Ah
Charger 24V30A
Total Weight 920kg





















































Company Introduction:

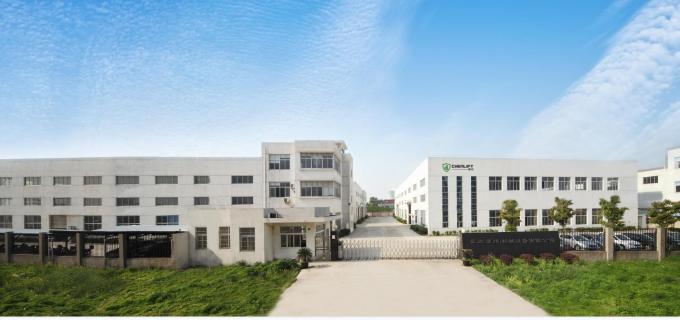

Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
