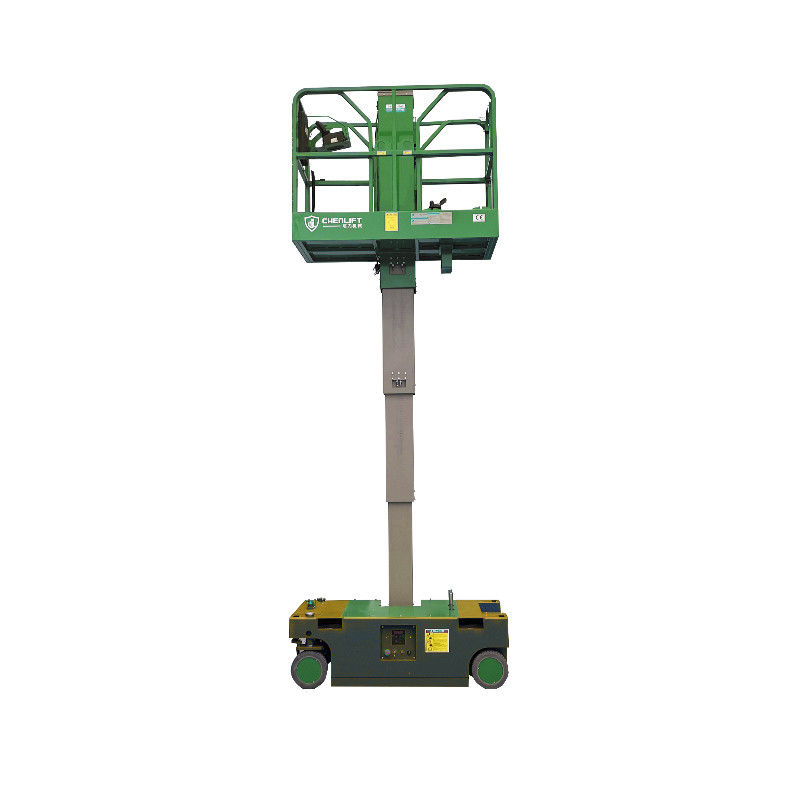

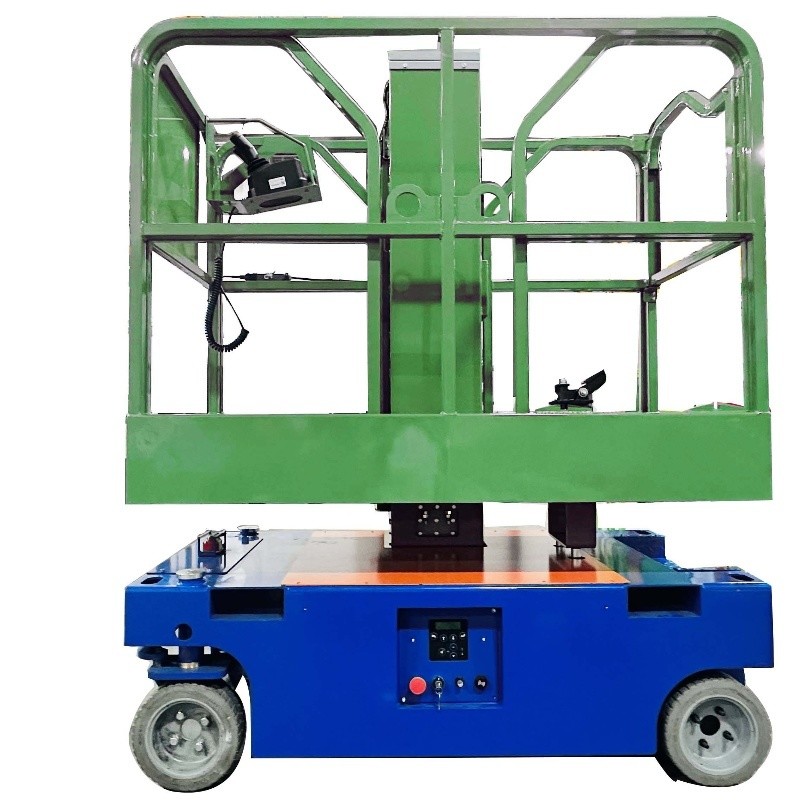

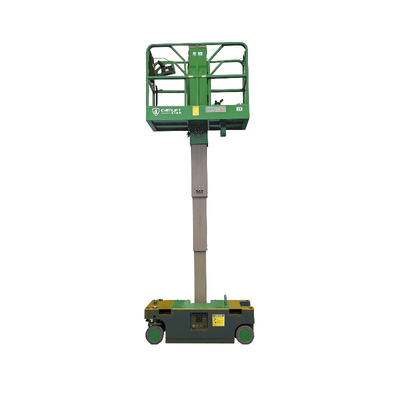

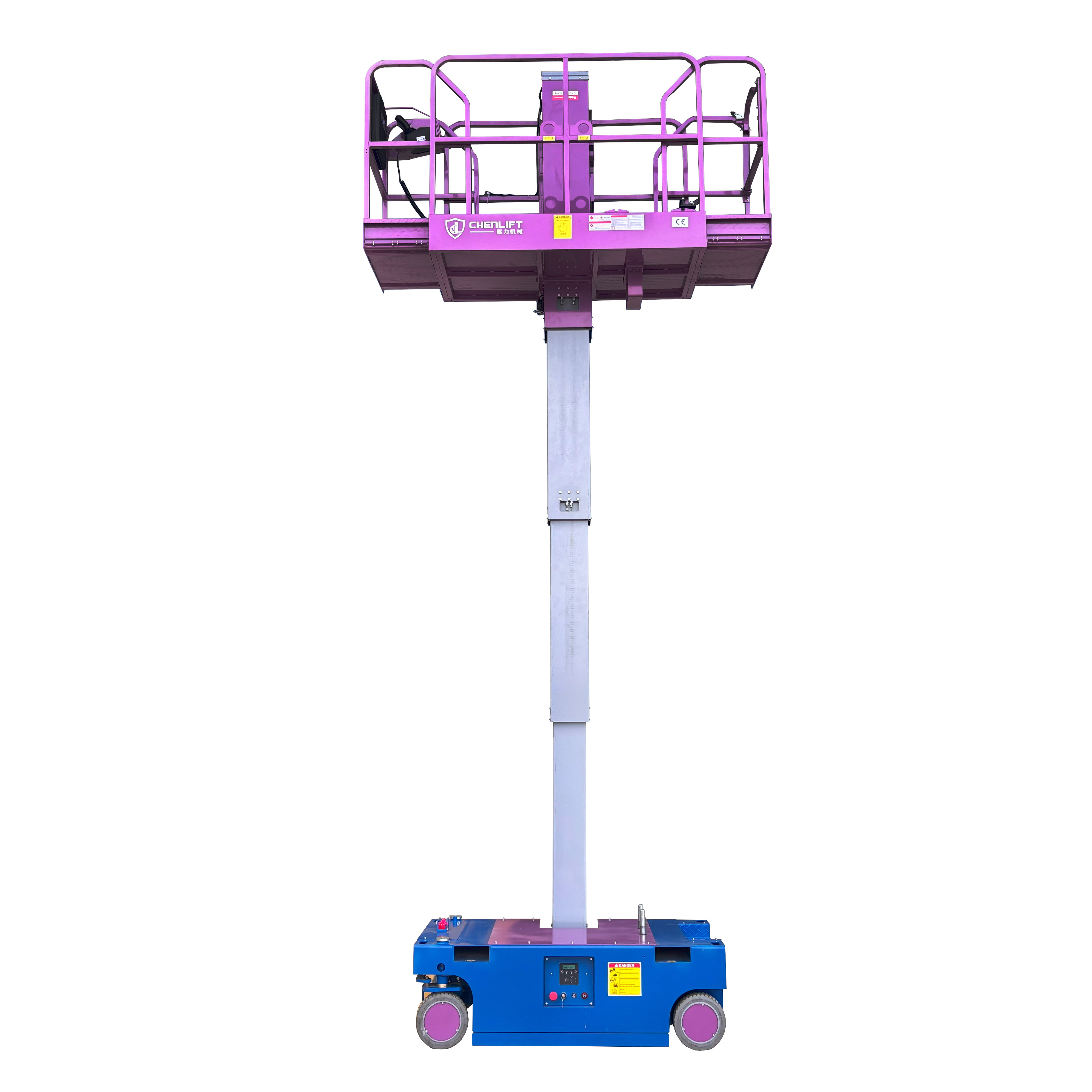

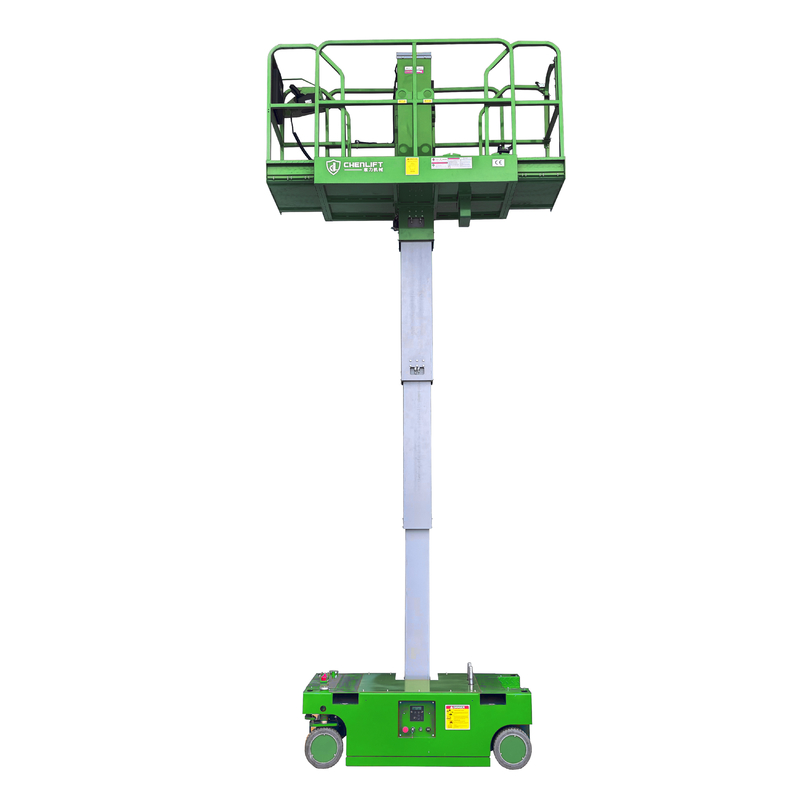

Name: DC24V 100AH Oil Free Full Electric Vertical Lift Self Propelled
Brand: CHENLIFT (SUZHOU) MACHINERY CO LTD
SKU: MD400
Price: 6,850.00 USD
Availability: InStock

Detail Information

Name:	Full Electric Vertical Lift	Model:	MD400
Load Capacity:	230kg	Platform Size:	1.5*0.8m
Extension Platform:	0.4+0.4m	Extension Load:	120kg
Stowed Size:	2.30.81.99m	Power:	DC24V 100AH
Charger:	24V 30A	Keyword:	Oil Free,Full Electric,Vertical Lift,Self Propelled Vertical Lift
Highlight:	DC24V self propelled vertical lift , 100AH self propelled vertical lift , vertical lift self propelled

Product Description

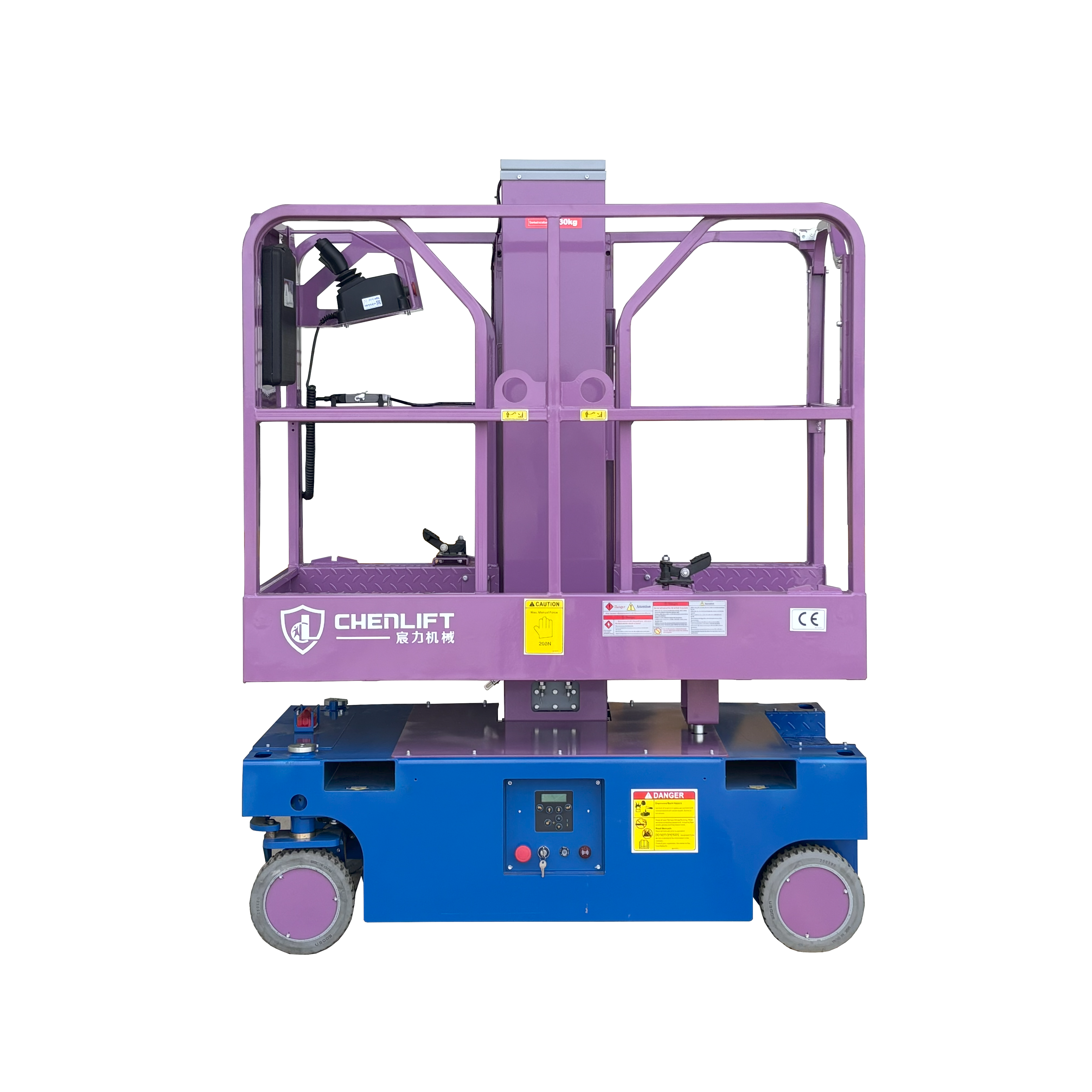

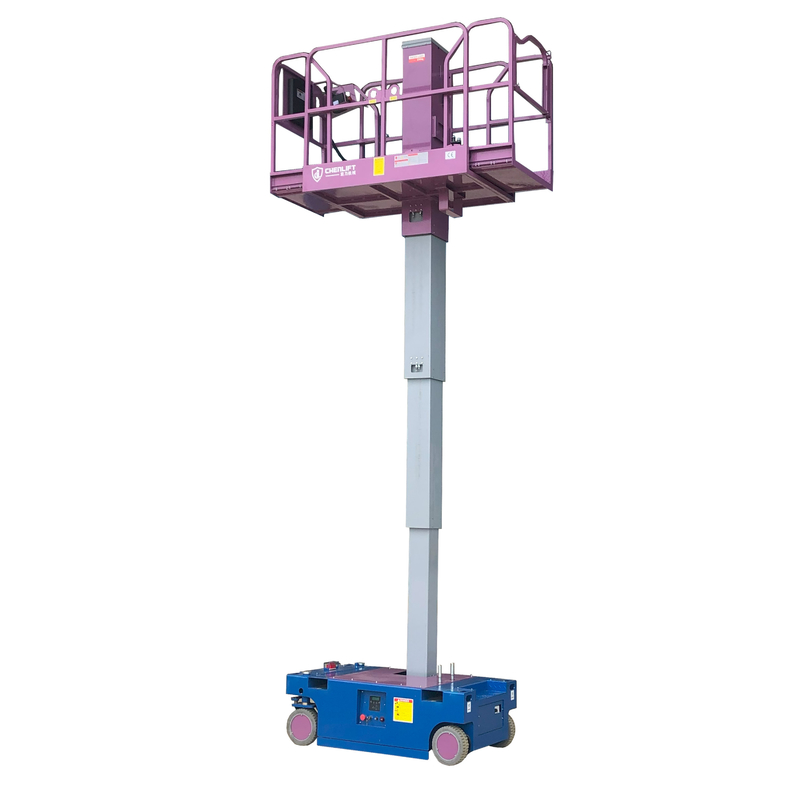

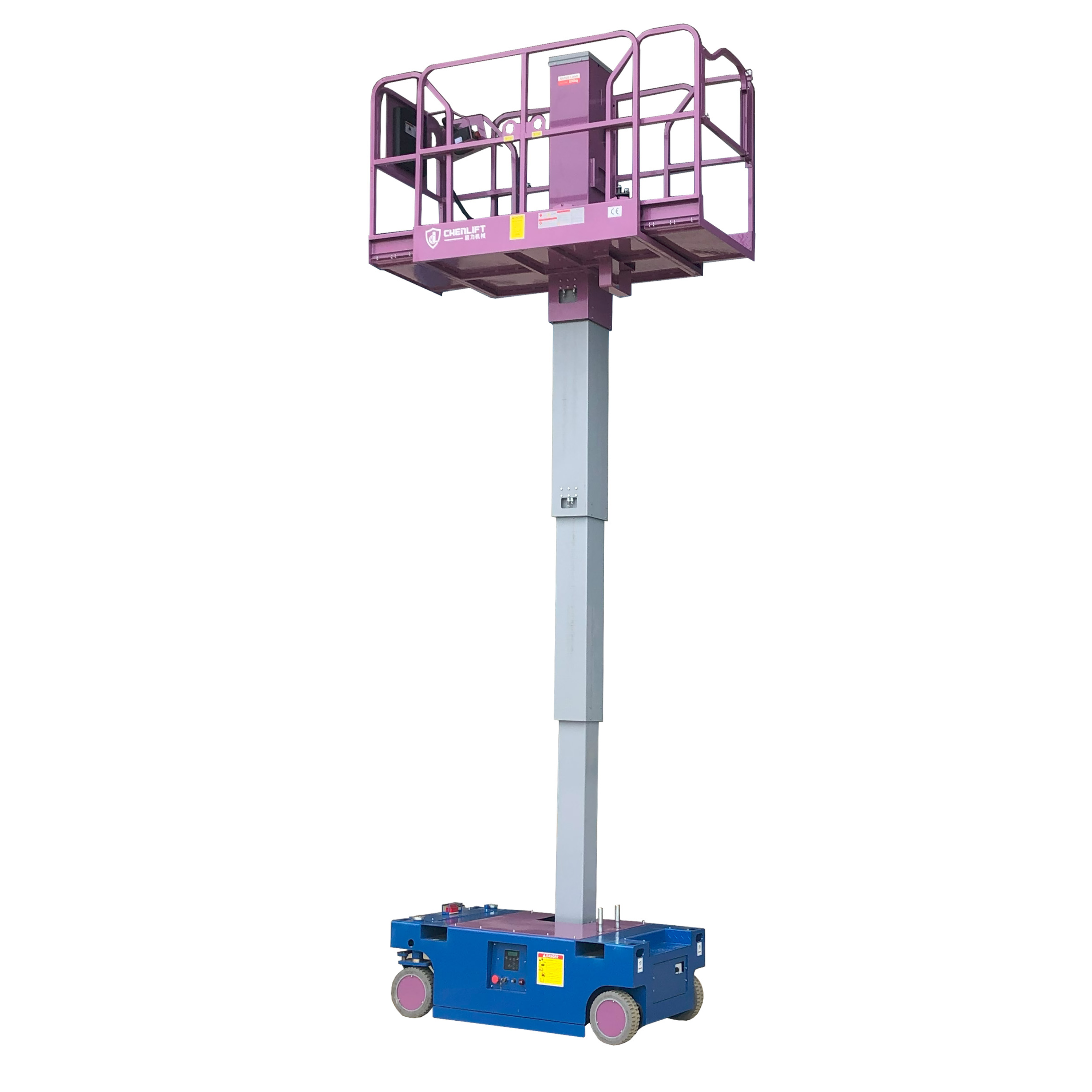

MD400 Model OIL FREE FULL ELECTRIC SELF PROPELLED VERTICAL LIFT

STANDARD CONFIGURATION:

OIL FREE

CAN BUS PROTOCOL

PROPORATIONAL JOYSTICK CONTROL

SELF LOCKING GATES

DRIVABLE AT FULL HEIGHT

NON MARKING TIRES

DUAL WHEEL AUTOMATIC BRAKING

EMERGENCY DESCENT SYSTEM

FAULT DIAGNOSE SYSTEM

TILT ALARM/MOTION ALARM/HORN/HOUR METER

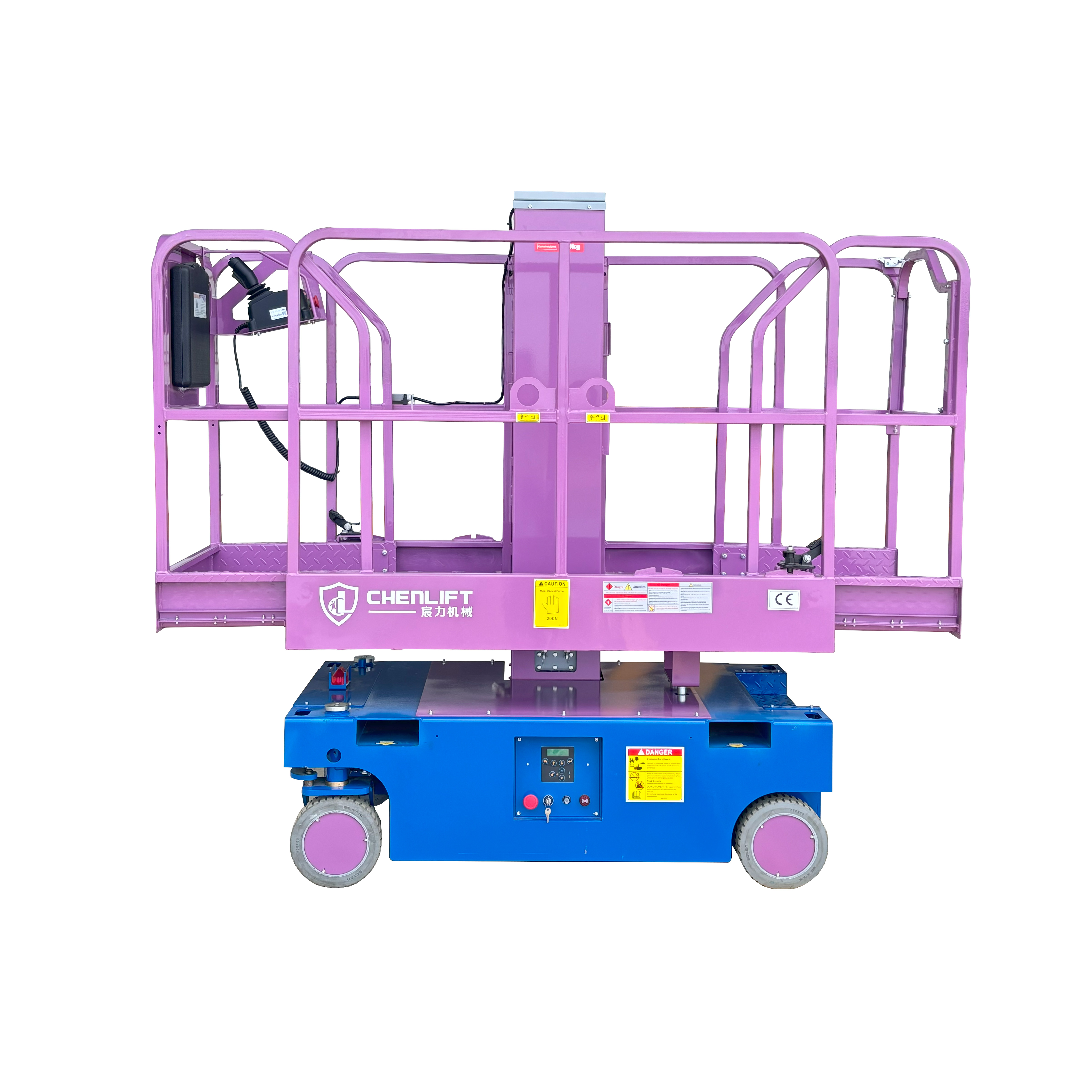

EXTENSION PLATFROM FOR BOTH 2 SIDES

OVERLOADING SENSOR

FORKLIFT SLOT

POTHOLE PROTECTION

SPECIFICATION:

Model					MD400
Max. Working Height					6m
Max. Platform Height					4m
Loading Capacity					230Kg
Platform Size					1.5*0.8m
Platform Extension					0.4+0.4m
Platform Load Capacity					120kg
Stowed Size					2.30.81.99m
Ground Clearance					0.07m
Wheelbase					1.11m
Battery					2*12V/100AH
Up/Down Speed					20S/25S
Travel Speed (Stowed)					0.8Km/h
Travel Speed (Raised)					4Km/h
Turning Radius					0.5m/1.2m
Gradeability					25%
Charger					24V/30A
Tyre					305*100
Maximum Working Slope					1.5/3
Weight					920Kg

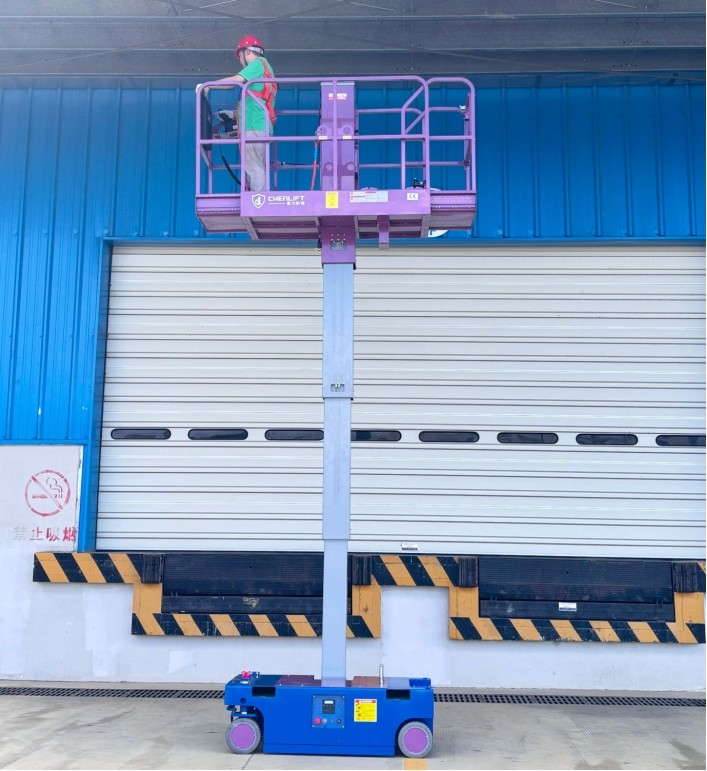

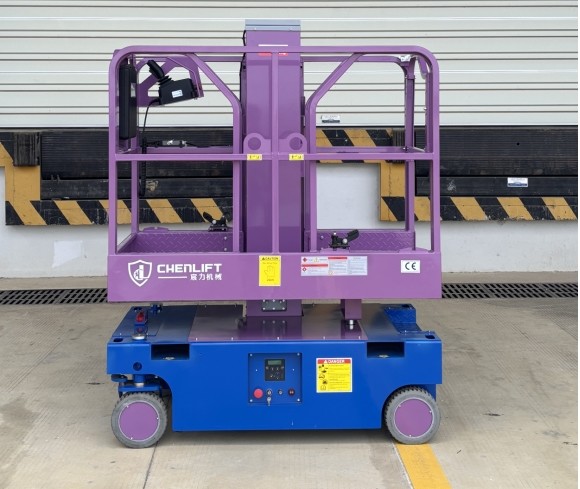

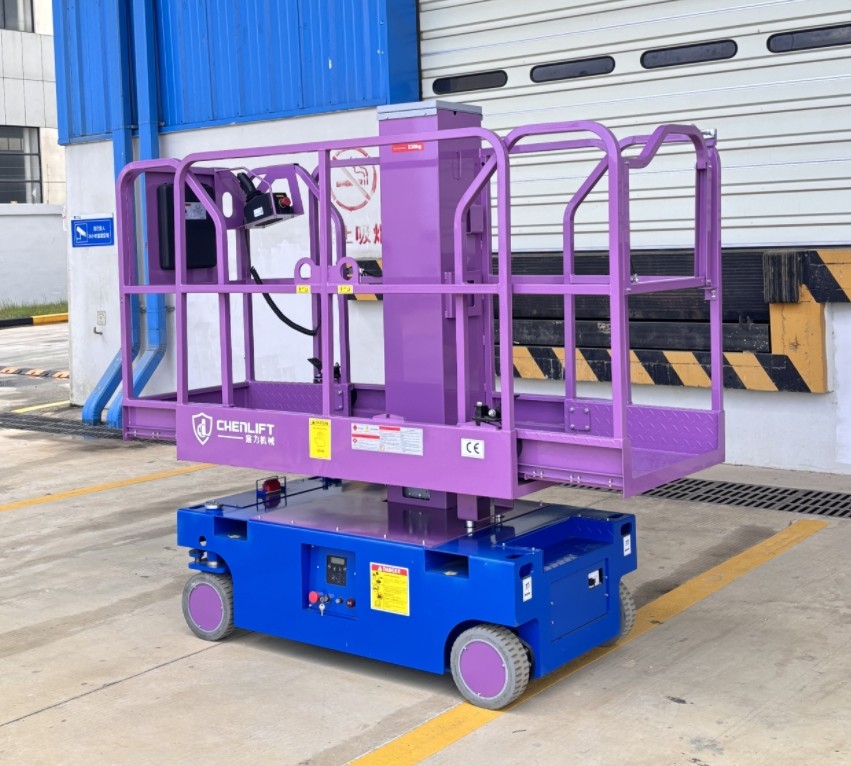

DC24V 100AH Oil Free Full Electric Vertical Lift Self Propelled 0
Applications:

1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
2. Vertical Lift Purpose: machine maintenance, painting, cleaning etc.

Why to choose CHENLIFT ?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience

Tag:

Place of Origin:	China
Brand Name:	CHENLIFT
Certification:	CE
Model Number:	MD400

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wrapped in pallets
Delivery Time:	30 days
Payment Terms:	T/T L/C
Supply Ability:	200 sets/month
