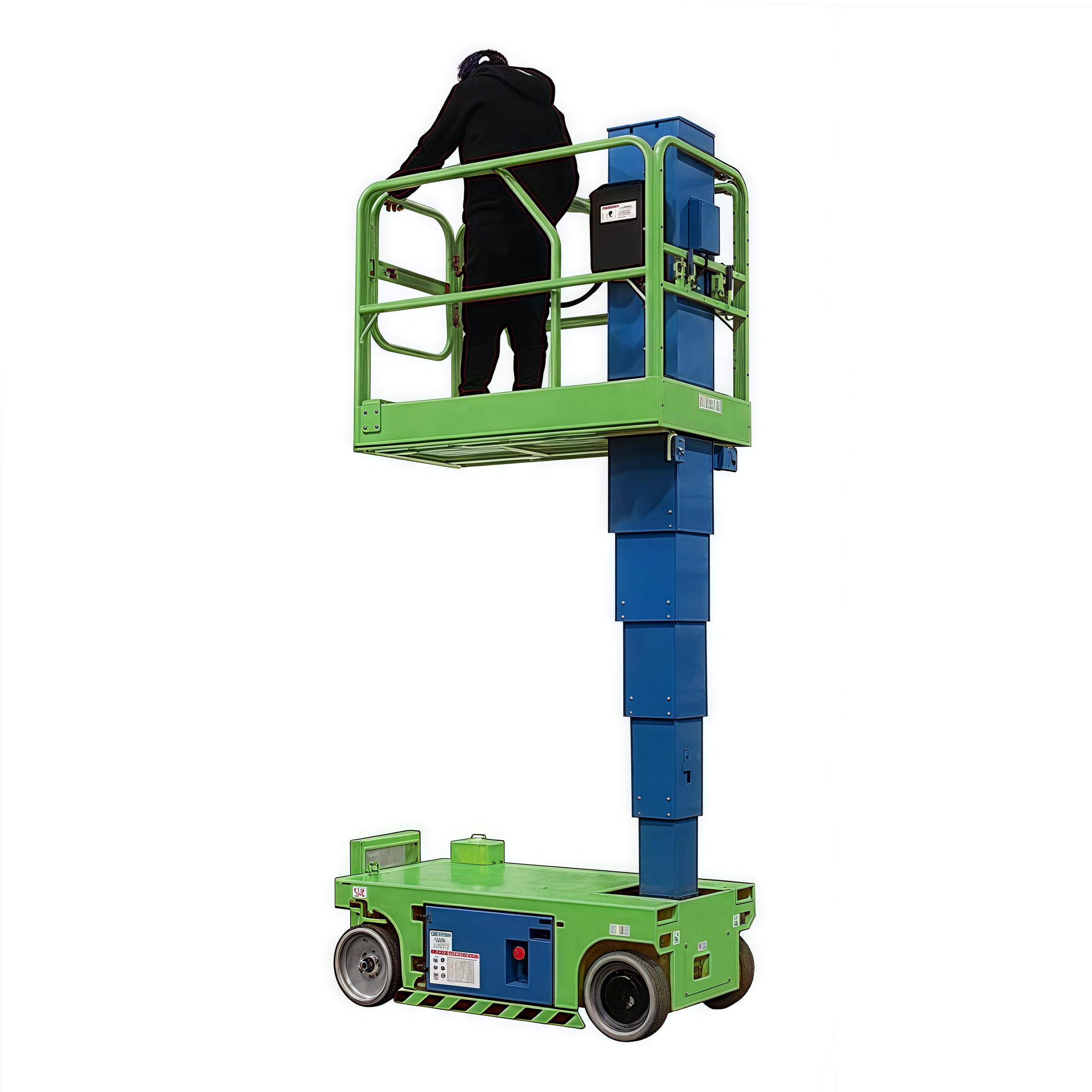

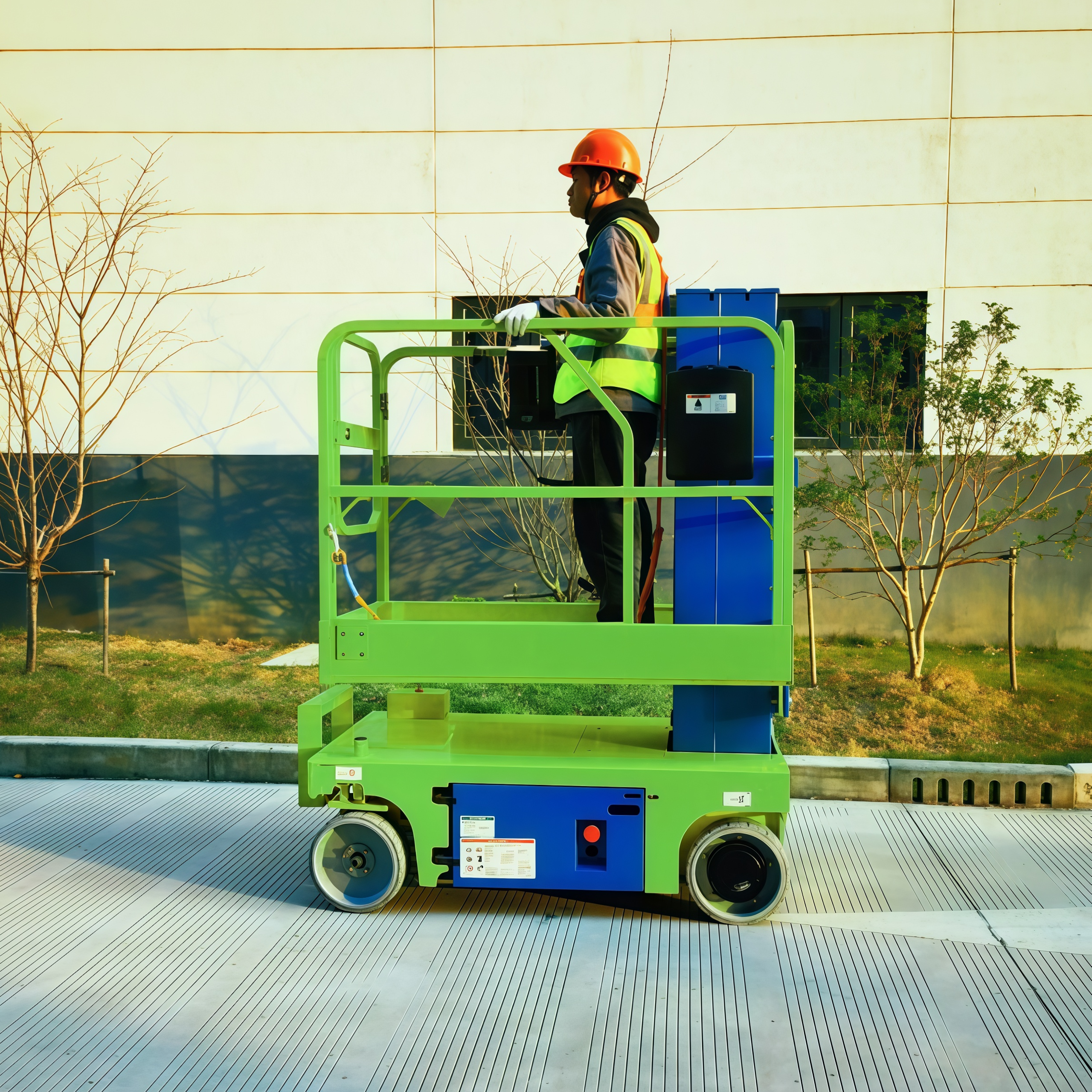

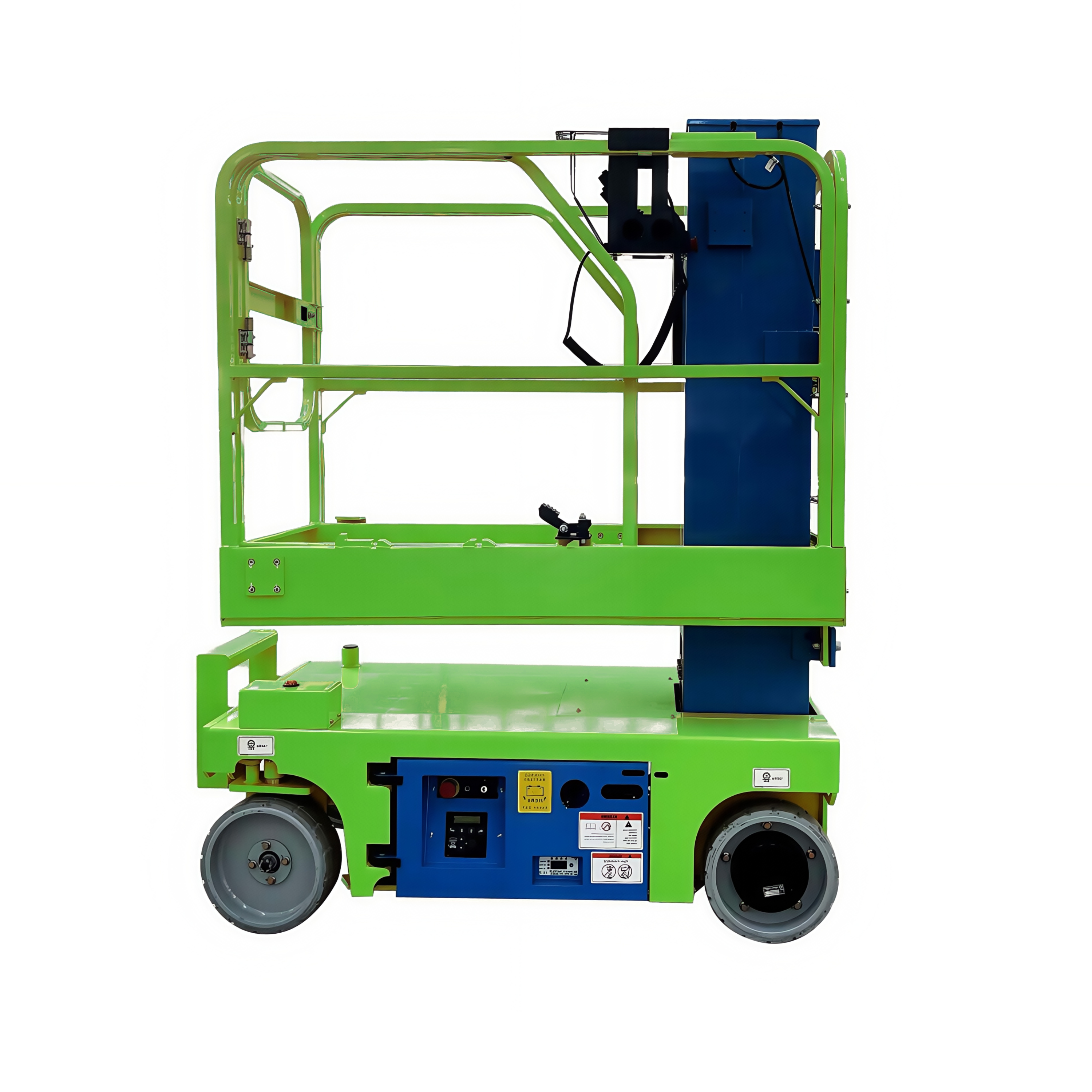

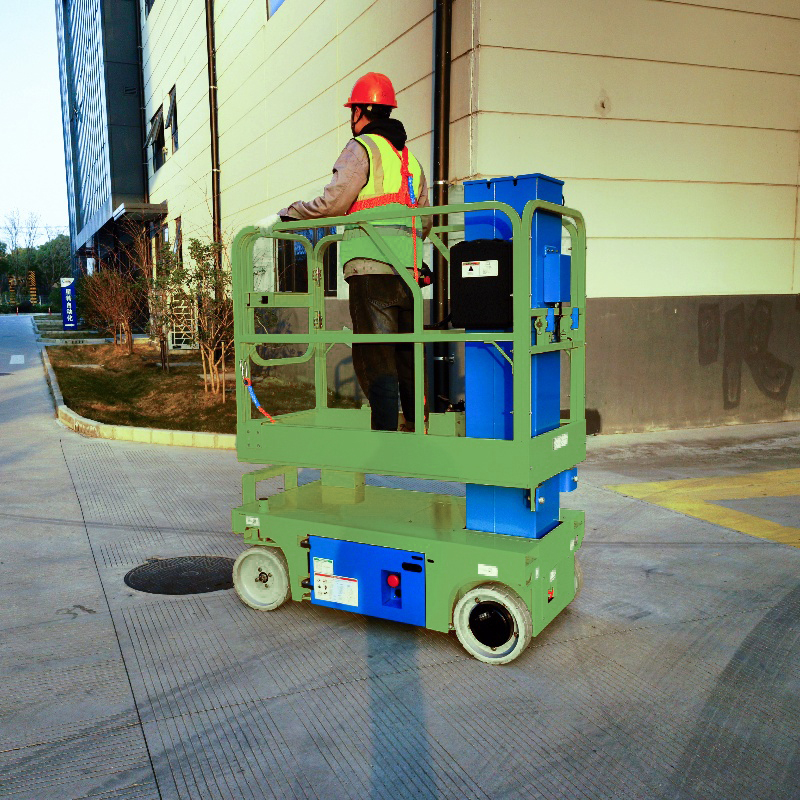

Name: Oil Free Self Propelled Lift Fully Electric Vertical Lift Aerial Work Platform
Brand: CHENLIFT (SUZHOU) MACHINERY CO LTD
SKU: GTWY14-400 (ME1400-4)
Price: 6,850.00 USD
Availability: InStock

Detail Information

Loading Capacity:	300kg	Platform Height:	14m
Working Height:	16m	Platform Size:	1.60*0.88m
Motor Power:	2.2kw	Lifting Time:	112s
Overall Size:	1.921.152.4m	Outrigger Footprint:	2.5*2.4m
Weight:	1200kg
Highlight:	mobile aerial work platform , hydraulic aerial work platform

Product Description

Product Description:

CHEN LIFT launched a range of fully oil-free machines ,comprising vertical mast lifts with no hydraulic oil

Standard Configuration:

▲Proportional Joystick Control

▲Forklift Slot

▲Drivable At Full Height

▲Emergency Stop Button both on PLatform and Ground

▲Electric Lifting Push Rod

▲AC Motor Driving

▲Fault Diagnose System

▲Dual Wheel with 0 Turning Radius

▲Manual Emergency Descent System

▲Pothole Protection；Break Release；Zero Emissions

Optional Configuration:

▲AC Power to PLatform

▲Platform Working Light

▲Extension Platform

▲Platform Positioning Laser Lights

▲Overloading Sensor

▲Wireless Tracking

▲Saloon-door Style Entry Gates/Top Open Door

▲Electric Picking Tray with Foldable Side Panels and Front Guardrails

Specification:

Model	MD570
Platformform Capacity	200kg
Extension Platform Capacity	113kg
Max Platform Height-A	5.7m
Max Working Height	7.7m
Platform Length-B	1.5m
Platform Width-C	0.78m
Extension Length	0.5m
Overall Height(Unfold Guardrail)-D	1.99m
Overall Length(With Ladder)-E	1.62m
Overall Width-F	0.8m
Wheelbase-G	1.28m
Ground Clearance(Raised)-H	0.08m
Ground Clearance(Stowed)-I	0.02m
Travel Speed(Stowed)	3.5km/h
Travel Speed(Raised)	0.6km/h
Turning Radius	0.6m/1.8m
Maximum Working Slope	1.5°/3°
Wheel	Φ305*100mm
Power Source	2*12V/100AH
Charger	100-240VAC/15A
Weight	1105kg

Company Introduction:

Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.


Tag:

Place of Origin:	China
Brand Name:	CHEN LIFT
Certification:	CE
Model Number:	GTWY14-400 (ME1400-4)

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wrapped in pallet or in wooden case
Delivery Time:	30day after down payment
Payment Terms:	T/T L/C
Supply Ability:	200 sets per month
