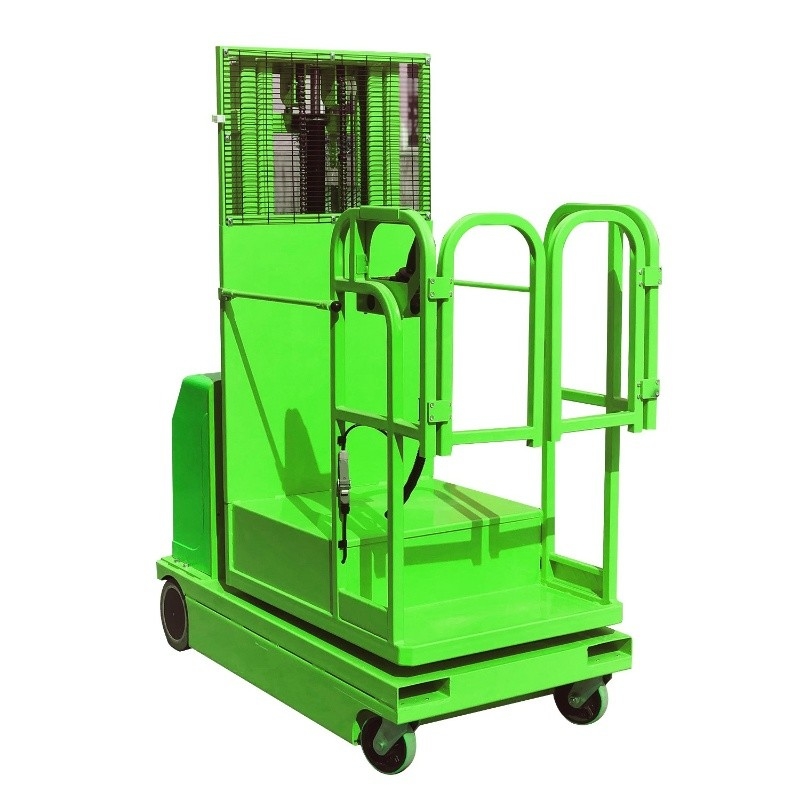

2.7m - 4.5m Hydraulic Warehouse Electric Order Picker Self Propelled In Green

Product Details:

Place of Origin:	China
Brand Name:	CHEN LIFT
Certification:	CE ISO9001:2008 IPAF member
Model Number:	FSEP3-3.3

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	PVC Film Wrapped in Pallets or in wooden Case
Delivery Time:	30 days after order confirmed
Payment Terms:	T/T or L/C
Supply Ability:	3000 Units Per Year

Contact Now

Detailed Product Description

Max. Platform Height:	3.3m	Max Machine Height:	5m
Loading Capacity:	300kg	Platform Size:	600*640 Mm
Lifting Motor:	24V/1.6kw	Overall Weight:	450kg
Highlight:	order picker platform , vertical order picker

2.7m-4.5m Hydraulic Warehouse Electric Self-Propelled Order Picker

Product Description
Self-propelled Aerial Order Picker is the best equipment for materials picking and handling. It is widely used in warehouse and supermarket. Easy moving and poperating. Lift or fall steadily. Safe and reliable. Suitable for order picking application in distribution warehouse.
Self propelled aerial order picker is one kind of material handling equipment, it is mainly used to pick up cargo from rack. Operator can control moving, lifting and turning when stand on the platform, which highly improved the working efficiency. As it is lighter in weight, easy to implement by single person, flexible and convenient to operate, it is the best choice for stacking and reclaiming warehouses and supermarkets.
Self propelled order picker is equipped with two driving motor. Operator control the multi-function handle on the platform to make it move and turn.
Major Parameter

Model	FSEP3-2.7	FSEP3-3.3	FSEP3-4.0	FSEP3-4.5
Loading Capacity	300Kg	300Kg	300Kg	300Kg
Max. Platform Height	2.70m	3.30m	4.00m	4.50m
Max. Machine Height	4.12m	5.00m	5.40m	6.00m
Platform Size	600*640mm	600*640mm	600*640mm	600*640mm
Stowed Length	1.53m	1.53m	1.62m	1.62m
Stowed Width	0.70m	0.70m	0.70m	0.70m
Stowed Height	1.83m	2.13m	1.84m	2.00m
Min. Turning Radius	1600mm	1600mm	1600mm	1600mm
Max. Climbing Capacity	15%-20%	15%-20%	15%-20%	15%-20%
Ground Clearance	40mm	40mm	40mm	40mm
Driving Motor	2*24V/0.4Kw	2*24V/0.4Kw	2*24V/0.4Kw	2*24V/0.4Kw
Lift Motor	24V/1.6Kw	24V/1.6Kw	24V/1.6Kw	24V/1.6Kw
Battery	2*12V/150Ah	2*12V/150Ah	2*12V/150Ah	2*12V/150Ah
Charger	24V/15A	24V/15A	24V/15A	24V/15A
Overall Weight	430Kg	450Kg	660Kg	680Kg

Configuration:
Proportional controls
Self-closing gate on platform
Drivable at full height
Non-marking tyre
Automatic brake system
Emergency lowering system
Emergency stop button
Cylinder holding valve
Forklift pockets
Charger protection
Flashing beacon

Features:

It moves and lifts all by battery power.
Operator can control moving, lifting, turning and all other operations when stand on the platform.
The light weight and maneuverability make it convenient to use in supermarket and warehouse.
Intelligent self propelled control system.
Zero-turn radius and compact design provide access in and around confined work areas.
Low gravity center provides good stability.

Structure Principle & Instruction

1. Charging the battery before you use it. After charging up the battery, please cut off the power, then unplug it.
2. Lift the platform to its top position to check that there is enough hydraulic oil in the system. Refill if necessary with YA-N32 or a similar oil.
3. Turn the key and switch on, the display indicator shows. Choose the mode of rising, control the height by Joy-stick.
4. Change the mode to walk. Also can be controlled by Joy-stick, the "rabbit" pattern indicates speed up, the "tortoise" pattern indicates speed down.

The structure of Self-propelled Aerial Order Picker is as below:

Company Introduction

As a subsidiary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

Certificates

Factory Equipment

Customer Visiting

Our Service

1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
