Place of Origin: | China |
Brand Name: | CHEN LIFT |
Certification: | CE ISO9001:2008 IPAF member |
Model Number: | FSEP3-4.0 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | PVC Film Wrapped in Pallets or in wooden Case |
Delivery Time: | 30 days after order confirmed |
Payment Terms: | T/T or L/C |
Supply Ability: | 100 sets/month |
Max. Platform Height: | 4m | Max. Machine Height: | 5.4m |
---|---|---|---|
Loading Capacity: | 300kg | Platform Size: | 600*640 Mm |
Lifting Motor: | 24V/1.6kw | Overall Weight: | 660kg |
Highlight: | warehouse order picker,vertical order picker |

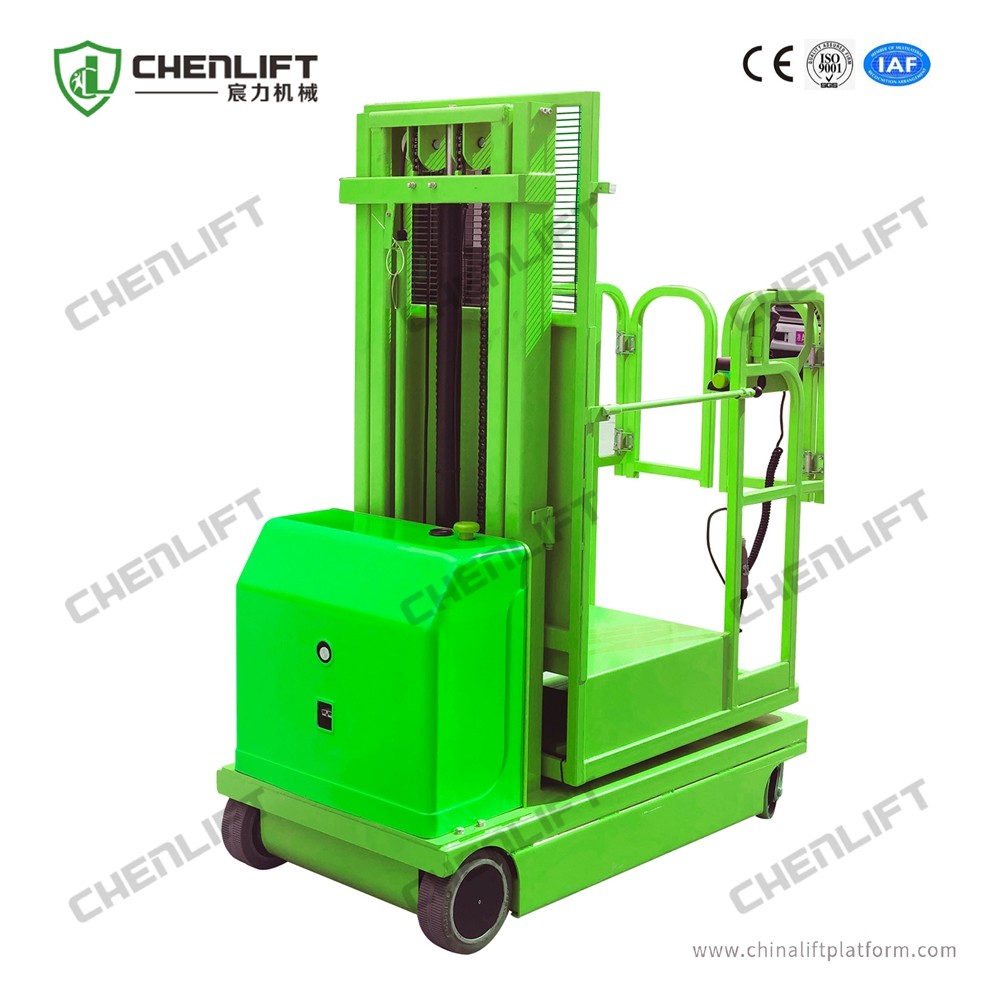

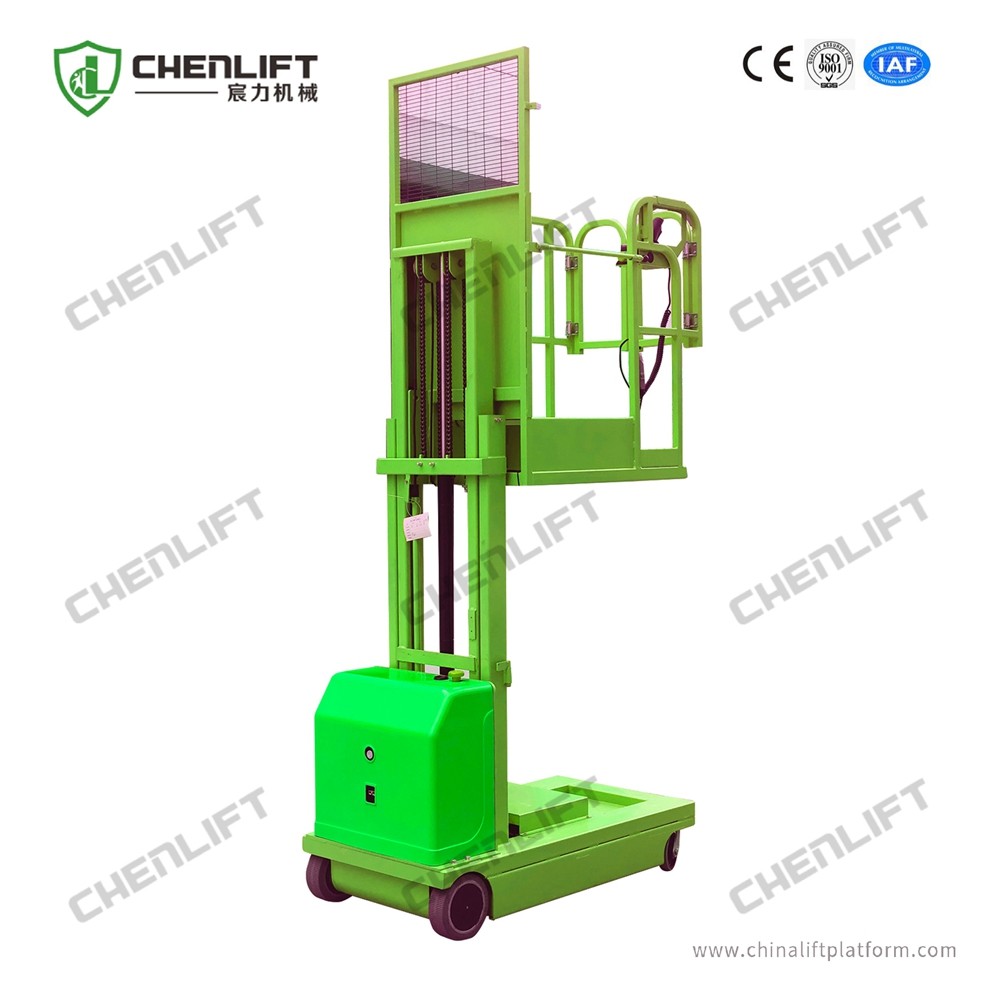

2.7-4.5m Self Propelled Order Picking Used in Warehouse Order Picker
Product Description
Self-propelled Aerial Order Picker is the best equipment for materials picking and handling. It is widely used in warehouse and supermarket. Easy moving and poperating. Lift or fall steadily. Safe and reliable. Suitable for order picking application in distribution warehouse.
Self propelled aerial order picker is one kind of material handling equipment, it is mainly used to pick up cargo from rack. Operator can control moving, lifting and turning when stand on the platform, which highly improved the working efficiency. As it is lighter in weight, easy to implement by single person, flexible and convenient to operate, it is the best choice for stacking and reclaiming warehouses and supermarkets.
Self propelled order picker is equipped with two driving motor. Operator control the multi-function handle on the platform to make it move and turn.
Application
Self propelled Aerial Order Picker is widely used in the fields of hotel, building, warehouse, library, supermarket rack, workshop, elevator portal, supermarket, subway station, and other office building high altitude maintenance.
Major Parameter of Self-propelled Aerial Order Picker
Model | FSEP3-2.7 | FSEP3-3.3 | FSEP3-4.0 | FSEP3-4.5 |
Loading Capacity | 300Kg | 300Kg | 300Kg | 300Kg |
Max. Platform Height | 2.70m | 3.30m | 4.00m | 4.50m |
Max. Machine Height | 4.12m | 5.00m | 5.40m | 6.00m |
Platform Size | 600*640mm | 600*640mm | 600*640mm | 600*640mm |
Stowed Length | 1.53m | 1.53m | 1.62m | 1.62m |
Stowed Width | 0.70m | 0.70m | 0.70m | 0.70m |
Stowed Height | 1.83m | 2.13m | 1.84m | 2.00m |
Min. Turning Radius | 1600mm | 1600mm | 1600mm | 1600mm |
Max. Climbing Capacity | 15%-20% | 15%-20% | 15%-20% | 15%-20% |
Ground Clearance | 40mm | 40mm | 40mm | 40mm |
Driving Motor | 2*24V/0.4Kw | 2*24V/0.4Kw | 2*24V/0.4Kw | 2*24V/0.4Kw |
Lift Motor | 24V/1.6Kw | 24V/1.6Kw | 24V/1.6Kw | 24V/1.6Kw |
Battery | 2*12V/150Ah | 2*12V/150Ah | 2*12V/150Ah | 2*12V/150Ah |
Charger | 24V/15A | 24V/15A | 24V/15A | 24V/15A |
Overall Weight | 430Kg | 450Kg | 660Kg | 680Kg |
Features:
It moves and lifts all by battery power.
Operator can control moving, lifting, turning and all other operations when stand on the platform.
The light weight and maneuverability make it convenient to use in supermarket and warehouse.
Intelligent self propelled control system.
Zero-turn radius and compact design provide access in and around confined work areas.
Low gravity center provides good stability.
Product Details
Handling & Storage
The Self-propelled Aerial Order Picker must be stored in a horizontal position, in order to prevent the oil and the electrolyte will overflow, when transporting and storing.
When stores it, it must be kept clean and keep far away from the damp and bad climate. The temperature of environment should not be more than 40ºC.
If the battery isn't worked for a long time, it should be recharged timely.
Company
Certificates
Factory Equipment
Customer Visiting
Communication with Customers:
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1. Strict quality control system on the whole process of production
2. Imported key arts to ensure the high quality of our products
3. Advanced equipment and tools for examination and quality control
4. 100% strict examining products before shipment
5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
A: What is the delivery time for your goods?
B: It is 30 days after order confirmation.
A: How long is your quality guarantee period?
B: We have one year warranty.
