|Place of Origin:||China|
|Brand Name:||CHEN LIFT|
|Certification:||CE ISO9001:2008 IPAF member|
|Minimum Order Quantity:||1 set|
|Packaging Details:||PVC Film Wrapped in Pallets or in wooden Case|
|Delivery Time:||30 days after order confirmed|
|Payment Terms:||T/T or L/C|
|Supply Ability:||3000 Units Per Year|
|Max. Platform Height:||4.5m||Max. Machine Height:||6m|
|Loading Capacity:||300kg||Platform Size:||600*640 Mm|
|Lifting Motor:||24V/1.6kw||Overall Weight:||680kg|
warehouse order picker,
order picker platform

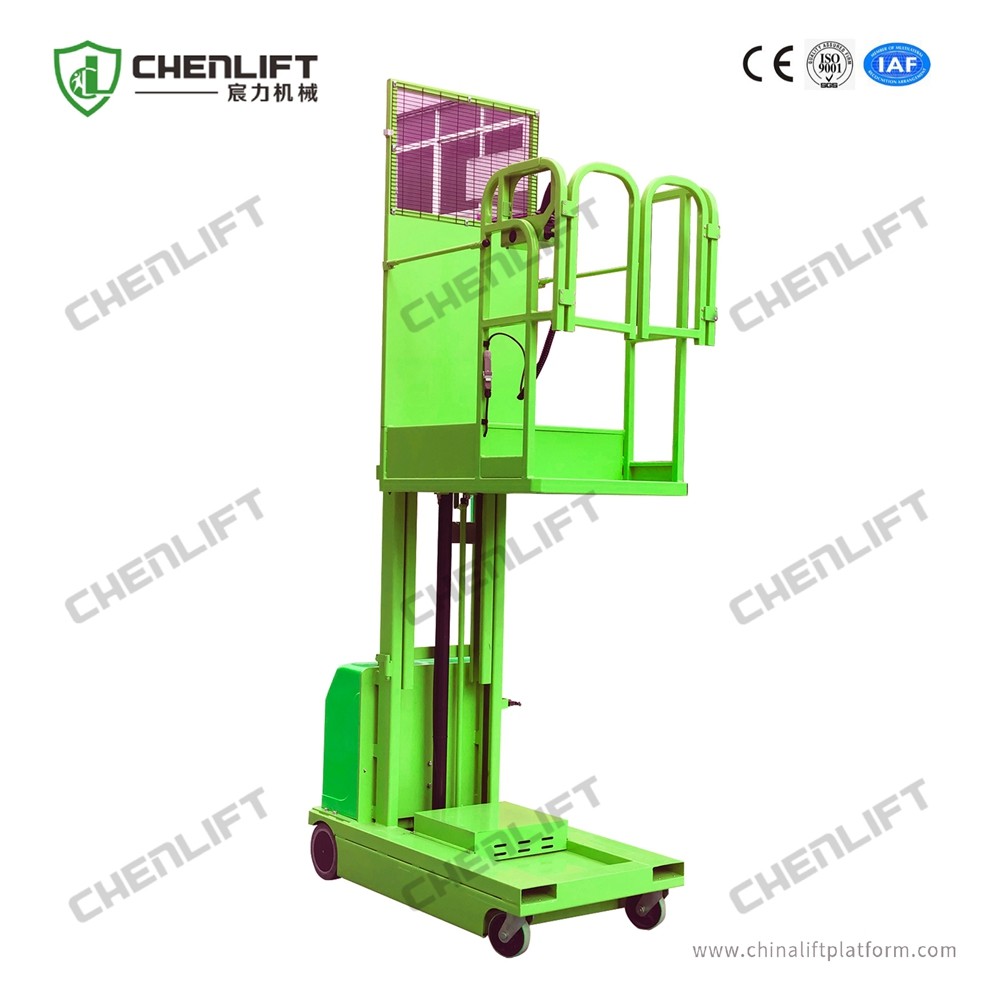

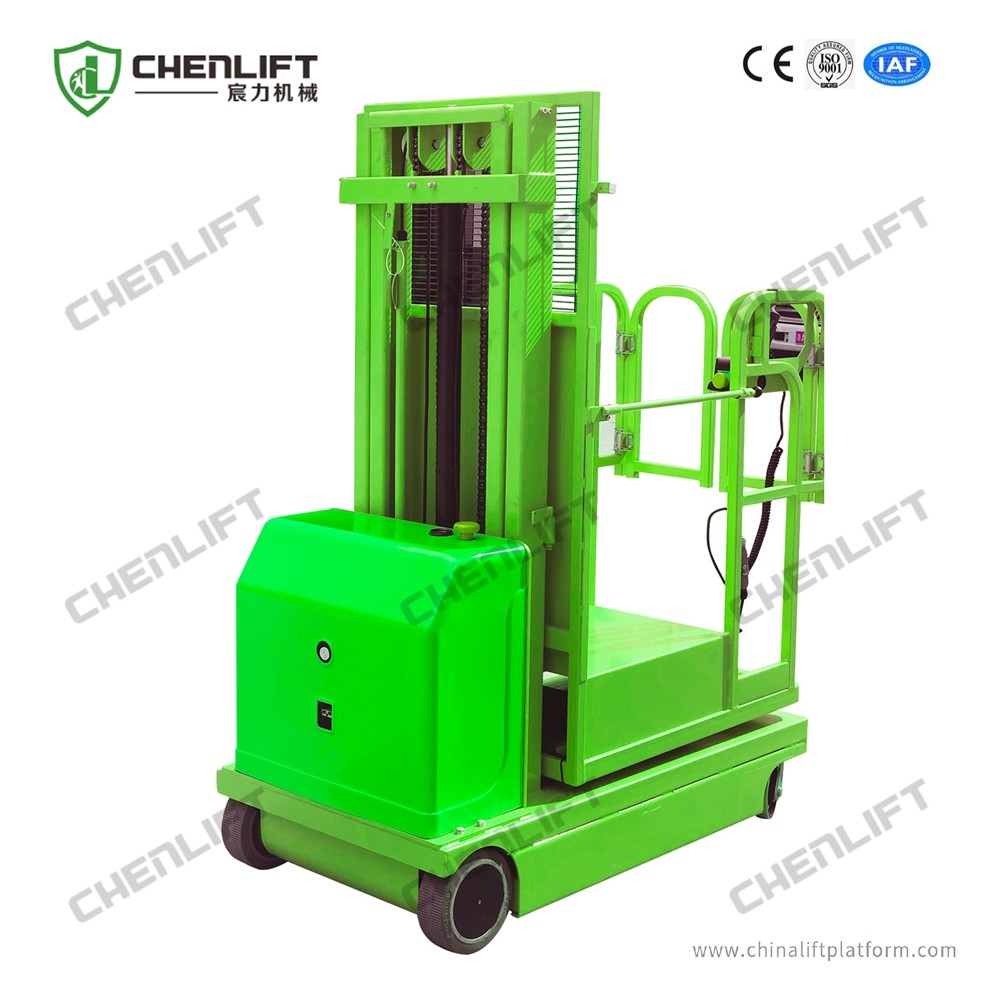

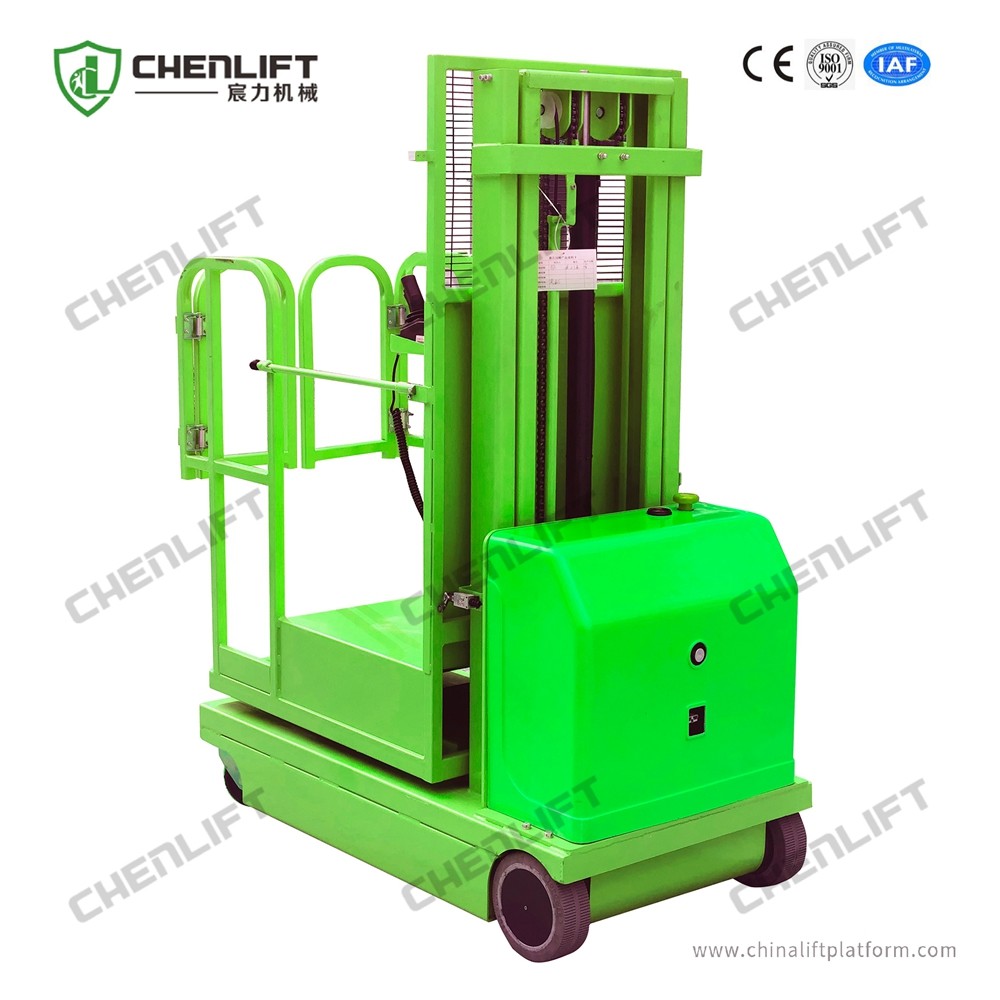

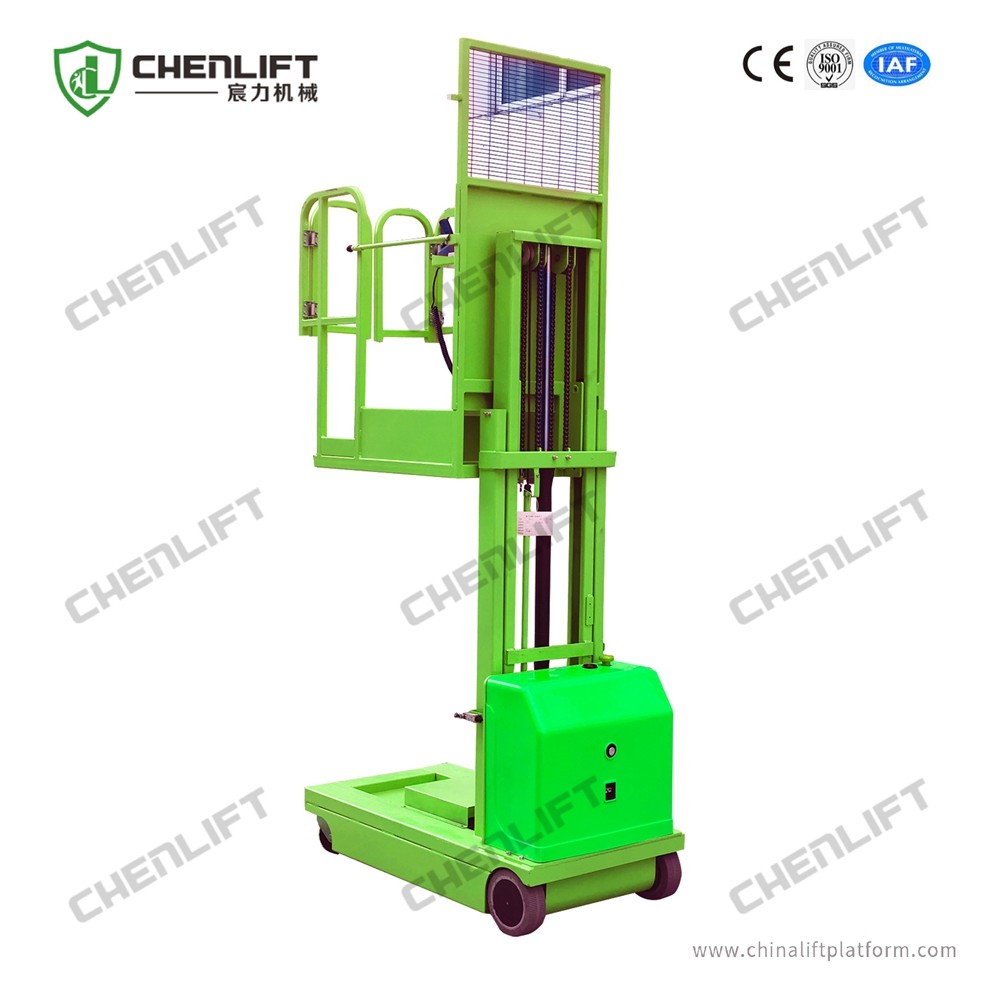

300kg Battery Powered Self Propelled Order Picker Truck with Ce
Self-propelled Aerial Order Picker is the best equipment for materials picking and handling. It is widely used in warehouse and supermarket. Easy moving and poperating. Lift or fall steadily. Safe and reliable. Suitable for order picking application in distribution warehouse.
Self propelled aerial order picker is one kind of material handling equipment, it is mainly used to pick up cargo from rack. Operator can control moving, lifting and turning when stand on the platform, which highly improved the working efficiency. As it is lighter in weight, easy to implement by single person, flexible and convenient to operate, it is the best choice for stacking and reclaiming warehouses and supermarkets.
Self propelled order picker is equipped with two driving motor. Operator control the multi-function handle on the platform to make it move and turn.
Self propelled Aerial Order Picker is widely used in the fields of hotel, building, warehouse, library, supermarket rack, workshop, elevator portal, supermarket, subway station, and other office building high altitude maintenance.
Major Parameter of Self-propelled Aerial Order Picker
|Max. Platform Height||2.70m||3.30m||4.00m||4.50m|
|Max. Machine Height||4.12m||5.00m||5.40m||6.00m|
|Min. Turning Radius||1600mm||1600mm||1600mm||1600mm|
|Max. Climbing Capacity||15%-20%||15%-20%||15%-20%||15%-20%|
Self-closing gate on platform
Drivable at full height
Automatic brake system
Emergency lowering system
Emergency stop button
Cylinder holding valve
Structure Principle & Instruction
1. Charging the battery before you use it. After charging up the battery, please cut off the power, then unplug it.
2. Lift the platform to its top position to check that there is enough hydraulic oil in the system. Refill if necessary with YA-N32 or a similar oil.
3. Turn the key and switch on, the display indicator shows. Choose the mode of rising, control the height by Joy-stick.
4. Change the mode to walk. Also can be controlled by Joy-stick, the "rabbit" pattern indicates speed up, the "tortoise" pattern indicates speed down.
As a subsidiary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
Other Related Products
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommended to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
