CHENLIFT (SUZHOU) MACHINERY CO., LTD.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | CHEN LIFT |
| Certification: | CE ISO9001:2008 IPAF member |
| Model Number: | SEP2-3.3 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PVC Film Wrapped in Pallets or in wooden Case |
| Delivery Time: | 30 days after order confirmed |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 3000 Units Per Year |
| Max. Platform Height: | 3.3m | Max. Machine Height: | 4.9m |
|---|---|---|---|
| Loading Capacity: | 200kg | Platform Size: | 600*640 Mm |
| Lifting Motor: | 12V/1.6kw | Overall Weight: | 320kg |
| High Light: | warehouse order picker,vertical order picker |
||

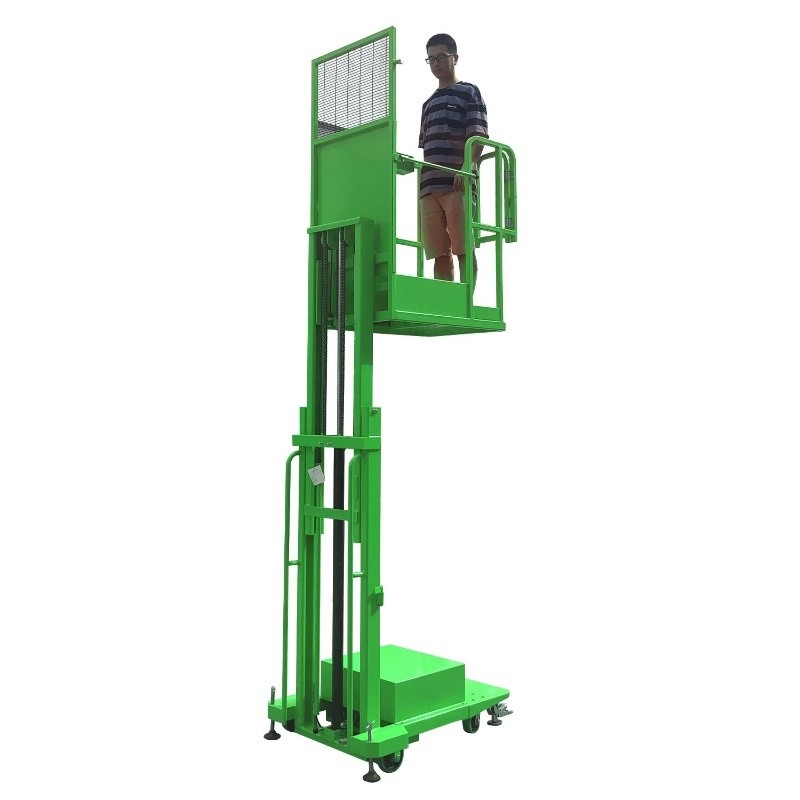

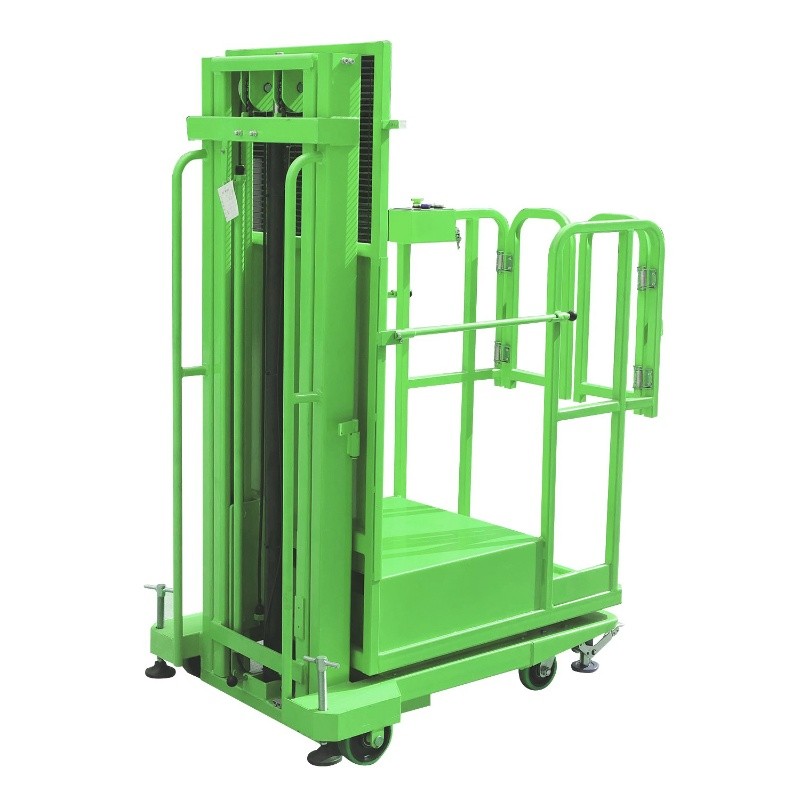

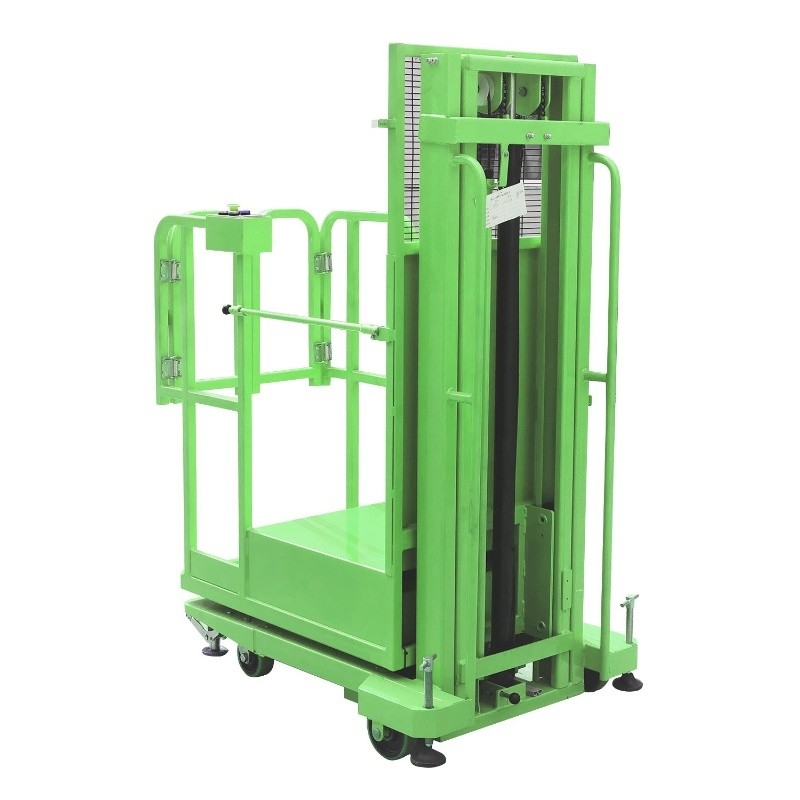

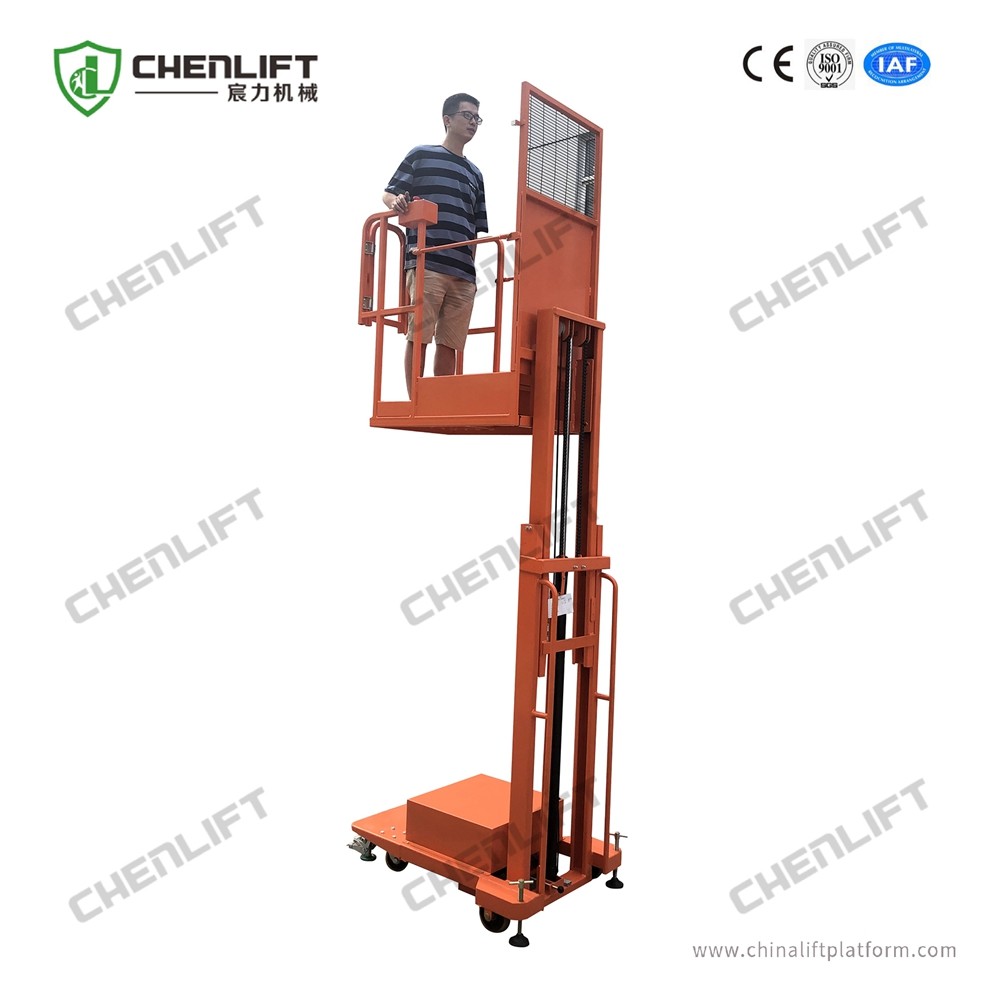

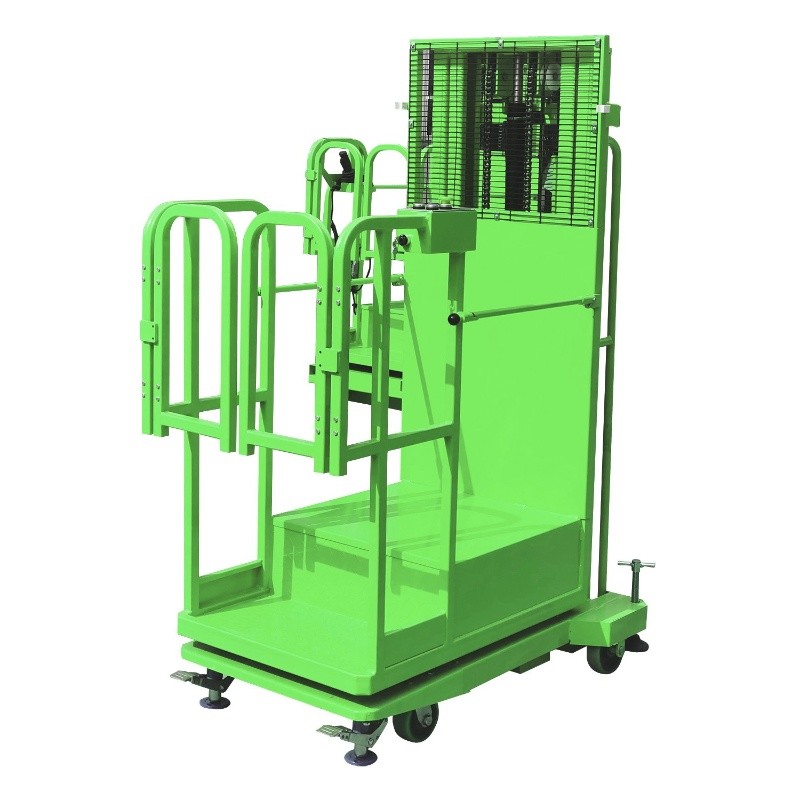

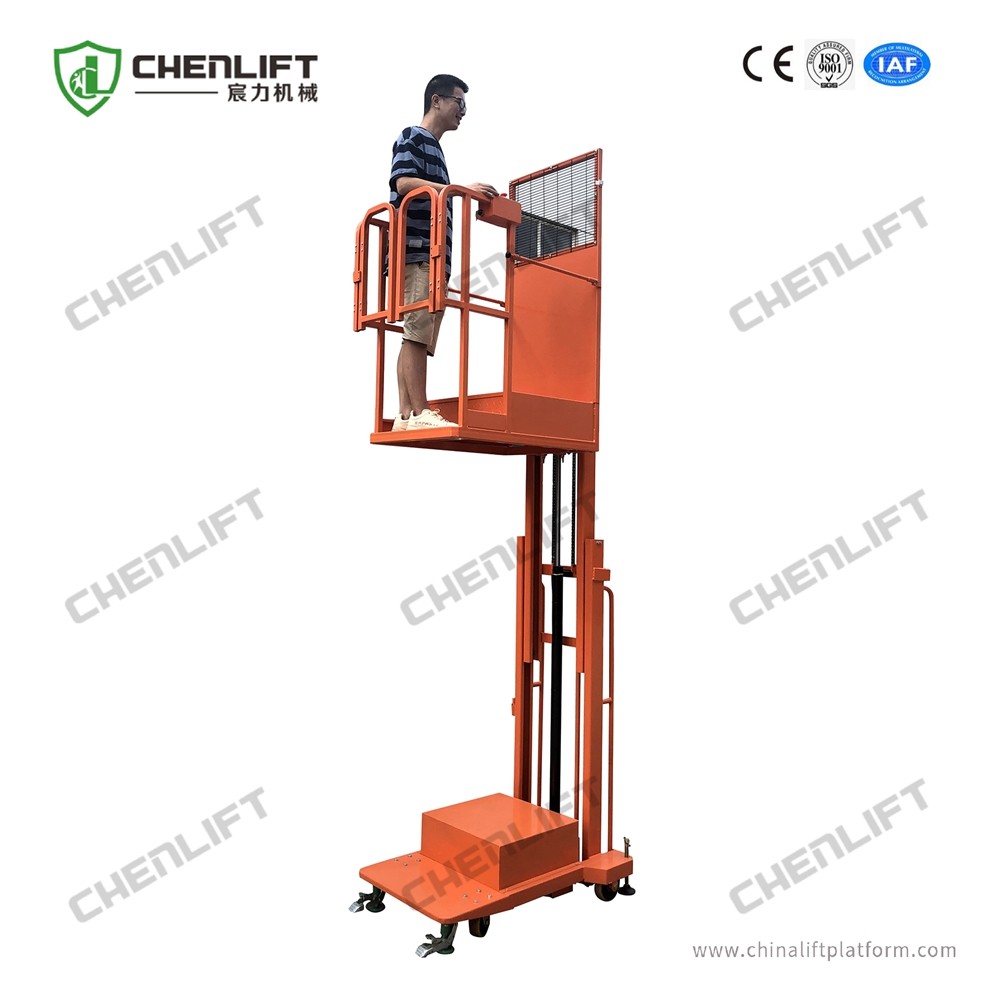

10ft Warehouse Lifting Equipment Semi Electric Order Picker
Product Description
Semi-electric aerial order picker is with high safety, moving easily and convenient working.
Features
Environment-Friendly:
Low noise and non-pollution electricity energy adopted ensure the semi electric order picker Environment-Friendly.
Application
Semi-electric Aerial Order Picker is widely used in the fields of hotel, building, warehouse, library, supermarket rack, workshop, elevator portal, supermarket, subway station, and other office building high altitude maintenance.
Major Parameter of Semi-Electric Aerial Order Picker
| Model | SEP2-2.7 | SEP2-3.3 | SEP2-4.0 | SEP2-4.5 |
| Loading Capacity | 200Kg | 200Kg | 200Kg | 200Kg |
| Max. Platform Height | 2.72m | 3.30m | 4.00m | 4.50m |
| Max. Machine Height | 4.02m | 4.90m | 5.40m | 6.10m |
| Platform Size | 600*640mm | 600*640mm | 600*640mm | 600*640mm |
| Stowed Length | 1.30m | 1.30m | 1.32m | 1.32m |
| Stowed Width | 0.85m | 0.85m | 0.85m | 0.85m |
| Stowed Height | 1.76m | 2.04m | 1.83m | 2.00m |
| Ground Clearance | 30mm | 30mm | 30mm | 30mm |
| Lift Motor | 12V/1.6Kw | 12V/1.6Kw | 12V/1.6Kw | 12V/1.6Kw |
| Battery | 12V/120Ah | 12V/120Ah | 12V/120Ah | 12V/120Ah |
| Charger | 12V/15A | 12V/15A | 12V/15A | 12V/15A |
| Overall Weight | 270Kg | 320Kg | 380Kg | 420Kg |
Product Details
Operation of Picker
Company Introduction
As a subsidiary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
Certificates
Factory Equipment
Customer Visiting
Other Related Products
Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommended to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
