300Kg 2700-4500 Mm Self - Propelled Electric Order Picker For Picking Height

Product Details:

Place of Origin:	China
Brand Name:	CHEN LIFT
Certification:	CE ISO9001:2008 IPAF member
Model Number:	FSEP3-2.7

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packed with Pallet, Wrapped with Film
Delivery Time:	30 days after order confirmed
Payment Terms:	T/T or L/C
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Max. Platform Height:	2.7m	Max. Working Height:	4.12m
Loading Capacity:	300kg	Platform Size:	600*640 Mm
Lifting Motor:	24V/1.6kw	Overall Weight:	450kg
Highlight:	warehouse order picker , vertical order picker

300Kg 2700-4500 mm Self-propelled Electric Order Picker for Picking Height

Product Description
Self-propelled Aerial Order Picker is the best equipment for materials picking and handling. It is widely used in warehouse and supermarket. Easy moving and poperating. Lift or fall steadily. Safe and reliable. Suitable for order picking application in distribution warehouse.

Features

Includes horn and belly reverse button for safety
High-torque DC drive and lift motors handle heavy-duty jobs
Solid non-marking tires
Tilt level sensor with audible alarm
Platform control with battery charge indicator
Battery charger included

Major Parameter

Model	FSEP3-2.7	FSEP3-3.3	FSEP3-4.0	FSEP3-4.5
Loading Capacity	300Kg	300Kg	300Kg	300Kg
Max. Platform Height	2.70m	3.30m	4.00m	4.50m
Max. Machine Height	4.12m	5.00m	5.40m	6.00m
Platform Size	600*640mm	600*640mm	600*640mm	600*640mm
Stowed Length	1.53m	1.53m	1.62m	1.62m
Stowed Width	0.70m	0.70m	0.70m	0.70m
Stowed Height	1.83m	2.13m	1.84m	2.00m
Min. Turning Radius	1600mm	1600mm	1600mm	1600mm
Max. Climbing Capacity	15%-20%	15%-20%	15%-20%	15%-20%
Ground Clearance	40mm	40mm	40mm	40mm
Driving Motor	2*24V/0.4Kw	2*24V/0.4Kw	2*24V/0.4Kw	2*24V/0.4Kw
Lift Motor	24V/1.6Kw	24V/1.6Kw	24V/1.6Kw	24V/1.6Kw
Battery	2*12V/150Ah	2*12V/150Ah	2*12V/150Ah	2*12V/150Ah
Charger	24V/15A	24V/15A	24V/15A	24V/15A
Overall Weight	430Kg	450Kg	660Kg	680Kg

Features:

It moves and lifts all by battery power.
Operator can control moving, lifting, turning and all other operations when stand on the platform.
The light weight and maneuverability make it convenient to use in supermarket and warehouse.
Intelligent self propelled control system.
Zero-turn radius and compact design provide access in and around confined work areas.
Low gravity center provides good stability.

Structure Principle & Instruction

1. Charging the battery before you use it. After charging up the battery, please cut off the power, then unplug it.
2. Lift the platform to its top position to check that there is enough hydraulic oil in the system. Refill if necessary with YA-N32 or a similar oil.
3. Turn the key and switch on, the display indicator shows. Choose the mode of rising, control the height by Joy-stick.
4. Change the mode to walk. Also can be controlled by Joy-stick, the "rabbit" pattern indicates speed up, the "tortoise" pattern indicates speed down.

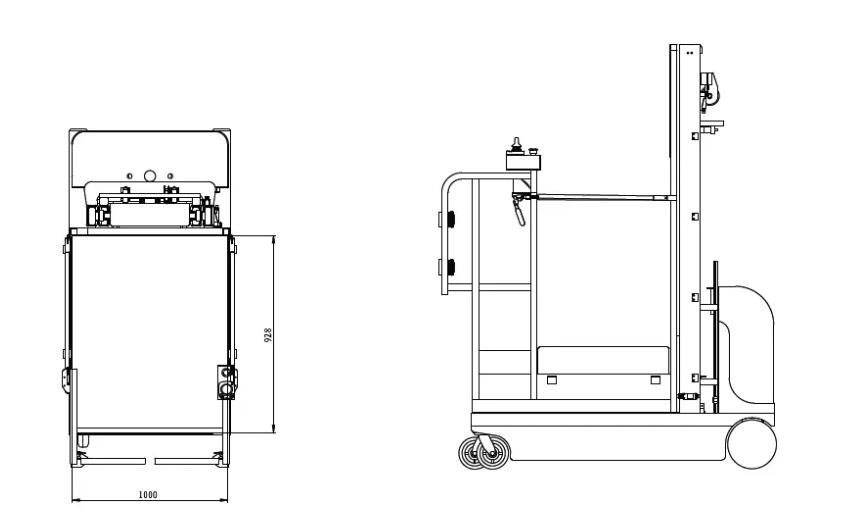

The structure of Self-propelled Aerial Order Picker is as below:

Company Introduction

ChenLift is an ISO 9001 accredited company which has been focusing on manufacturing&exporting Aerial Work Platform Battery-powered Forklifts and warehouse equipment for many years in China. With the strong capacity of R&D and manufacture, nowadays ChenLift becomes one of the leading brand of battery-powered warehouse equipment at home&abroad.

We're a dedicated reputable company carrying our theme''Innovation,integration and enviroment friendly'',and we strive to provide only the best to our customers. Please allow us to support your handling/moving/lifting needs and you're welcome to visite our show room to view the products in details.

300Kg 2700-4500 Mm Self - Propelled Electric Order Picker For Picking Height 2

Our Service

1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
