Place of Origin: | China |
Brand Name: | CHEN LIFT |
Certification: | CE ISO9001:2008 IPAF member |
Model Number: | FSEP3-4.5 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Packed with Pallet, Wrapped with Film |
Delivery Time: | 30 days after order confirmed |
Payment Terms: | T/T or L/C |
Supply Ability: | 100 sets/month |
Max. Platform Height: | 4.5m | Max. Machine Height: | 6m |
---|---|---|---|
Loading Capacity: | 300kg | Platform Size: | 600*640 Mm |
Lifting Motor: | 24V/1.6kw | Overall Weight: | 680kg |
Highlight: | warehouse order picker,order picker platform |

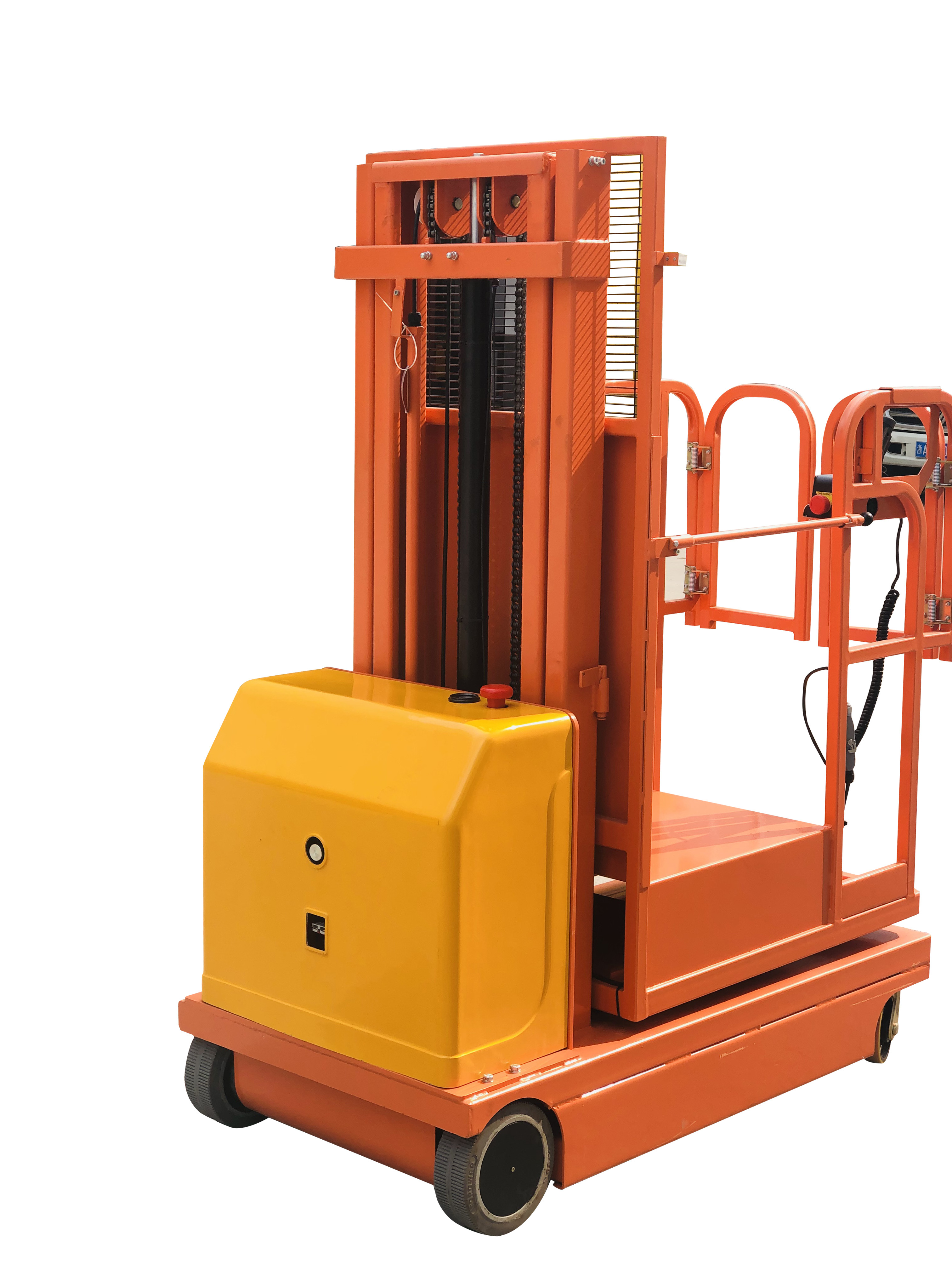

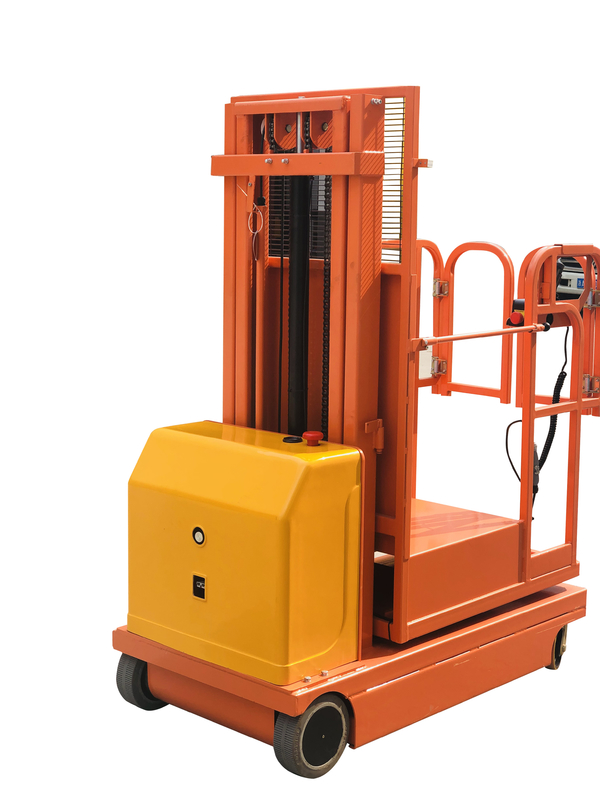

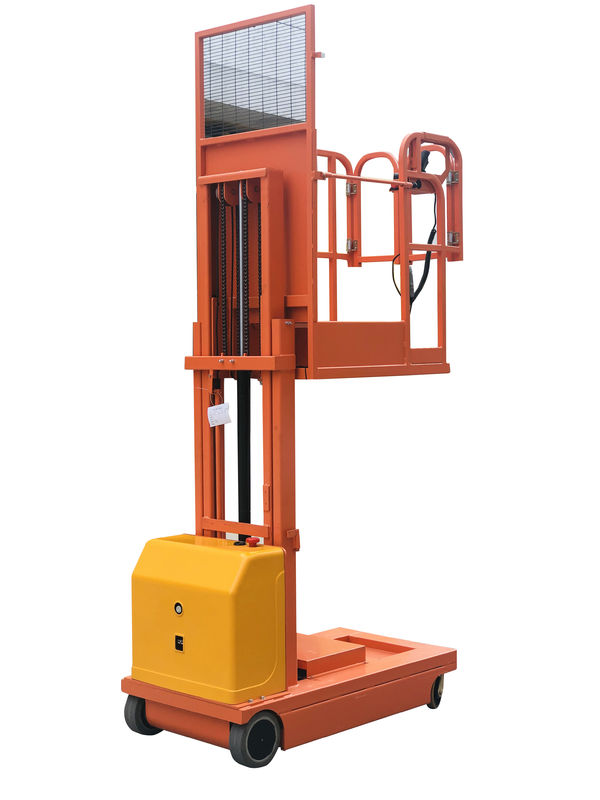

300kg 4500mm Lifting Height Full Electric Order Picker with CE Certificate
ChenLift strive to build as a full-service equipment solution provider. The company focus on industrial technologies development, production resources integration and customers experiences market research, etc.
ChenLift provide the most comprehensive range of products with stable quality, first class after-sale service, technical and parts supports by the professional and high efficiency team working behind.
Self propelled aerial order picker is one kind of material handling equipment, it is mainly used to pick up cargo from rack. Operator can control moving, lifting and turning when stand on the platform, which highly improved the working efficiency. As it is lighter in weight, easy to implement by single person, flexible and convenient to operate, it is the best choice for stacking and reclaiming warehouses and supermarkets.
Self propelled order picker is equipped with two driving motor. Operator control the multi-function handle on the platform to make it move and turn.
Application
Self propelled Aerial Order Picker is widely used in the fields of hotel, building, warehouse, library, supermarket rack, workshop, elevator portal, supermarket, subway station, and other office building high altitude maintenance.
Features:
It moves and lifts all by battery power.
Operator can control moving, lifting, turning and all other operations when stand on the platform.
The light weight and maneuverability make it convenient to use in supermarket and warehouse.
Intelligent self propelled control system.
Zero-turn radius and compact design provide access in and around confined work areas.
Low gravity center provides good stability.
Major Parameter of Self-propelled Aerial Order Picker
Model | FSEP3-2.7 | FSEP3-3.3 | FSEP3-4.0 | FSEP3-4.5 |
Loading Capacity | 300Kg | 300Kg | 300Kg | 300Kg |
Max. Platform Height | 2.70m | 3.30m | 4.00m | 4.50m |
Max. Machine Height | 4.12m | 5.00m | 5.40m | 6.00m |
Platform Size | 600*640mm | 600*640mm | 600*640mm | 600*640mm |
Stowed Length | 1.53m | 1.53m | 1.62m | 1.62m |
Stowed Width | 0.70m | 0.70m | 0.70m | 0.70m |
Stowed Height | 1.83m | 2.13m | 1.84m | 2.00m |
Min. Turning Radius | 1600mm | 1600mm | 1600mm | 1600mm |
Max. Climbing Capacity | 15%-20% | 15%-20% | 15%-20% | 15%-20% |
Ground Clearance | 40mm | 40mm | 40mm | 40mm |
Driving Motor | 2*24V/0.4Kw | 2*24V/0.4Kw | 2*24V/0.4Kw | 2*24V/0.4Kw |
Lift Motor | 24V/1.6Kw | 24V/1.6Kw | 24V/1.6Kw | 24V/1.6Kw |
Battery | 2*12V/150Ah | 2*12V/150Ah | 2*12V/150Ah | 2*12V/150Ah |
Charger | 24V/15A | 24V/15A | 24V/15A | 24V/15A |
Overall Weight | 430Kg | 450Kg | 660Kg | 680Kg |
Company Introduction
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
Contact Person: Mr. Aijun Liu
Tel: 0086-13951119762
Fax: 86-512-67339762
