CHENLIFT (SUZHOU) MACHINERY CO., LTD.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | CHEN LIFT |
| Certification: | CE ISO9001:2008 IPAF member |
| Model Number: | SEP2-4 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packed with Pallet, Wrapped with Film |
| Delivery Time: | 30 days after order confirmed |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 100 sets/month |
| Max. Platform Height: | 4m | Max. Machine Height: | 5.4m |
|---|---|---|---|
| Loading Capacity: | 200kg | Platform Size: | 6008640 Mm |
| Lifting Motor: | 12V/1.6kw | Overall Weight: | 420kg |
| Highlight: | warehouse order picker,vertical order picker |
||

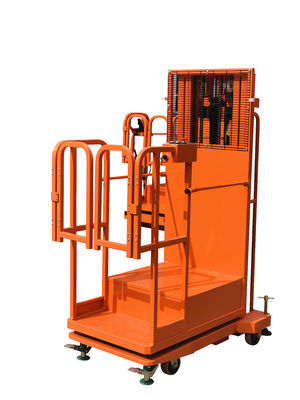

Semi Electric Order Picker with 2.7m 3.3m 4m 4.5m Lifting Height
Product Description
Environment-Friendly:
Low noise and non-pollution electricity energy adopted ensure the semi electric order picker Environment-Friendly.
Reliability:
Adequate protection of brake and bolts, to ensure safe use.
Rigid steel body design to ensure steady operation.
Semi-electric aerial order picker has passed the CE; ISO Certified. It is with high safety, moving easily and convenient working. This product is broadly accepted by our clients due to their superior finish, durability, high load bearing capacity and longer service life without any hassles. Offered in various technical specifications, this range of order picker is available at the most reasonable prices.
Major Parameter of Semi-Electric Aerial Order Picker
| Model | SEP2-2.7 | SEP2-3.3 | SEP2-4.0 | SEP2-4.5 |
| Loading Capacity | 200Kg | 200Kg | 200Kg | 200Kg |
| Max. Platform Height | 2.72m | 3.30m | 4.00m | 4.50m |
| Max. Machine Height | 4.02m | 4.90m | 5.40m | 6.10m |
| Platform Size | 600*640mm | 600*640mm | 600*640mm | 600*640mm |
| Stowed Length | 1.30m | 1.30m | 1.32m | 1.32m |
| Stowed Width | 0.85m | 0.85m | 0.85m | 0.85m |
| Stowed Height | 1.76m | 2.04m | 1.83m | 2.00m |
| Ground Clearance | 30mm | 30mm | 30mm | 30mm |
| Lift Motor | 12V/1.6Kw | 12V/1.6Kw | 12V/1.6Kw | 12V/1.6Kw |
| Battery | 12V/120Ah | 12V/120Ah | 12V/120Ah | 12V/120Ah |
| Charger | 12V/15A | 12V/15A | 12V/15A | 12V/15A |
| Overall Weight | 270Kg | 320Kg | 380Kg | 420Kg |
Product Details
Operation of Picker
Company Introduction
ChenLift is an ISO 9001 accredited company which has been focusing on manufacturing&exporting Aerial Work Platform, Battery-powered lifting equipments and warehouse equipment for many years in China. With the strong capacity of R&D and manufacture, nowadays ChenLift becomes one of the leading brand of battery-powered warehouse equipment at home&abroad.
Contact Person: Mr. Aijun Liu
Tel: 0086-13951119762
Fax: 86-512-67339762
