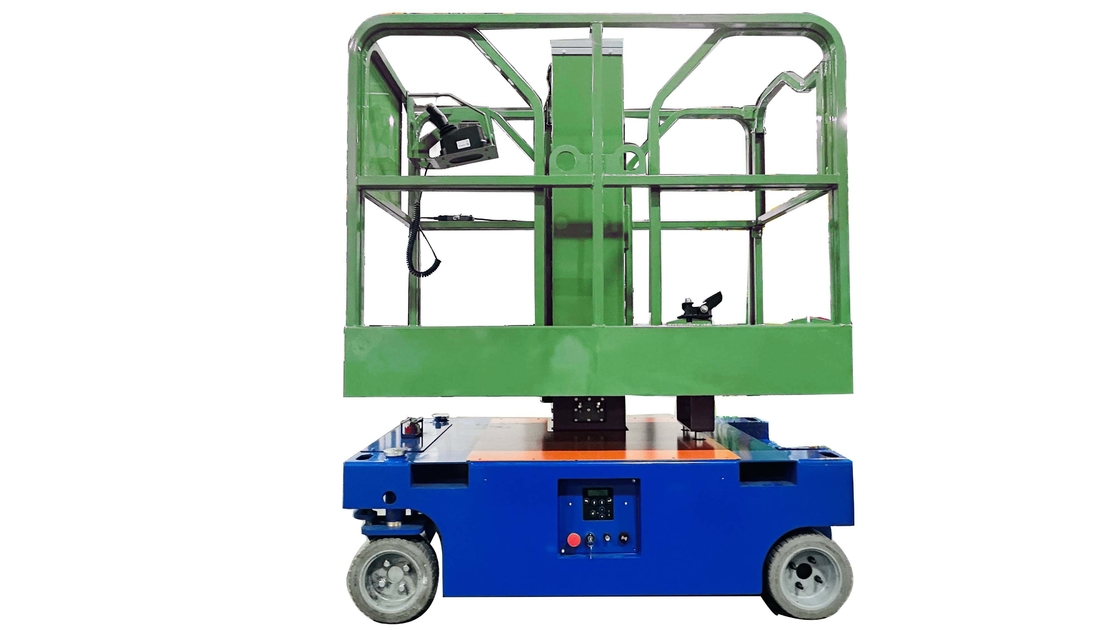

MD400 Model OIL FREE FULL ELECTRIC SELF PROPELLED VERTICAL LIFT

MD400 Model OIL FREE FULL ELECTRIC SELF PROPELLED VERTICAL LIFT

  • MD400 Model OIL FREE FULL ELECTRIC SELF PROPELLED VERTICAL LIFT
MD400 Model OIL FREE FULL ELECTRIC SELF PROPELLED VERTICAL LIFT
Product Details:
Place of Origin: China
Brand Name: CHENLIFT
Certification: CE
Model Number: MD400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 200 sets/month
Contact Now
Detailed Product Description
Model: MD400 Load Capacity: 230kg
Platform Size: 1.5*0.8m Extension Platform: 0.4+0.4m
Extension Load: 120kg Stowed Size: 2.3*0.8*1.99m
Power: DC24V 100AH Charger: 24V 30A
High Light:

forklift clamp attachment

,

forklift drum attachment

MD400 Model OIL FREE FULL ELECTRIC SELF PROPELLED VERTICAL LIFT



STANDARD CONFIGURATION:
OIL FREE
CAN BUS PROTOCOL
PROPORATIONAL JOYSTICK CONTROL
SELF LOCKING GATES
DRIVABLE AT FULL HEIGHT
NON MARKING TIRES
DUAL WHEEL AUTOMATIC BRAKING
EMERGENCY DESCENT SYSTEM
FAULT DIAGNOSE SYSTEM
TILT ALARM/MOTION ALARM/HORN/HOUR METER
EXTENSION PLATFROM FOR BOTH 2 SIDES
OVERLOADING SENSOR
FORKLIFT SLOT
POTHOLE PROTECTION


SPECIFICATION:



Model MD400
Max. Working Height 6m
Max. Platform Height 4m
Loading Capacity 230Kg
Platform Size 1.5*0.8m
Platform Extension 0.4+0.4m
Platform Load Capacity 120kg
Stowed Size 2.3*0.8*1.99m
Ground Clearance 0.07m
Wheelbase 1.11m
Battery 2*12V/100AH
Up/Down Speed 20S/25S
Travel Speed (Stowed) 0.8Km/h
Travel Speed (Raised) 4Km/h
Turning Radius 0.5m/1.2m
Gradeability 25%
Charger 24V/30A
Tyre 305*100
Maximum Working Slope 1.5/3
Weight 920Kg

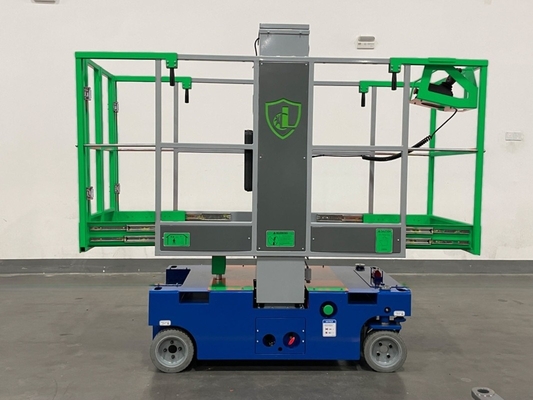

 MD400 Model OIL FREE FULL ELECTRIC SELF PROPELLED VERTICAL LIFT 0
Applications:

1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
2. Vertical Lift Purpose: machine maintenance, painting, cleaning etc.


Why to choose CHENLIFT ?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience
