CHENLIFT (SUZHOU) MACHINERY CO., LTD.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | CHENLIFT |
| Certification: | CE |
| Model Number: | MOP300 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wrapped in pallets |
| Delivery Time: | 30 days |
| Payment Terms: | T/T L/C |
| Supply Ability: | 200 sets/month |
| Height: | 3m | Load Capacity: | 90/110/113kg |
|---|---|---|---|
| Color: | Any Color Can Be Customized | Weight: | 800kg |
| Power: | 24V/120AH | Overall Size: | 1.44*0.75*1.41m |
| High Light: | forklift clamp attachment,drum handling equipment forklift attachment |
||

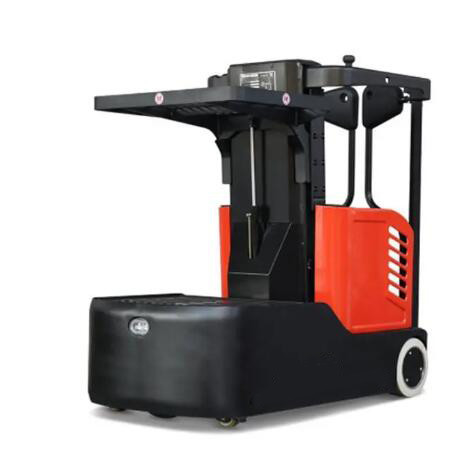

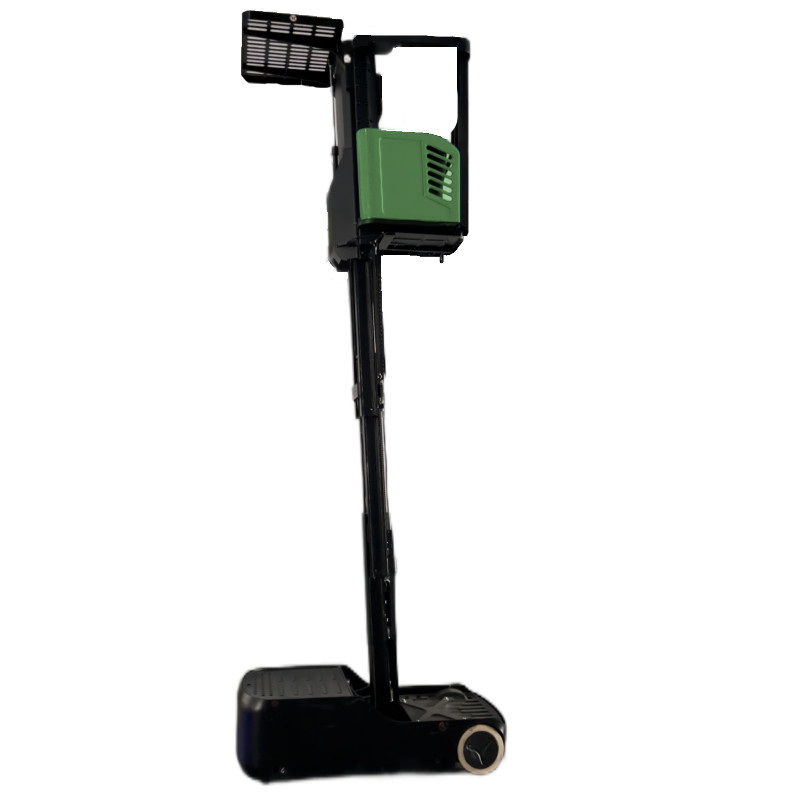

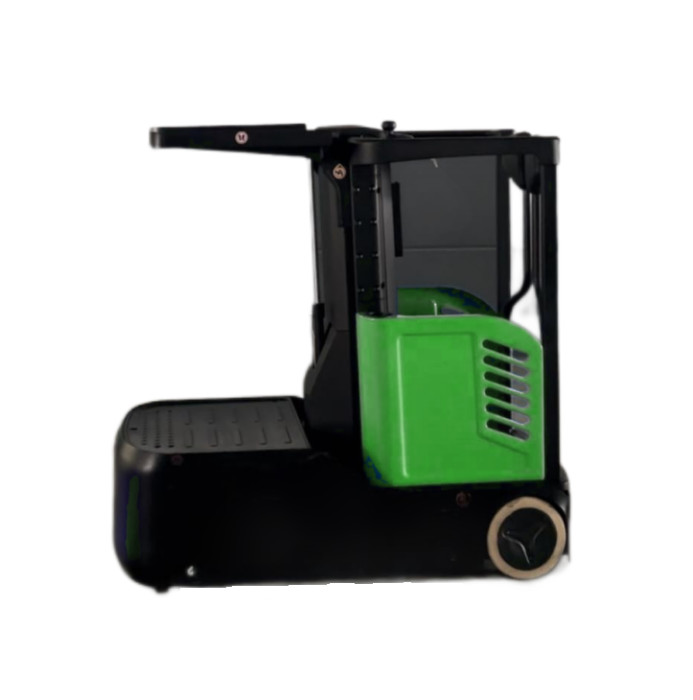

3m Warehouse Self Drive Electric Order Picker
| Distinguishing mark | ||||
| 1.1 | Manufacturer | CHEN LIFT | ||
| 1.2 | Model designation | MOP300 | ||
| 1.3 | Drive unit | Electirc | ||
| 1.4 | Operator type | Order Picke | ||
1.5 |
rated capacity |
Q 1 | kg | 90 |
| Q 2 | kg | 110 | ||
| Q 3 | kg | 136 | ||
| 1.6 | Load center distance | c | mm | -- |
| 1.8 | Load distance,centre of drive axle to fork | x | mm | -- |
| 1.9 | Wheelbase | y | mm | 1095 |
| Weight | ||||
| 2.1 | Service weight (include battery) | kg | 800 | |
| 2.2 | Axle loading, laden driving side/loading side | kg | -- | |
| 2.3 | Axle loading, unladen driving side/loading side | kg | 370/430 | |
| Types,Chassis | ||||
| 3.1 | Tyre type, Driving wheels/Loading wheels | PU/Rubber | ||
| 3.2 | Tyre size, driving wheels(Diameter×Width) | mm | Ф210×70 | |
| 3.3 | Tyre size, loading wheels(Diameter×Width) | mm | Ф250×100 | |
| 3.4 | Tyre size, caster wheels(diameter×width) | mm | -- | |
| 3.5 | Wheels, number driving,caster/loading (x=drive wheels) | mm | 1x,2/2 | |
| 3.6 | Track width, front,driving side | b10 | mm | 545 |
| 3.7 | Track width,rear,loading side | b11 | mm | 640 |
| Dimensions | ||||
| 4.2 | Height, mast lowered | h1 | mm | -- |
| 4.4 | Lift height) | h3 | mm | 3620 |
| 4.5 | Height, mast extended) | h4 | mm | -- |
| 4.7 | Height of overhead guard (cabin) | h6 | mm | -- |
| 4.8 | Seat height/standing height) | h7 | mm | 275 |
| 4.14 | Stand height, elevated | h12 | mm | 3000 |
| 4.15 | Lowered height | h13 | mm | -- |
| 4.19 | Overall length | l1 | mm | 1440 |
| 4.20 | Length to face of forks | l2 | mm | -- |
| 4.21 | Overall width | b1/ b2 | mm | 750 |
| 4.22 | Fork dimensions | s/ e/ l | mm | -- |
| 4.25 | Outside width of the forks | b5 | mm | -- |
| 4.32 | Ground clearance, center of wheelbase | m2 | mm | 35 |
| 4.34.1 | Aisle width for pallets 1000 × 1200 crossways | Ast | mm | -- |
| 4.34.2 | Aisle width for pallets 800 × 1200 lengthways | Ast | mm | -- |
| 4.35 | Turning radius | Wa | mm | 1260 |
| Performance data | ||||
5.1 |
Travel speed, laden/ unladen (H:0-500mm) | km/ h | 6/6.5 | |
| Travel speed, laden/ unladen (H:500-1000mm) | km/ h | 3 | ||
| Travel speed, laden/ unladen (H:1000-2000mm) | km/ h | 2 | ||
| Travel speed, laden/ unladen (H:2000-3000mm) | km/ h | 1 | ||
| 5.2 | Lifting speed, laden/ unladen(Q3) | m/ s | 0.213/0.225 | |
| Lifting speed, laden/ unladen(Q1) | m/ s | 0.023/0.028 | ||
| 5.3 | Lowering speed, laden/ unladen)(Q3) | m/ s | 0.230/0.233 | |
| Lowering speed, laden/ unladen)(Q1) | m/ s | 0.030/0.029 | ||
| 5.8 | Max. gradeability, laden/unladen | % | 58 | |
| 5.10 | Service brake type | Electromagnetic | ||
| Electric-engine | ||||
| 6.1 | Drive motor rating S2 60 min | kW | 0.65 | |
| 6.2 | Lift motor rating at S3 15% | kW | 2.2 | |
| 6.3 | The maximum allowed size battery | mm | ||
| 6.4 | Battery voltage/nominal capacity K5 | V/ Ah | 24V/120Ah | |
| 6.5 | Battery weight | kg | 35 | |
| Addition data | ||||
| 8.1 | Type of drive unit | DC | ||
| 10.5 | Steering type | Electronic steering | ||
| 10.7 | Sound pressure level at the driver's ear | dB (A) | 74 | |
Standard Configuration:
Eletric Picking Tray and Front Guardrails
Self Locking Gates
Drivable At Full Height
Non-Marking Tires(2-Wheel Drive 2-Wheel Steering)
Emergency Stop Button
Saloon-door Style Entry Gates/Top Open Door
Flashing Beacon
Charging Indicator
Manual Brake Release
Lanyard Attachment Point
Tie-Down And Lifting Points
Charging Protection System
Optional Configuration
AC Power to Platform
Platform Working Light
Wireless Tracking
