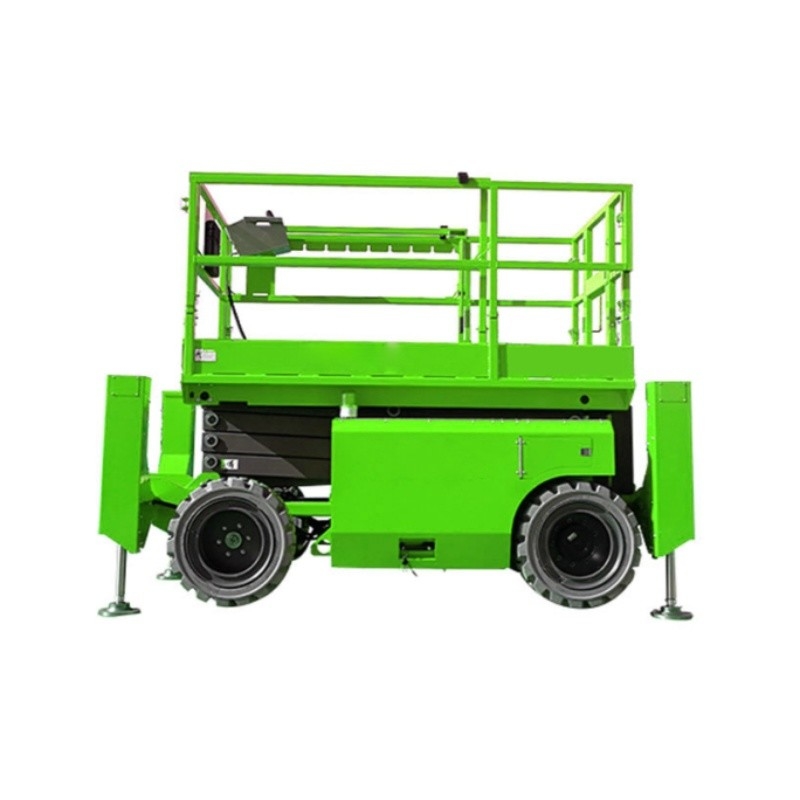

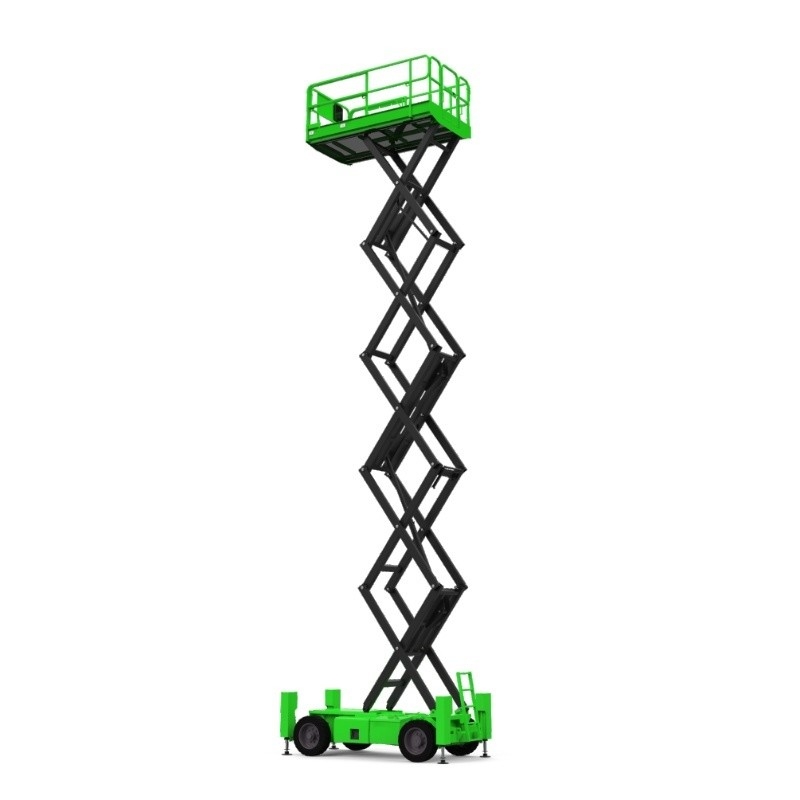

Self Propelled Rough Terrain Scissor lift
Our self-propelled rough terrain scissor lifts are advanced aerial work platforms designed for tough environments. Powered by batteries, they offer zero emissions and ultra-quiet operation, making them ideal for both indoor and outdoor applications.
Equipped with a powerful 4-wheel drive system, these lifts deliver excellent traction and gradeability, ensuring smooth movement across uneven surfaces—even at maximum speed. The ability to drive at full height significantly enhances on-site efficiency and productivity.
To support long-term performance and reliability, the lift includes an intelligent on-board diagnostic system and real-time fault alarm, helping operators quickly identify and resolve issues.
Eco-Friendly Operation: 100% electric drive ensures zero emissions and low noise—ideal for environmentally sensitive workspaces.
High Load Capacity: With a super load capacity of up to 560 kg, the platform offers stable, secure lifting for multiple workers and tools.
All-Terrain Performance: 4-wheel drive delivers strong power, excellent climbing capability, and fast travel speed across rough terrain.
Smart Monitoring: Built-in diagnostic system and intelligent fault alarm provide real-time system status, improving safety and reducing downtime.
Efficient. Reliable. Built to Conquer Rough Terrain.
Specification:
Model | MRT800 | MRT1000 | MRT1200 | MRT1300 | MRT1600 |
Max Working Height | 10m | 12m | 14m | 15m | 18m |
Max Platform Height | 8m | 10m | 12m | 13m | 16m |
Max Outreach | 1.5m | 1.5m | 1.5m | 1.2m | 1.2m |
Length-PLatform Extended | 4m | 4m | 4m | 6.3m | 6.3m |
Length with Outreach | 3.23m | 3.23m | 3.23m | 4.88m | 4.88m |
Width Stowed | 1.81m | 1.81m | 1.81m | 2.3m | 2.3m |
Height Stowed(guardrails unfolded) | 2.62m | 2.74m | 2.87m | 2.99m | 3.26m |
Height Stowed(guardrails folded) | 1.91m | 2.04m | 2.16m | 2.19m | 2.47m |
Wheelbase | 1.89m | 1.89m | 1.89m | 2.97m | 2.97m |
Ground Clearance | 0.31m | 0.31m | 0.31m | 0.32m | 0.32m |
Platform Size | 2.5*1.6*1.15m | 2.5*1.6*1.15m | 2.5*1.6*1.15m | 3.9*1.9*1.15m | 3.9*1.9*1.15m |
Skirting Board Height | 0.15m | 0.15m | 0.15m | 0.15m | 0.15m |
Lifting Capacity | 567kg | 454kg | 345kg | 680kg | 680kg |
Extension Lifting Capacity | 136kg | 136kg | 136kg | 230kg | 230kg |
Drive Speed(Stowed) | 4.5km/h | 4.5km/h | 4.5km/h | 4.5km/h | 4.5km/h |
Drive Speed(Raised) | 0.7km/h | 0.7km/h | 0.7km/h | 0.7km/h | 0.7km/h |
Rising Time | 40s | 45s | 50s | 68s | 75s |
Lowering Time | 35s | 37s | 42s | 50s | 55s |
Gradeability | 35% | 30% | 30% | 45% | 45% |
Turning Radius | 1.58m/3.89m | 1.58m/3.89m | 1.58m/3.89m | 2.72m/5.9m | 2.72m/5.9m |
Tilt Sensor-Front to Back | 3° | 3° | 3° | 3° | 3° |
Tilt Sensor-Side to Side | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° |
Tire Specification | 675*280mm | 675*280mm | 675*280mm | 33*12-20solid tire | 33*12-20solid tire |
Outrigger Level Ability-Front to Back | 6.6° | 6.6° | 6.6° | 7° | 7° |
Outrigger Level Ability-Side to Side | 10.6° | 10.6° | 10.6° | 11° | 11° |
Drive Mode | Electric Drive,4WD*2WS | Electric Drive,4WD*2WS | Electric Drive,4WD*2WS | Electric Drive,4WD*2WS | Electric Drive,4WD*2WS |
Power Unit Motor | 48V/4.5kw | 48V/4.5kw | 48V/4.5kw | 48V/4.5kw | 48V/4.5kw |
Hydraulic Tank Capacity | 68L | 68L | 68L | 120L | 120L |
Battery Specification | 235Ah | 235Ah | 235Ah | 235Ah | 235Ah |
Control Voltage | 24V | 24V | 24V | 48V | 48V |
Charger | 90-264V/40A | 90-264V/40A | 90-264V/40A | 48V/40A | 48V/40A |
Weight(with Outriggers) | 4170kg | 4440kg | 5480kg | 8103kg | 9010kg |
Company Introduction
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

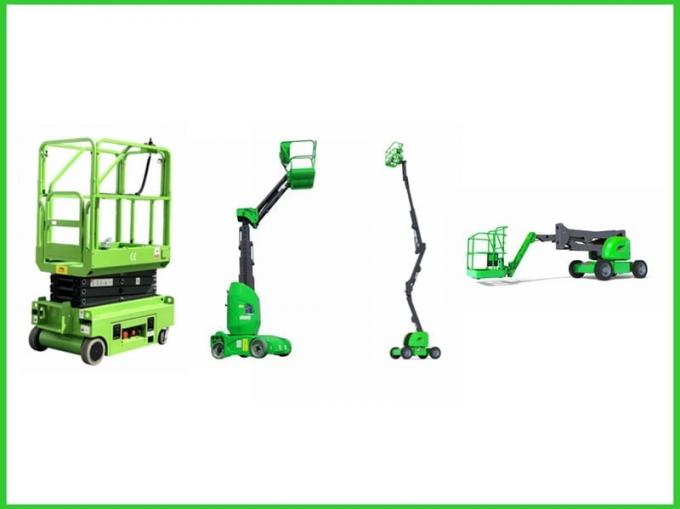

Other Related Products
