|Place of Origin:||China|
|Certification:||CE ISO9001:2008 IPAF member|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wrapped in pallets|
|Delivery Time:||30 days|
|Payment Terms:||T/T L/C|
|Supply Ability:||200 sets/month|
|Platform Size:||0.55*0.6m||Max Platform Height:||4.6m|
|Max Working Height:||6.6m||Load Capacity:||125kg|
|Stowed Size:||1.3*0.8*2.07m||Ground Clearance:||70 Mm|
hydraulic drum lift,
forklift drum handler

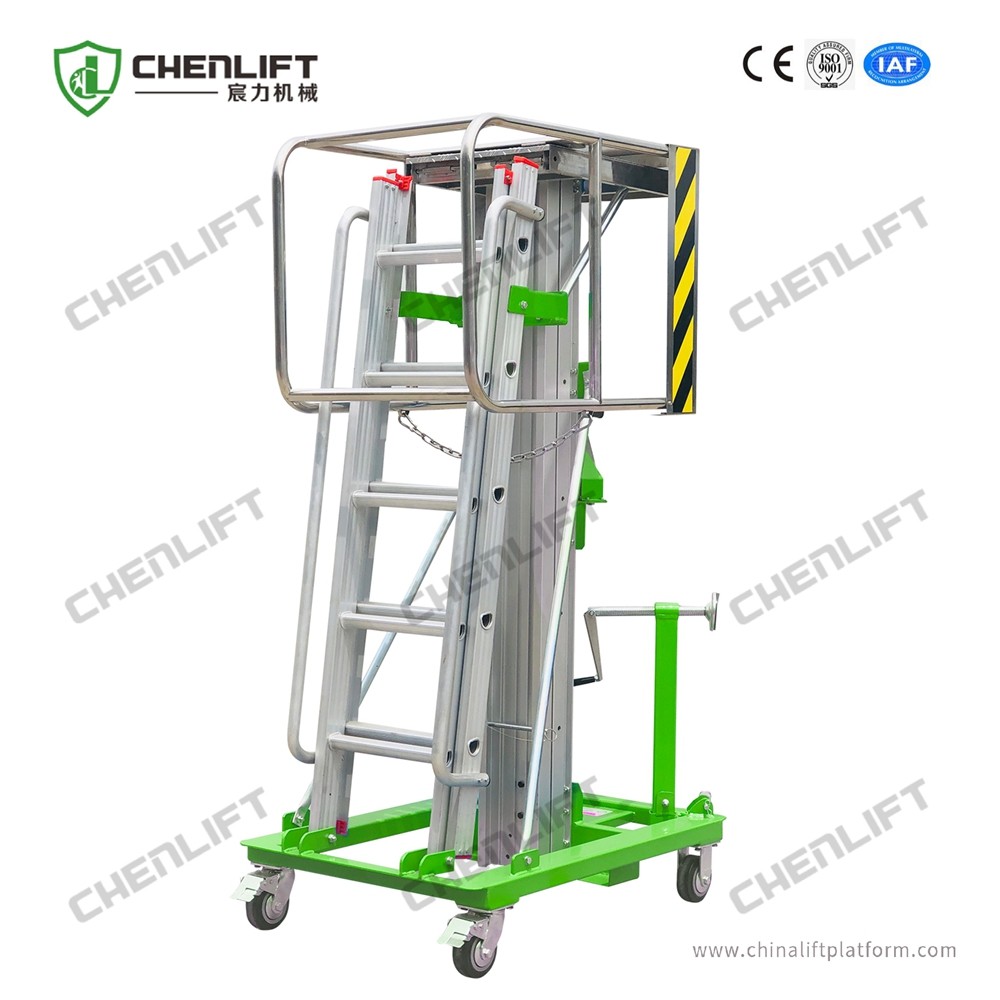

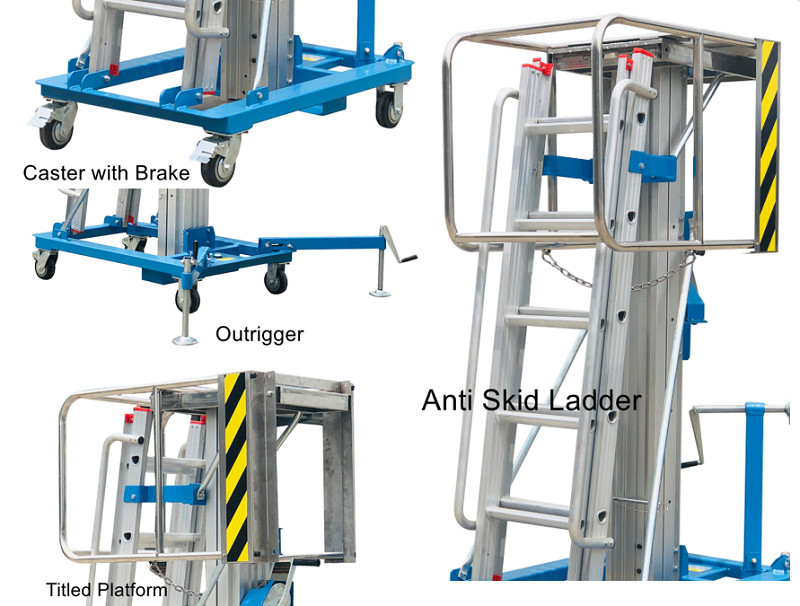

An economical alternative to electro-hydraulic lifts, this Manual Winch Elevating Work Platform is simple to use and maintain. The lift is quickly elevated to the desired working height with a hand crank winch and then the user climbs a ladder to the platform. Built in safety features include a friction brake on the winch and outriggers that can be placed in an X pattern or rectangular. In addition, in case the cable is cut or snaps, a spring loaded mechanical stop engages as soon as tension is released from the cable, preventing a vertical drop.
The Manual Winch Elevating Work Platform is built tough to handle the day-to-day demands of industrial and commercial use. Getting those overhead jobs done requires a lift that is dependable. Designed to be handled and operated by one worker, it rolls easily from job to job and rolls easily through a standard doorway.
|Platform Height||3200 mm||4600mm|
|Platform Size||550*600 mm||550*600 mm|
|Load Capacity||125 kg||125 kg|
|Stowed Length||1200 mm||1300 mm|
|Stowed Width||750 mm||800 mm|
|Stowed Height||1980 mm||2070 mm|
|Ground Clearance||70 mm||70 mm|
|Machine Weight||145 kg||190 kg|
|Move Mode||Push by manpower||Push by manpower|
|Casters||6 in||6 in|
Chenlift (Suzhou) Machinery Co Ltd. Is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application.
We have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America, Europe and Africa.
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommended to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
