3.2m Platform Height Manual Winch Elevating Lift with 125kg Load

3.2m Platform Height Manual Winch Elevating Lift with 125kg Load

  • 3.2m Platform Height Manual Winch Elevating Lift with 125kg Load
3.2m Platform Height Manual Winch Elevating Lift with 125kg Load
Product Details:
Place of Origin: China
Brand Name: CHENLIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: SP32
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wrapped in pallet or in wooden case
Delivery Time: 30day after down payment
Payment Terms: T/T L/C
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Platform Size: 0.55*0.6m Max Platform Height: 3.2m
Max Working Height: 5.2m Machine Weight: 145kg
Operation Mode: Manual Move Mode: Push By Manpower
High Light:

hydraulic drum lift

,

forklift drum handler

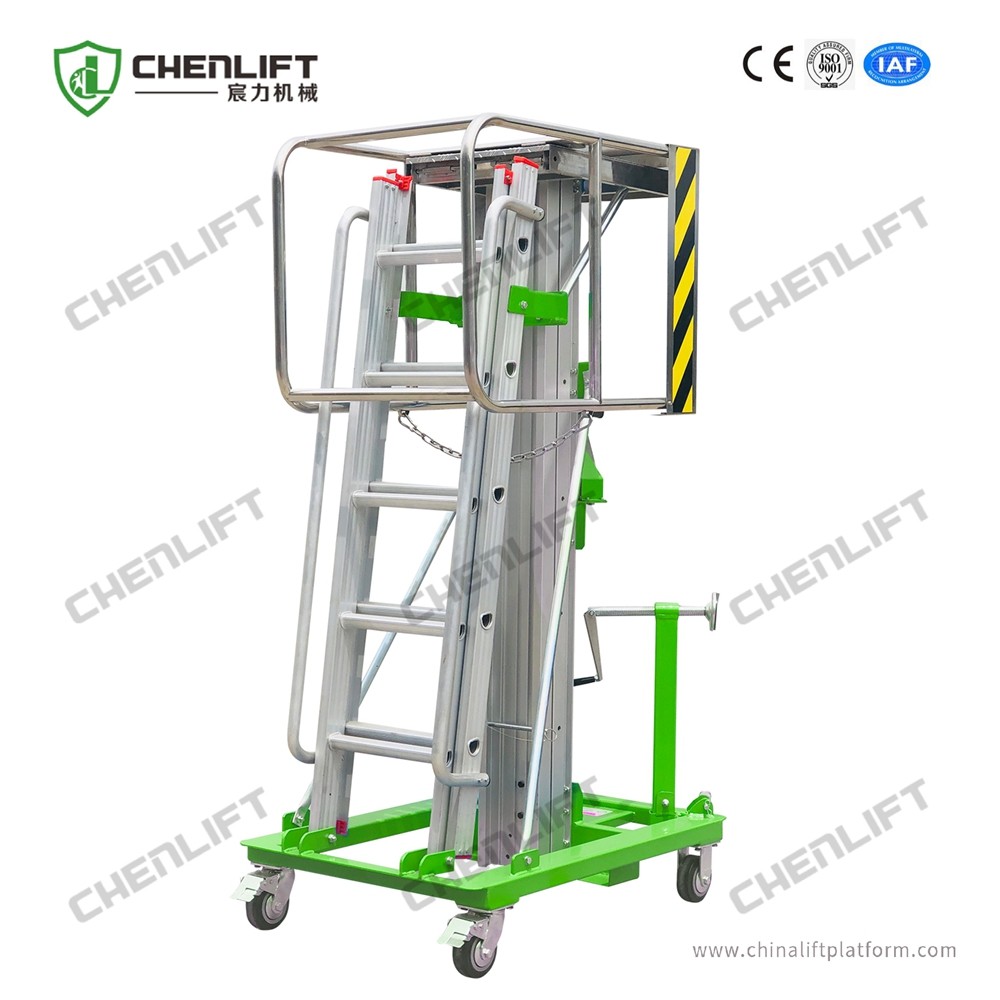

3.2m Platform Height Manual Winch Elevating Lift with 125kg Load


An economical alternative to electro-hydraulic lifts, this Manual Winch Elevating Work Platform is simple to use and maintain. The lift is quickly elevated to the desired working height with a hand crank winch and then the user climbs a ladder to the platform. Built in safety features include a friction brake on the winch and outriggers that can be placed in an X pattern or rectangular. In addition, in case the cable is cut or snaps, a spring loaded mechanical stop engages as soon as tension is released from the cable, preventing a vertical drop.
The Manual Winch Elevating Work Platform is built tough to handle the day-to-day demands of industrial and commercial use. Getting those overhead jobs done requires a lift that is dependable. Designed to be handled and operated by one worker, it rolls easily from job to job and rolls easily through a standard doorway.

3.2m Platform Height Manual Winch Elevating Lift with 125kg Load 0

Specification

Model SP32 SP46
Platform Height 3200 mm 4600mm
Platform Size 550*600 mm 550*600 mm
Load Capacity 125 kg 125 kg
Stowed Length 1200 mm 1300 mm
Stowed Width 750 mm 800 mm
Stowed Height 1980 mm 2070 mm
Ground Clearance 70 mm 70 mm
Machine Weight 145 kg 190 kg
Operation Mode Manual Manual
Move Mode Push by manpower Push by manpower
Casters 6 in 6 in


Highlight

  1. Exclusive built manual hand winch features heavy duty brake
  2. Large 550*600mm skid-resistant platform with toe boards and tubular guardrails
  3. Smooth rolling 6 in casters for easy movement
  4. Compact design allows easy movement of the unit through standard doorways



Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommended to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
