|Place of Origin:||China|
|Brand Name:||CHEN LIFT|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wrapped in pallets|
|Delivery Time:||30 days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||100 sets/month|
|Lifting Height-“up”:||6.46 M||Lifting Height–“down”:||5.94 M|
|Load At 46cm:||295kg||Load At 61cm:||272 Kg|
|Load At 1.07m:||159 Kg||Weight:||184 Kg|
portable material lifts,
manual lift equipment

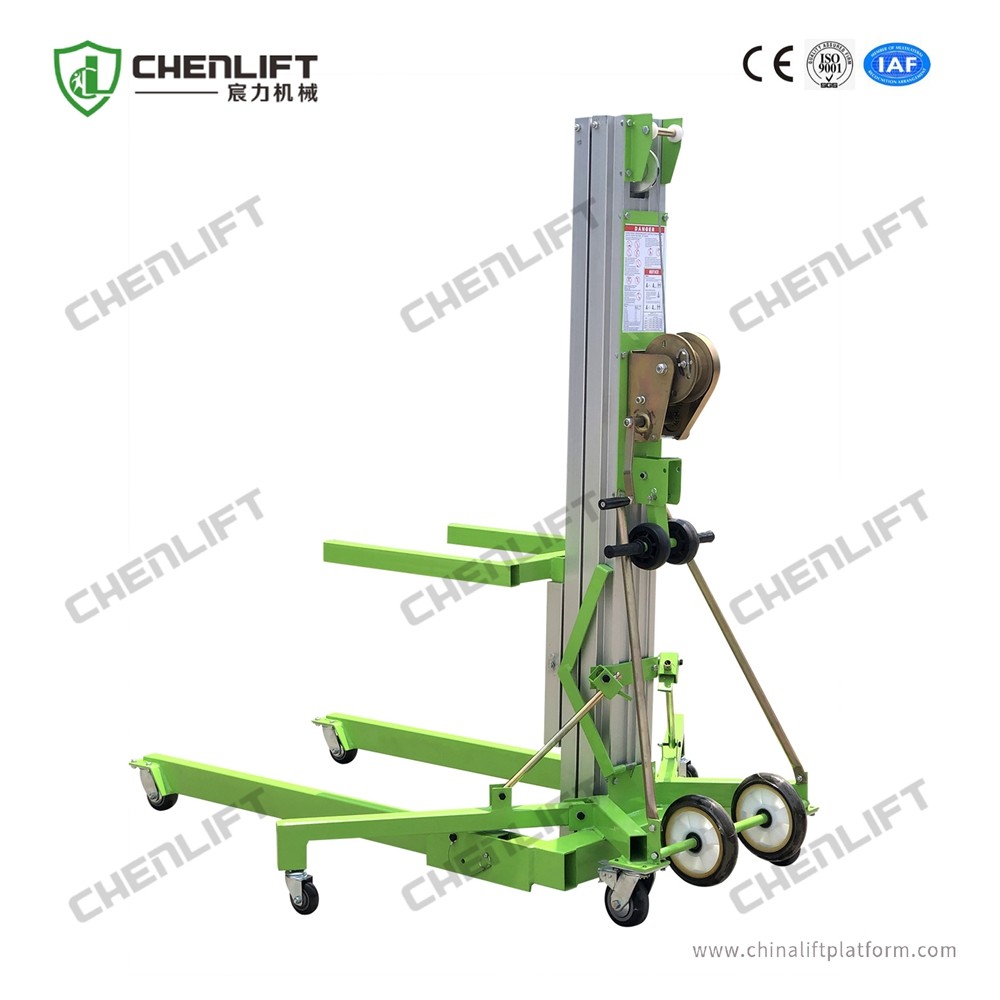

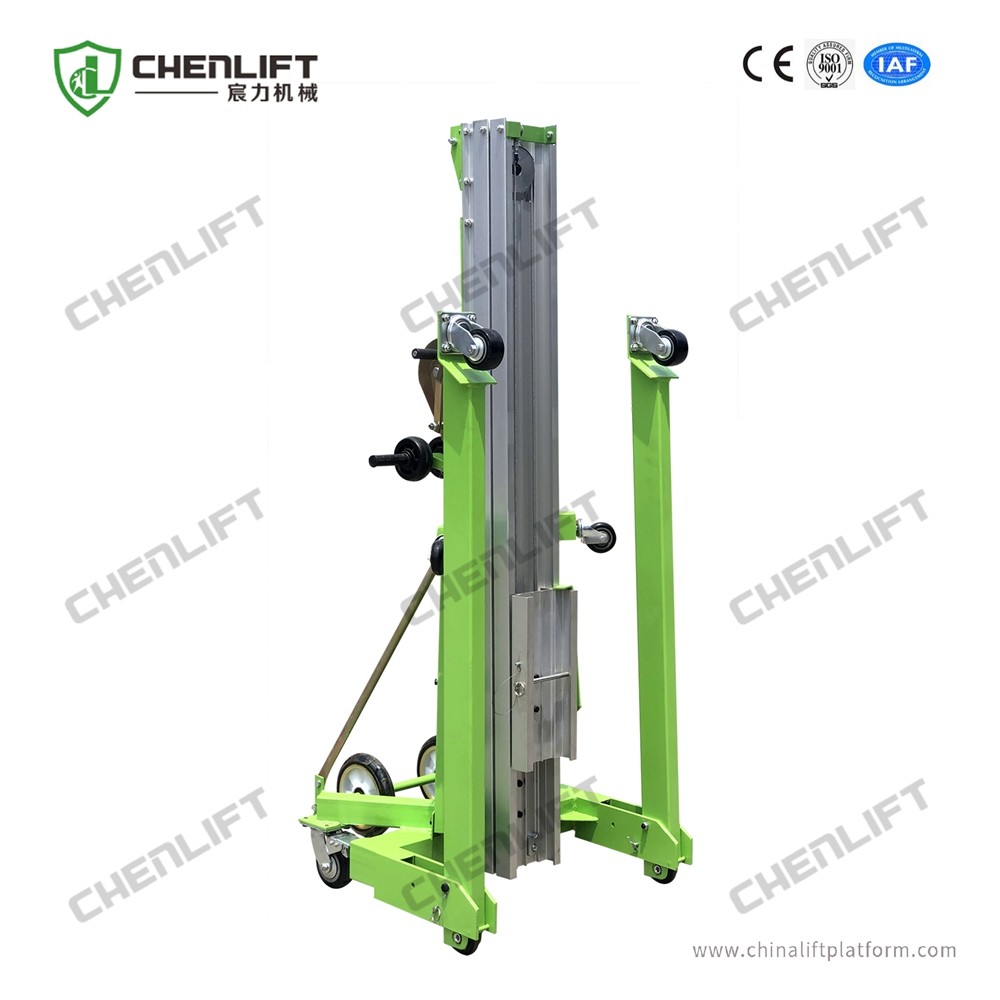

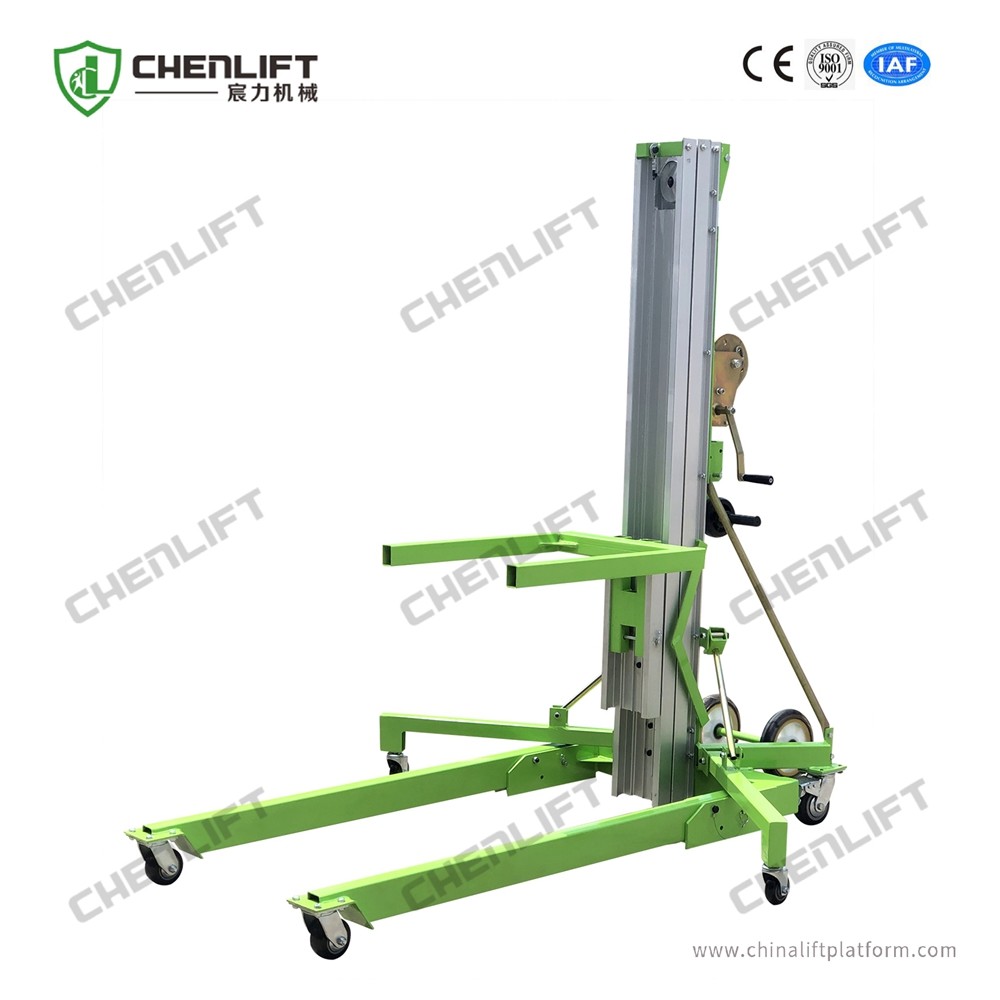

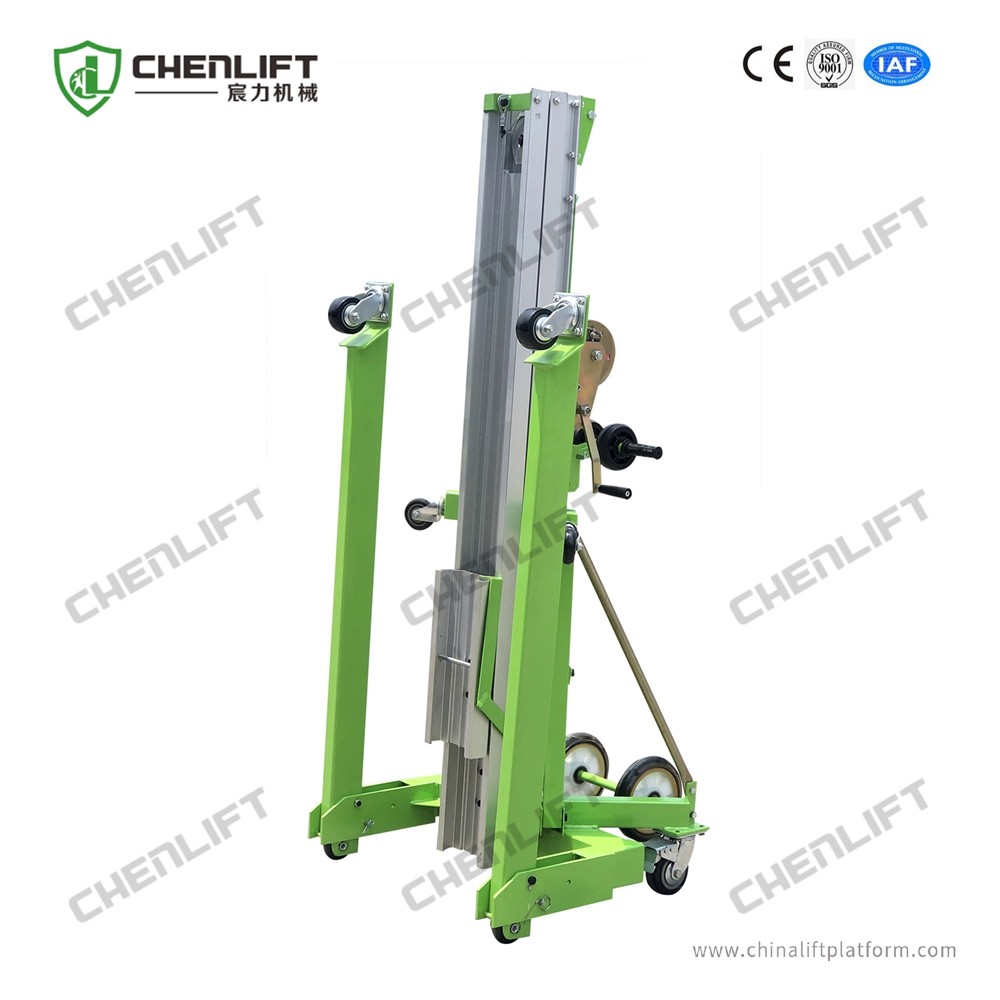

Portable Manual Material Lift Cargo Lifting Platform 300Kg Loading Capacity
Manually operated material lift with multiple base, winch and load handling options to create just the lift you need. The compact, portable design rolls through standard single doorways and it is easy for one person to set up, operate and transport in a standard pickup or service truck. Maneuverable front casters and rear casters with swivel locks. Plus, a wide variety of options and accessories make them extremely adaptable to fit your specific needs.
With the material lift, one person can easily lift, move and position. It can lift heavy loads up to 262kg to a height of 6-8m in and stores easily with dimensions of 200x78.9x80cm
Major Parameter of Material Lift
|Standard forks-down||1.49 m||2.97 m||4.46 m||5.94 m||7.42 m|
|Standard forks-up||2 m||3.49 m||4.98 m||6.46 m||7.94 m|
|Flat forks||1.49 m||2.97 m||4.46 m||---||---|
|1.49 m||2.97 m||4.46 m||5.94 m||7.42 m|
|2 m||3.49 m||4.98 m||6.46 m||7.94 m|
|1.99*0.74*0.8 m||1.99*0.74*0.8 m||1.99*0.74*0.8 m||1.99*0.74*0.8 m||1.99*0.79*0.8 m|
|Working Length||1.51 m||1.51 m||1.88 m||2.08 m||2.08 m|
|Ground clearance-center||0.05 m||0.05 m||0.05 m||0.05 m||0.05 m|
|Load Height Minimum||0.15 m||0.15 m||0.15 m||0.15 m||0.15 m|
|18 in (46cm) load center||454 kg||454 kg||363 kg||363 kg||295 kg|
|24 in (61cm) load center||454 kg||454 kg||363 kg||272 kg||204 kg|
|42 in (107cm) load center||159 kg||181 kg||227 kg||159 kg||113 kg|
|Weight||98 kg||118 kg||151 kg||184 kg||204 kg|
1. Manual Lifting,No Need Electric Power. Suitable For Places Where Electric Power is Unavailable.
2. Made by aluminum alloy material, light weight is suitable for one man operation.
3. Special aluminum mast and roller device between the mast. the stability is good.
4. Support legs structure of dual protection, make the working more security.

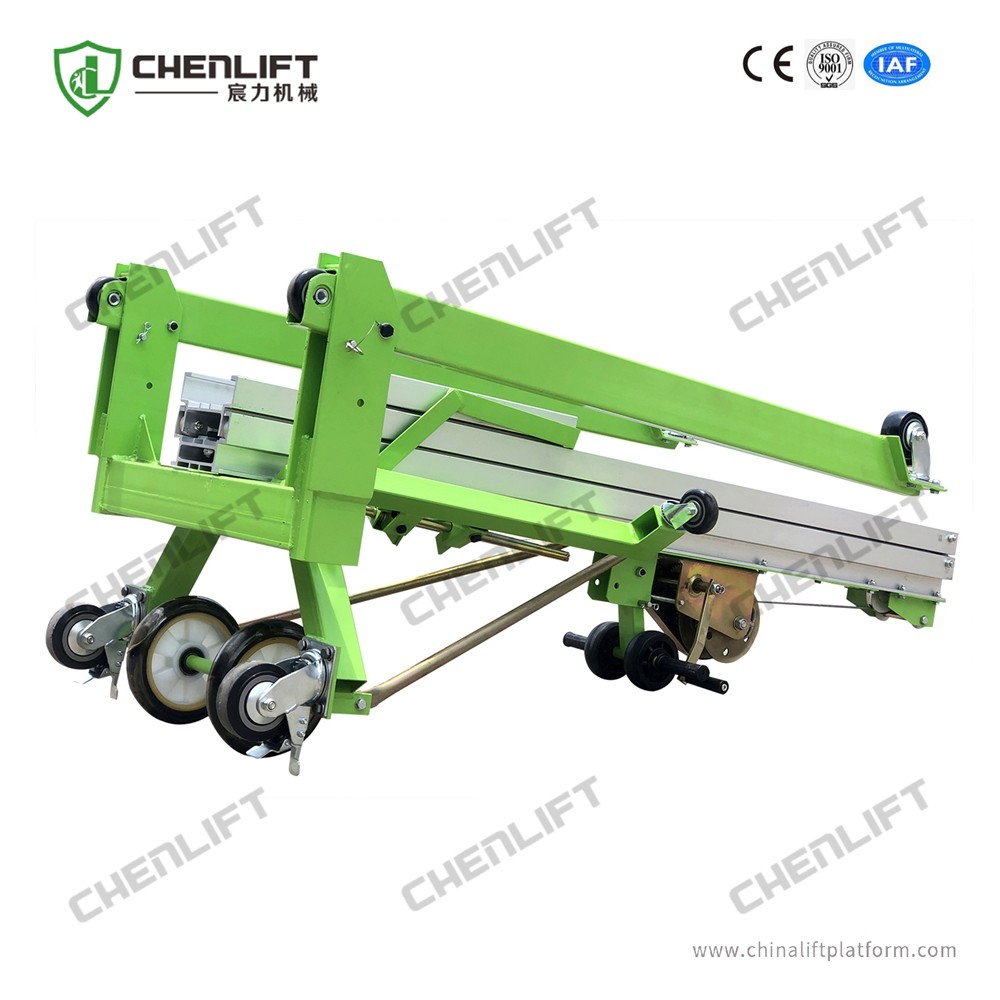

5. Equipped With Inclined Side Wheels And Can be Put Down On Truck For Easy Transportation.
6. Adopting The Working Principle of Pulley And Reduce The Man Power Greatly.
Aluminum Material Lift is famous for its light weight and high lift with forks. Aluminum Material Lifts are widely use in outdoors and indoors working, such as warehouse, home, hotel, airport and so on. It becomes a ideal equipment for aerial working.
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
