SP32 Model 125kg Load Manual Winch Elevating Lift Platform with Tilted Platform

SP32 Model 125kg Load Manual Winch Elevating Lift Platform with Tilted Platform

  • SP32 Model 125kg Load Manual Winch Elevating Lift Platform with Tilted Platform
SP32 Model 125kg Load Manual Winch Elevating Lift Platform with Tilted Platform
Product Details:
Place of Origin: China
Brand Name: CHENLIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: SP32
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 200 sets/month
Contact Now
Detailed Product Description
Max Platform Height: 3.2m Max Working Height: 5.2m
Load Capacity: 125kg Stowed Size: 1.2*0.75*1.98m
Casters: 6in
High Light:

hydraulic drum lift

,

forklift drum handler

SP32 Model 125kg Load Manual Winch Elevating Lift Platform with Tilted Platform



Specification

Model SP32 SP46
Platform Height 3200 mm 4600mm
Platform Size 550*600 mm 550*600 mm
Load Capacity 125 kg 125 kg
Stowed Length 1200 mm 1300 mm
Stowed Width 750 mm 800 mm
Stowed Height 1980 mm 2070 mm
Ground Clearance 70 mm 70 mm
Machine Weight 145 kg 190 kg
Operation Mode Manual Manual
Move Mode Push by manpower Push by manpower
Casters 6 in 6 in



An economical alternative to electro-hydraulic lifts, this Manual Winch Elevating Work Platform is simple to use and maintain. The lift is quickly elevated to the desired working height with a hand crank winch and then the user climbs a ladder to the platform. Built in safety features include a friction brake on the winch and outriggers that can be placed in an X pattern or rectangular. In addition, in case the cable is cut or snaps, a spring loaded mechanical stop engages as soon as tension is released from the cable, preventing a vertical drop.


Highlight

  1. Exclusive built manual hand winch features heavy duty brake
  2. Large 550*600mm skid-resistant platform with toe boards and tubular guardrails
  3. Smooth rolling 6 in casters for easy movement
  4. Compact design allows easy movement of the unit through standard doorways

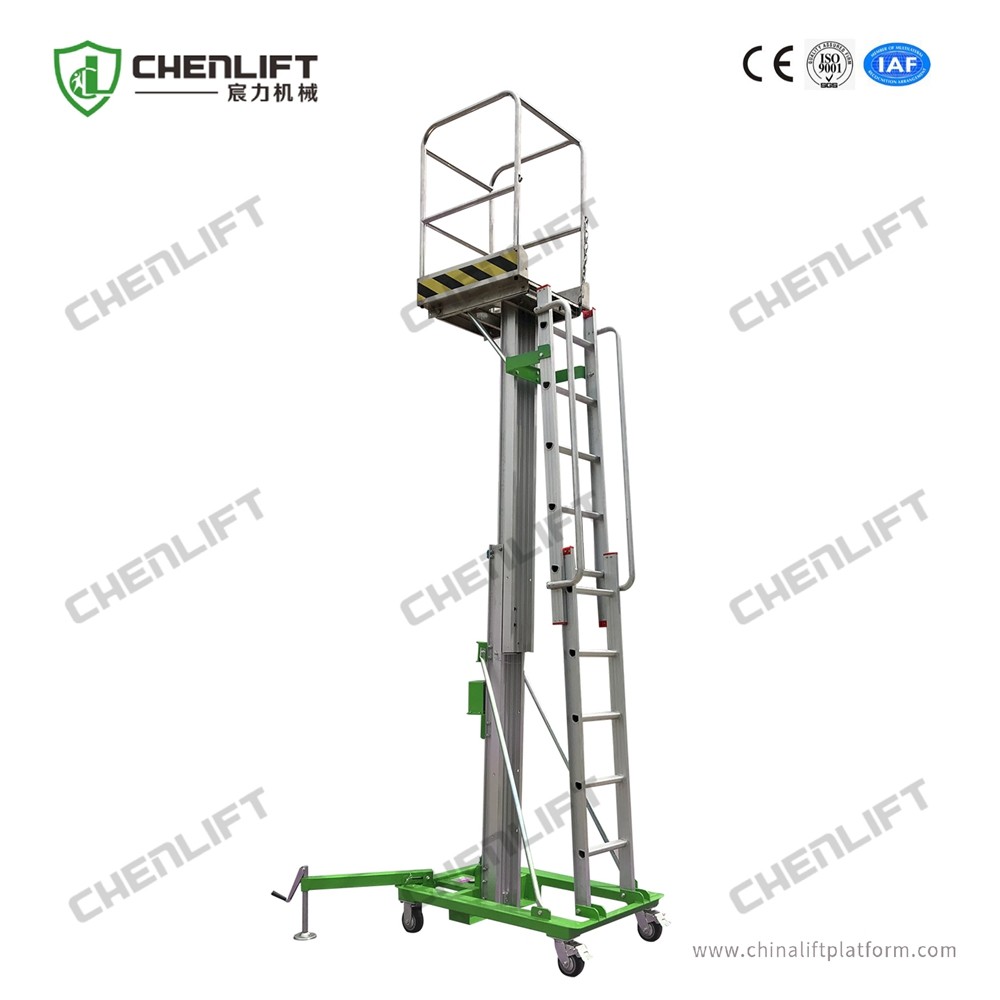

SP32 Model 125kg Load Manual Winch Elevating Lift Platform with Tilted Platform 0
