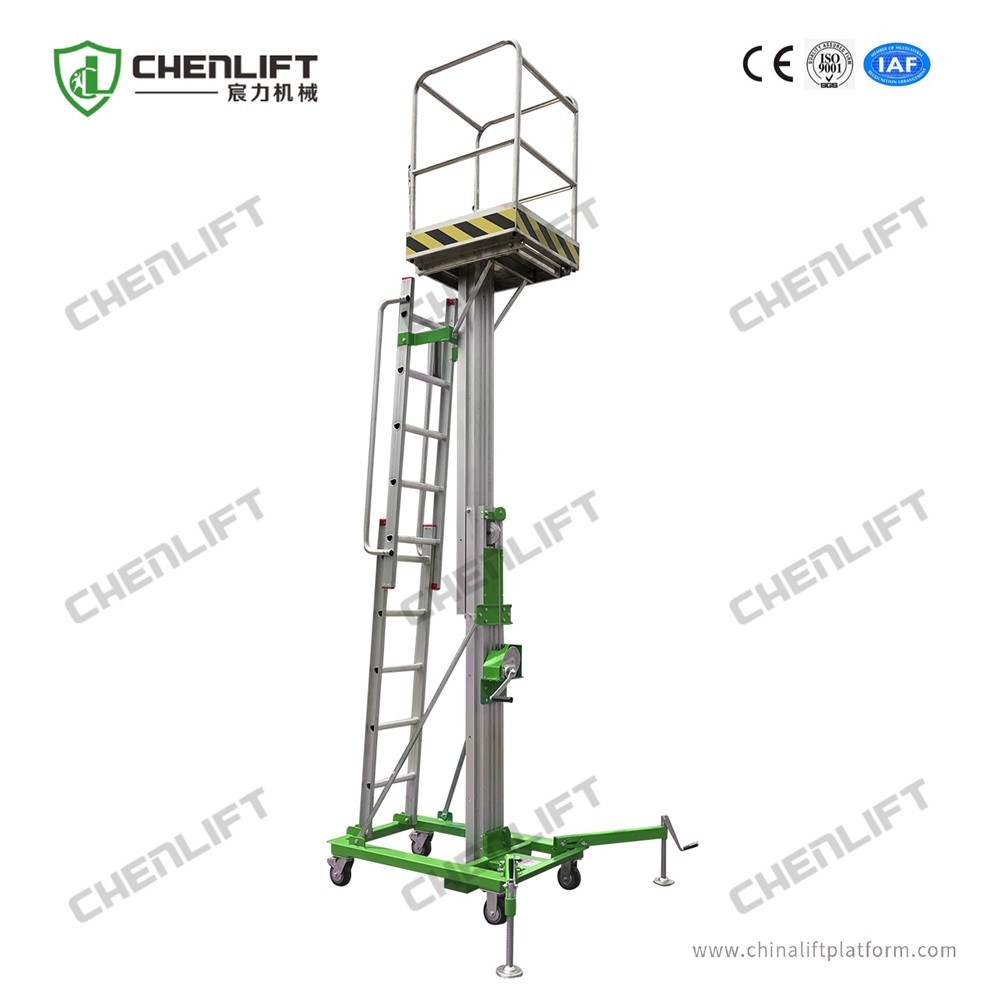

5.2m Working Height CE Standard Green Color Manual Winch Elevating Lift

Basic Information

Place of Origin:	China
Brand Name:	CHENLIFT
Certification:	CE ISO9001:2008 IPAF member
Model Number:	SP32

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wrapped in pallets
Delivery Time:	30 days
Payment Terms:	T/T L/C
Supply Ability:	200 sets/month

Get Best Price Contact Now

Detail Information

Platform Size:	0.55*0.6m	Max Platform Height:	3.2m
Max Working Height:	5.2m	Move Mode:	Push By Manpower
Casters:	6in
Highlight:	hydraulic drum lift , forklift drum handler

Product Description

5.2m Working Height CE Standard Green Color Manual Winch Elevating Lift

The Manual Winch Elevating Work Platform is built tough to handle the day-to-day demands of industrial and commercial use. Getting those overhead jobs done requires a lift that is dependable. Designed to be handled and operated by one worker, it rolls easily from job to job and rolls easily through a standard doorway.

Specification

Model	SP32	SP46
Platform Height	3200 mm	4600mm
Platform Size	550*600 mm	550*600 mm
Load Capacity	125 kg	125 kg
Stowed Length	1200 mm	1300 mm
Stowed Width	750 mm	800 mm
Stowed Height	1980 mm	2070 mm
Ground Clearance	70 mm	70 mm
Machine Weight	145 kg	190 kg
Operation Mode	Manual	Manual
Move Mode	Push by manpower	Push by manpower
Casters	6 in	6 in

Highlight

Exclusive built manual hand winch features heavy duty brake
Large 550*600mm skid-resistant platform with toe boards and tubular guardrails
Smooth rolling 6 in casters for easy movement
Compact design allows easy movement of the unit through standard doorways
